REC-ZCF3-30

SKU 1.103-513.0 Categories ,
  • Plug and play filtering
  • Standard stainless steel skid
  • Two media filters with automatic back washing
  • Two automatic control valves

Water Maze

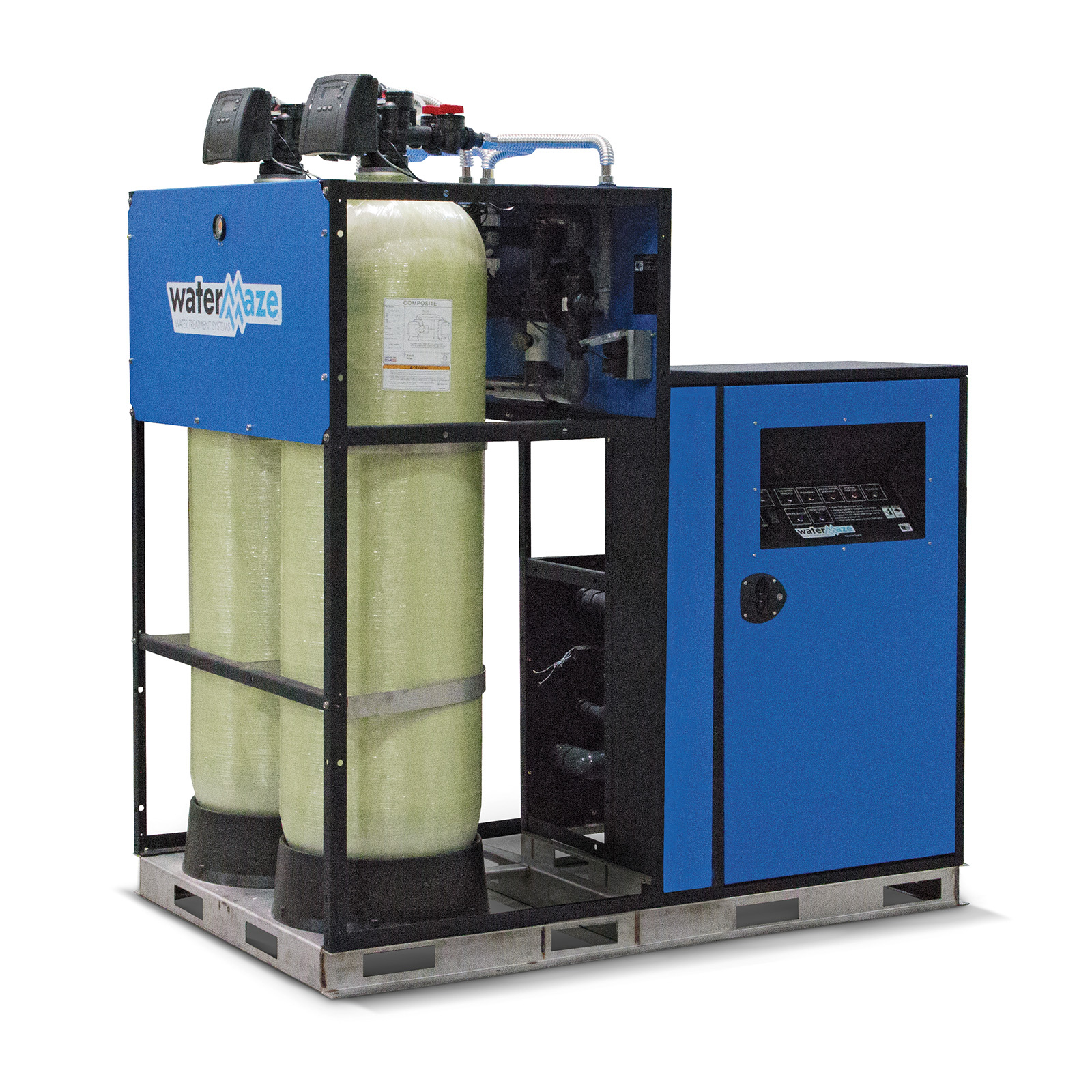

The REC-ZCF3-30 is a major advance in filtration performance. Delivering superior recycled water quality with fully automatic operation, the plug-and-play unit is pre-piped and wired, ready for connection to tanks and wash process. Flexible programming and self-cleaning backwash cycles enables large volumes of waste water to recycle while generating a minimum amount of waste volume. Using robust, industry-standard components built into a highly functional structural steel frame with a stainless steel base. The REC-ZCF3-30 is a powerful and flexible pumping and filtration system that can serve as the hub of a wide range of water treatment, recycling, and discharge options.

Models

Model Part No Description Filtration Rate GPM Transfer Rate GPM Voltage Phase Amps
REC-ZCF3-30A 1.103-513.0 Pumping & Filtration System Up to 20 Up to 30 230 1 20
REC-ZCF3-30A Special Special REC-ZCF3-30 with 2 HP Self-Priming Pump Up to 40 230 1 20
REC-ZCF2 Special Pumping & Filtration System with 3 pumps: in-feed, circulation, and transfer pumps Up to 20 Up to 30 230 1 36
REC-ZCF2-1 Special Pumping & Filtration System with 3 pumps and one media housing: in-feed, circulation, and transfer pumps Up to 10 Up to 30 230 1 36
REC-ZCF1 Special One media housing (1.103-513.0 single pump system only) Up to 10 230 1 20

Dimensions (LxWxH):
REC-ZCF: 70” x 49” x 81”
ZCF: 46” x 34” x 81”
REC: 38” x 31” x 53”

Options

Part No Description
8.928-603.0 Ozone Generator Kit for REC-ZCF3-30A & REC3-30A ONLY*

*Factory Install Only

Literature

REC-ZCF3-30 Product Sheet Product Sheet – Water Maze REC-ZCF3-30A
