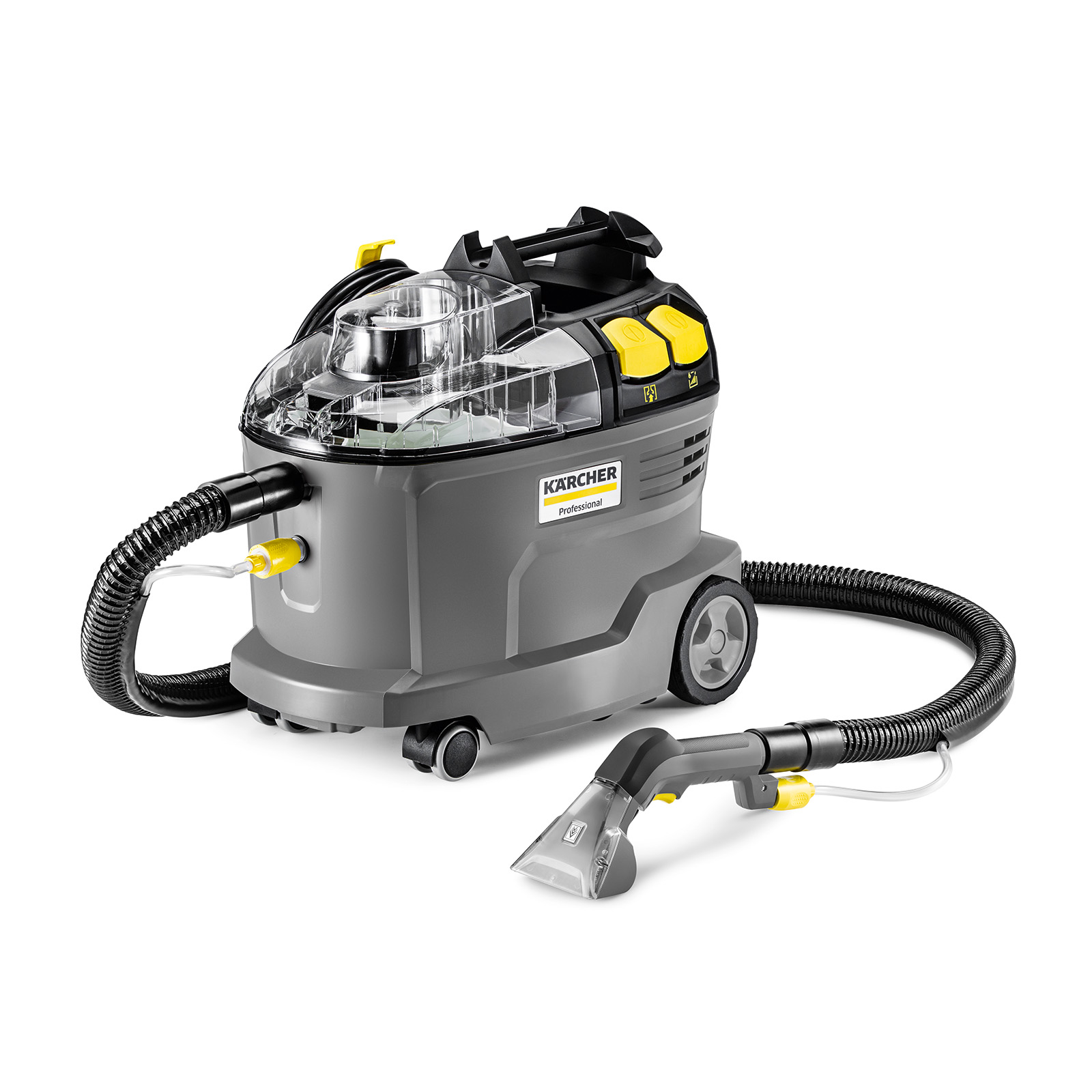

Karcher PUZZI 8/1 C

SKU: 1.100-228.0 Category:
  • Foot switch makes it easy to turn on and off – no bending required
  • Transparent dome lid for easy-to verify operation
  • Swivel casters for easy maneuvering

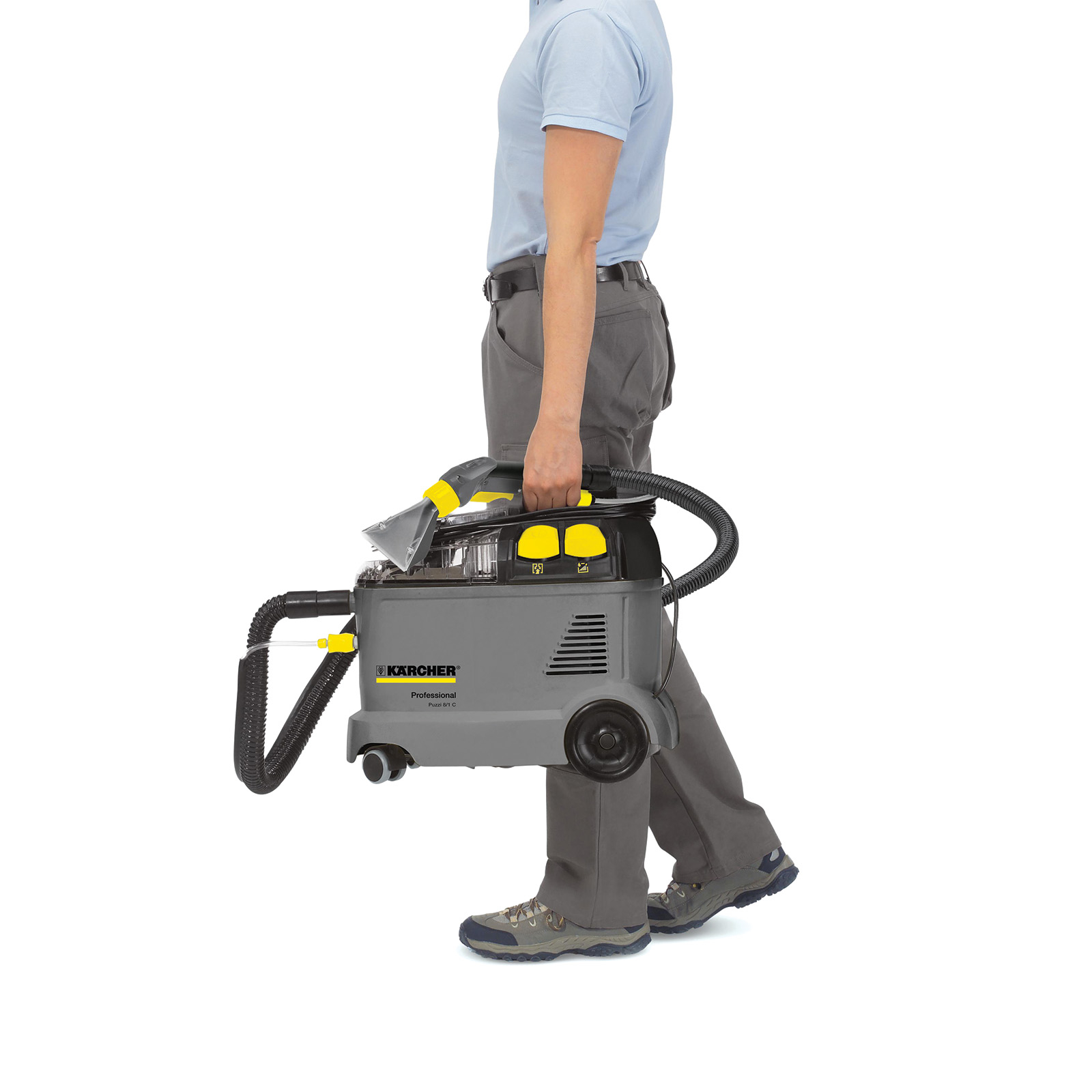

  • Lightweight – at only 19 lbs., it can be easily transported
  • 8′ high-pressure solution and vacuum hose
  • Removable dirty water tank

Karcher logo


Handy and compact for easy spot cleaning.

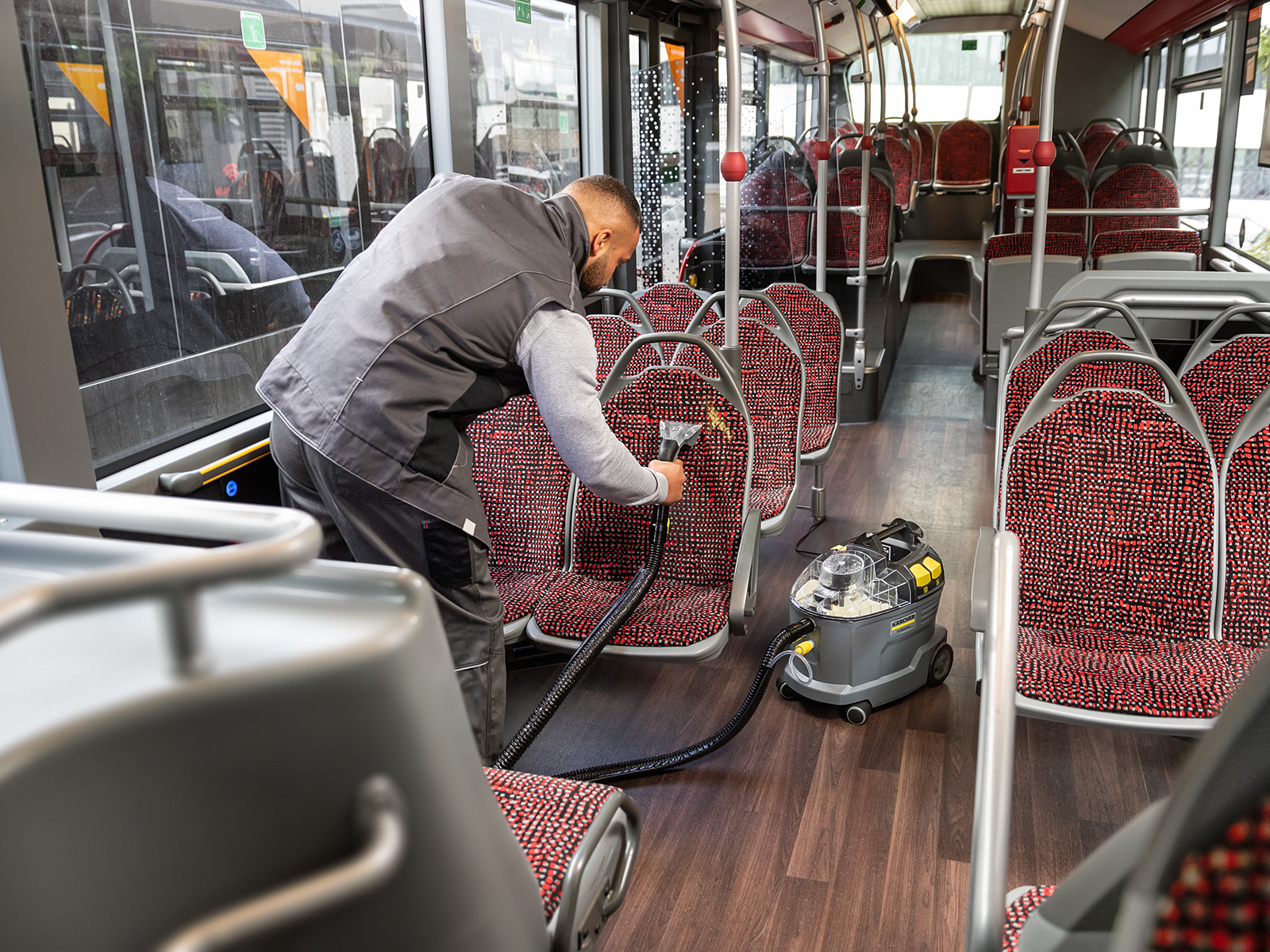

The Puzzi 8/1 C spray-extraction unit can be used efficiently for upholstery cleaning or for spot cleaning on carpeted floors. Because of the very low residual moisture, cleaned carpets and upholstery dry faster and can be used again more quickly.

US Green Building Council LEED Seal


Technical Specifications
Solution / recovery capacityGal2 / 1.8
Operating noise leveldBA71
Power cord lengthFt33
VacuumHP Stage1.5 HP
Pump pressurePSI14.5 - 43.5
Flow rateGPM0.26
Dimensions (LxWxH)Inch20.8 x 13 x 17.3


Part NoDescription
1.100-228.0PuzziTM 8/1 C , 98 inch spray hose with integrated water feed and hand tool


Part No.Description
6.391-410.08-foot hose, complete with couplings
4.130-116.04-inch upholstery hand tool
4.130-127.0Floor wand, 2-part with aluminum tube
4.130-394.0Floor wand, quick-action coupling, aluminum tube and metal nozzle
4.762-220.0Hard surface kit (attaches to 4.130-127.0 & 4.130-394.0 wands)
2.638-778.0Window cleaning kit with 6.5Ft hose, (requires 2.389-293.0 coupler)
4.130-083.0Venetian blind kit (requires 6.389-293.0 coupler)
4.130-444.0Stair cleaning tool, 9-inch
6.391-411.013-foot high pressure solution & vacuum hose
4.130-117.0Stone & hard surface nozzle
4.762-219.0Hard surface adapter for standard hand tool

■ Included  □ Optional


Product Sheet - Karcher Puzzi 8/1 C Extractor
