Karcher B 150 R Bp

SKU B-150-R-BP Category

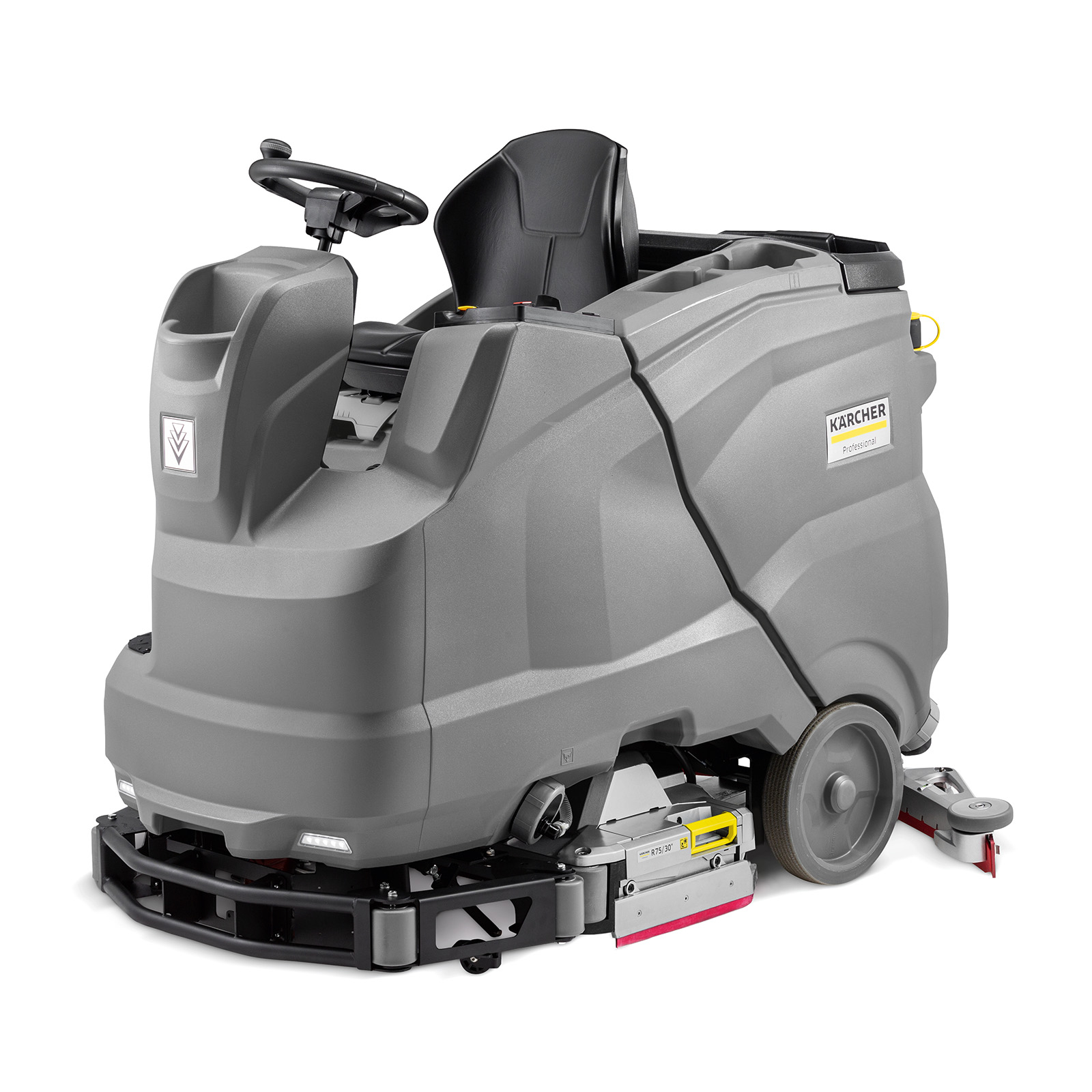

Karcher B 150 R Bp Riding Floor Scrubber

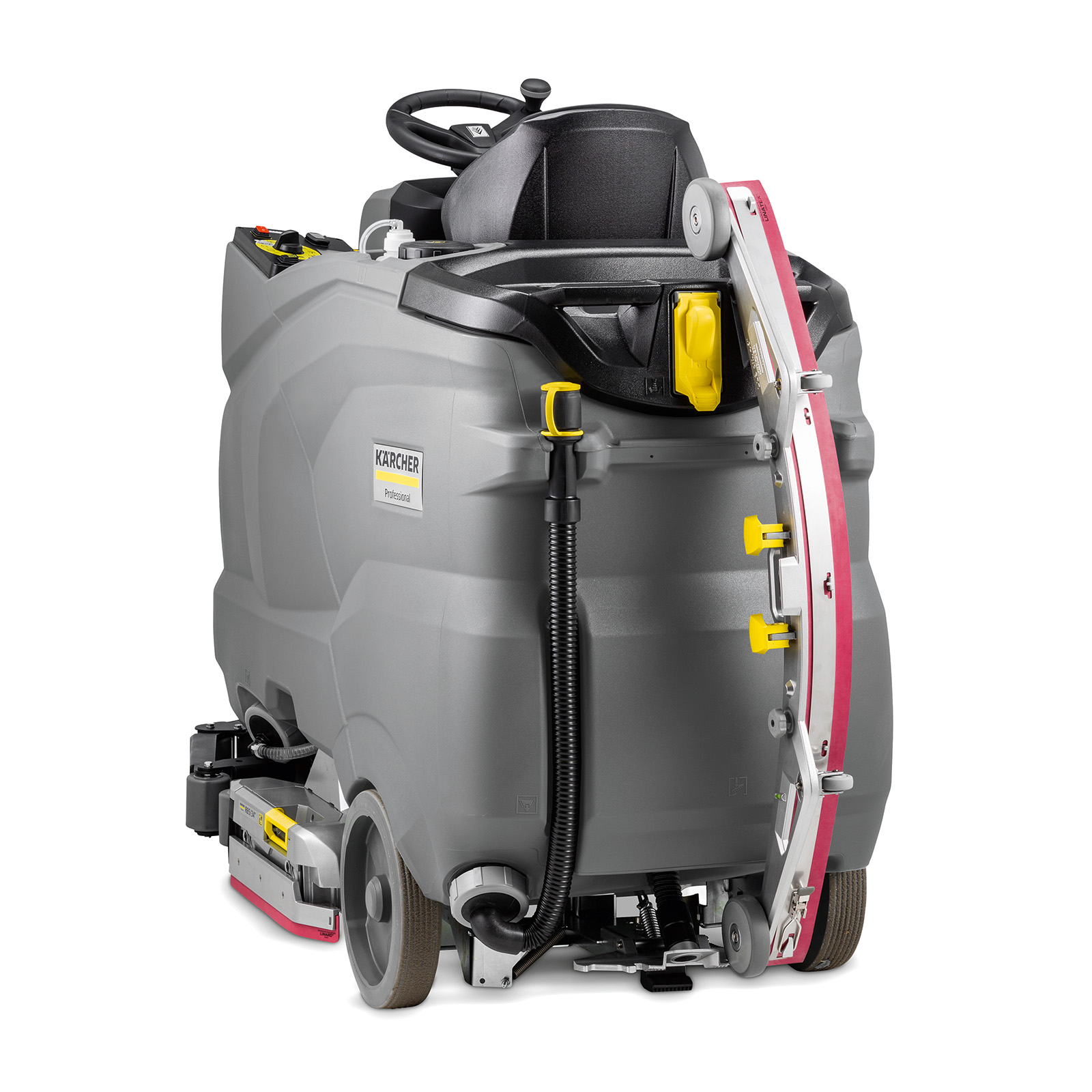

Karcher B 150 R Bp Suction Bar Mounting

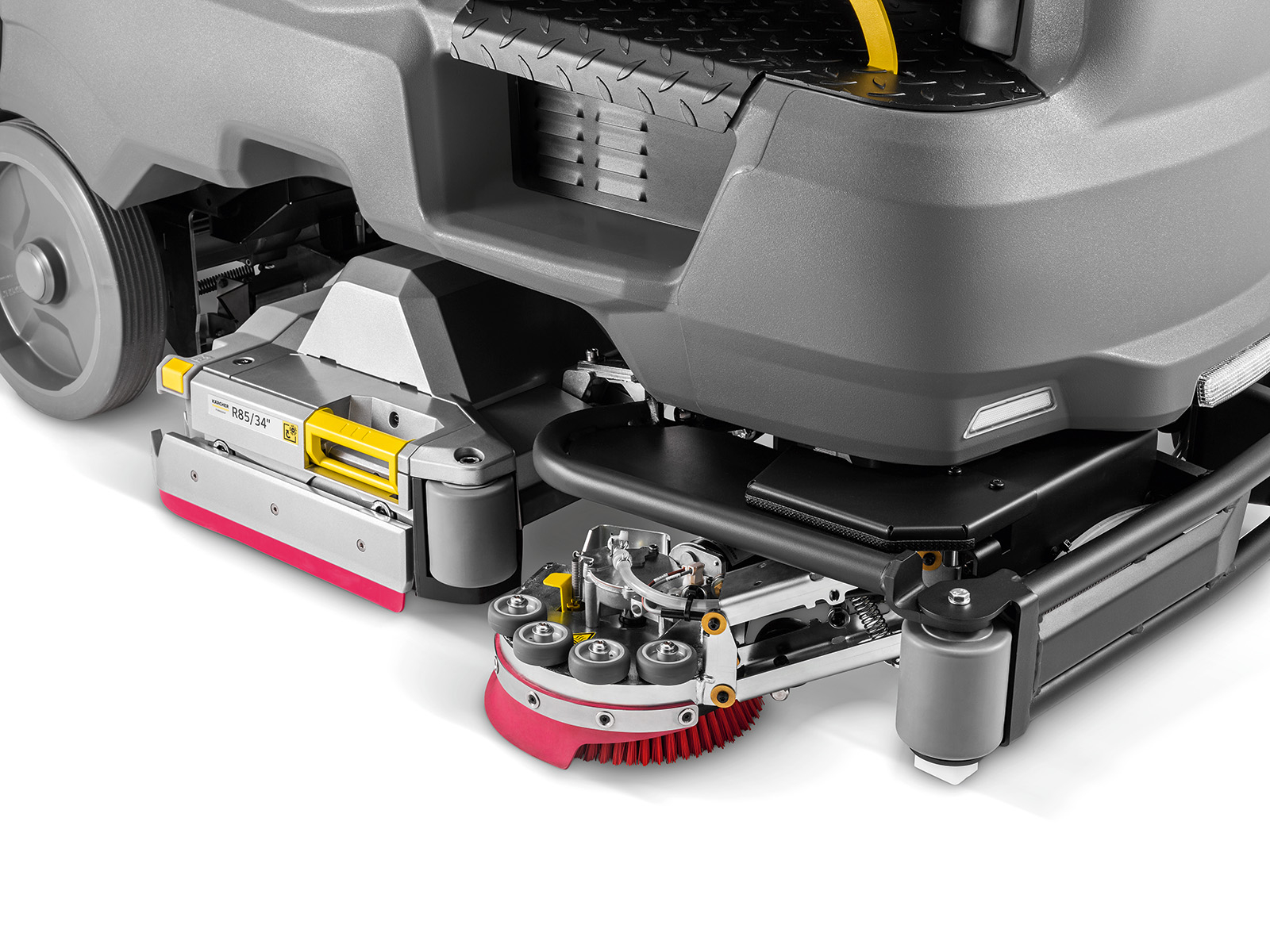

Karcher B 150 R Bp Scrubber Detail

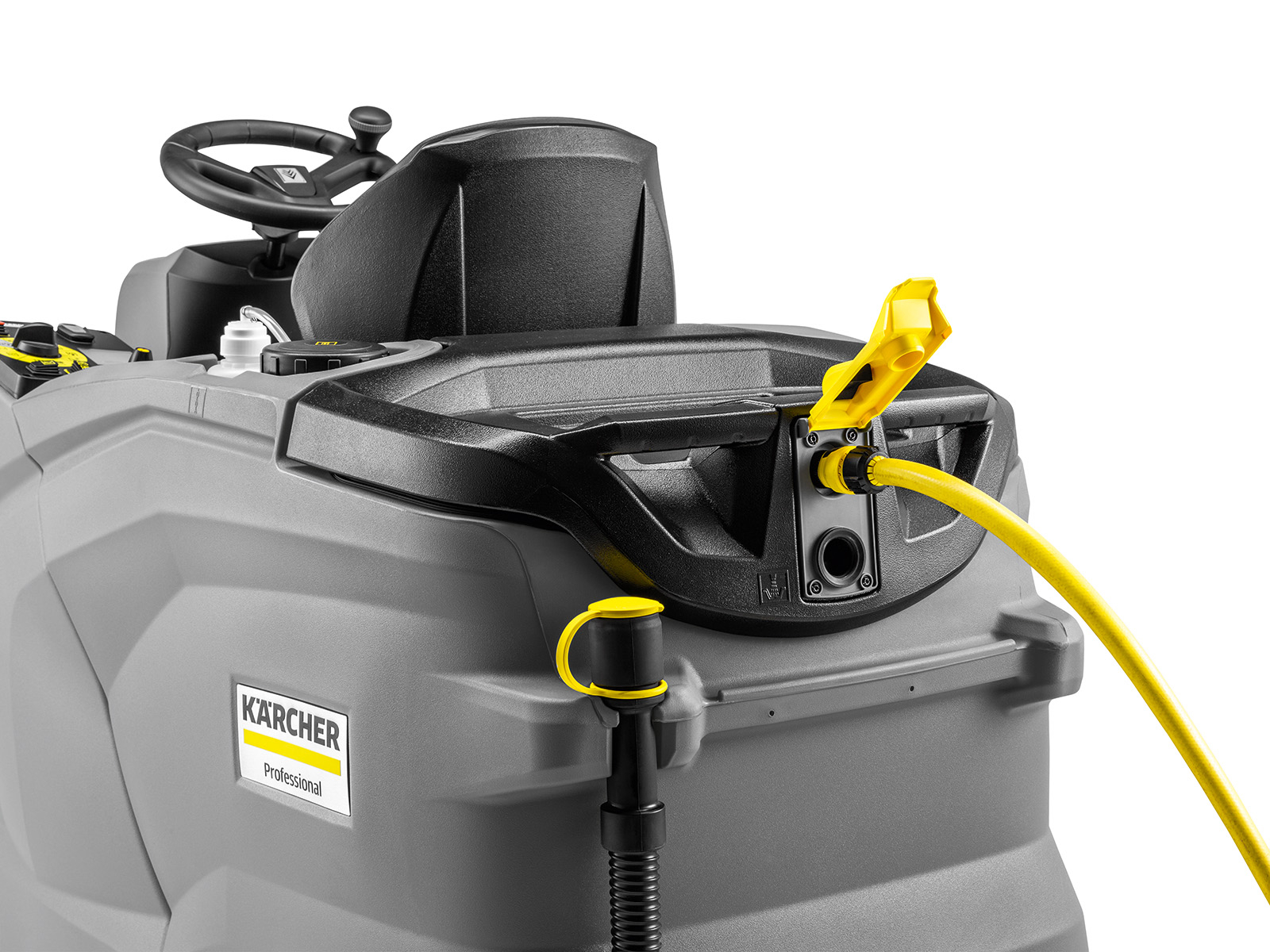

Karcher B 150 R Bp Charging Port

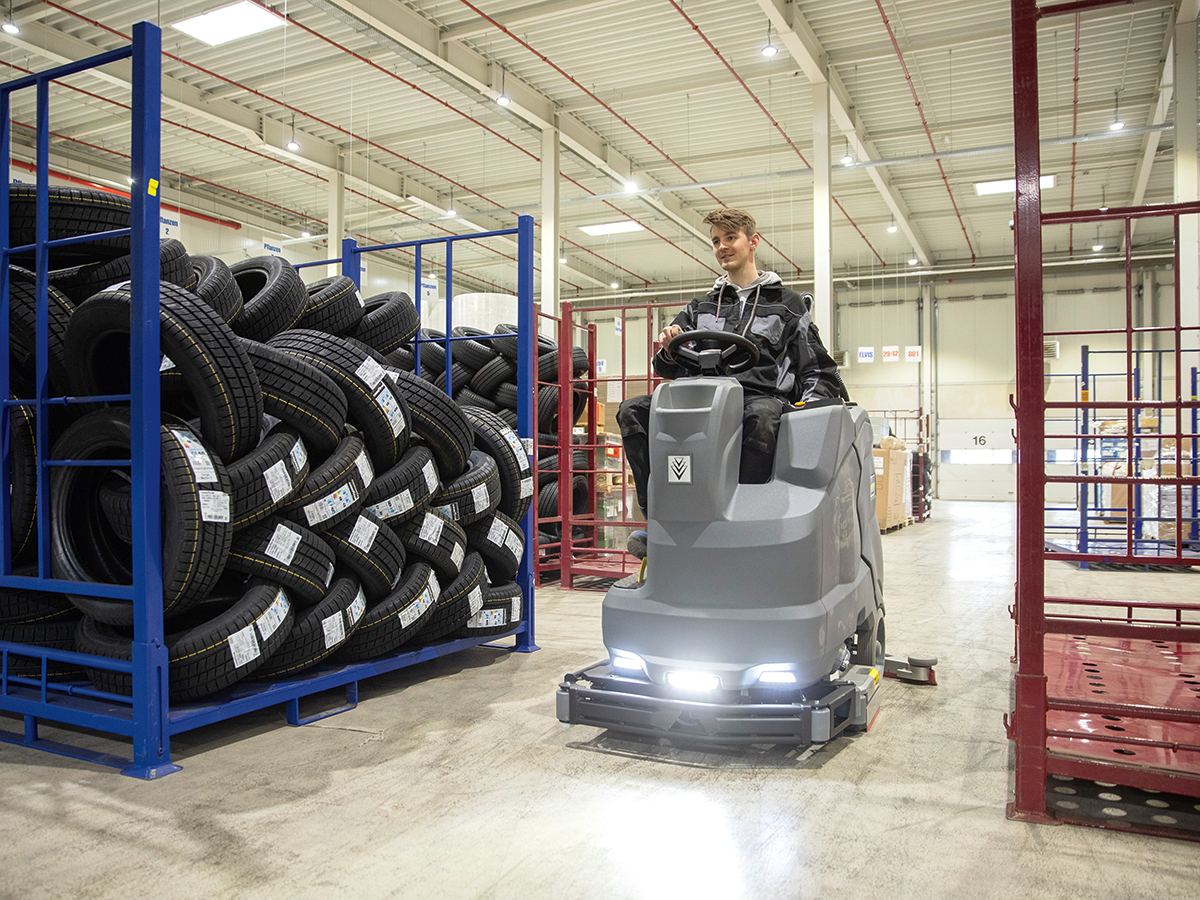

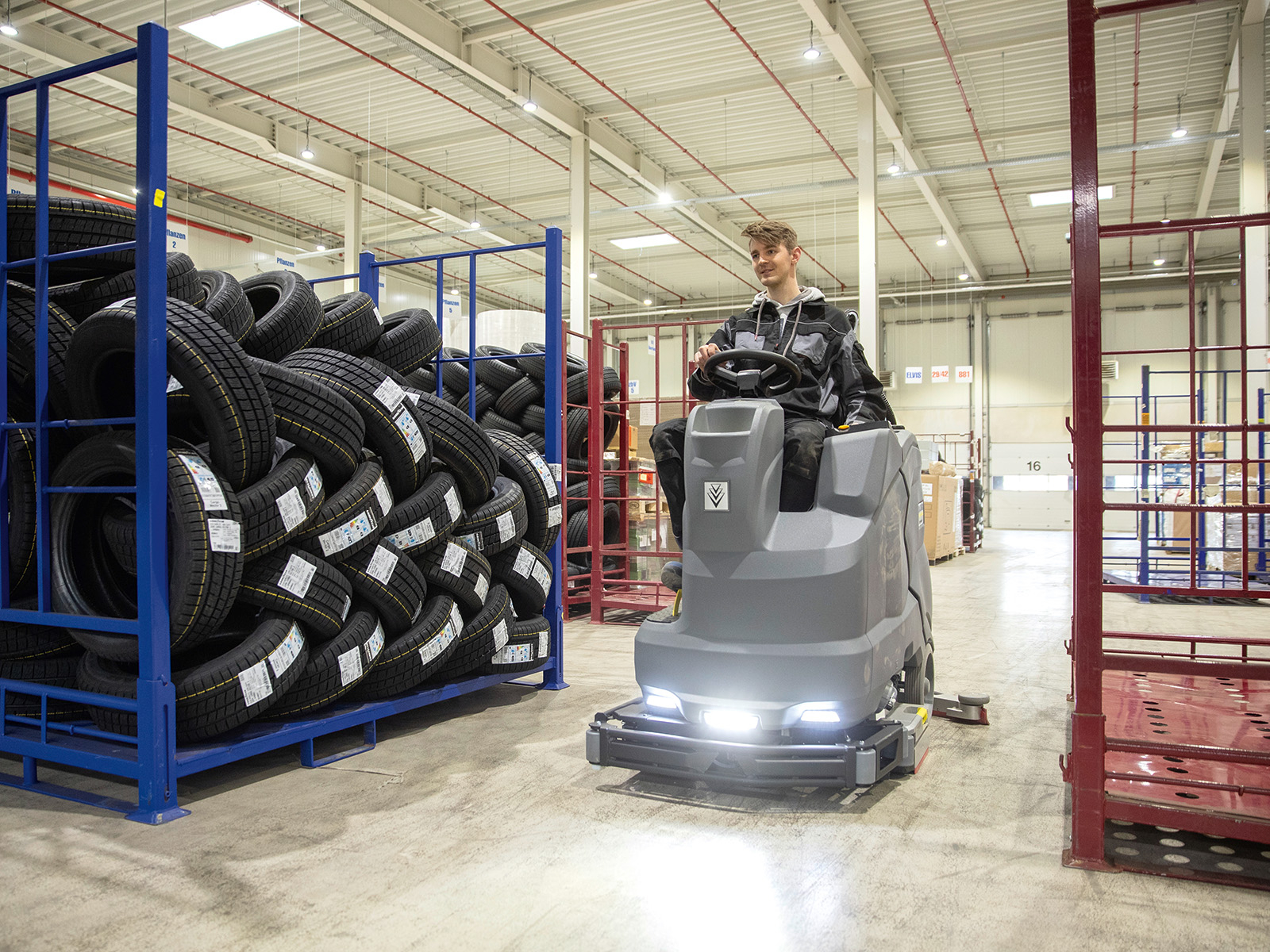

Karcher B 150 R Bp Scrubbing Tire Shop Floor
  • Cylindrical or Disc Scrub Deck
  • 30″ or 35″ Cleaning Path
  • 37″ or 42″ Suction Bar
  • Clean ramps with grades up to 18%
  • Features a unique all-wheel brake system for safety
  • Utilize the large color LCD screen to adjust everything to your needs including contact pressure, water volume, brush speed, etc.
  • Auto tank-rinsing and auto-fill come standard to allow the operator to do other tasks while rinse and fill are taking place

Models shown may include optional features

Karcher

Call to Order

Race into efficiency with the B 150.

The B 150 R can cover up to 58,125 ft­² per hour making this one impressively productive scrubber. In addition to covering large areas quickly, we made sure that it has great visibility for safety. The B 150 R ride-on scrubber drier is full of customer-oriented design features and accessories to make cleaning safer, more convenient and more productive. Thanks to features like interchangeable cleaning heads, automatic tank rinsing system, FLEX roller brush speed control, KIK (Karcher Intelligent Key), different batteries options and available dual side brush pre-sweep system, the B 150 can be equipped to tackle many industrial cleaning applications. This model includes a 305 Ah low-maintenance batteries and dual side brushes. Optional scrub deck is available.

KIK System Auto Fill Easy Operation  FACT System Configurable USGBC Leed Rating

Specifications

Technical Specifications   B 150 R + R 75 B 150 R + D 75 B 150 R + R 90 B 150 R + D 90
Cleaning path / width Inch 30 30 35 35
Brush type   Clyindrical Disc Clyindrical Disc
Brush quantity Units 2 2 2 2
Brush diameter Inch 3.5 7.5 3.5 17.7
Suction bar (squeegee) width Inch 37 37 47 47
Drive   Traction Traction Traction Traction
Solution / recovery capacity Gal 40 / 40 40 / 40 40 / 40 40 / 40
Theoretical / practical productivity Sq Ft/ Hr 48,438 / 31,485 48,438 / 31,485 58,125 / 37,780 58,125 / 37,780
Operating noise level – std / Eco! mode dBA 67 / 64 67 / 64 67 / 64 67 / 64
Battery charger   Shelf Shelf Shelf Shelf
Brush contact pressure Lbs 245 224 275 238
Brush speed RPM 1,200 140 1,200 140
Drive / vac motor rating Watts 600 / 750 600 / 750 600 / 750 600 / 750
Vac motor suction cfm 55 55 55 55
Waterlift In of Water 72 72 72 72
Weight without batteries Lbs 959-1,146 959-1,146 959-1,146 959-1,146
Dimensions (LxWxH) Inch 65 x 31 x 56 65 x 31 x 56 65 x 31 x 56 65 x 31 x 56
Minimum turning radius Feet 2.9 2.9 2.9 2.9
Climbing ability – maximum slope % Grade 10 10 10 10
Max working speed working MPH 3.7 3.7 3.7 3.7

Models

Cylindrical Brush Models
Part No Description
9.841-290.0 B 150 R Bp, R 75 cylindrical scrub deck, 36V/360 Ah batteries
9.841-291.0 B 150 R Bp, R 75 cylindrical scrub deck, 36V/312 Ah AGM batteries
9.841-294.0 B 150 R Bp 2SB, R 75 cylindrical scrub deck, 36V/360 Ah batteries, dual side brushes
9.841-295.0 B 150 R Bp 2SB, R 75 cylindrical scrub deck, 36V/312 Ah AGM batteries, dual side brushes
9.841-292.0 B 150 R Bp, R 90 cylindrical scrub deck, 36V/360 Ah batteries.
9.841-293.0 B 150 R Bp, R 90 cylindrical scrub deck, 36V/312 Ah AGM batteries.
9.841-296.0 B 150 R Bp 2SB, R 90 cylindrical scrub deck, 36V/360 Ah batteries, dual side brushes
9.841-297.0 B 150 R Bp 2SB, R 90 cylindrical scrub deck, 36V/312 Ah AGM batteries, dual side brushes

Disc Brush Option Models (Scrub Deck Sold Separately)
Part No Description
9.841-286.0 B 150 R Bp, scrub deck sold separately, 36V/360 Ah batteries
9.841-287.0 B 150 R Bp 2SB, scrub deck sold separately, dual side brushes, 36V/360 Ah batteries
9.841-288.0 B 150 R Bp Advanced, scrub deck sold separately, 36V/360 Ah batteries (special order)
9.841-289.0 B 150 R Bp 2SB Advanced, scrub deck sold separately, dual side brushes, 36V/360 Ah batteries (special order)
9.841-367.0 B 150 R Bp, scrub deck sold separately, 36V/312 Ah AGM batteries
9.841-368.0 B 150 R Bp 2SB, scrub deck sold separately, dual side brushes, 36V/312 Ah AGM batteries
9.841-365.0 B 150 R Bp Advanced, scrub deck sold separately, 36V/312 Ah AGM batteries (special order)
9.841-366.0 B 150 R Bp 2SB Advanced, scrub deck sold separately, dual side brushes, 36V/312 Ah AGM batteries (special order)

Accessories

Product No. Description
4.777-080.0 Squeegee assembly, 39″ V-shaped polyurethane, oil-resistant (std. on R 75 & D 75 machines) ■
4.777-078.0 Squeegee assembly, 47″ V-shaped polyurethane, oil-resistant (std. on R 90 & D 90 machines) ■
8.622-842.0 Batteries 6V/360 Ah, wet* ■
8.629-184.0 Battery 6V/312 Ah, AGM* ■
8.628-408.0 Battery charger for wet batteries (use with 8.622-842.0) ■
8.600-015.0 Battery charger for AGM batteries (use with 8.629-184.0) ■
5.035-344.0 Operator Key, Yellow ■
5.035-348.0 Foreman Key, Gray ■
4.039-356.0 37″ Linatex Squeegee Blades □
4.039-357.0 37″ Polyurethane Squeegee Blades □
4.039-366.0 37″ Mixed Blades (Front Poly / Rear Linatex) □
4.039-362.0 46″ Linatex Squeegee Blades □
4.039-363.0 46″ Polyurethane Squeegee Blades □
2.642-058.0 Spray Suction kit – for cleaning areas not easily accessible by machine** □
4.444-015.0 Suction hose accessories – for taking in water from corners □
4.035-516.0 360° Warning beacon □
2.641-811.0 Cleaning agent dosing system DS 3† □
6.435-810.0 Front tires, traction – oil-proof with V profile and high traction tire compound □
6.435-446.0 Front tires, traction – oil-resistant (for drive motor 4.035-569.0) □
6.435-733.0 Non-marking rear wheel – for sensitive floors** □
6.951-073.0 Replacement side broom (1 pack) □
2.644-088.0 Side scrubbing deck add-on kit □
2.644-089.0 Overhead guard □

*See model description to find the battery the machine comes with.
**Field installed
† Can be directly connected to the main water supply; the fresh water tank is filled with the mixture of water and cleaning agent. Also in connection with the ABS filling system.

■ Included  □ Optional

Literature

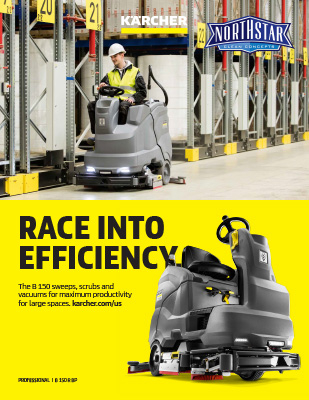

B 150 R Bp Product Sheet Product Sheet – Karcher B 150 R Bp
