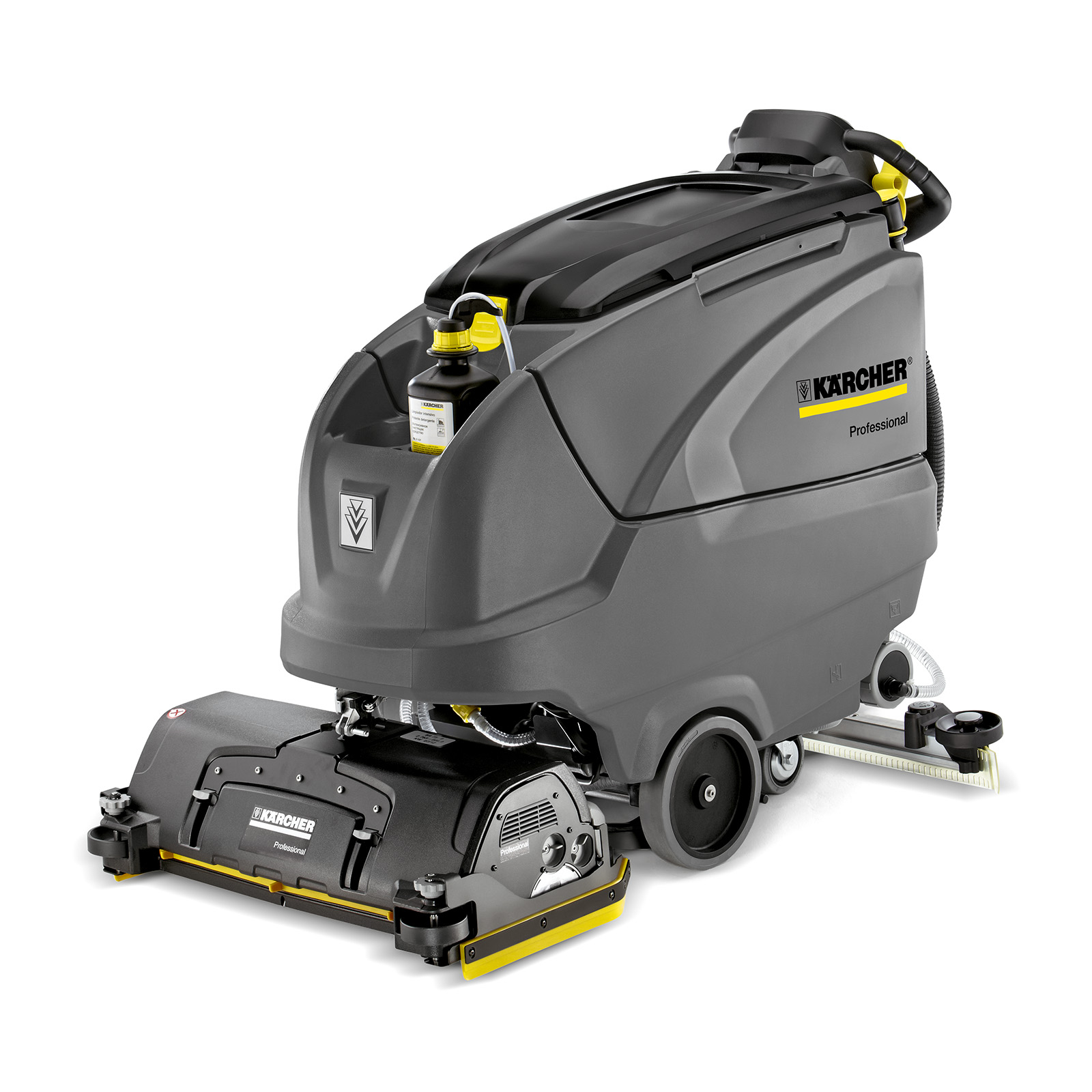

Karcher B 80 W Bp Cylindrical

SKU B-80-W-BP-C Category
  • Cylindrical Scrub Deck
  • 39″ Suction Bar
  • 26″ Cleaning Path
  • Traction Drive
  • Decks automatically raise and lower as necessary
  • Interchangeable decks can be changed quickly and without tools

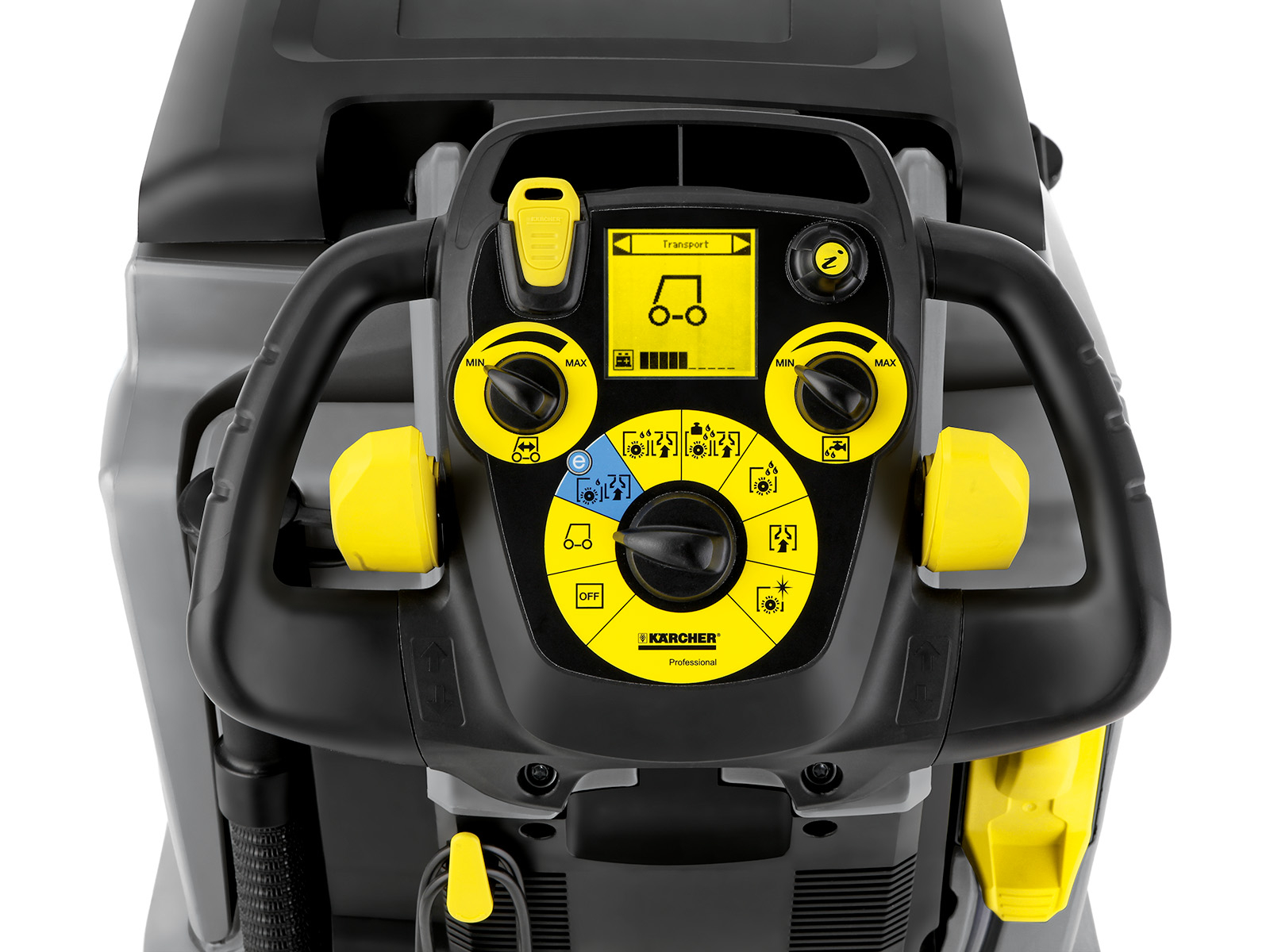

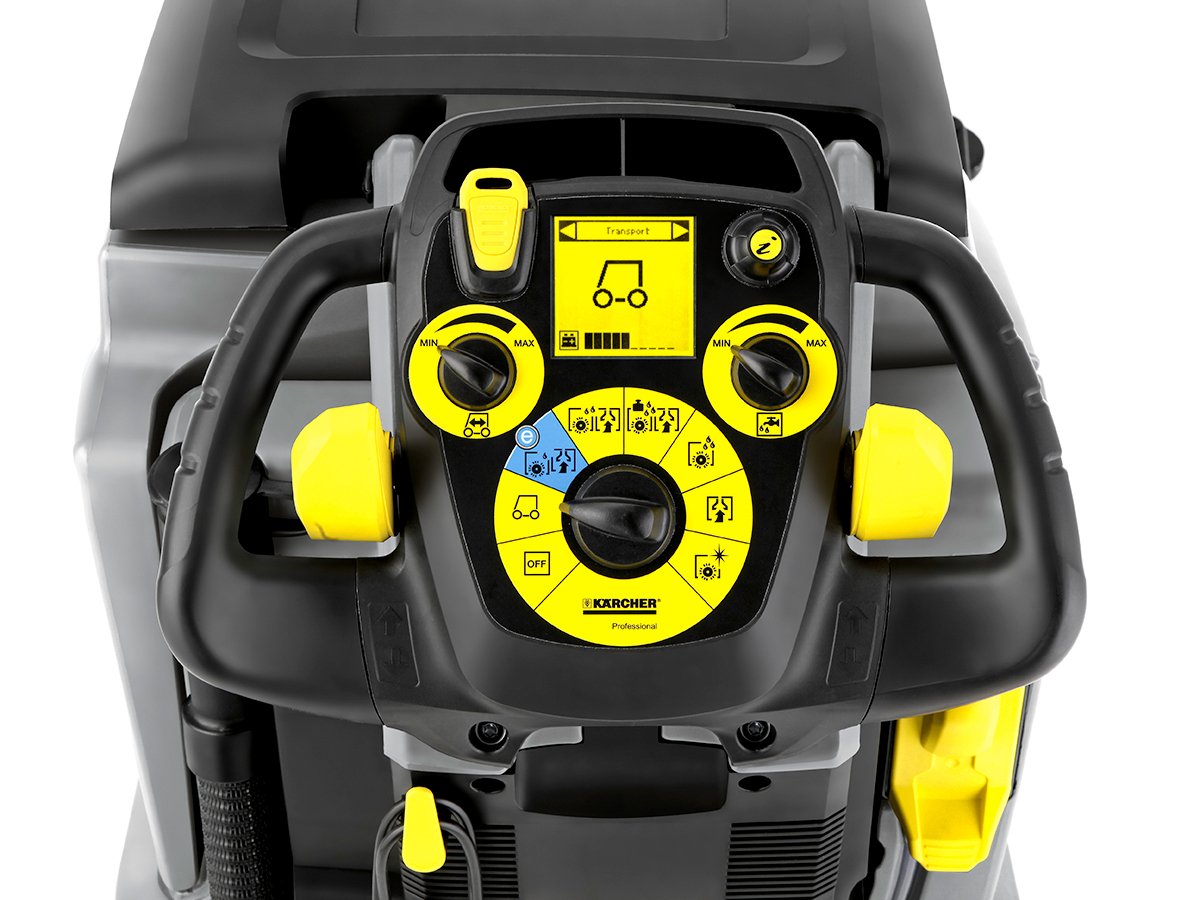

  • Easily select your cleaning mode with the easy-to-read symbols on the large 4-color display

Karcher

Call to Order

Efficient and quite. Everything you need.

The B 80 W BP scrubbers cover a lot of area quickly, but are still easily maneuverable.  They feature a robust, interchangeable, maintenance-friendly cylindrical scrub deck.  Karcher Fleet comes pre-installed on these machines to provide you with complete visibility of your machine.

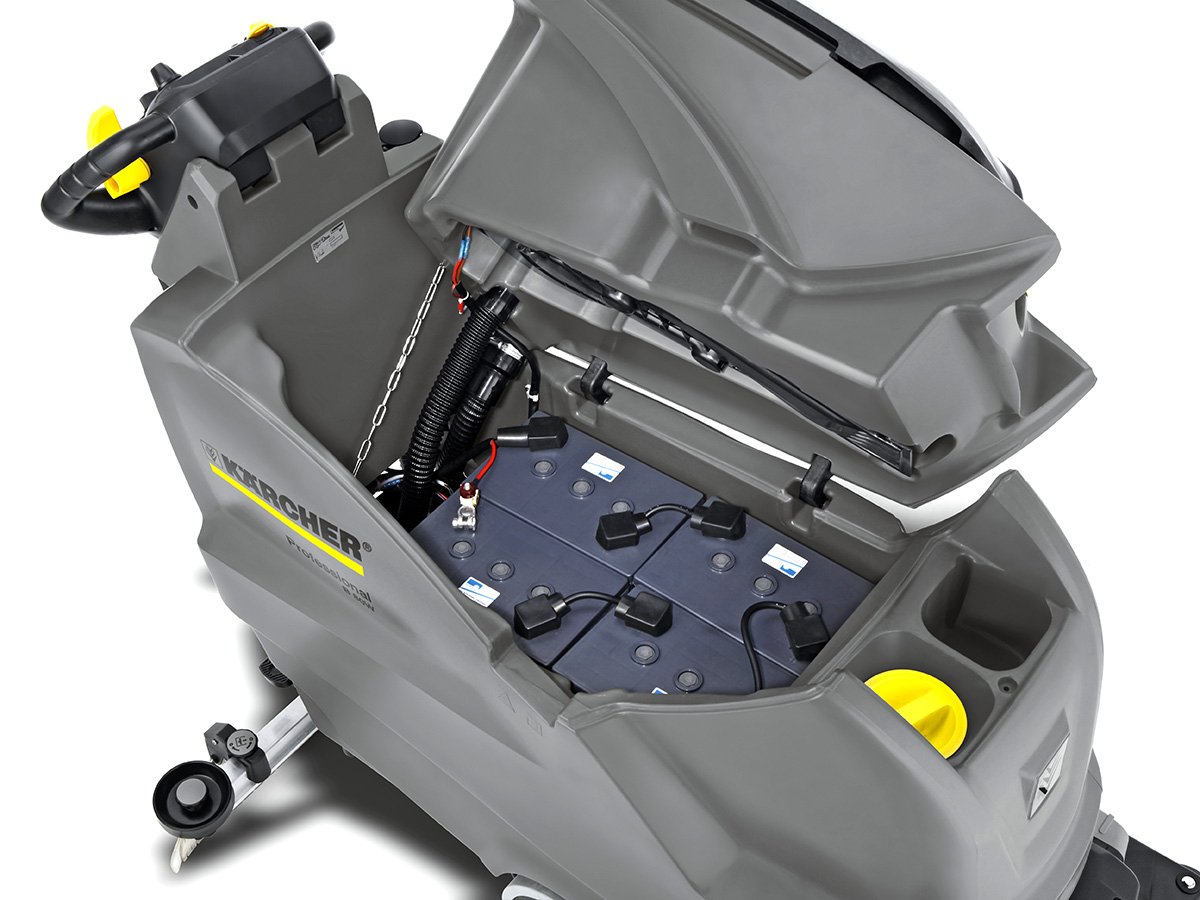

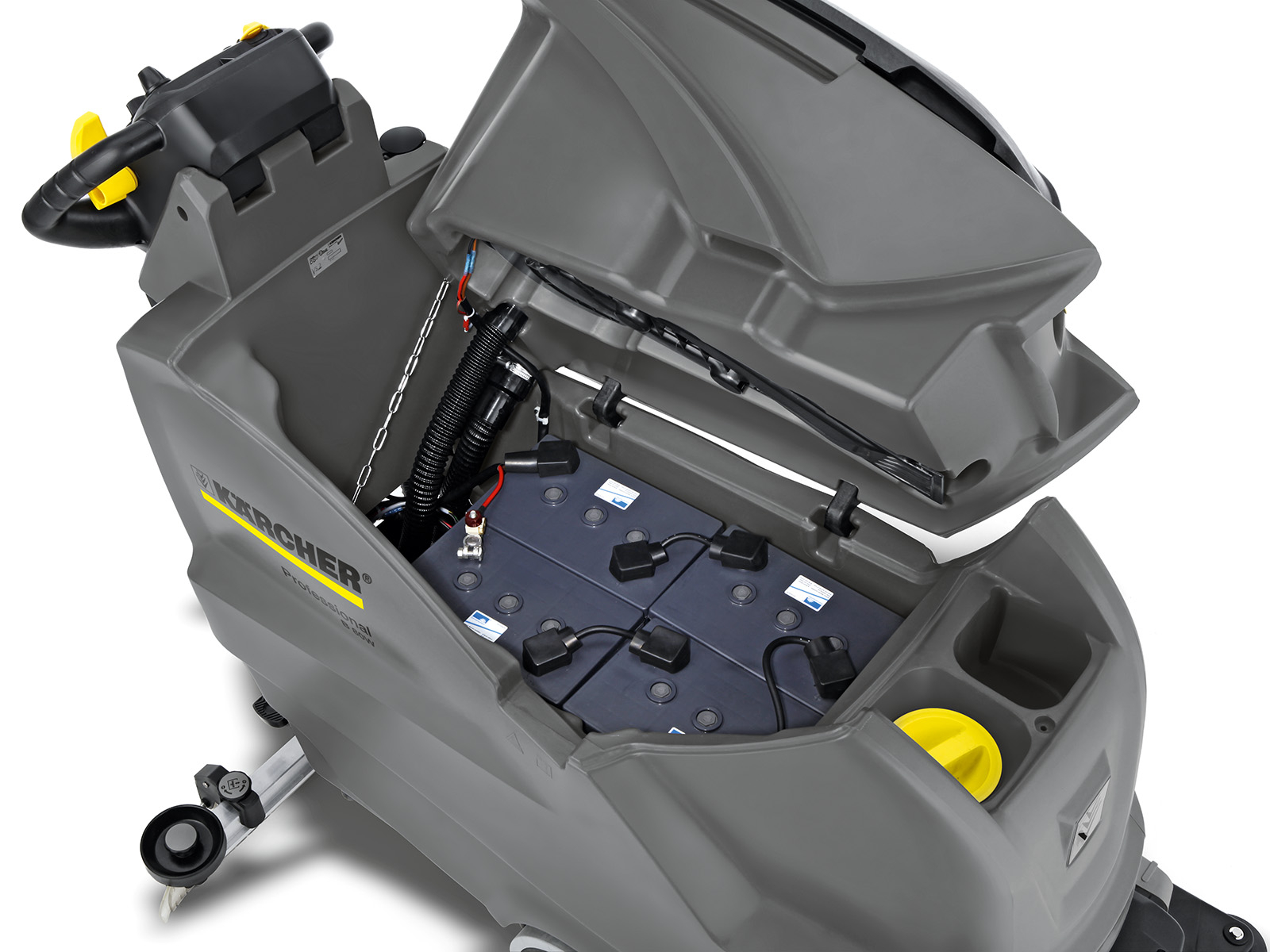

The B 80 W Bp battery-operated scrubber drier offers a variety of battery options (24 V, 225, 260 Ah and 255 Ah AGM). With fully automatic squeegee raising and lowering function, 26″ working width, large LCD color display, traction drive and KIK key system for protection against incorrect operation. Additional features include: eco!efficiency mode extends battery life, tank rinsing system for automatic cleaning of the dirty water tank without splash back as well as auto-fill function for convenient filling of the water tank. FACT technology, controls the speed of the roller brush and can be adjusted for different cleaning applications. Power Clean – 100% power, for stubborn dirt and polishing. Whisper Clean – 60% power, reduces noise levels and ensures longer working intervals with low power consumption. Fine Clean – 40% power, optimum for cleaning gray film from stoneware tiles in conjunction with green roller brush.

Easy Operation KIK System Configurable USGBC Leed Rating  eco!Efficiency

Specifications

Technical Specifications   B 80 W BP + R 65 B 80 W BP + R 75
Cleaning path / width Inch 26 30
Brush type   Cylindrical Cylindrical
Brush quantity Units 2 2
Suction bar (squeegee) width Inch 39 39
Drive   Traction Traction
Solution / recovery capacity Gal 21 / 21 21 / 21
Theoretical / practical productivity Sq Ft. Hour 27,980 / 18,180 32,290 / 21,000
Operating noise level – Std/Eco! Mode dBA 69 / 66 69 / 66
Battery charger   On-Board On-Board
Brush contact pressure Lbs 213 213
Brush speed RPM 400-1,550 400-1,550
Drive / vac motor rating Watts 350 / 580 350 / 580
Vac motor suction cfm 53 53
Waterlift In of Water 67 67
Weight (exclu. battery / with battery) Lbs 282 / 617 284 / 617
Dimensions (LxWxH) Inch 61 x 29 x 45 61 x 32 x 45

Models

Part No Description
9.841-198.0 B 80 W Bp, R 65 cylindrical scrub deck, 24V/225 Ah wet batteries, on-board charger, with curved squeegee
9.841-200.0 B 80 W Bp, R 65 cylindrical scrub deck, 24V/255 Ah AGM batteries, on-board charger, with curved squeegee
9.841-203.0 B 80 W Bp, R 65 cylindrical scrub deck, 24V/260 Ah wet batteries, on-board charger, with curved squeegee
*B 80 W Bp, R 75 decks are ordered separately

Accessories

Part No. Description
5.035-488.0 Home Base kit (adapter and cable hook)
6.980-077.0 Double hook (requires Home Base kit)
4.777-080.0 Squeegee assembly, 39″ V-Shaped, oil-resistant polyurethane blades ■*
8.600-251.0 Cable assy, battery jumper x 15″ (required w/ no battery units)
4.035-345.0 Quick fill tank system (requires Hose coupling 9.803-003.0)
9.083-003.0 Hose coupling
6.273-205.0 Squeegee blade set, anti-stripe oil-resistant
6.273-291.0 Squeegee blade set, for textured floors
4.035-408.0 KIK Key

*Standard only on machines with R 75 scrub decks

Included □ Optional

Literature

B 80 W Bp Product Sheet Product Sheet – Karcher B 80 W Bp
