Karcher BD 50/50 C Bp Classic
- Pad Scrub Deck
- 33″ Suction Bar
- 20″ Cleaning Path Width
- Three cleaning modes for any operator to get the job done right
- The slim design allows you to see in front of the scrubber easier
- Home Base kit allows for carrying essentials on the machines
- Available with Wet or AGM Batteries
Professional cleaning, now made easier.

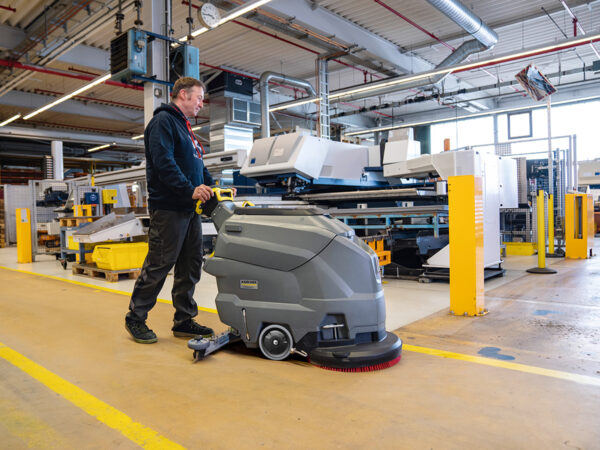

The battery-powered 20″ walk-behind scrubber drier is a perfect fit for service centers, automotive and truck shops, contract cleaners, retail, school and healthcare cleaning needs. The easy to operate auto-scrubber provides practical cleaning performance of 13,200 ft2/hour. The BD 50/50 C Classic features wet or AGM batteries with shelf charger, 20″ pad driver, curved squeegee, Home Base rail system and battery level and hour display. 3 modes of cleaning: Normal mode – Scrubbing and vacuuming. Intense mode – Scrubbing only. Vacuum mode – Vacuum only. Home Base rail allows user to attach manual cleaning tools for quick touch ups and less visits to the supply closet. Productive. Efficient and simple to operate.
| Capacity | 13.2/13.2 Gal |
|---|---|
| Cleaning Path | 20 in. |
| Equipment Type | Scrubber: Walk-Behind |
Specifications
| Technical Specifications | ||
| Cleaning path / width | Inch | 20 |
| Brush type | Pad | |
| Brush quantity | Units | 1 |
| Brush diameter | Inch | 20 |
| Suction bar (squeegee) width | Inch | 33 |
| Drive | Pad-Assist | |
| Solution / recovery capacity | Gal | 13.2 / 13.2 |
| Theoretical / practical productivity | Sq Ft / Hr | 21,530 / 13,995 |
| Operating noise leve – std / Eco! mode | dBA | 66 |
| Battery charger | Shelf | |
| Brush contact pressure | Lbs | 59-62 |
| Brush speed | RPM | 180 |
| Vac motor rating | Watts | 500 |
| Vac motor suction | CFM | 51 |
| Waterlift | In of Water | 48 |
| Weight with batteries | Lbs | 306 |
| Dimensions (LxWxH) | Inch | 47 x 21 x 39 |
Models
| Part No | Description |
| 9.841-369.0 | BD 50/50 C Bp Pad and Brush, 24V/105 Ah wet battery |
| 9.841-370.0 | BD 50/50 C Bp Pad and Brush, 24V/105 Ah AGM battery |
Accessories
| Part No. | Description | |
| 4.762-534.0 | Pad driver, 20 in. (feat. quick-change coupler and centerlock) | ■ |
| 4.777-179.0 | V-shaped squeegee, 900 mm w/caster, polyurethane | ■ |
| 6.273-023.0 | Oil resistant, replacement squeegee blades | □ |
| 4.905-027.0 | Disc brush, soft, natural fibers – for cleaning and polishing | □ |
| 4.905-029.0 | Disc brush, hard black – for stubborn dirt and basic cleaning | □ |
| 4.905-026.0 | Disc brush, medium grit red – for general cleaning | □ |
| 6.369-079.0 | Red disc pad, 20″, medium soft – for all types of floors (5 pk) | □ |
| 6.369-078.0 | Green disc pad, 20″, aggressive – for heavily soiled floors & deep cleaning (5 pk) | □ |
| 6.369-077.0 | Black disc pad, 20″, hard – for heavily soiled floors & deep cleaning (5 pk) | □ |
| 6.369-468.0 | Beige disc pad, 20″, light grit – for polishing hard & elastic smooth floor coverings (5 pk) | □ |
| 6.371-146.0 | Beige disc pad, 20″, soft natural hair – for polishing | □ |
| 4.777-401.0 | Squeegee, 33.5″ straight, oil-resistant polyurethane – for smooth floors | □ |
| 5.035-488.0 | Home Base Kit (adapter & cable hook) | □ |
| 6.980-077.0 | Double hook (requires Home Base kit) | □ |
| 4.035-406.0 | Home Base kit carrying case | □ |
| 6.980-078.0 | Mop clip (requires Home Base kit) | □ |
| 6.980-080.0 | Bottle hook (requires Home Base kit) | □ |
| 4.070-075.0 | Universal hook | □ |
| 8.641-483.0 | Charger for wet batteries | □ |
| 8.629-377.0 | Charger for AGM batteries | □ |
■ Included □ Optional
Literature
 |
Product Sheet – Karcher BD Classic Series |
