Ride anywhewre.

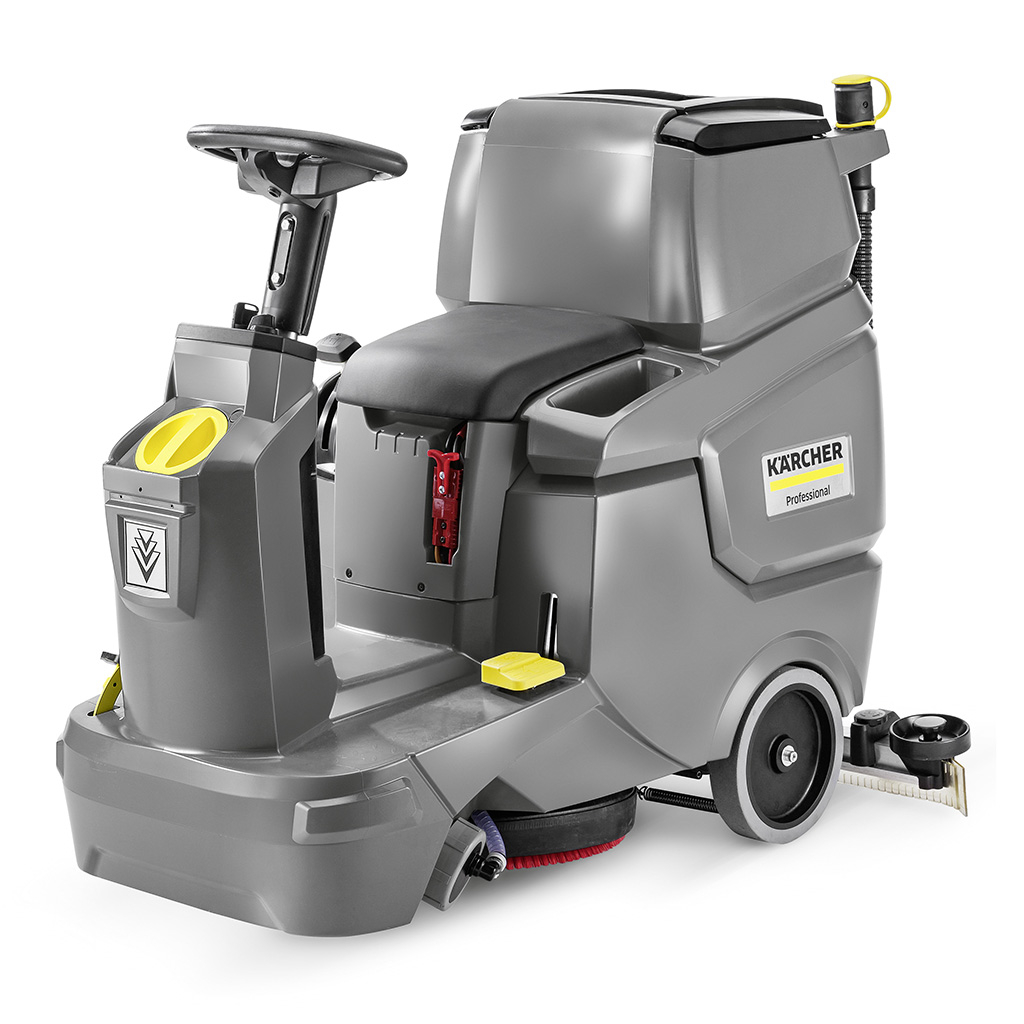

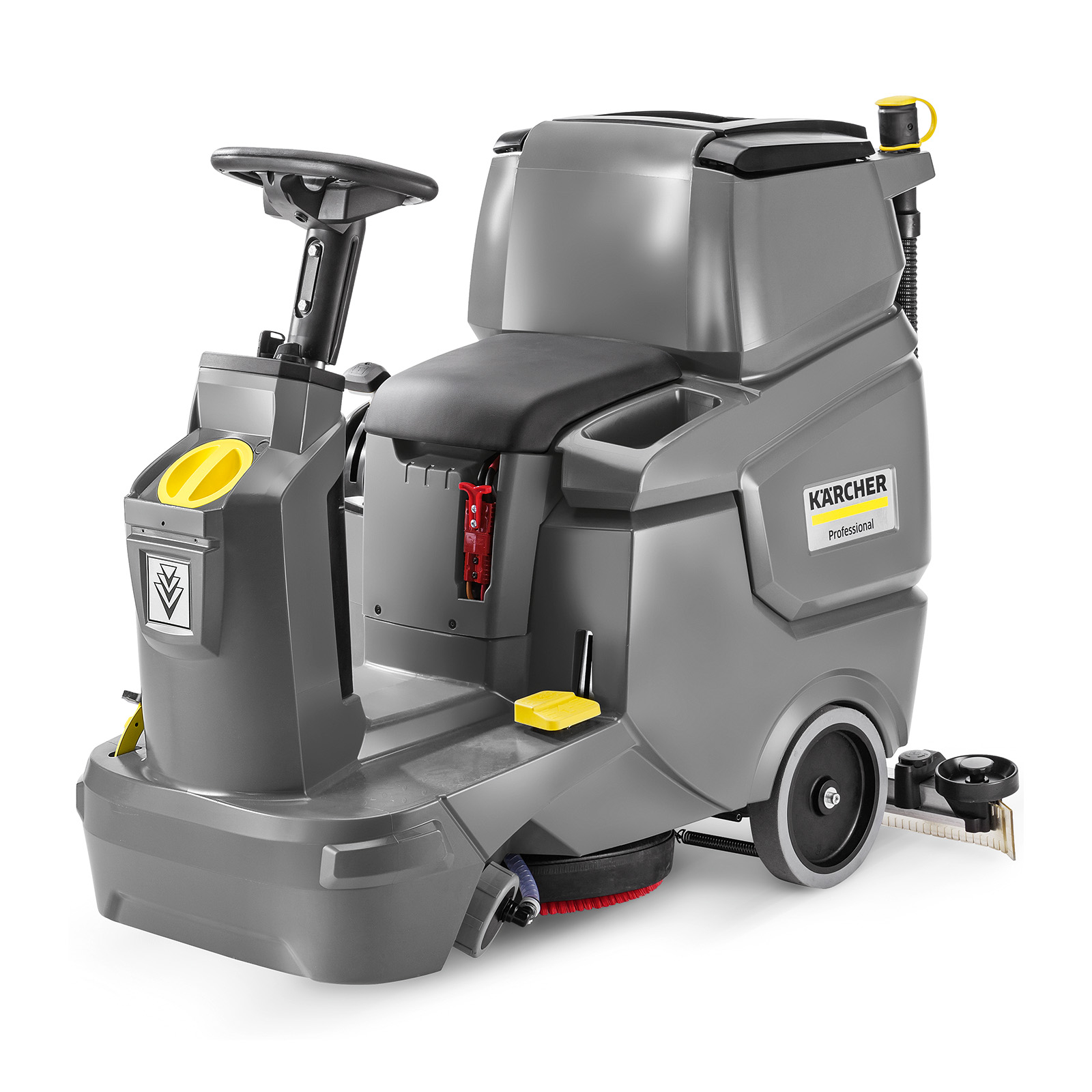

We designed the BD 50/70 R ride-on scrubber for tight congested areas that need maneuverability and productivity in one package. This value conscious machine will provide you with years of quality scrubbing without breaking the bank. Every aspect of this machine has been streamlined to provide the best scrubbing at the best price.
| Technical Specifications | ||
| Brush cleaning path / width | Inch | 20 |
| Brush type | Disc or Pad | |
| Brush quantity | Units | 1 |
| Brush diameter | Inch | 20 |
| Suction bar (squeegee) width | Inch | 33.5 |
| Drive | Traction | |
| Solution / recovery capacity | Gal | 18 / 20 |
| Theoretical / practical productivity | Sq Ft/ Hr | 25,715 / 18,000 |
| Operating noise level | dBA | 66 |
| Battery charger | Shelf | |
| Brush contact pressure | Lbs | 56 |
| Brush speed | RPM | 155 |
| Drive / vac motor rating | Watts | 300 / 600 |
| Vac motor suction | cfm | 53 |
| Waterlift | In of Water | 65 |
| Climbing ability – maximum slope | % Grade | 10 |
| Max working speed | MPH | 3.4 |
| Minimum turning radius | Ft | 2.7 |
| Weight without batteries | Lbs | 428 |
| Dimensions (LxWxH) | Inch | 52 x 23 x 42 |
| Part No. | Description |
| 9.841-434.0 | B 50/70 R Bp, brush, 24V / 105 Ah wet batteries |
| 9.841-435.0 | B 50/70 R Bp, brush, 24V / 100 Ah AGM batteries |
| 9.841-436.0 | B 50/70 R Bp, pad driver, 24V / 105 Ah wet batteries |
| 9.841-437.0 | B 50/70 R Bp, pad driver, 24V / 100 Ah AGM batteries |
| Part No. | Description | |
| 4.035-182.0 | Battery, 12V / 105 Ah* | ■ |
| 8.641-483.0 | Shelf charger for wet batteries, 24V, 25A* | ■ |
| 8.629-377.0 | Automatic shelf charger for AGM batteries, 24V, 24A, 115V* | ■ |
| 4.777-411.0 | Curved squeegee, 33.5 inches with caster, polyurethane | ■ |
| 4.905-026.0 | Disc brush red, medium grit for general cleaning* | ■ |
| 4.905-029.0 | Disc brush black, hard | □ |
| 4.905-027.0 | Disc brush, soft | □ |
| 4.905-028.0 | Disc brush white, very soft | □ |
| 4.762-534.0 | Pad driver w/ quick-change coupling and centerlock* | ■ |
| 6.369-079.0 | Red disc pad, 20-inch medium-soft (5 pack)* | ■ |
| 6.369-078.0 | Green disc pad, 20-inch agressive (5 pack) | □ |
| 6.369-077.0 | Black disc pad, 20-inch hard (5 pack) | □ |
| 6.369-468.0 | Beige disc pad, 20-inch light grit (5 pack) | □ |
| 6.371-146.0 | Beige disc pad, 20-inch soft, natural hair | □ |
| 6.371-271.0 | Microfiber disc pad | □ |
| 4.777-401.0 | Straight squeegee, 33.5″ oil-resistant polyurethane | □ |
*Depending on model selected
■ Included □ Optional
 |
