Karcher BD 80/100 W Bp Classic

SKU BD-80/100-W-BP Category
  • 43″ Suction Bar
  • 32″ Cleaning Width
  • Traction Drive

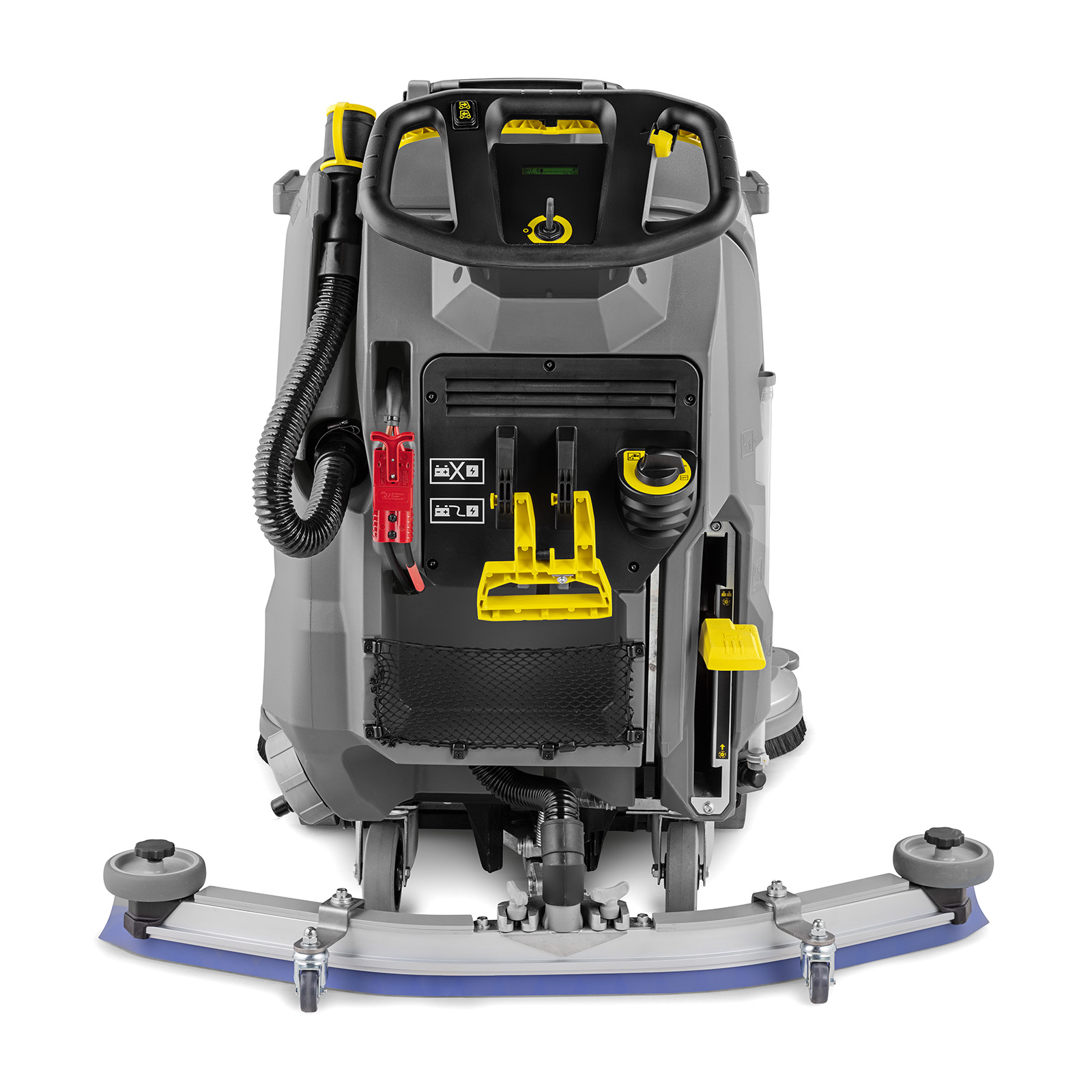

  • Storage compartment in the back for shelf charger and other accessories
  • Perfect recovery in 180 degree turns
  • An automatic brake is integrated into the trans axle and a cost effective, large aluminum brush deck is included.

Karcher

Call to Order

Quality and durability in a cost effective package.

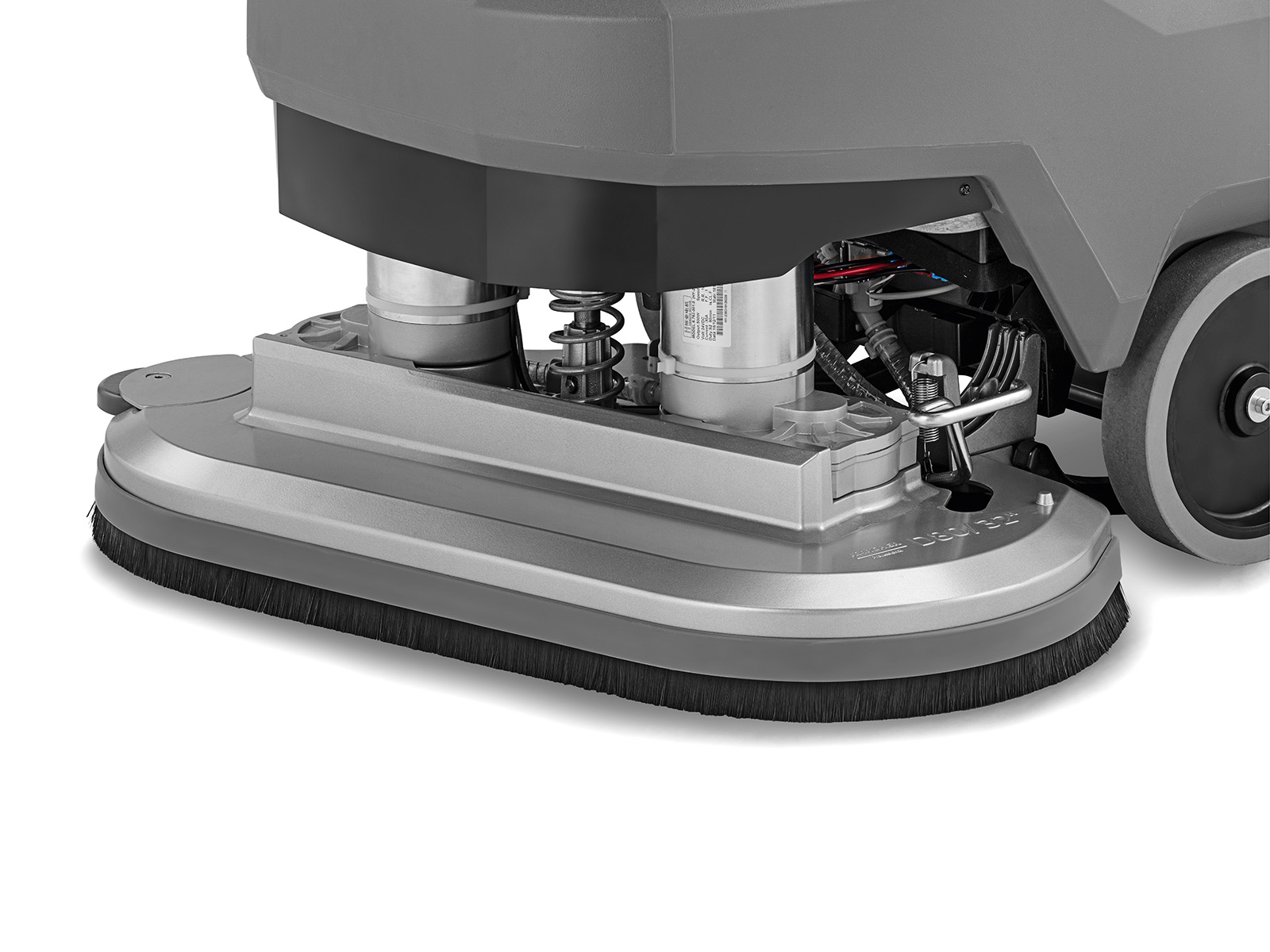

Our BD 80/100 W Bp Classic auto scrubber provides excellent site-lines, a simple operator-friendly design, and robust materials for an efficient cleaning performance. The BD 80/100 scrubber has a powerful traction drive, which helps effortless travel of inclines and easy maneuverability. Components, which are exposed to extreme stress in tough working conditions, such as squeegee and pad brush head, are made from solid die-cast aluminum. With 32-inch disc cleaning path, a 26-gallon tank and maximum cleaning speed of up to 3 mph, which can be continuously adjusted, the machine achieves area performances of up to 35,025 ft² per hour. In the case of very stubborn dirt or for decorating, the brush contact pressure can be increased at any time from 88 to 200 lbs.

Specifications

Technical Specifications
Cleaning path/width Inch 32
Brush type   Pad
Brush quantity Units 2
Brush diameter Inch 16
Suction bar (squeegee) width Inch 43
Drive   Traction
Solution/recovery capacity Gal 26.4 / 26.4
Theoretical/practical productivity Sq Ft/Hr 35,025 / 22,770
Operating noise level dBA 63
Battery charger   Shelf
Brush contact pressure Lbs 88 – 200
Brush speed RPM 180
Vac motor rating Watts 600
Vac motor suction cfm 53
Waterlift In of Water 67
Weight with batteries Lbs 661 wet / 705 AGM
Dimensions (LxWxH) Inch 59 x 33 x 42

Models

Part No Description

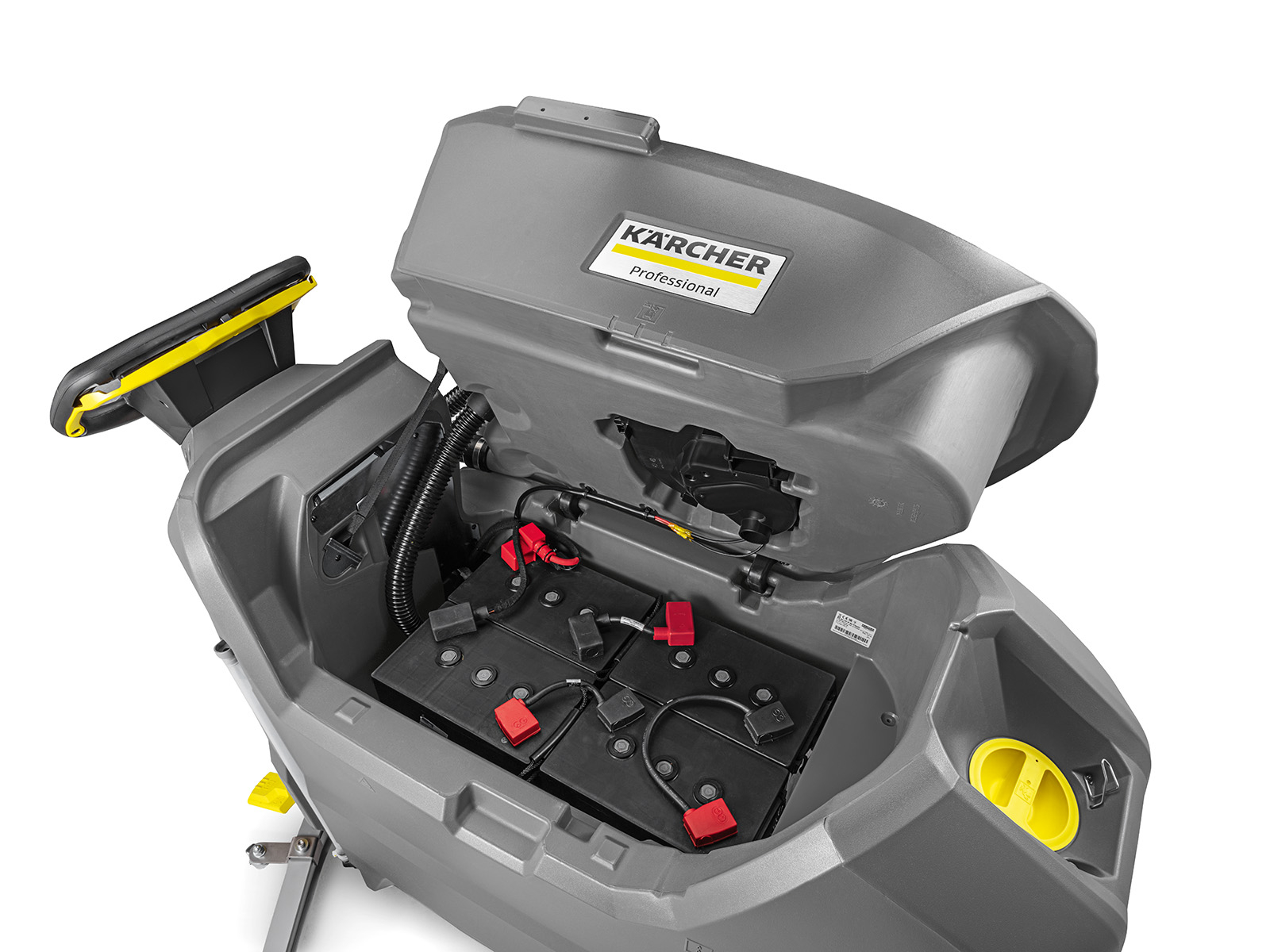

9.841-456.0 BD 80/100 W Bp Classic, 295 Ah wet batteries, shelf charger
9.841-457.0 BD 80/100 W Bp Classic, 285 Ah AGM batteries, shelf charger
9.808-180.0 BD 80/100 W Bp Classic, 24V Lithium battery, shelf charger

Accessories

Part No. Description
4.762-591.0 Pad drive board
6.371-332.0 Pad, red, medium-soft
8.622-837.0 Battery, Trojan 6V/271 Ah wet (std. with 9.841-456.0)
8.643-373.0 Shelf charger for wet batteries (std. with 9.841-456.0)
8.629-184.0 Battery, Discover 6V/285 Ah AGM (std. with 9.841-457.0)
8.643-374.0 Shelf charger for AGM batteries (std. with 9.841-457.0)
8.644-818.0 Battery, Discover 24V Lighium Ion
4.777-102.0 Squeegee, 1100 mm
4.037-138.0 Suction blades, 1230 mm, blue
4.905-000.0 Disc brush, red, medium
4.905-032.0 Disc brush, black, hard
4.905-031.0 Disc brush, natural, soft
4.905-030.0 Disc brush, white, very soft
4.037-140.0 Suction blades, 1230 mm, transparent
9.753-088.0 Squeegee transport plate
2.644-140.0 Warning beacon add-on kit

■ Included  □ Optional

Literature

Karcher BD Classic Series Product Sheet Product Sheet – Karcher BD Classic Series
