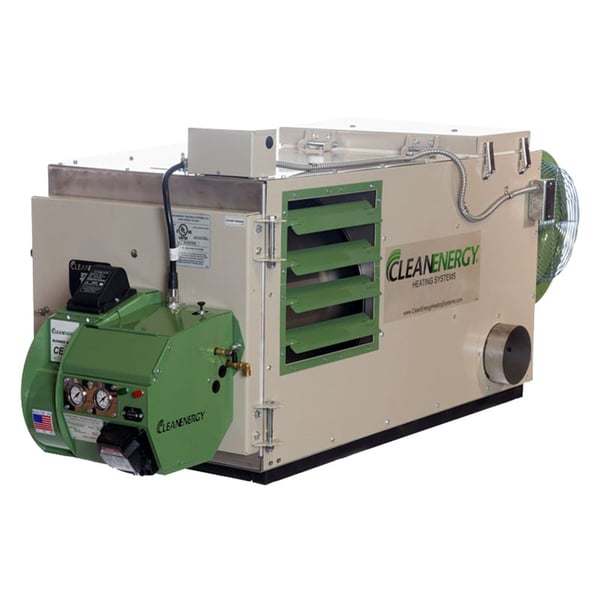

Clean Energy CE-140 140,000 BTU Waste Oil Furnace

SKU CE-140 Category
  • 140,000 BTU/hour Input
  • 12 Year Combustion Chamber Warranty
  • 36 Month Parts Warranty
  • Built Safe – UL Safety Certification
  • Made in the USA

Clean Energy

Call to Order

The Clean Energy Heating Systems CE-140 Waste Oil Furnace is an entry level waste oil heater that’s perfect for a garage with 1 to 4 bays. With up to 140,000 BTU’s of heating input coupled to our innovative new design, it’s a very cost-effective way to heat smaller spaces.

Best of all, thanks to the CE-140’s ability to turn used motor oil, transmission fluid and other petroleum products into clean, safe heat, this waste oil furnace generates solid ROI while helping the environment.

In addition, all Clean Energy furnaces are engineered from the ground up to burn waste oils and comply with all EPA regulations. They easily install and provide for longer intervals between cleanings, and their low-profile design and flexible configuration is ideal for areas with limited ceiling height and other creative installation requirements.

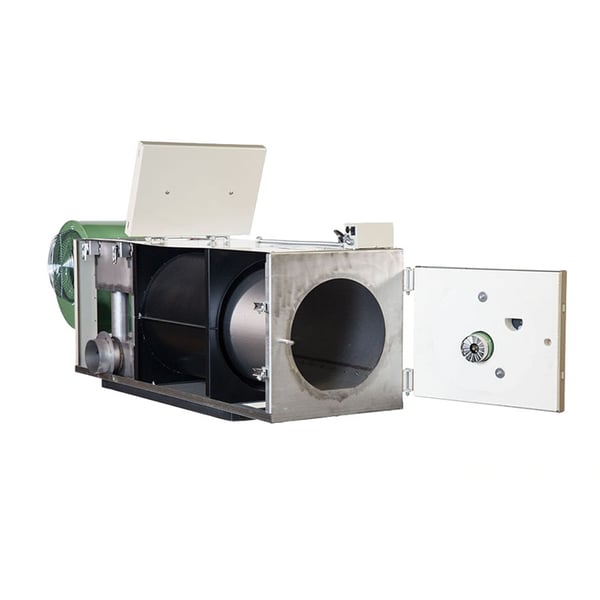

Best of all, every Clean Energy waste oil furnace is built with our unique, patent-pending stainless steel heat exchanger and flue tubes. This next-generation design ensures long-lasting durability and highly efficient operation for years to come.

Features

  • The Industry’s Best Warranty
  • 409 Stainless Steel Heat Exchanger and 409 Stainless Steel Flue Tubes for Durability & Corrosion Resistance increases the life of the furnace.
  • Flue tubes are swedged, not welded, to resist cracking over years of heavy use.
  • Vertical heat exchanger flue tubes for Longer Service Intervals between cleaning (1,000+ hours)

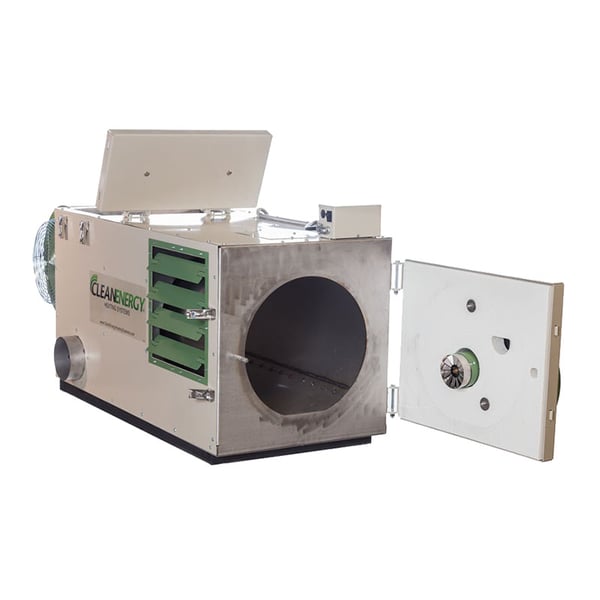

  • Over center latches on doors for Easy, Quick Cleaning
  • Digital, programmable burner control for reliable operation in all conditions
  • High velocity air swept stainless steel heat exchanger Produces More Heat
  • Thermostatically-controlled pre-heater easily pass UL “cold oil start” tests
  • Burns a variety of fuels including most synthetic oil, and just about any mixture of oil products
  • Dependable, Easy to Install Metering Pump. Pre-assembled and vacuum-tested – automatically adjusts for different fuels
  • Quick, Easy Access Oil Line Connection Block – allows easy access without disconnecting oil line.
  • Modern Burner manufactured by CleanEnergy preheats oil, regulates and optimizes combustion
  • Tank, Wall or ceiling mounting options.

Specifications

  • 140,000 BTU/hour Input
  • 1,700/75°F, air flow output CFM/heat rise
  • 1.0 GPH fuel consumption
  • Acceptable fuels: used crankcase oil, transmission fluids, hydraulic oil, #2 heating oil (diesel fuel) and most synthetic oils
  • 115vac, 60hz, single phase, 20A breaker
  • Vertical Stainless Steel flue tubes
  • 6″ chimney outlets on left or right side
  • Tank, wall or ceiling mountable
  • Digital wall thermostat
  • 14,000 volt Burner with Interrupted Duty Ignition

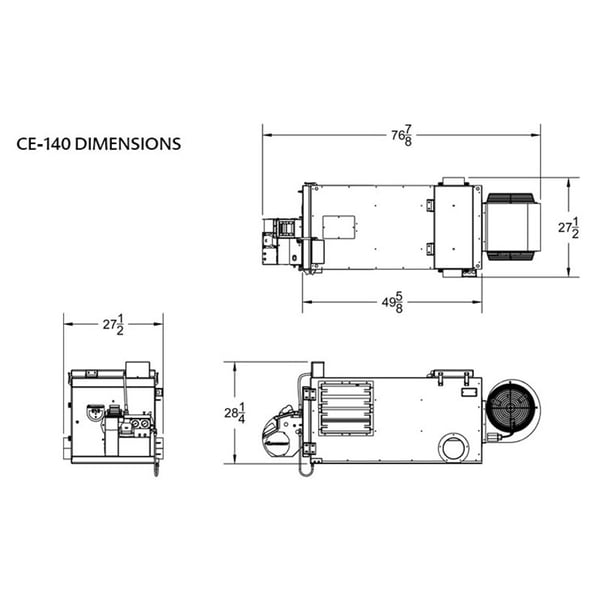

  • 77″l x 28″h x 26″w (w/burner and blower)
  • 430 lbs hanging weight
  • UL Listed
  • cUL Listed
  • 12 Year Warranty
  • Made in the USA

Literature

CE-140 Product Sheet Product Sheet – Clean Energy CE-140
Clean Energy Brochure Brochure – Clean Energy Heating Systems
Clean Energy Warranty Warranty Statement – Clean Energy Heating Systems
