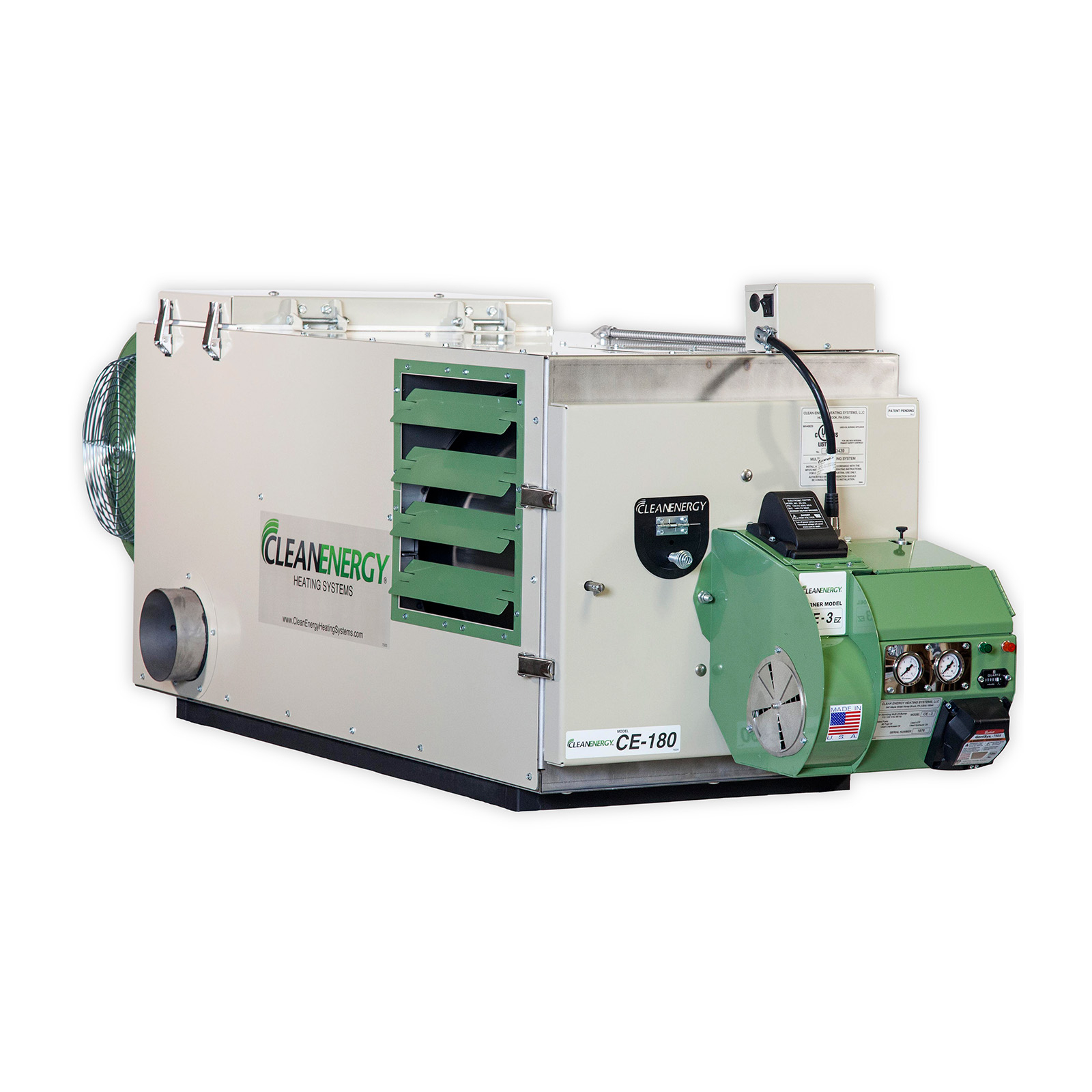

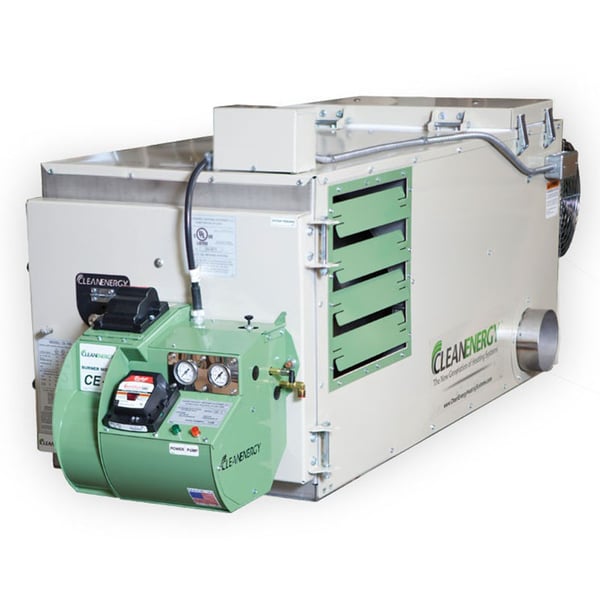

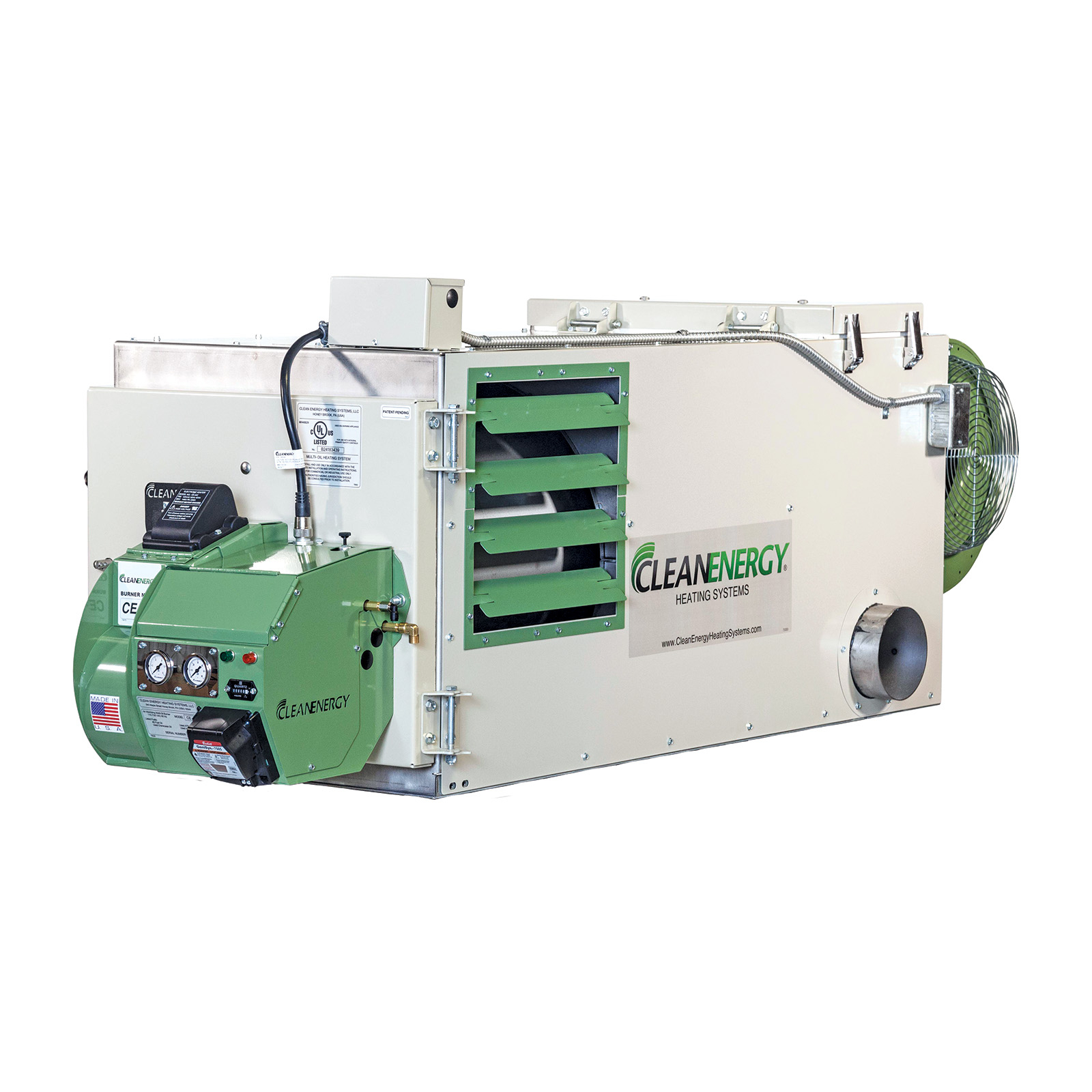

Clean Energy CE-180 175,000 BTU Waste Oil Furnace

SKU CE-180 Category
  • 175,000 BTU/hour Input
  • 12 Year Combustion Chamber Warranty
  • 36 Month Parts Warranty
  • Built Safe – UL Safety Certification
  • Made in the USA

Clean Energy

Call to Order

Our CE-180 Waste Oil Furnace is a strong performer for a 3 to 6 bay garage. With up to 175,000 BTU’s of input coupled to an innovative design, it’s a cost-effective and eco-friendly way to heat garages, workshops and other small to medium-sized spaces.

And thanks to its ability to turn used motor oil, transmission fluid and other petroleum products into clean, safe heat, the CE-180 generates solid ROI while helping the environment.

In addition, all Clean Energy furnaces are engineered from the ground up to burn waste oils and comply with all EPA regulations. They’re built to install easily and allow for longer cleaning intervals, and their low-profile design and flexible configuration is ideal for areas with limited ceiling height and other creative installation requirements.

Best of all, every Clean Energy furnace is built with our unique, patent-pending, heat exchanger and flue tubes. This innovation ensures long-lasting durability and highly efficient operation for years to come.

Features

  • The Industry’s Best Warranty
  • 409 Stainless Steel Heat Exchanger and 409 Stainless Steel Flue Tubes for Durability & Corrosion Resistance increases the life of the furnace.
  • Flue tubes are swedged, not welded, to resist cracking over years of heavy use.
  • Vertical heat exchanger flue tubes for Longer Service Intervals between cleaning (1,000+ hours)

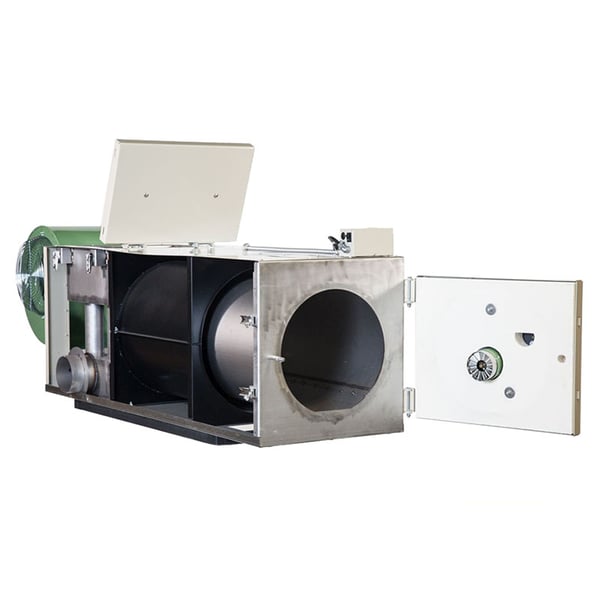

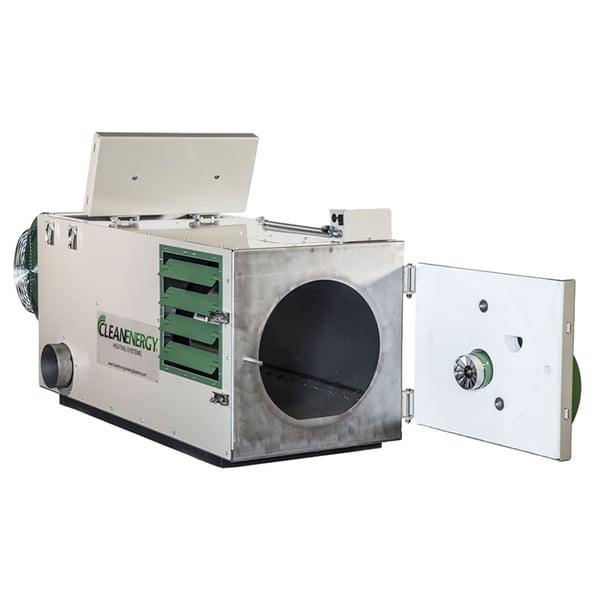

  • Over center latches on doors for Easy, Quick Cleaning
  • Digital, programmable burner control for reliable operation in all conditions
  • High velocity air swept stainless steel heat exchanger Produces More Heat
  • Thermostatically-controlled pre-heater easily pass UL “cold oil start” tests
  • Burns a variety of fuels including most synthetic oil, and just about any mixture of oil products
  • Dependable, Easy to Install Metering Pump. Pre-assembled and vacuum-tested – automatically adjusts for different fuels
  • Quick, Easy Access Oil Line Connection Block – allows easy access without disconnecting oil line.
  • Modern Burner manufactured by CleanEnergy preheats oil, regulates and optimizes combustion
  • Tank, Wall or ceiling mounting options.

Specifications

  • 175,000 BTU/hour Input
  • 1,700/80°F, air flow output CFM/heat rise
  • 1.2 GPH fuel consumption
  • Acceptable fuels: used crankcase oil, transmission fluids, hydraulic oil, #2 heating oil (diesel fuel) and most synthetic oils
  • 115vac, 60hz, single phase, 20A breaker
  • Vertical Stainless Steel flue tubes
  • 6″ chimney outlets on left or right side
  • Tank, wall or ceiling mountable
  • Digital wall thermostat
  • 14,000 volt Burner with Interrupted Duty Ignition

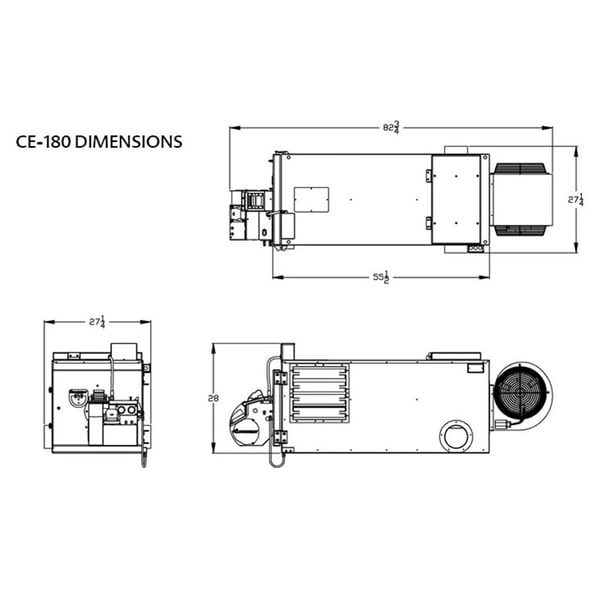

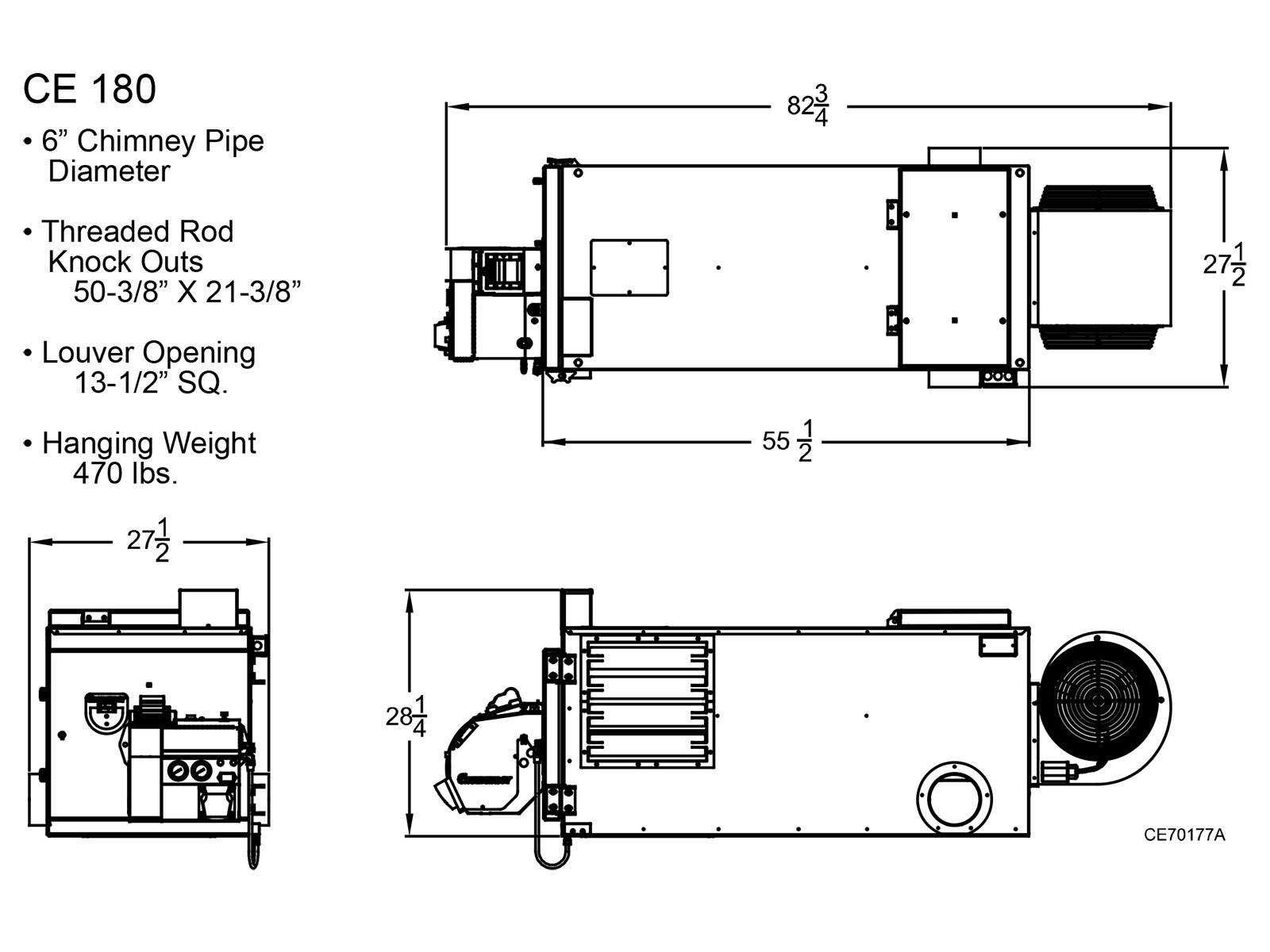

  • 83″l x 28″h x 26″w (w/burner and blower)
  • UL Listed
  • cUL Listed
  • 12 Year Warranty
  • Made in the USA

Literature

CE-180 Product Sheet Product Sheet – Clean Energy CE-180
Clean Energy Brochure Brochure – Clean Energy Heating Systems
Clean Energy Warranty Warranty Statement – Clean Energy Heating Systems
