Cuda 2530 Series

SKU 2530-Series Category
  • 25-Inch Dia Table
  • 30-Inch Working Height
  • 500 Lbs Capacity
  • 150° – 180° Operating Temp
  • Vertical Seal-Less Pump
  • Automatic Oil Skimmer
  • Low Water Shutdown
  • Heater
  • ETL Safety Certified

Models shown may include optional features

Cuda

Call to Order

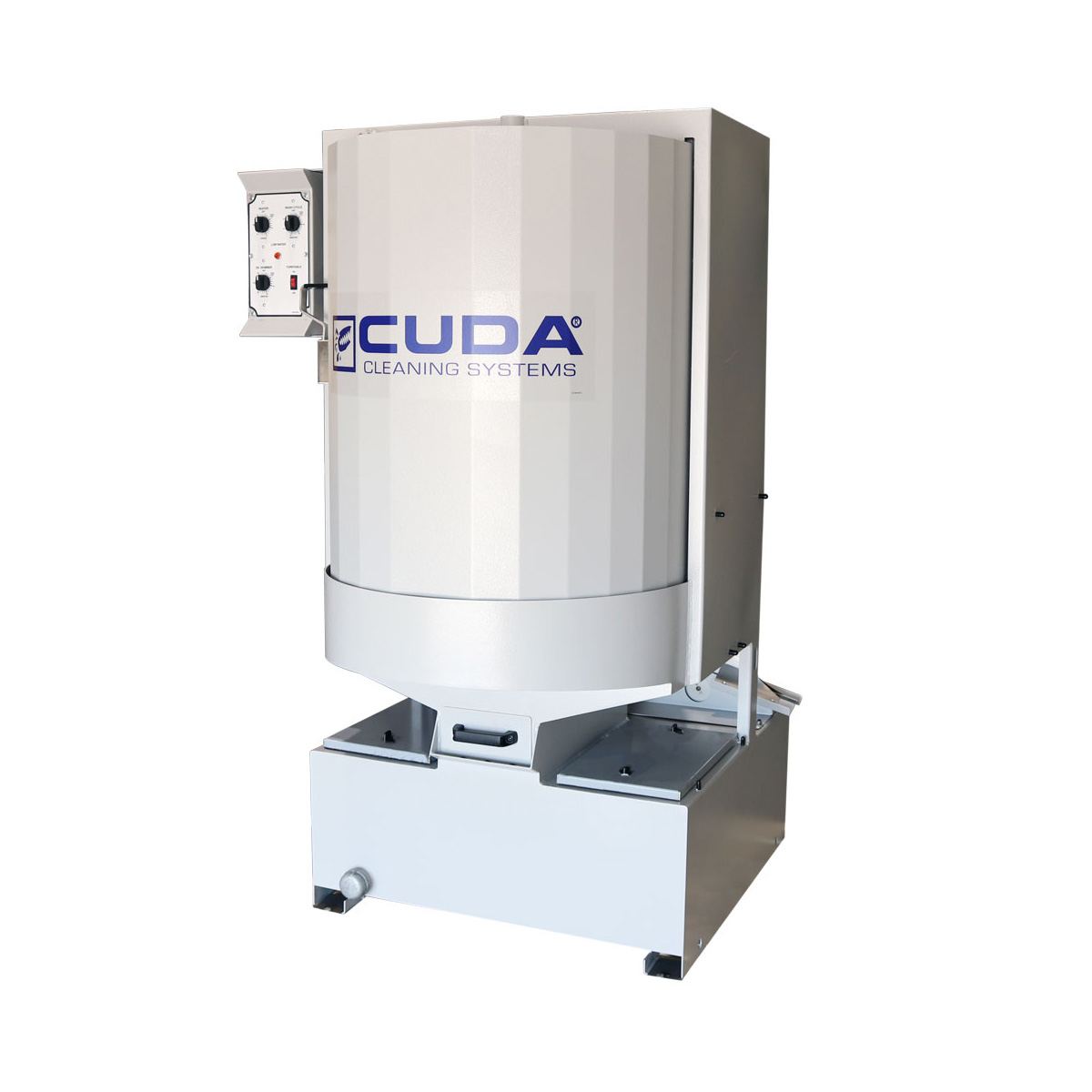

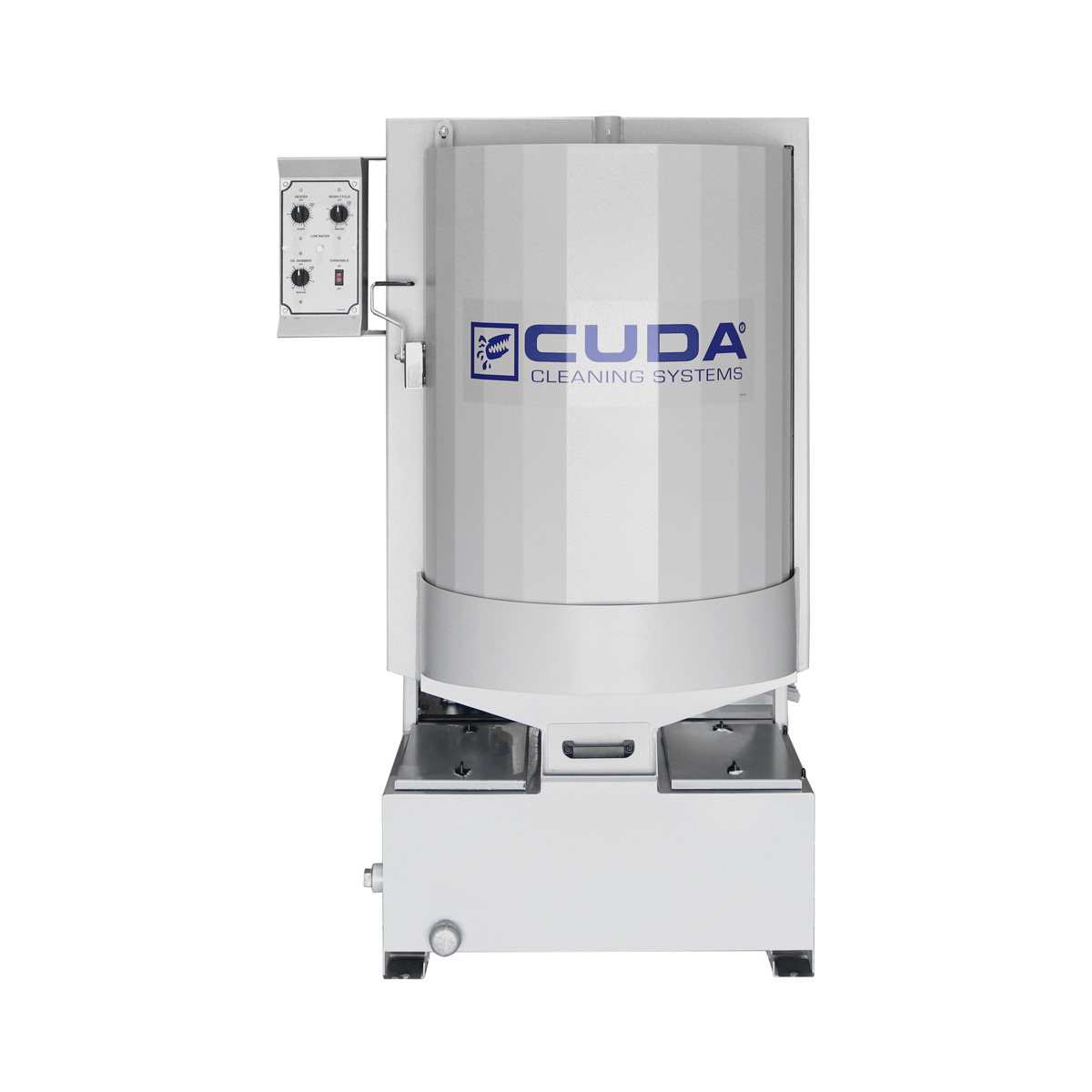

The Cuda 2530 is the smallest in the front-load automatic parts washer models and is smaller than many solvent tanks. Featuring a turntable diameter of 25-inches, working height of 30-inches, and load capacity of 500 lbs. The 2530 Series is equipped with a 3HP vertical seal-less pump producing 50 GPM at 45 PSI. The Cuda 2530 front load aqueous parts washer is used in any applications from automotive, trucking, amusement parks to ski areas.

Models

Model Part No Working Height Turntable Diameter Volt/PH Total Amps
Standard Models
2530 1.043-372.0 30″ 25″ 230/1 38
2530 1.043-368.0 30″ 25″ 208/1 42
2530 1.043-365.0 30″ 25″ 230/3 23
2530 1.043-369.0 30″ 25″ 208/3 25
2530 1.043-366.0 30″ 25″ 460/3 11
2530 1.043-367.0 30″ 25″ 575/3 9

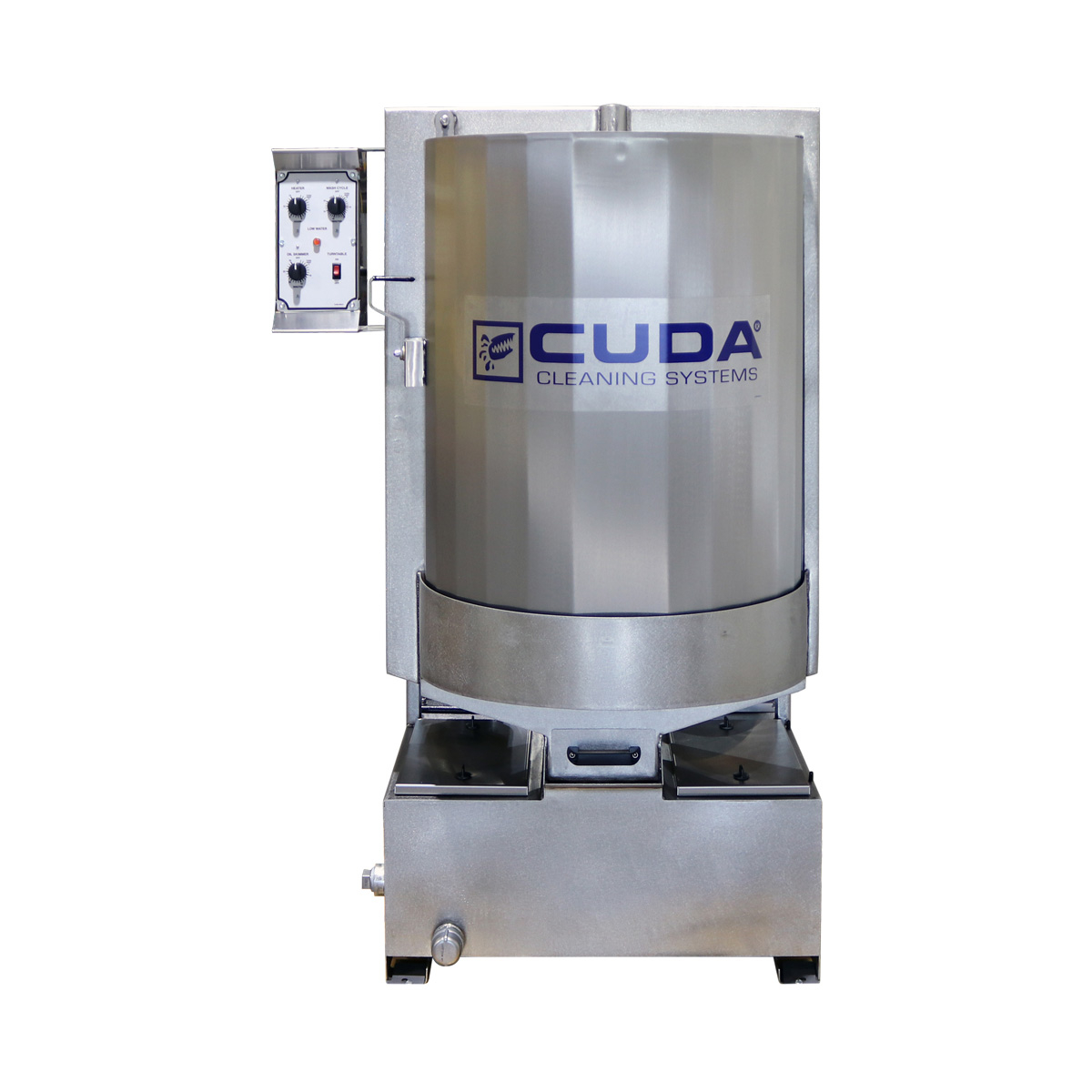

Stainless Steel Models
2530 1.043-491.0 30″ 25″ 230/1 38
2530 1.043-489.0 30″ 25″ 208/1 42
2530 1.043-486.0 30″ 25″ 230/3 23
2530 1.043-490.0 30″ 25″ 208/3 25
2530 1.043-487.0 30″ 25″ 460/3 11
2530 1.043-488.0 30″ 25″ 575/3 9

NOTE: All stainless steel models come with standard cast pump. All wetted surfaces are stainless steel.

Options

Part No Description
8.914-906.0 Preferred Options Package – Contains Parts Tree, Small Parts Basket, Containment Ring, Oil-Drain Container
8.915-113.0 Automatic Water Fill
8.731-256.0 25″ Containment Ring
8.915-145.0 Filtration
8.915-144.0 Filtration & Sump Sweep
8.915-124.0 4 Hook Parts Tree
8.725-267.0 Heater Timer, 24 hour 7 day
8.725-268.0 Heater & Skimmer Timer, 24 hour 7 day
8.901-881.0 Deluxe Kit: Detail and Power Brush with Side Sink
8.915-143.0 60 Mesh Insert for Debris Screen Tray
8.915-120.0 Two-Tier Turntable*
8.922-951.0 Stainless Steel Handle Kit, assembled
8.924-172.0 Oil Drain Container
9.802-283.0 Hour Meter
8.731-254.0 Light Duty Small Parts Basket (8″ x 8″ x 4″)
8.753-825.0 Light Duty Medium Parts Basket (16″ x 12″ x 6″)
8.723-214.0 Gray Spray Pain (cannot ship via air)
Stainless Optional Accessories
Stainless Two-Tier Turntable
Stainless Parts Tree
Stainless Containment Ring
Stainless Pump Motor
Stainless Oil Bucket

Included □ Optional
* Required Light Duty Small Parts Basket and Containment Ring (sold separately). Not for height extended machines.

Literature

2530 Series Product Sheet Product Sheet – Cuda 2530 Series
