Cuda 2840 Series

SKU 2840-Series Category
  • 28-Inch Dia Table
  • 40-Inch Working Height
  • 1000 Lbs Capacity
  • 150° – 180° Operating Temp
  • Vertical Seal-Less Pump
  • Automatic Oil Skimmer
  • Low Water Shutdown
  • Heater
  • ETL Safety Certified

Models shown may include optional features

Cuda

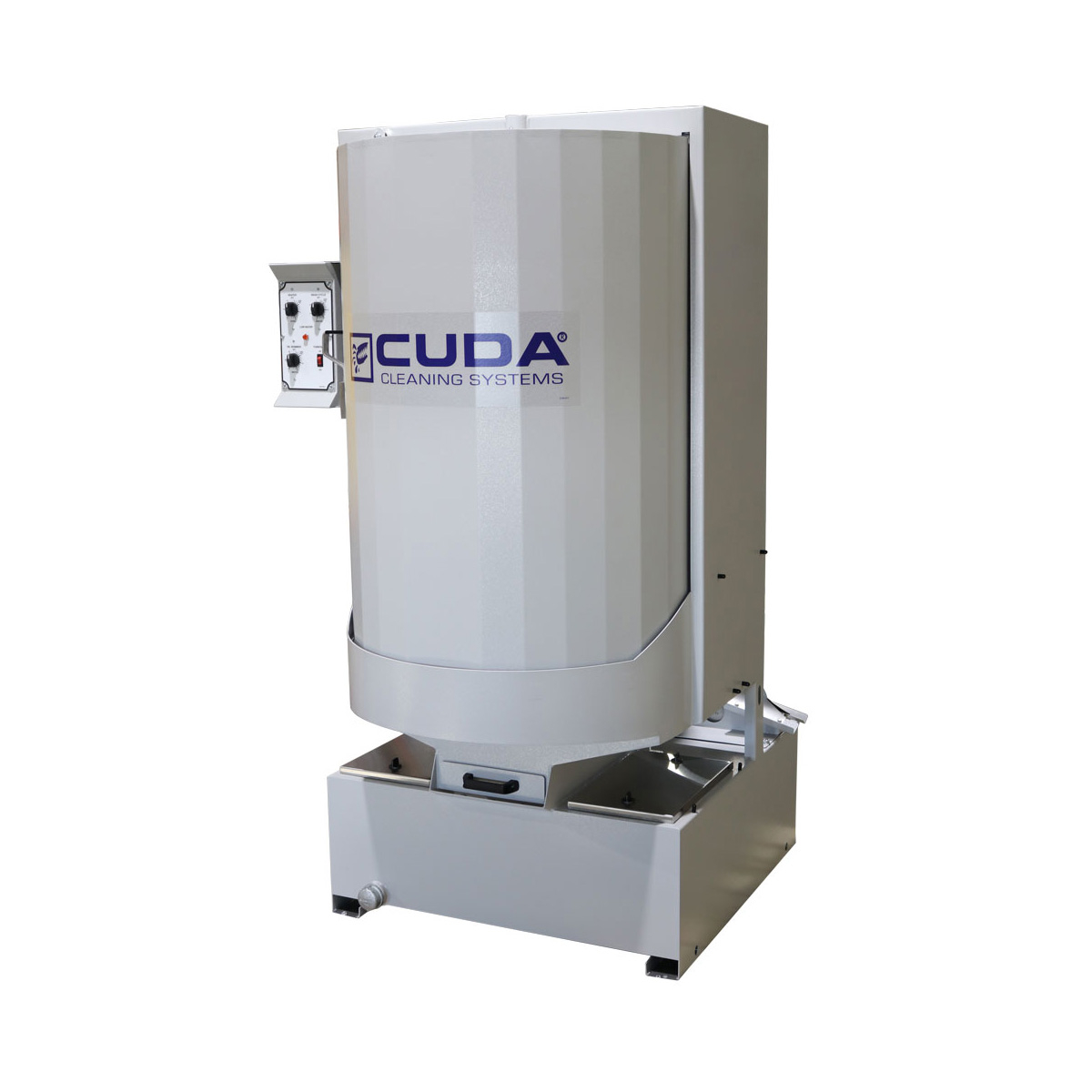

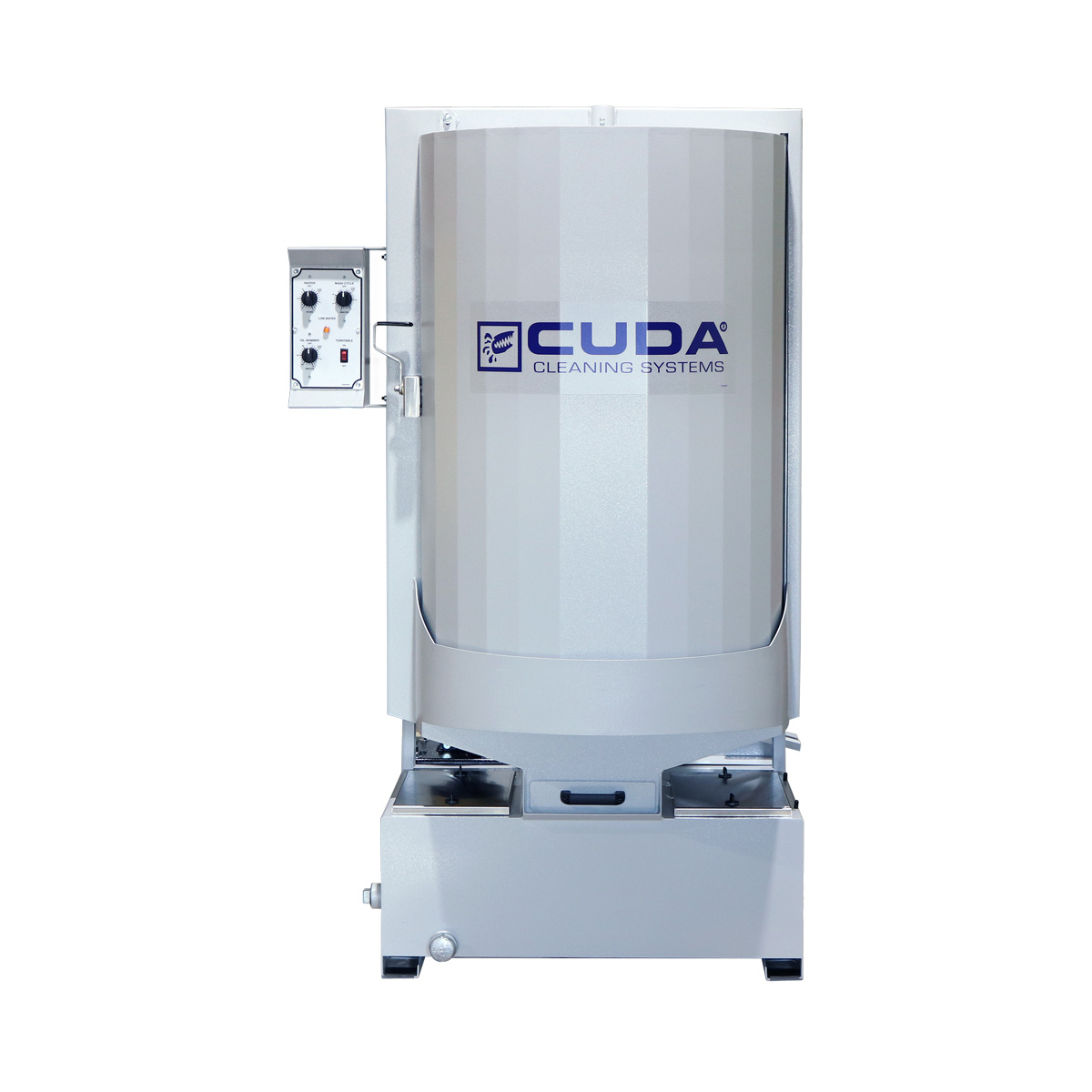

The Cuda 2840 is the next larger size in the front-load automatic parts washer models. The 2840 features a turntable diameter of 28-inches, working height of 40-inches, and load capacity of 1000 lbs. The 2840 Series is equipped with a 3 HP vertical seal-less pump producing 50 GPM at 45 PSI.

Models

Model Part No Working Height Turntable Diameter Volt/PH Total Amps
Standard Models
2840 1.043-395.0 40″ 28″ 230/1 38
2840 1.043-416.0 40″ 28″ 208/1 42
2840 1.043-418.0 40″ 28″ 230/3 23
2840 1.043-417.0 40″ 28″ 208/3 25
2840 1.043-419.0 40″ 28″ 460/3 11
2840 1.043-420.0 40″ 28″ 575/3 9

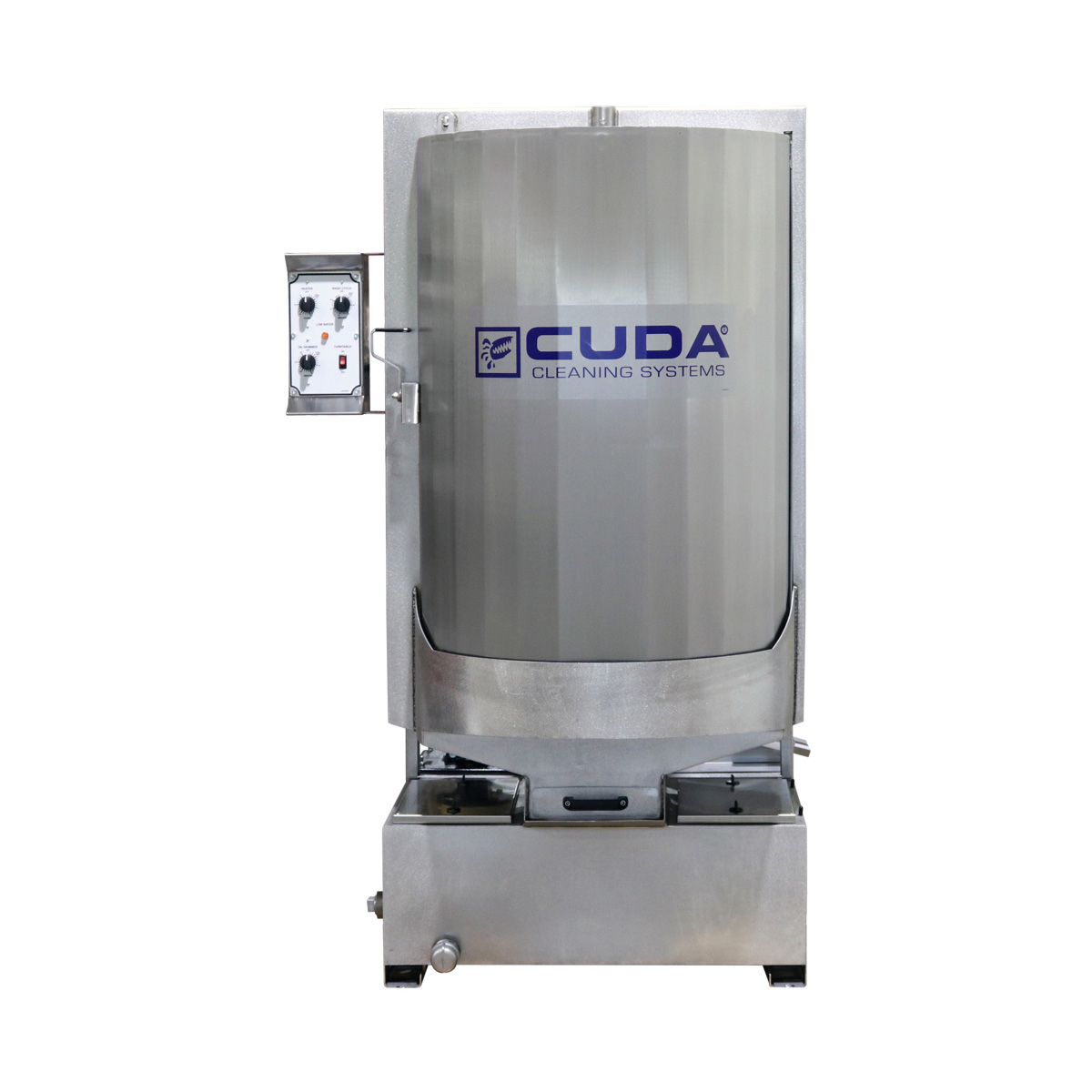

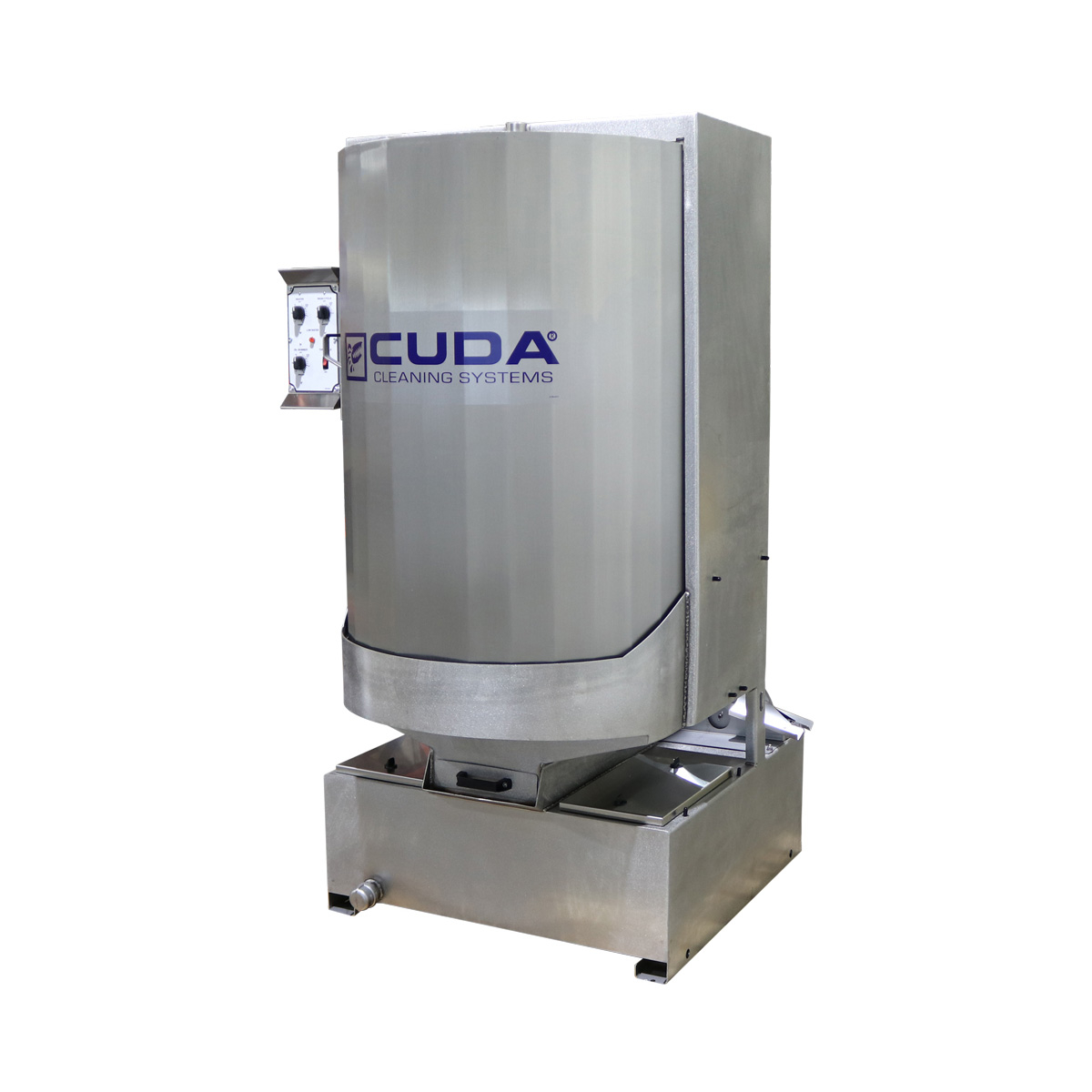

Stainless Steel Models
2840 1.043-492.0 40″ 28″ 230/1 38
2840 1.043-493.0 40″ 28″ 208/1 42
2840 1.043-498.0 40″ 28″ 230/3 23
2840 1.043-494.0 40″ 28″ 208/3 25
2840 1.043-496.0 40″ 28″ 460/3 11
2840 1.043-497.0 40″ 28″ 575/3 9

NOTE: All stainless steel models come with standard cast pump. All wetted surfaces are stainless steel.

Options

Part No Description
8.915-493.0 Preferred Options Package – Contains Parts Tree, Small Parts Basket, Containment Ring, Oil-Drain Container
8.915-113.0 Automatic Water Fill
8.705-957.0 28″ Containment Ring
8.915-378.0 Filtration
8.915-379.0 Filtration & Sump Sweep

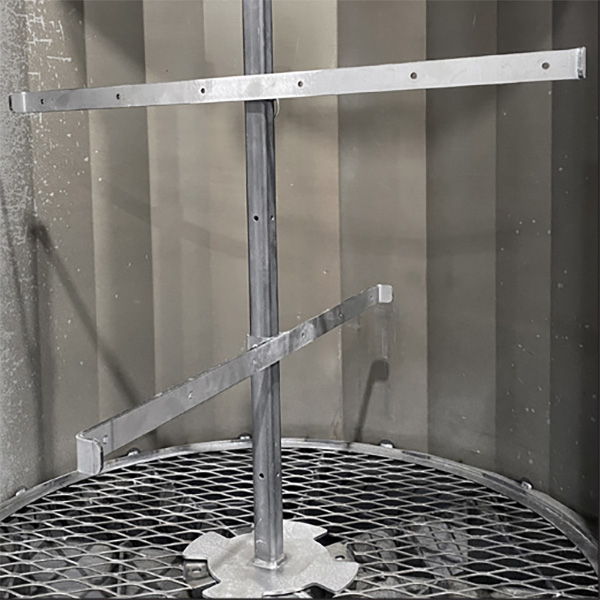

8.915-124.0 4 Hook Parts Tree
8.725-267.0 Heater Timer, 24 hour 7 day
8.725-268.0 Heater & Skimmer Timer, 24 hour 7 day

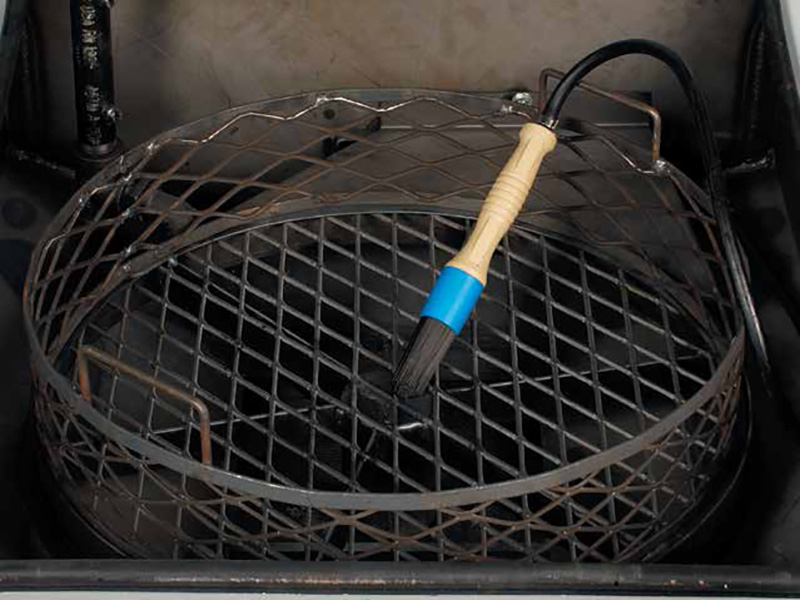

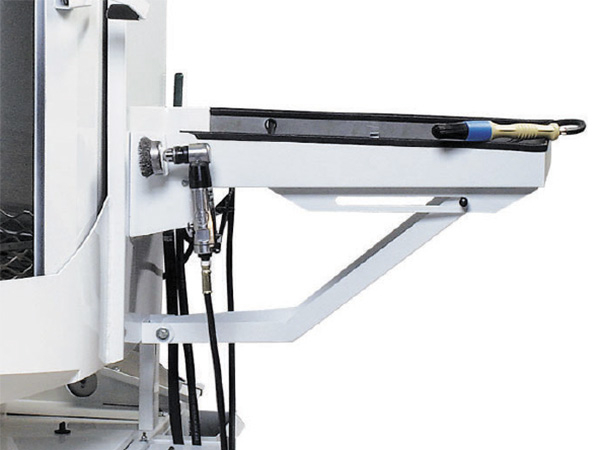

8.901-881.0 Deluxe Kit: Detail and Power Brush with Side Sink and Side Sump
8.915-316.0 60 Mesh Insert for Debris Screen Tray

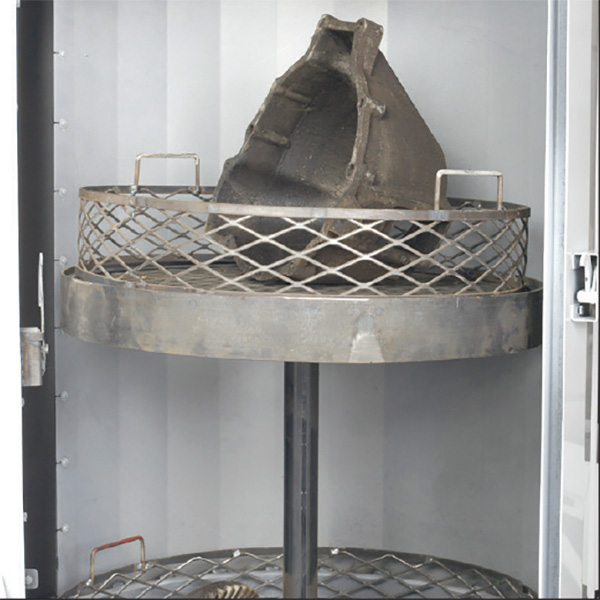

8.915-351.0 Two-Tier Turntable*
8.924-172.0 Oil Drain Container
9.802-283.0 Hour Meter
8.731-254.0 Light Duty Small Parts Basket (8″ x 8″ x 4″)
8.753-825.0 Light Duty Medium Parts Basket (16″ x 12″ x 6″)
8.723-214.0 Gray Spray Pain (cannot ship via air)
Stainless Optional Accessories
Stainless Two-Tier Turntable
Stainless Parts Tree
Stainless Containment Ring
Stainless Pump Motor
Stainless Oil Bucket
Stainless Steel Handle Kit, assembled

Included □ Optional
* Required Light Duty Small Parts Basket and Containment Ring (sold separately). Not for height extended machines.

Literature

Cuda 2840 Series Product Sheet – Cuda 2840 Series
