Cuda 2848 Series

SKU 2848-Series Category
  • 28-Inch Dia Table
  • 48-Inch Working Height
  • Vertical Seal-Less Pump
  • 1000 Lbs Capacity
  • Automatic Oil Skimmer
  • Low Water Shutdown
  • Heater
  • ETL Safety Certified

Models shown may include optional features

Cuda

Call to Order

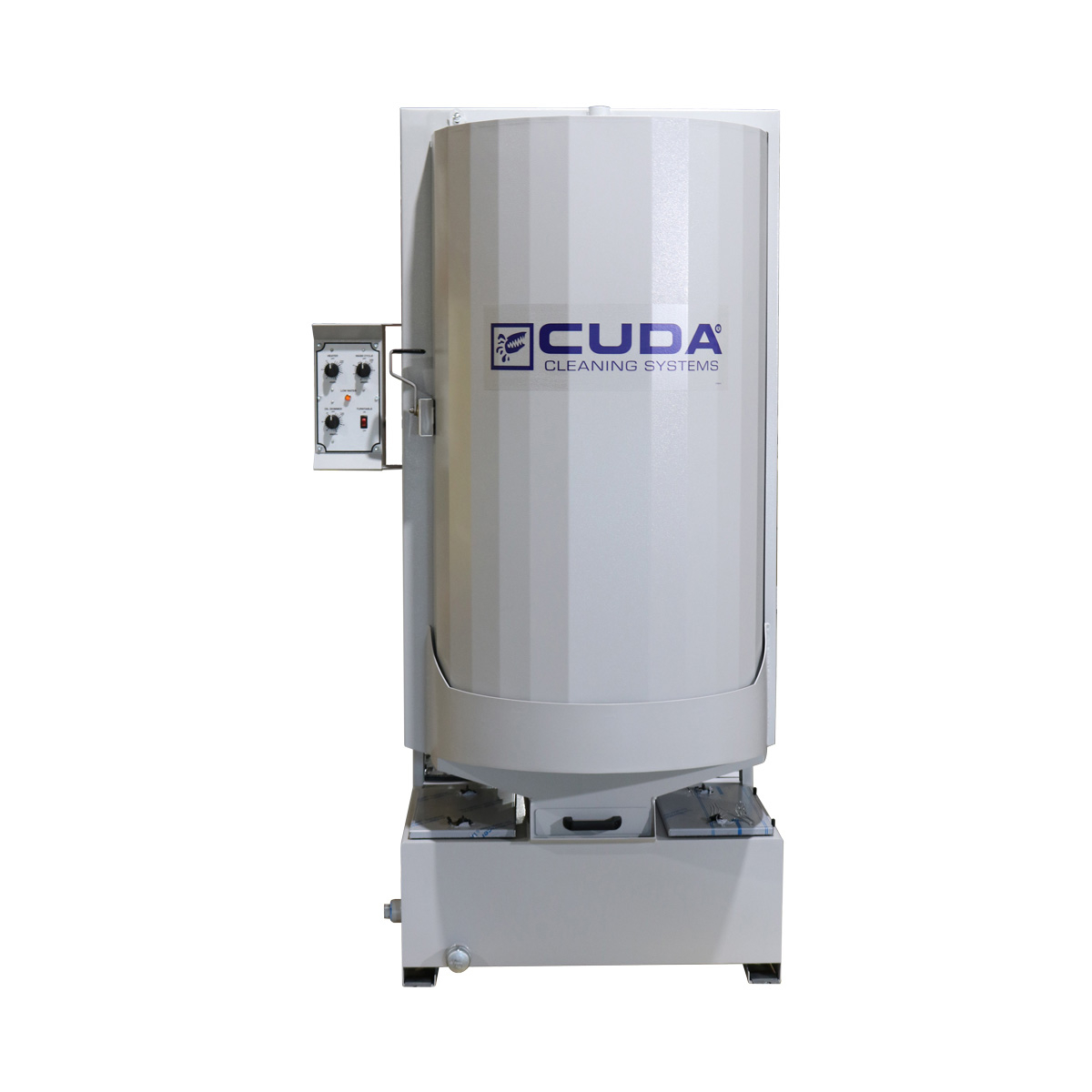

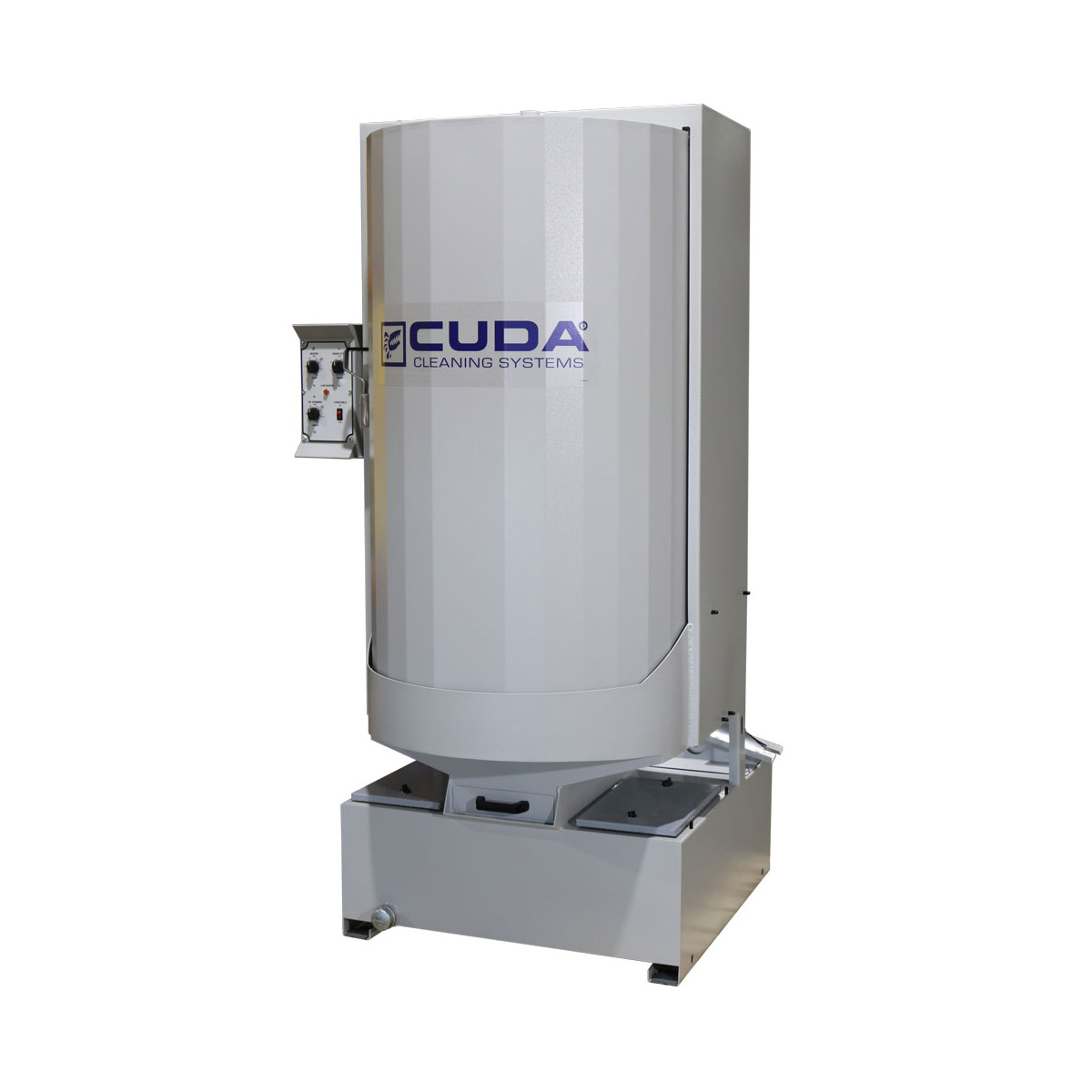

The Cuda 2848 features a turntable diameter of 28-inches, working height of 48-inches, and load capacity of 1000 lbs. The 2848 Series is equipped with a 5 HP vertical seal-less pump producing 110 GPM at 50 PSI.

Models

Model Part No Working Height Turntable Diameter Volt/PH Total Amps
Standard Models
2848 1.043-421.0 48″ 28″ 208/1 64
2848 1.043-422.0 48″ 28″ 230/1 58
2848 1.043-394.0 48″ 28″ 230/3 36
2848 1.043-423.0 48″ 28″ 208/3 40
2848 1.043-424.0 48″ 28″ 460/3 17
2848 1.043-425.0 48″ 28″ 575/3 14

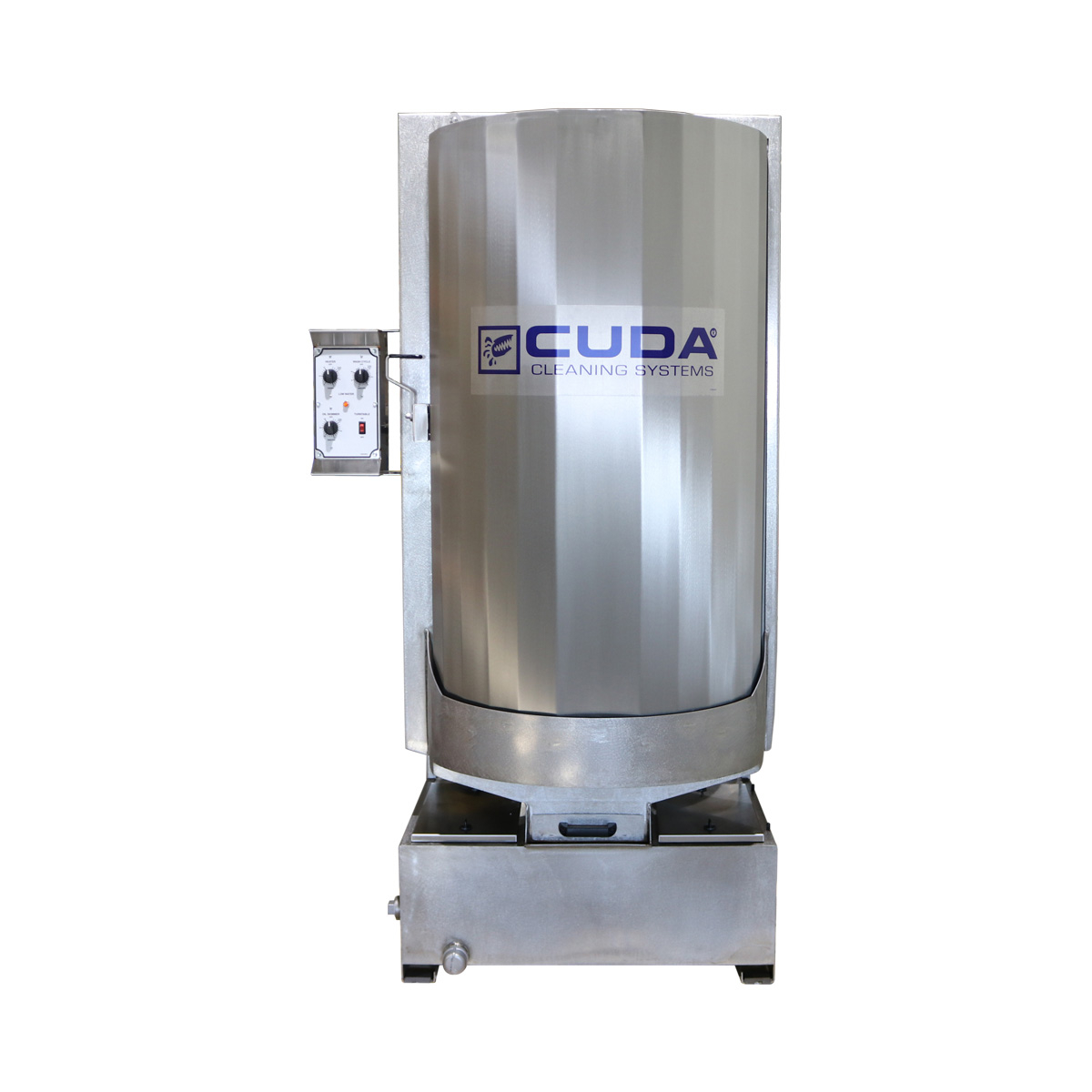

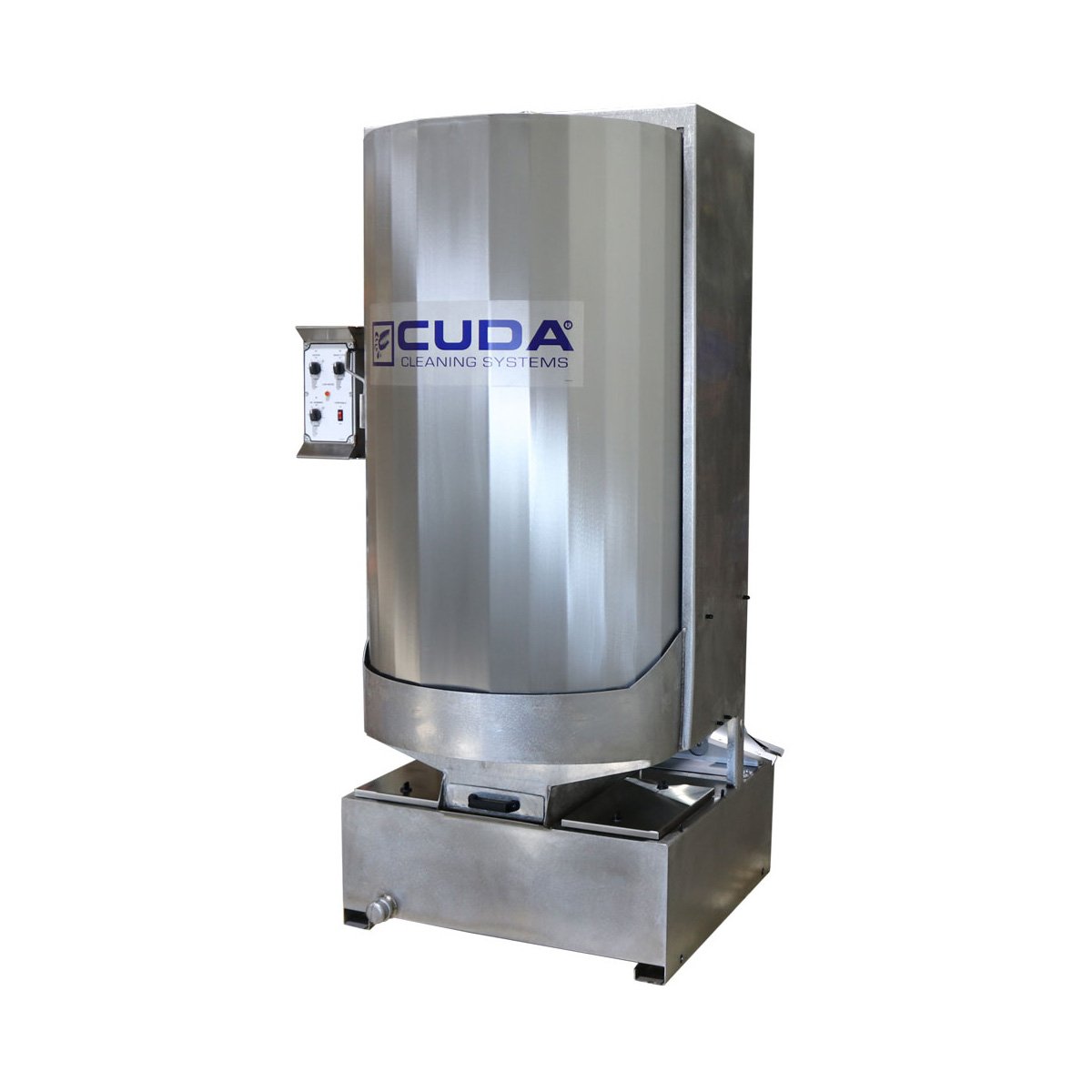

Stainless Steel Models
2848 1.043-481.0 48″ 28″ 208/1 64
2848 1.043-482.0 48″ 28″ 230/1 58
2848 1.043-480.0 48″ 28″ 230/3 36
2848 1.043-483.0 48″ 28″ 208/3 40
2848 1.043-484.0 48″ 28″ 460/3 17
2848 1.043-485.0 48″ 28″ 575/3 14

NOTE: All stainless steel models come with standard cast pump. All wetted surfaces are stainless steel.

Options

Part No Description
8.915-493.0 Preferred Options Package – Contains Parts Tree, Small Parts Basket, Containment Ring, Oil-Drain Container
8.915-113.0 Automatic Water Fill
8.705-957.0 28″ Containment Ring
8.915-378.0 Filtration
8.915-379.0 Filtration & Sump Sweep
8.916-114.0 12″ Height Extension
8.915-124.0 4 Hook Parts Tree
8.725-267.0 Heater Timer, 24 hour 7 day
8.725-268.0 Heater & Skimmer Timer, 24 hour 7 day
8.901-881.0 Deluxe Kit: Detail and Power Brush with Side Sink
8.915-316.0 60 Mesh Insert for Debris Screen Tray
8.915-352.0 Two-Tier Turntable*
8.924-172.0 Oil Drain Container
9.802-283.0 Hour Meter
8.731-254.0 Light Duty Small Parts Basket (8″ x 8″ x 4″)
8.753-825.0 Light Duty Medium Parts Basket (16″ x 12″ x 6″)
8.753-826.0 Medium Duty Parts Basket (18″ x 16″ x 8″)
8.723-214.0 Gray Spray Pain (cannot ship via air)
Stainless Optional Accessories
Stainless Two-Tier Turntable
Stainless Parts Tree
Stainless Containment Ring
Stainless Pump Motor
Stainless Oil Bucket
Stainless Steel Handle Kit, assembled

Included □ Optional
* Required Light Duty Small Parts Basket and Containment Ring (sold separately). Not for height extended machines.

Part No Description 8.915-493.0 Preferred Options Package – Contains Parts Tree, Small Parts Basket, Containment Ring, Oil-Drain Container ■ 8.915-113.0 Automatic Water Fill □ 8.705-957.0 28″ Containment Ring □ 8.915-378.0 Filtration □ 8.915-379.0 Filtration & Sump Sweep □ 8.916-114.0 12″ Height Extension □ 8.915-124.0 4 Hook Parts Tree □ 8.725-267.0 Heater Timer, 24 hour 7 day □ 8.725-268.0 Heater & Skimmer Timer, 24 hour 7 day □ 8.901-881.0 Deluxe Kit: Detail and Power Brush with Side Sink □ 8.915-316.0 60 Mesh Insert for Debris Screen Tray □ 8.915-352.0 Two-Tier Turntable* □ 8.924-172.0 Oil Drain Container □ 9.802-283.0 Hour Meter □ 8.731-254.0 Light Duty Small Parts Basket (8″ x 8″ x 4″) □ 8.753-825.0 Light Duty Medium Parts Basket (16″ x 12″ x 6″) □ 8.753-826.0 Medium Duty Parts Basket (18″ x 16″ x 8″) □ 8.723-214.0 Gray Spray Pain (cannot ship via air) □ Stainless Optional Accessories Stainless Two-Tier Turntable □ Stainless Parts Tree □ Stainless Containment Ring □ Stainless Pump Motor □ Stainless Oil Bucket □ Stainless Steel Handle Kit, assembled

Included □ Optional
* Required Light Duty Small Parts Basket and Containment Ring (sold separately). Not for height extended machines.

Literature

2848 Series Product Sheet Product Sheet – Cuda 2848 Series
