Cuda 2860 Series

SKU 2860-Series Category

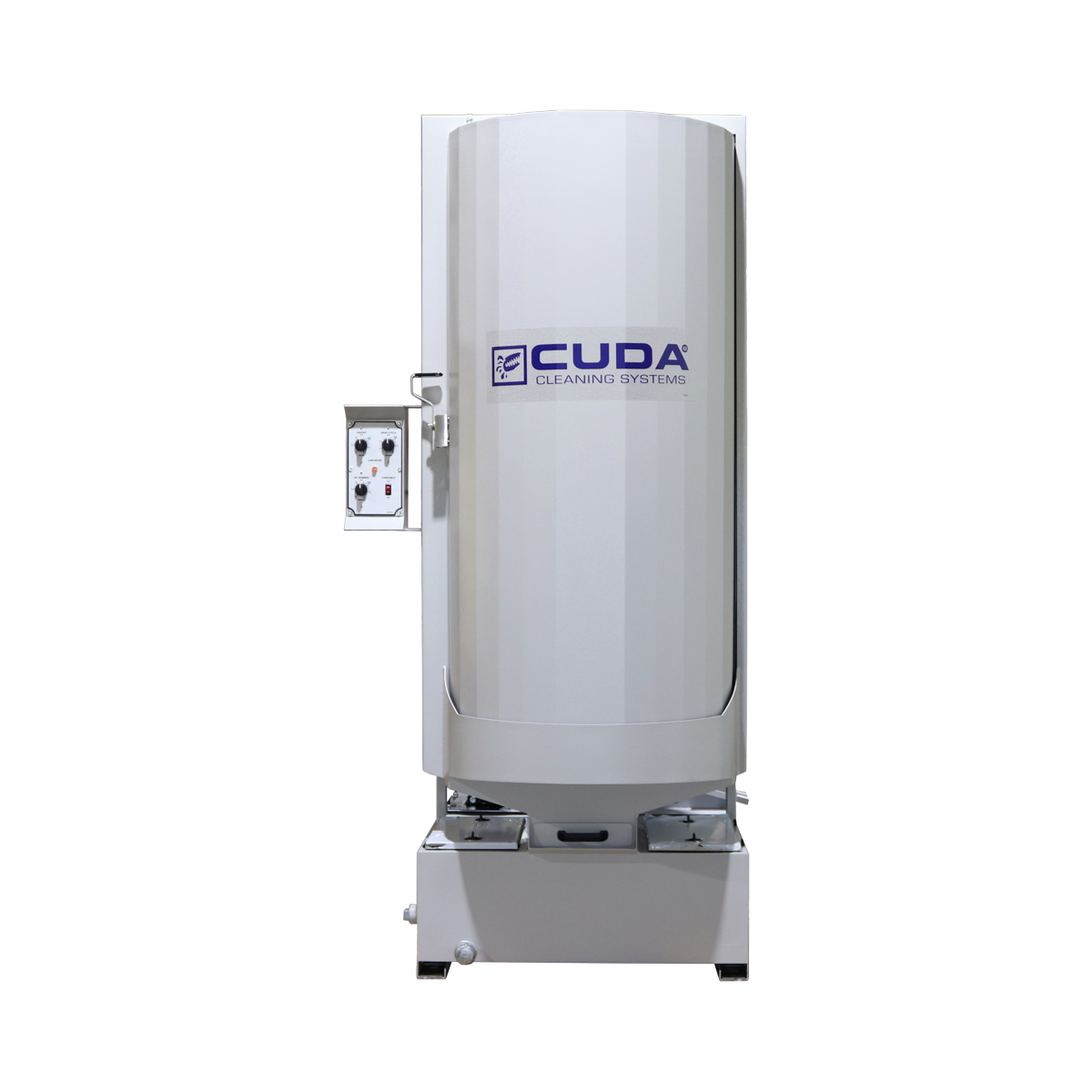

Cuda 2860 Series
Cuda Cleaning Comparison After 3 Minutes
Cuda Retractable Cleaning Arm
Cuda Front Load Low Water Sensor
Cuda Door Safety Switch
Cuda Front Load Sump Access Panel
Cuda Front Load Debris Tray Pulled Out
Cuda 2860 Series - Image 8
Cuda 2860 Series - Image 9
Cuda 2860 Series - Image 10
Cuda 2860 Series - Image 11
Cuda 2860 Series - Image 12

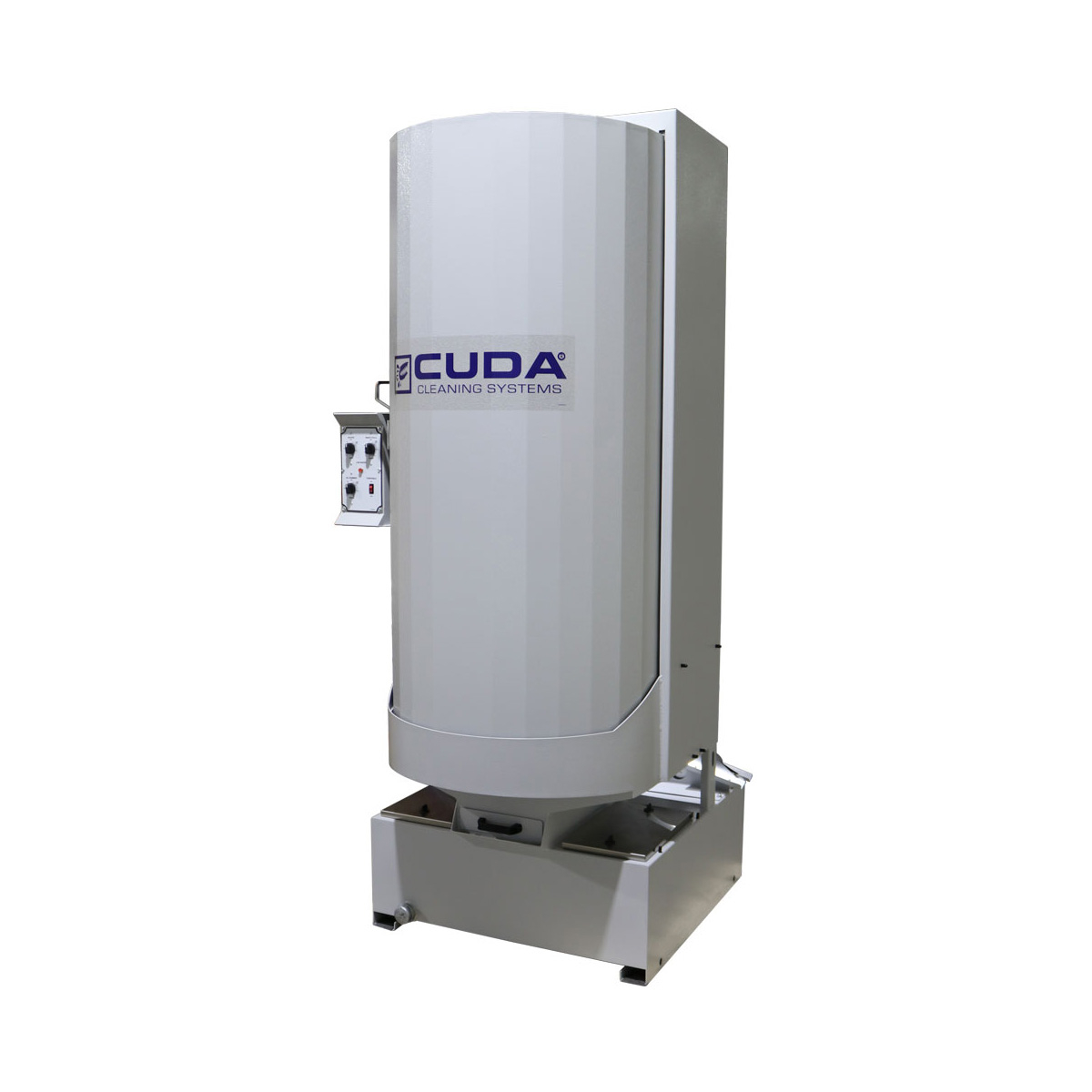

Cuda 2860 Series - Image 13
  • 28-Inch Dia Table
  • 60-Inch Working Height
  • 5 HP Vertical Seal-Less Pump
  • 110 GPM / 50 PSI
  • 1000 Lbs Capacity
  • 50 Gal Sump Capacity
  • 9 kW Heater
  • Automatic Oil Skimmer
  • Low Water Shutdown
  • ETL Safety Certified

Models shown may include optional features

Cuda

Call to Order

The Cuda 2860 increases the working height to 60-inches, while maintaining the smaller footprint of a 28-inch turntable, and load capacity of 1000 lbs. The 2860 Series is equipped with a 5 HP vertical seal-less pump producing 110 GPM at 50 PSI.

Ideal For:

  • Cleaning axles, oil field tools, cylindrical tubes, hydraulic cylinders, and other lengthy items.



Models

Model Part No Working Height Turntable Diameter Volt/PH Total Amps
2860 1.043-426.0 48″ 28″ 230/1 58
2860 1.043-430.0 48″ 28″ 208/1 64
2860 1.043-429.0 48″ 28″ 230/3 36
2860 1.043-428.0 48″ 28″ 208/3 40
2860 1.043-427.0 48″ 28″ 460/3 17

Dimensions (LxWxH): 51″ x 50″ x 95″

Options

Part No Description
8.915-493.0 Preferred Options Package – Contains Parts Tree, Small Parts Basket, Containment Ring, Oil-Drain Container, Detergent Scoop □
8.915-113.0 Automatic Water Fill □
9.802-283.0 Hour Meter □
8.725-267.0 Heater Timer, 24 hour 7 day □
8.725-268.0 Heater & Skimmer Timer, 24 hour 7 day □
8.731-254.0 Light Duty Small Parts Basket (8″ x 8″ x 4″) □
8.753-825.0 Light Duty Medium Parts Basket (16″ x 12″ x 6″) □
8.753-826.0 Medium Duty Large Parts Basket (18″ x 16″ x 8″) □
8.924-172.0 Oil Drain Container □
8.751-001.0 Adjustable Parts Tree – Medium □
8.915-316.0 60 Mesh Insert for Debris Screen Tray □
8.705-957.0 28″ Containment Ring □
8.901-881.0 Deluxe Kit: Detail and Power Brush with Side Sink □
8.757-650.0 Premium Detail and Power Brush □
8.915-378.0 Filtration □
8.915-379.0 Filtration & Sump Sweep □
8.704-104.0 Cuda Vac 55 □
  Upgrade: Low Amp 230/208V 1Ph – 44/40 Amp □

□ Optional
