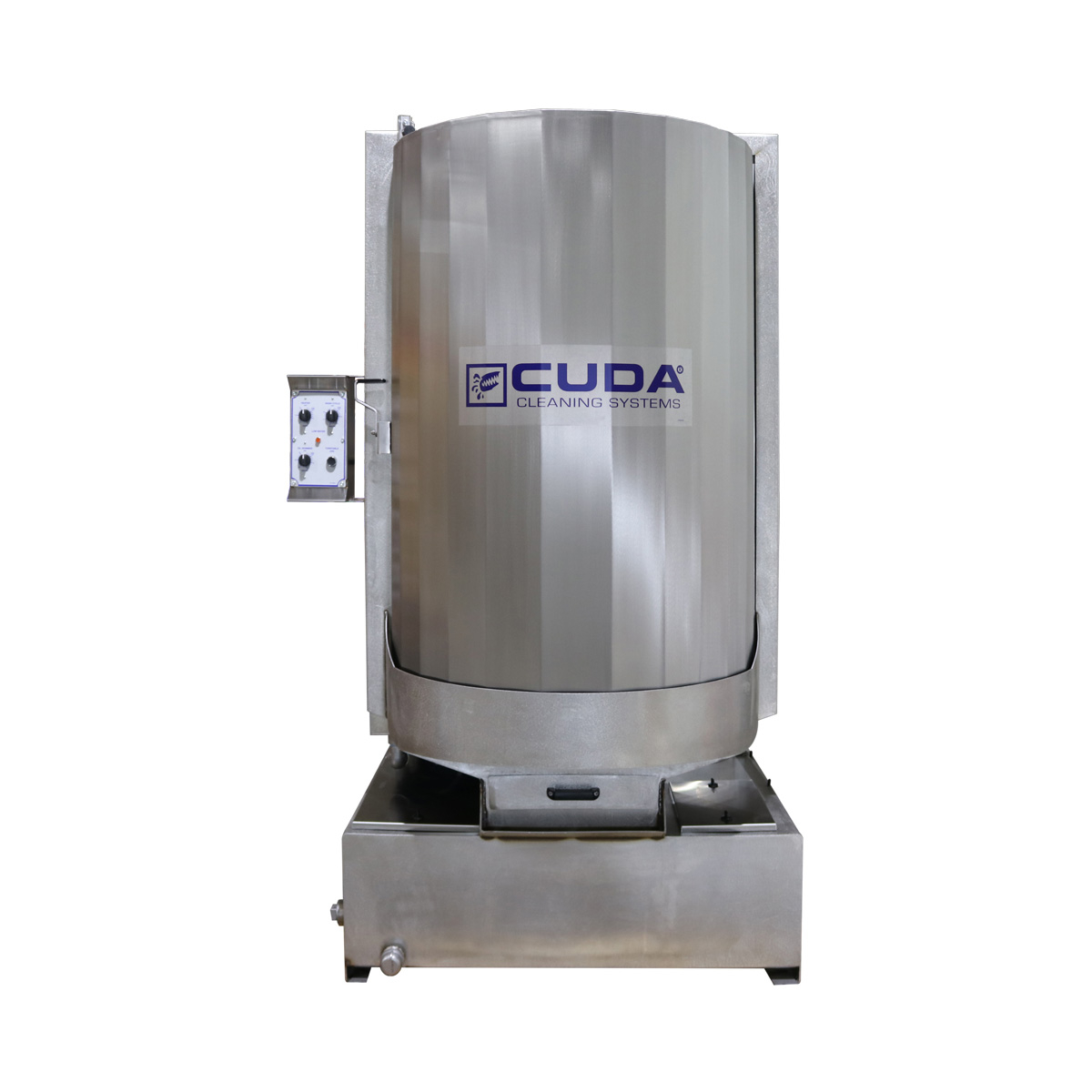

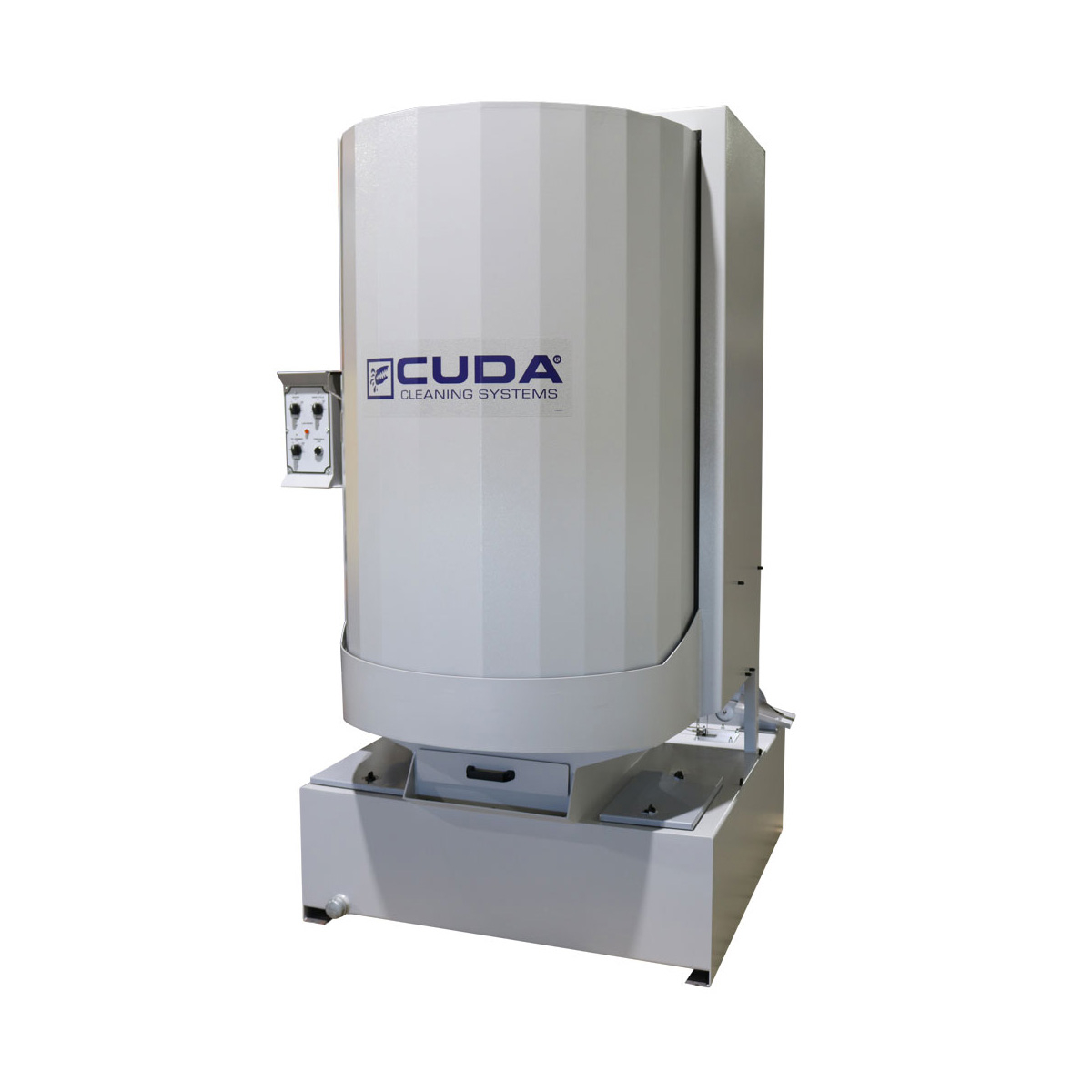

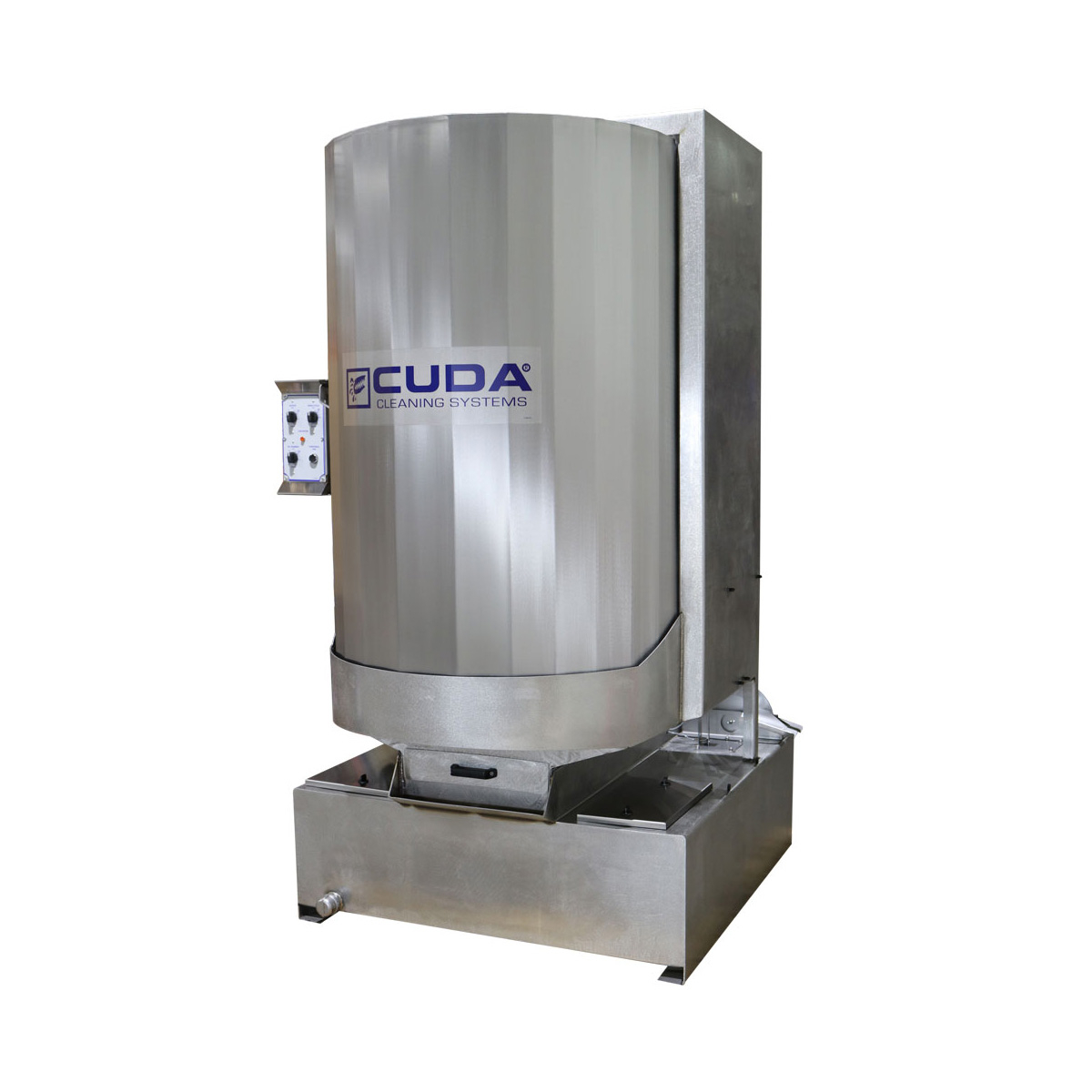

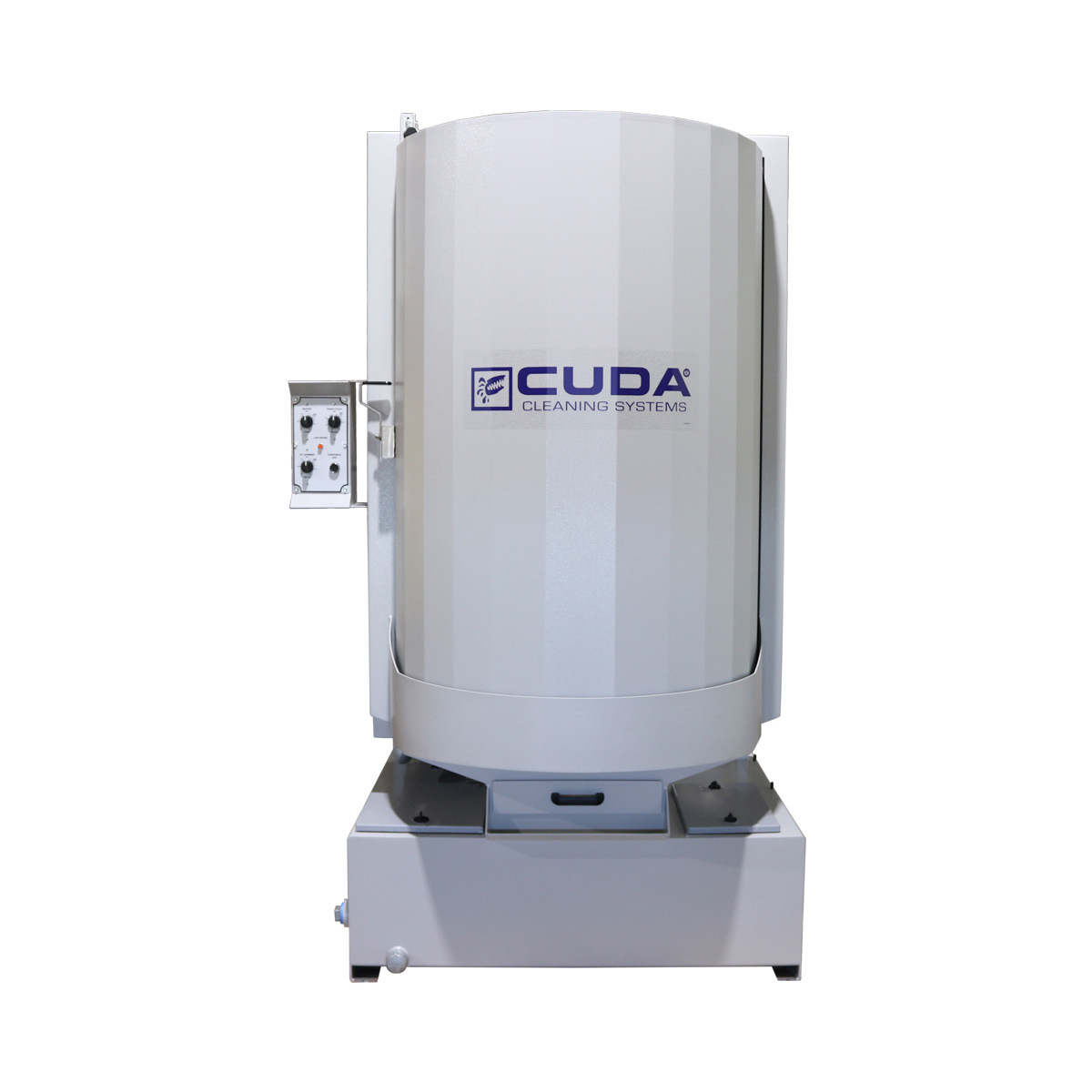

The Cuda model 3648 is a cleaning beast. It is an essential tool for every serious truck & heavy equipment repair facility. It features a turntable diameter of 36-inches, working height of 48-inches, and load capacity of 2500 lbs. The 3648 Series is equipped with a 7.5 HP vertical seal-less pump producing 150 GPM at 50 PSI, and has a 113-gallon sump capacity.
Ideal For:
- Large OTR truck and diesel repair facilities
- Large implement dealers
- Construction equipment repair
- Engine rebuilders
Models
| Model |
Part No |
Working Height |
Turntable Diameter |
Volt/PH |
Total Amps |
| Standard Models |
| 3648 |
1.043-477.0 |
48″ |
36″ |
230/3 |
58 |
| 3648 |
1.043-508.0 |
48″ |
36″ |
208/3 |
70 |
| 3648 |
1.043-478.0 |
48″ |
36″ |
460/3 |
32 |
| 3648 |
1.043-479.0 |
48″ |
36″ |
575/3 |
28 |
| Stainless Steel Models |
| 3648 |
1.043-507.0 |
48″ |
36″ |
230/3 |
58 |
| 3648 |
1.043-509.0 |
48″ |
36″ |
208/30 |
70 |
| 3648 |
1.043-506.0 |
48″ |
36″ |
460/3 |
32 |
| 3648 |
1.043-505.0 |
48″ |
36″ |
575/3 |
28 |
Dimensions (LxWxH): 57″ x 49″ x 94″
NOTE: All stainless steel models come with standard cast pump. All wetted surfaces are stainless steel.
Options
| Part No |
Description |
|
| 8.922-632.0 |
Preferred Options Package – Contains Parts Tree, Small Parts Basket, Containment Ring, Oil-Drain Container, Detergent Scoop |
□ |
| 8.749-394.0 |
Automatic Water Fill |
□ |
| 9.802-283.0 |
Hour Meter |
□ |
| 8.725-267.0 |
Heater Timer, 24 hour 7 day |
□ |
| 8.725-268.0 |
Heater & Skimmer Timer, 24 hour 7 day |
□ |
| 8.731-254.0 |
Light Duty Small Parts Basket (8″ x 8″ x 4″) |
□ |
| 8.753-825.0 |
Light Duty Medium Parts Basket (16″ x 12″ x 6″) |
□ |
| 8.753-826.0 |
Medium Duty Large Parts Basket (18″ x 16″ x 8″) |
□ |
| 8.924-172.0 |
Oil Drain Container |
□ |
| 8.751-025.0 |
Adjustable Parts Tree – Large |
□ |
| 8.749-395.0 |
60 Mesh Insert for Debris Screen Tray |
□ |
| 8.921-971.0 |
Two-Tier Turntable* |
□ |
| 8.753-797.0 |
36″ Containment Ring |
□ |
| 8.749-397.0 |
Deluxe Kit: Detail and Power Brush with Side Sink and Side Sump |
□ |
| 8.757-650.0 |
Premium Detail and Power Brush |
□ |
| 8.921-972.0 |
2 Stage Filtration |
□ |
| 8.921-973.0 |
Filtration & Sump Sweep, 2 Stage |
□ |
| 8.704-105.0 |
Cuda Vac 110 |
□ |
| |
Upgrade: 208V/1Ph – 80 Amp, 230V/1Ph 75 Amp |
□ |
| Stainless Optional Accessories |
| 8.922-632.1 |
Stainless Preferred Options Package – Contains SS Parts Tree, SS Small Parts Basket, SS Containment Ring, SS Oil-Drain Container, Detergent Scoop |
□ |
| 8.751-025.1 |
Stainless Adjustable Parts Tree – Large |
□ |
| 8.753-767.1 |
Stainless 36″ Containment Ring |
□ |
| 8.731-254.1 |
Stainless Light Duty Small Parts Basket (8″ x 8″ x 4″) |
□ |
| 8.753-825.1 |
Stainless Light Duty Medium Parts Basket (16″ x 12″ x 6″) |
□ |
| 8.753-826.1 |
Stainless Medium Duty Large Parts Basket (18″ x 16″ x 8″) |
□ |
| 8.924-172.1 |
Stainless Oil Drain Container |
□ |
| 8.921-972.1 |
Stainless 2 Stage Filtration |
□ |
| 8.921-973.1 |
Stainless Fitration & Sump Sweep, 2 Stage |
□ |
| 8.921-971.1 |
Stainless Two-Tier Turntable* |
□ |
| |
Stainless Pump Motor |
□ |
□ Optional
* Required Light Duty Small Parts Basket and Containment Ring (sold separately). Not for height extended machines.
