Cuda 4860 Series

SKU 4860-Series Category

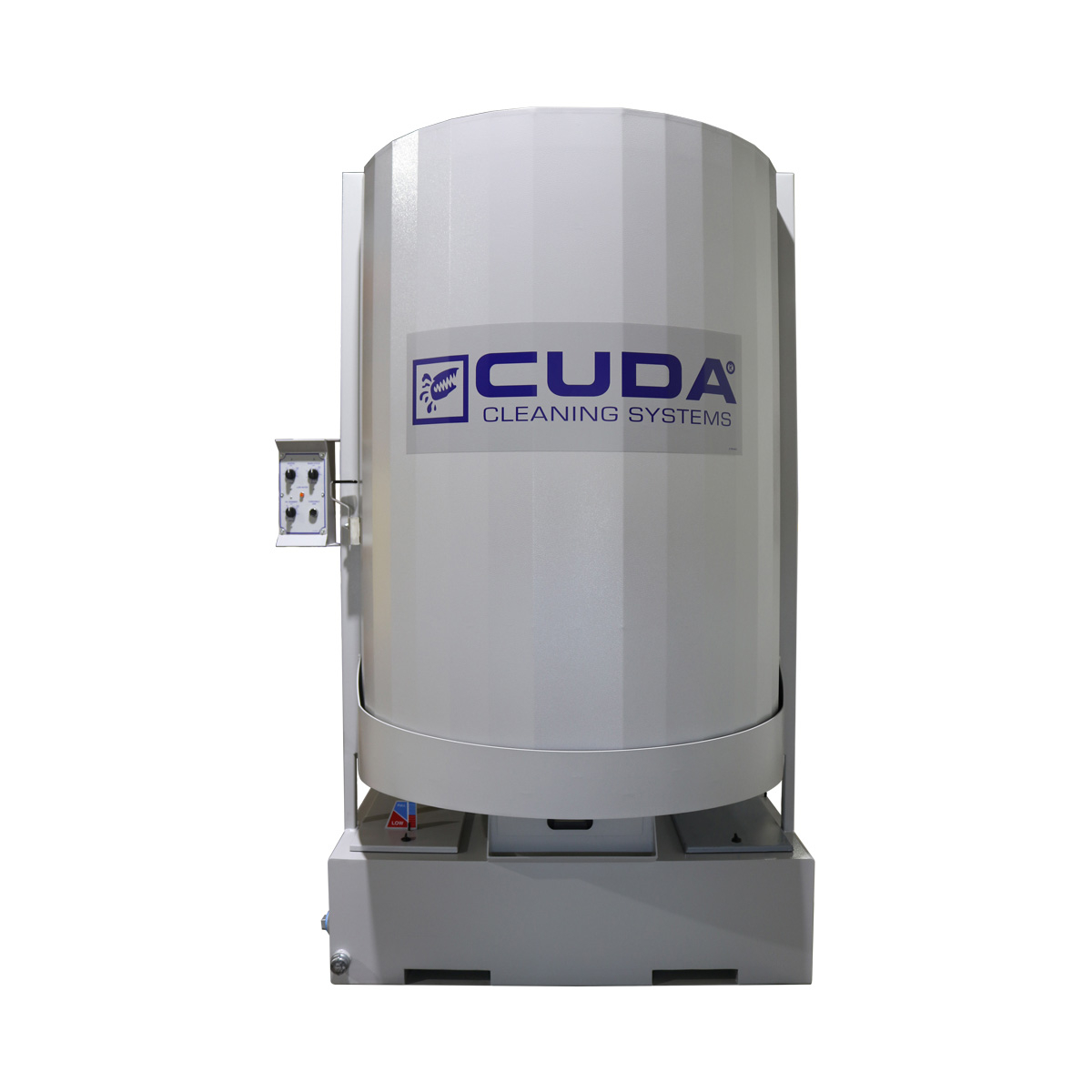

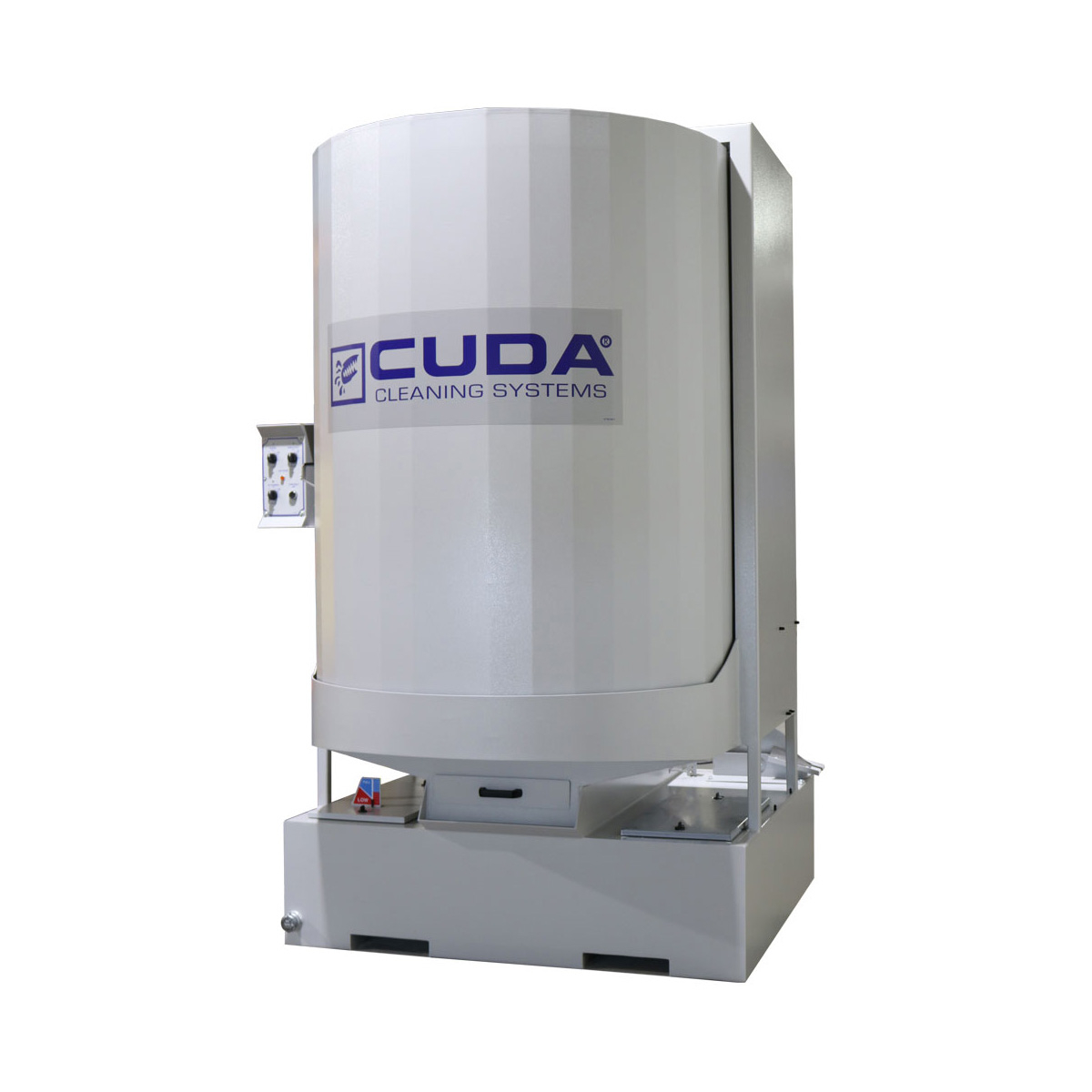

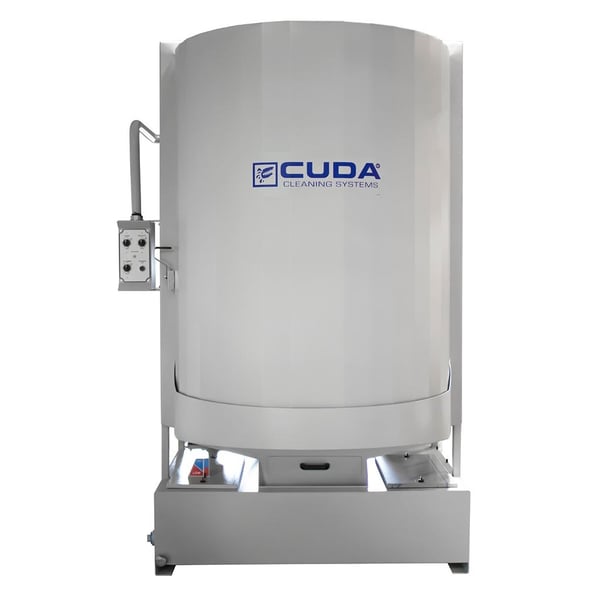

Cuda 4860 Series Automatic Parts Washer

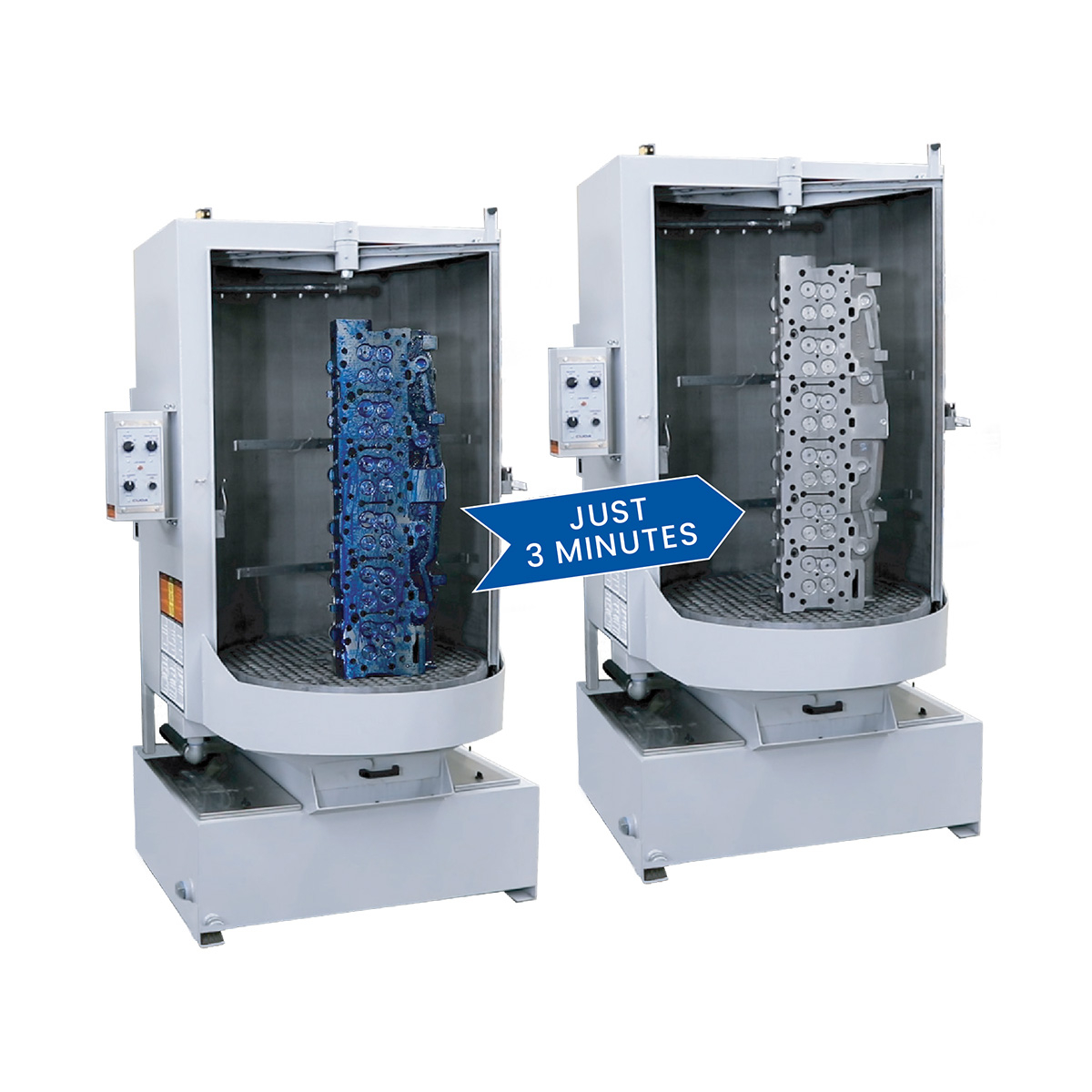

Cuda Cleaning Comparison After 3 Minutes

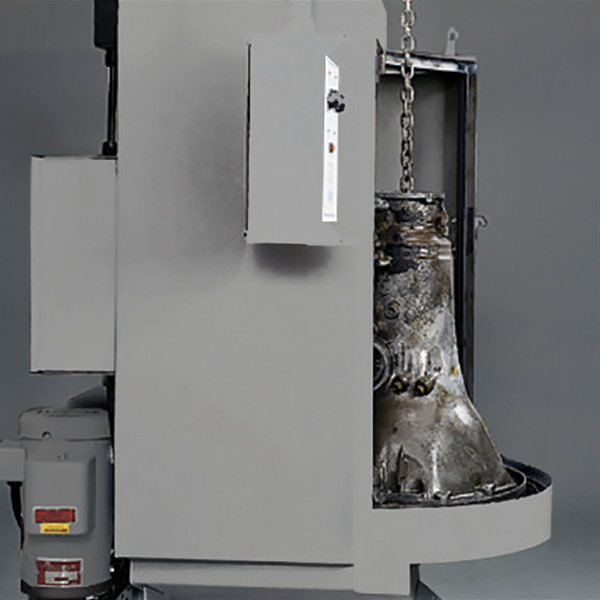

Cuda Roll In Door
Cuda Retractable Cleaning Arm
Cuda Front Load Low Water Sensor
Cuda Door Safety Switch

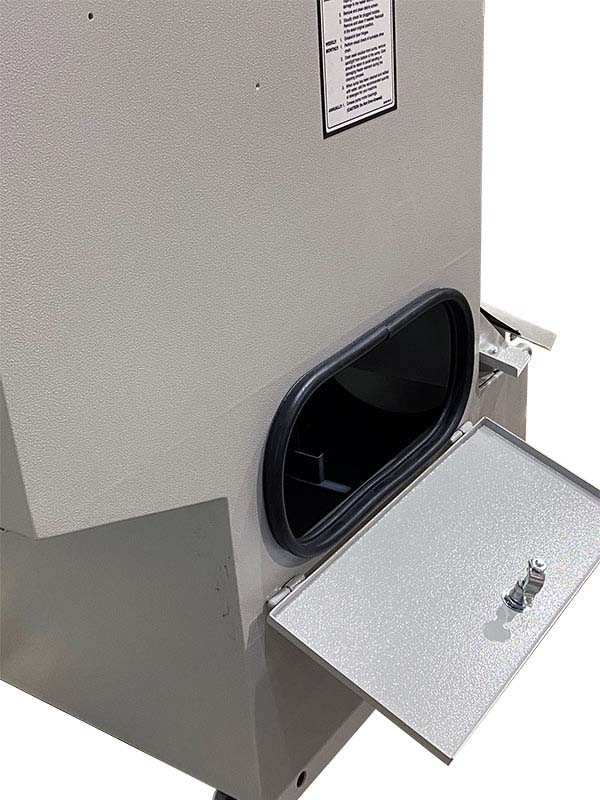

Cuda Front Load Sump Access Panel
Cuda Front Load Debris Tray Pulled Out
Cuda Detailing Tray

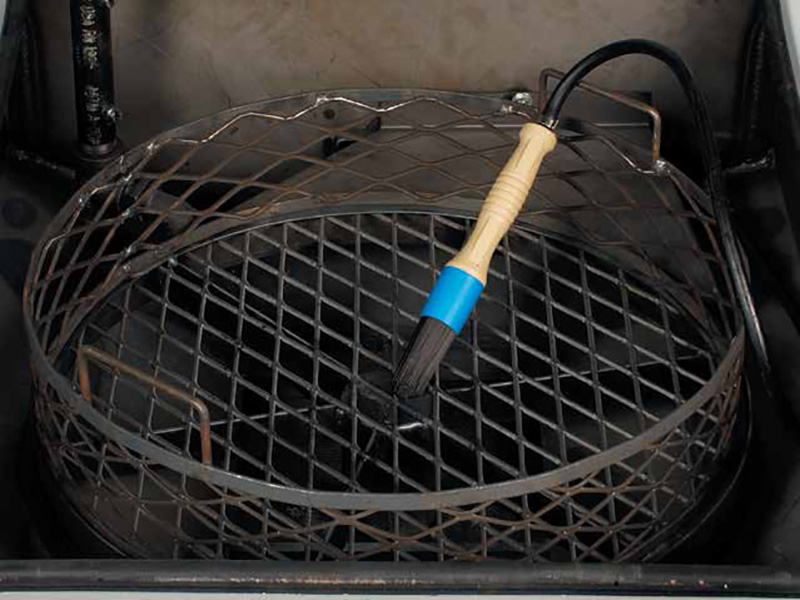

Cuda Detail Brush Accessory
Cuda Power Brush Accessory
Cuda Small Parts Basket

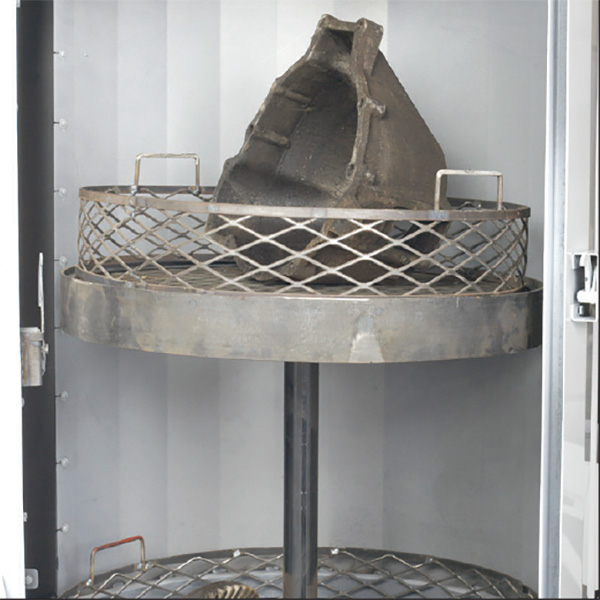

Cuda Two Tier Parts Table

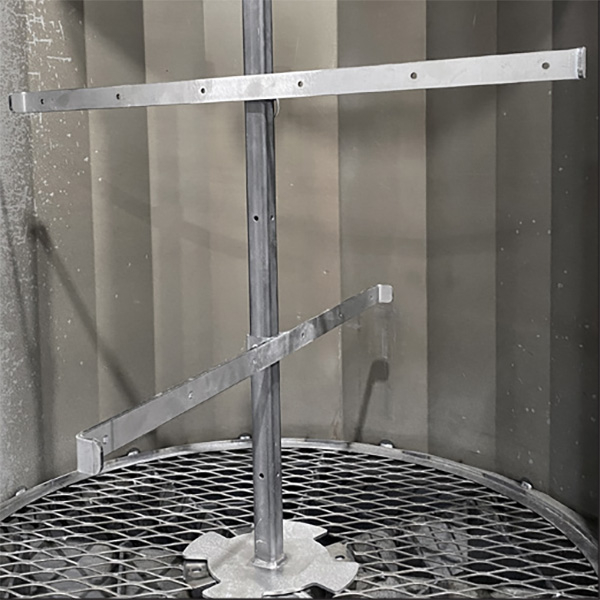

Cuda Drop In Parts Tree
Cuda Vertical Pump Detail

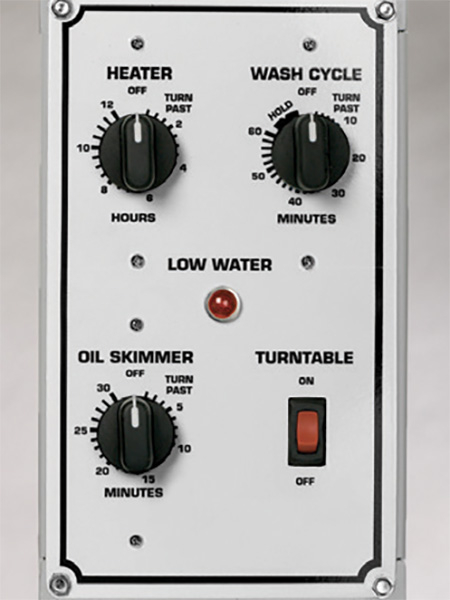

Cuda Control Panel
  • 48-Inch Dia Table
  • 60-Inch Working Height
  • Vertical Seal-Less Pump
  • 5000 Lbs Capacity
  • Automatic Oil Skimmer
  • Low Water Shutdown
  • Heater
  • ETL Safety Certified

Models shown may include optional features

Cuda

Call to Order

The Cuda 4860 features a turntable diameter of 48-inches, working height of 60-inches, and load capacity of 5000 lbs. The 4860 Series is equipped with a 7.5 HP vertical seal-less pump producing 200 GPM at 50 PSI, and has a 156-gallon sump capacity.

Models

Model Part No Working Height Turntable Diameter Volt/PH Total Amps
Standard Models
4860 1.043-444.0 60″ 48″ 230/3 55
4860 1.043-519.0 60″ 48″ 208/3 60
4860 1.043-445.0 60″ 48″ 460/3 32
4860 1.043-446.0 60″ 48″ 575/3 26

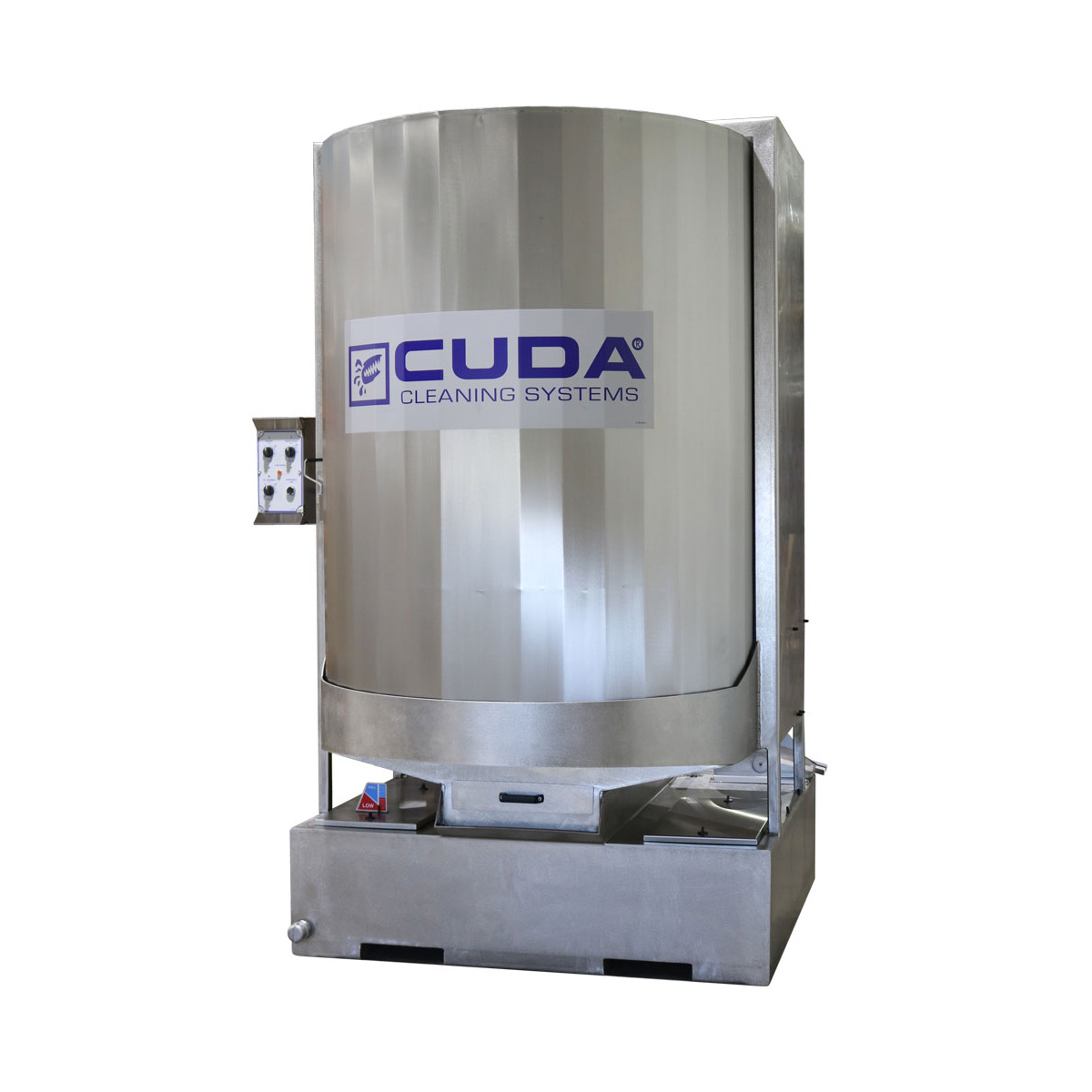

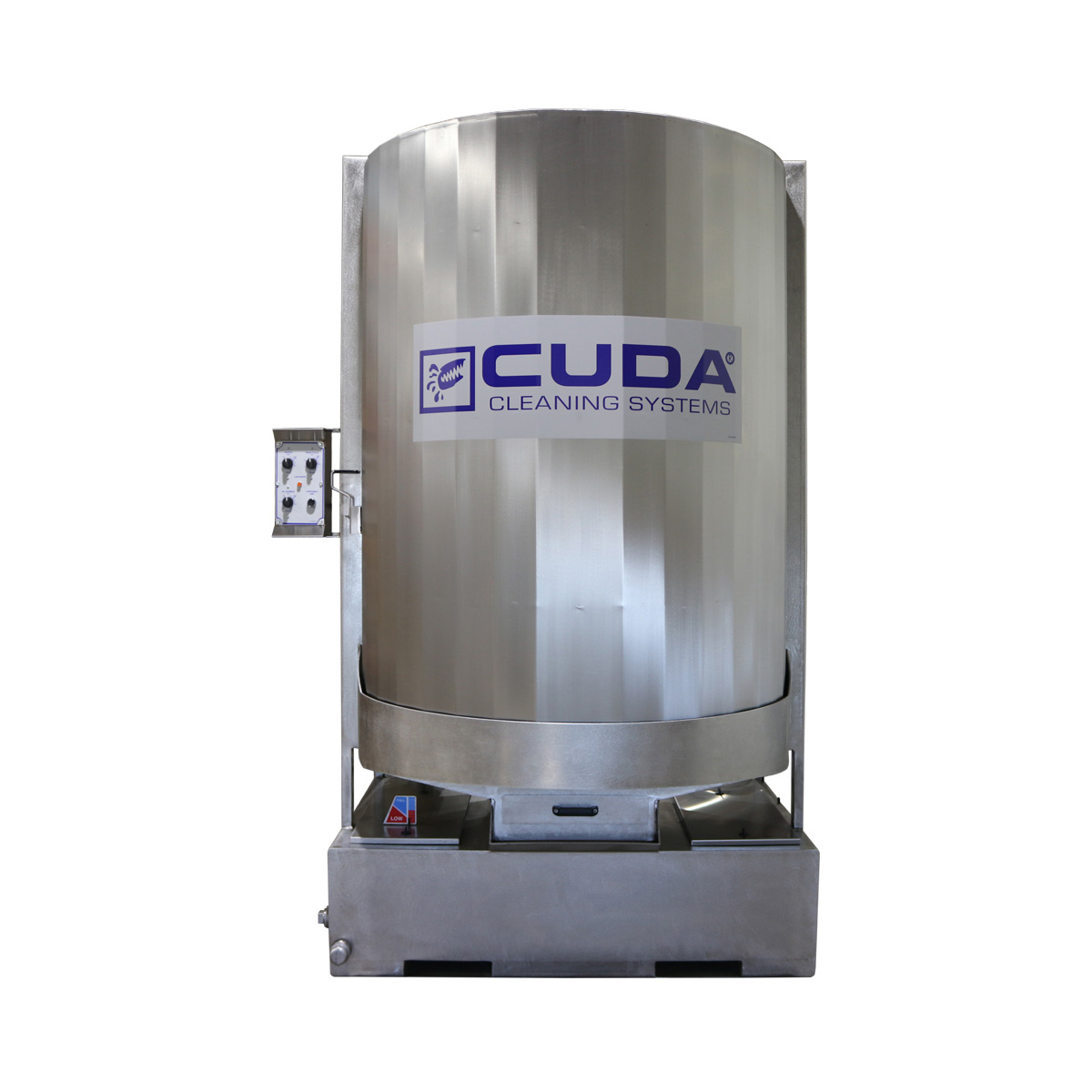

Stainless Steel Models
4860 1.043-510.0 60″ 48″ 230/3 55
4860 1.043-520.0 60″ 48″ 208/3 60
4860 1.043-511.0 60″ 48″ 460/3 32
4860 1.043-512.0 60″ 48″ 575/3 26

NOTE: All stainless steel models come with standard cast pump. All wetted surfaces are stainless steel.

Options

Part No Description
8.916-220.0 Preferred Options Package – Contains Parts Tree, Small Parts Basket, Containment Ring, Oil-Drain Container ■
8.749-394.0 Automatic Water Fill □
8.749-392.0 48″ Containment Ring □
8.916-341.0 2 Stage Filtration □
8.916-342.0 2 Stage Filtration & Sump Sweep □
8.916-365.0 12″ Height Extension □
8.749-395.0 60 Mesh Insert for Debris Screen Tray □
8.749-396.0 4 Hook Parts Tree □
8.749-492.0 Two-Tier Turntable* □

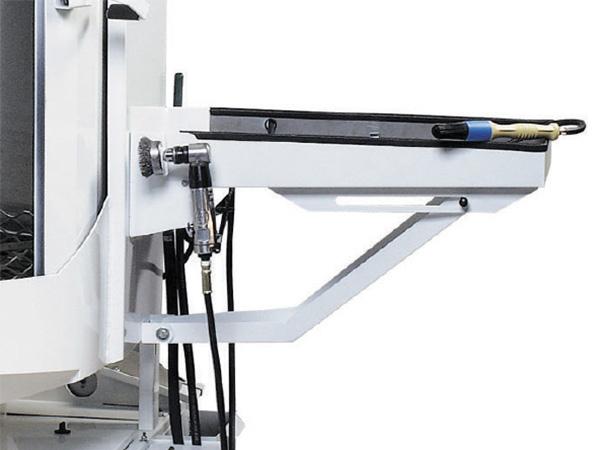

8.749-397.0 Deluxe Kit: Detail and Power Brush with Side Sink □
8.725-267.0 Heater Timer, 24 hour 7 day □
8.725-268.0 Heater & Skimmer Timer, 24 hour 7 day □
8.924-172.0 Oil Drain Container □
9.802-283.0 Hour Meter □
8.731-254.0 Light Duty Small Parts Basket (8″ x 8″ x 4″) □
8.753-825.0 Light Duty Medium Parts Basket (16″ x 12″ x 6″) □
8.753-826.0 Medium Duty Parts Basket (18″ x 16″ x 8″) □
8.723-214.0 Gray Spray Pain (cannot ship via air) □
Stainless Optional Accessories
Stainless Two-Tier Turntable □
Stainless Parts Tree □
Stainless Containment Ring □
Stainless Pump Motor □
Stainless Oil Bucket □
Stainless Steel Handle Kit, assembled

■ Included □ Optional
* Required Light Duty Small Parts Basket and Containment Ring (sold separately). Not for height extended machines.

Literature

4860 Series Product Sheet Product Sheet – Cuda 4860 Series
