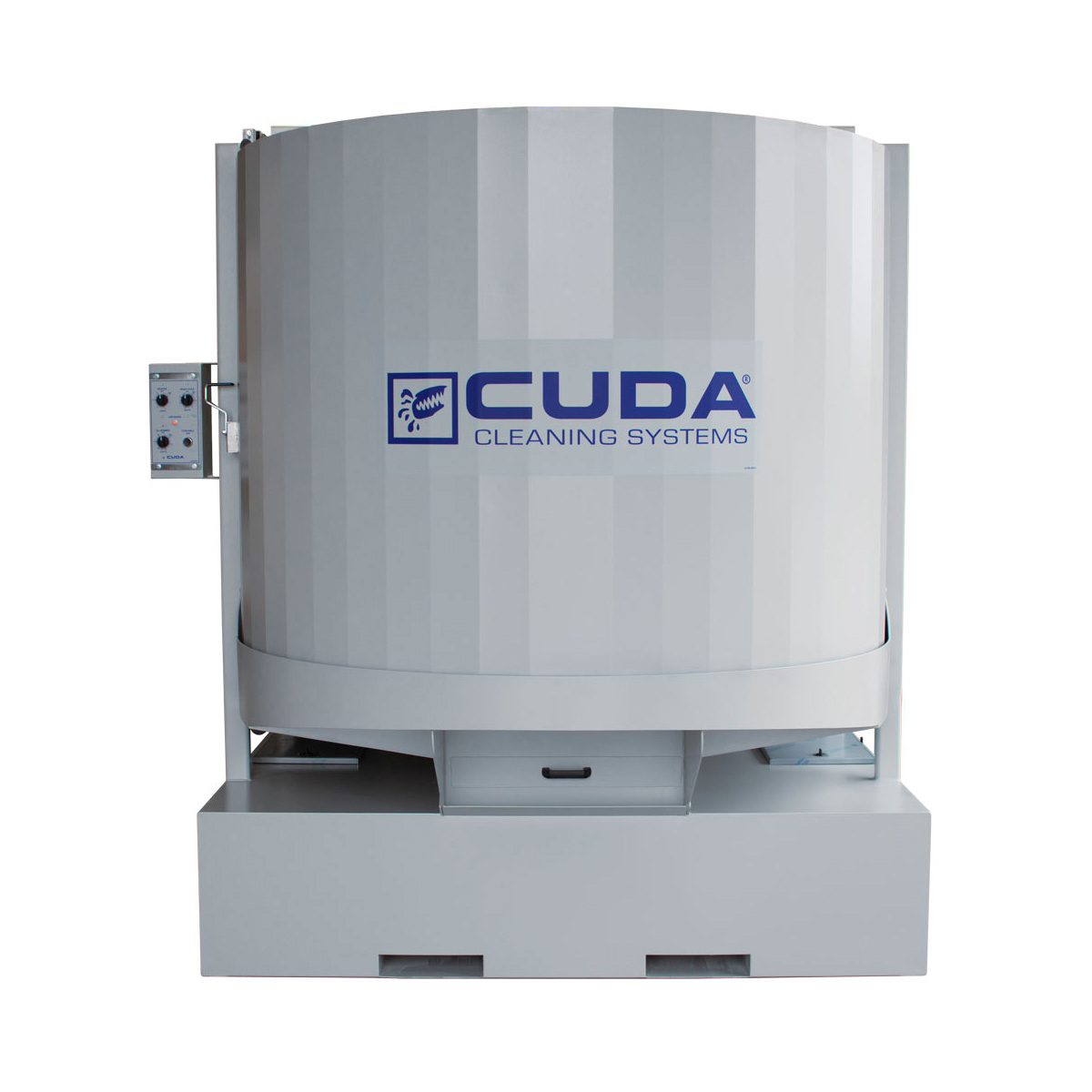

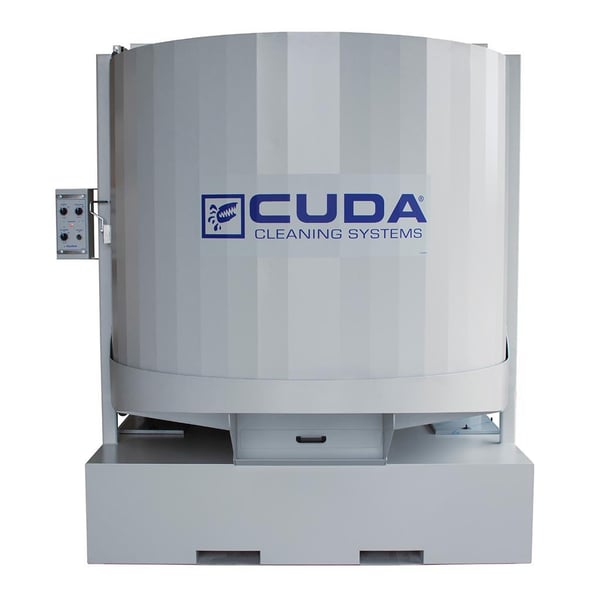

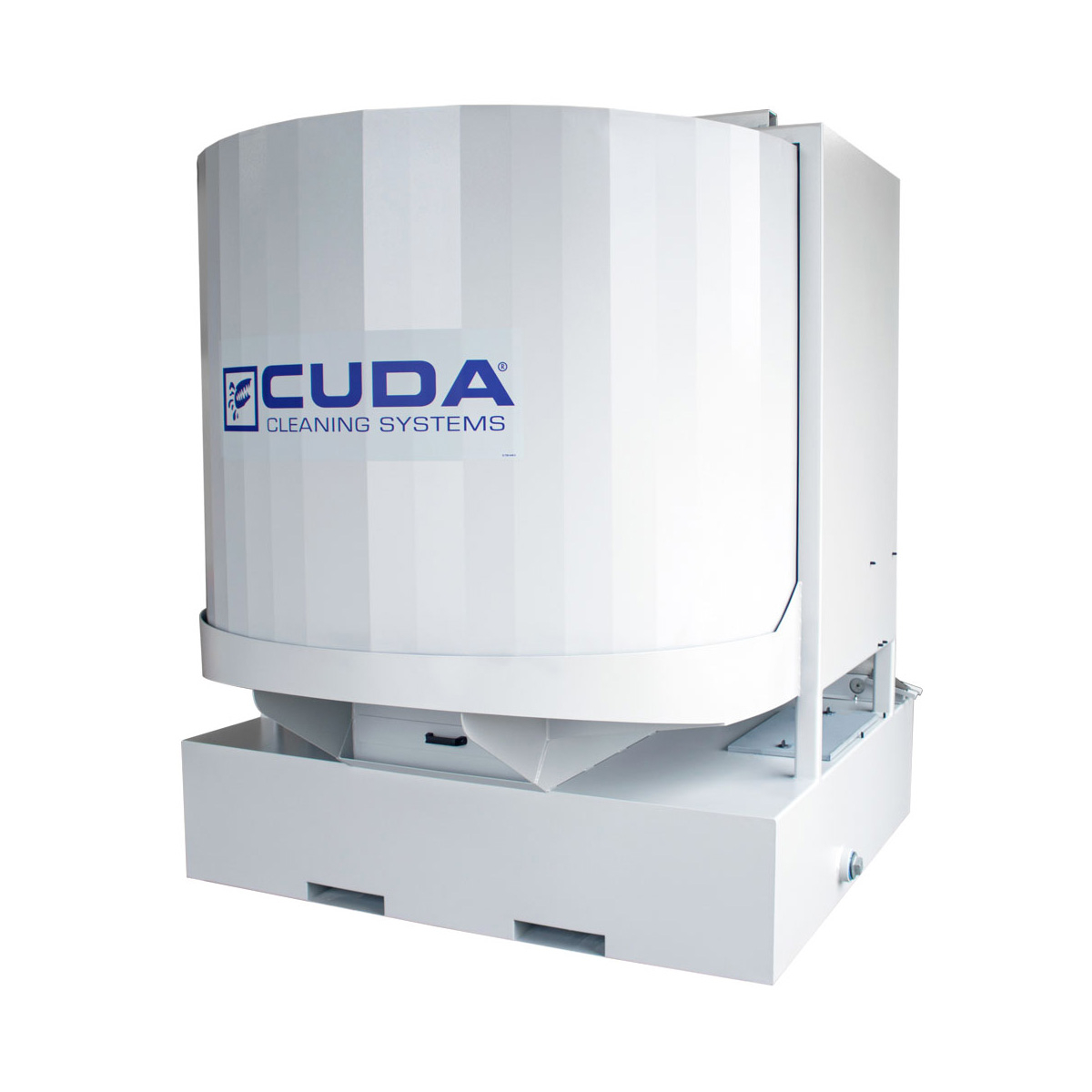

Cuda 7248 Series

Cuda’s 7248 features a large 72-inch turntable diameter, allowing users to clean a wide range of industrial components. Its working height stands at 48-inches, and it boasts a load capacity of 5000 lbs. The 7248 series is equipped with a 10 HP vertical seal-less pump producing 160 GPM at 50 PSI, and has a 200-gallon sump capacity.

Ideal For:

Heavy duty cleaning
Oil and gas industry tools and BOPs
High volume engine rebuilding
Railroads
Large manufacturing

Models

Model	Part No	Working Height	Turntable Diameter	Volt/PH	Total Amps
Standard Models
7248	1.043-516.0	48″	72″	230/3	58
7248	1.043-517.0	48″	72″	460/3	32
7248	1.043-518.0	48″	72″	575/3	26

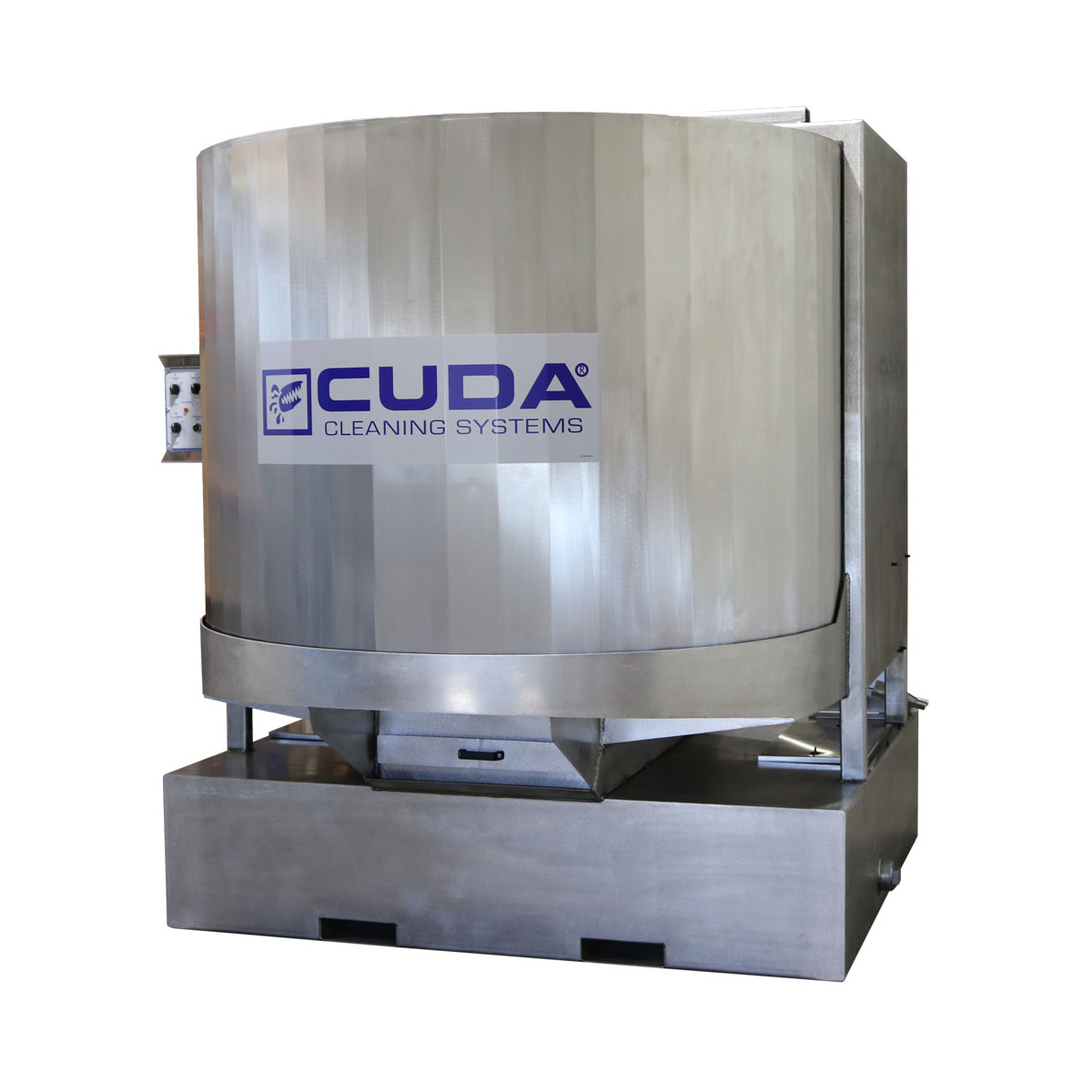

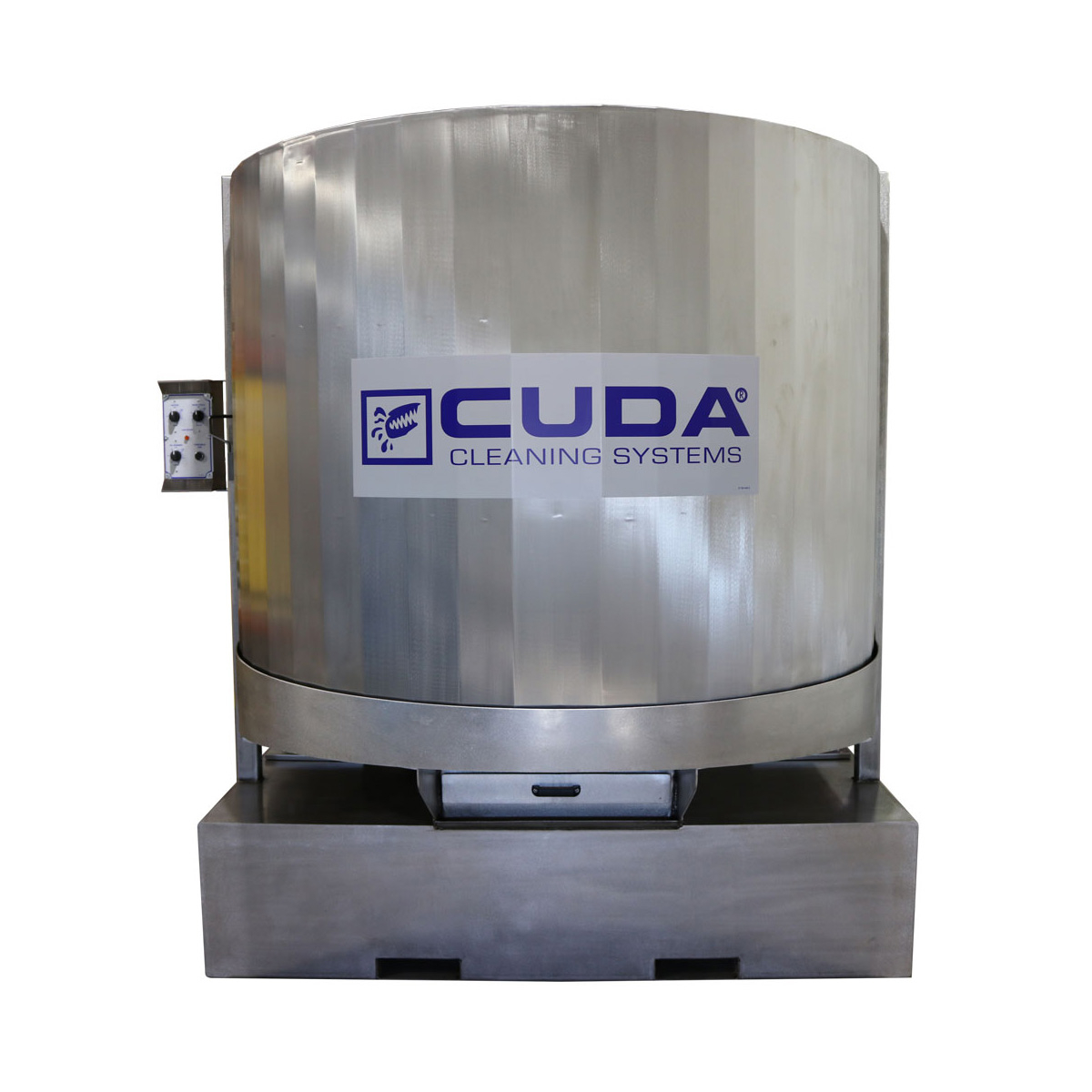

Stainless Steel Models
7248	1.043-590.0	48″	72″	208/3	58
7248	1.043-591.0	48″	72″	460/3	32
7248	1.043-592.0	48″	72″	575/3	26

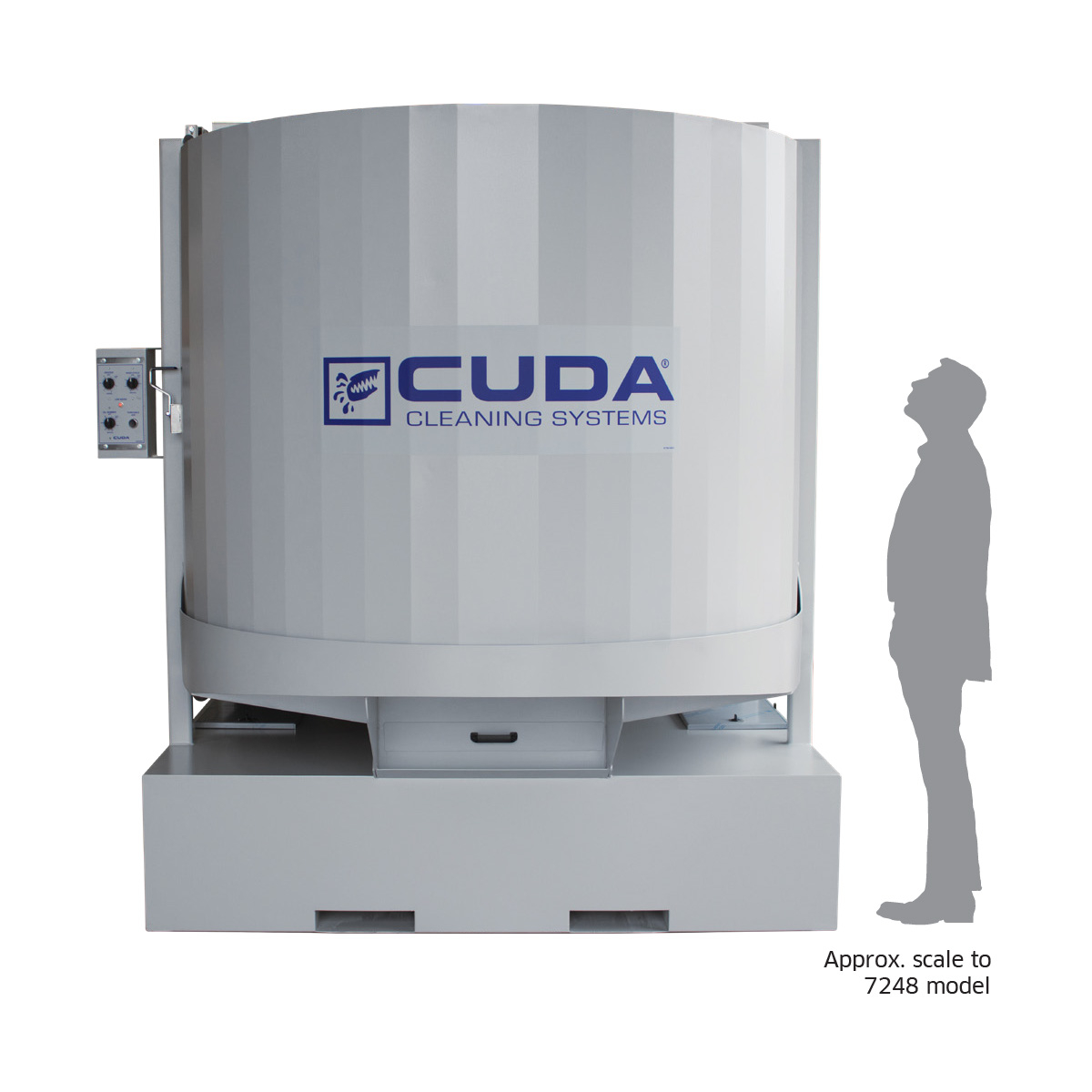

Dimensions (LxWxH): 100″ x 90″ x 124″
NOTE: All stainless steel models come with standard cast pump. All wetted surfaces are stainless steel.

Options

Part No	Description

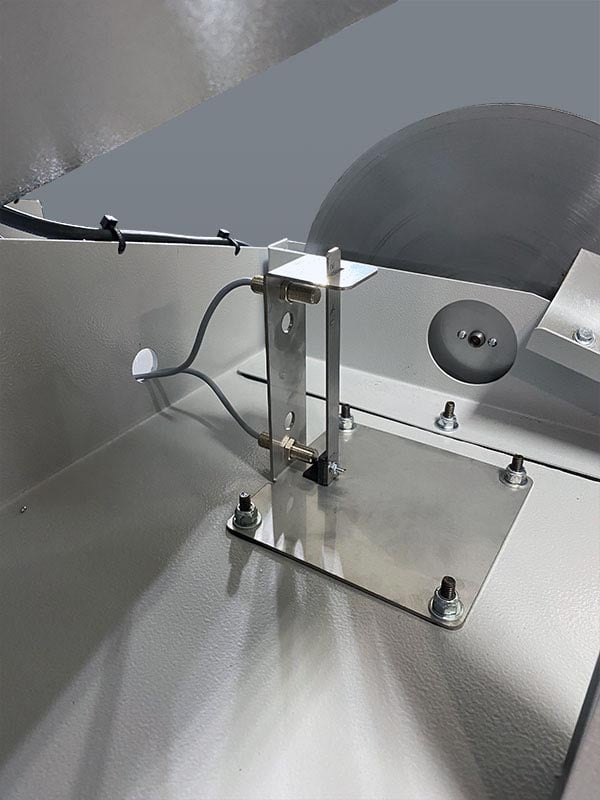

8.749-394.0	Automatic Water Fill	□
9.802-283.0	Hour Meter	□
8.725-267.0	Heater Timer, 24 hour 7 day	□
8.725-268.0	Heater & Skimmer Timer, 24 hour 7 day	□
8.731-254.0	Light Duty Small Parts Basket (8″ x 8″ x 4″)	□
8.753-825.0	Light Duty Medium Parts Basket (16″ x 12″ x 6″)	□
8.753-826.0	Medium Duty Large Parts Basket (18″ x 16″ x 8″)	□
8.924-172.0	Oil Drain Container	□
8.923-103.0	72″ Containment Ring	□
8.757-650.0	Premium Detail and Power Brush	□

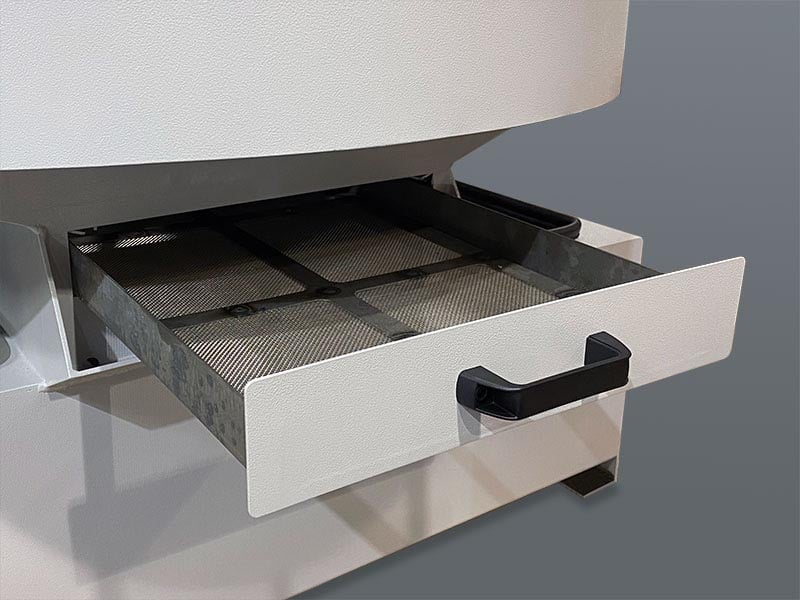

8.921-972.0	2 Stage Filtration	□
8.923-102.0	Filtration & Sump Sweep, 2 Stage	□

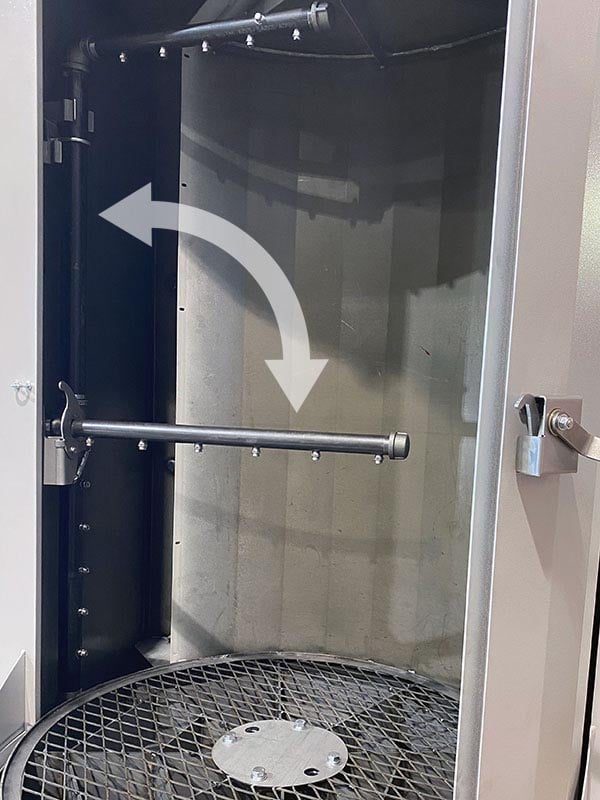

8.916-221.0	Swing Down Spray Arm	□
8.916-713.0	Middle Spray Manifold, Detachable	□
8.704-105.0	Cuda Vac 110	□
Stainless Optional Accessories
8.923-103.1	Stainless 72″ Containment Ring	□
8.731-254.1	Stainless Light Duty Small Parts Basket (8″ x 8″ x 4″)	□
8.753-825.1	Stainless Light Duty Medium Parts Basket (16″ x 12″ x 6″)	□
8.753-826.1	Stainless Medium Duty Large Parts Basket (18″ x 16″ x 8″)	□
8.924-172.1	Stainless Oil Drain Container	□
8.921-972.1	Stainless 2 Stage Filtration	□
8.923-102.1	Stainless Fitration & Sump Sweep, 2 Stage	□
8.916-221.1	Stainless Swing Down Spray Arm	□
8.916-713.1	Stainless Middle Spray Manifold, Detachable	□
