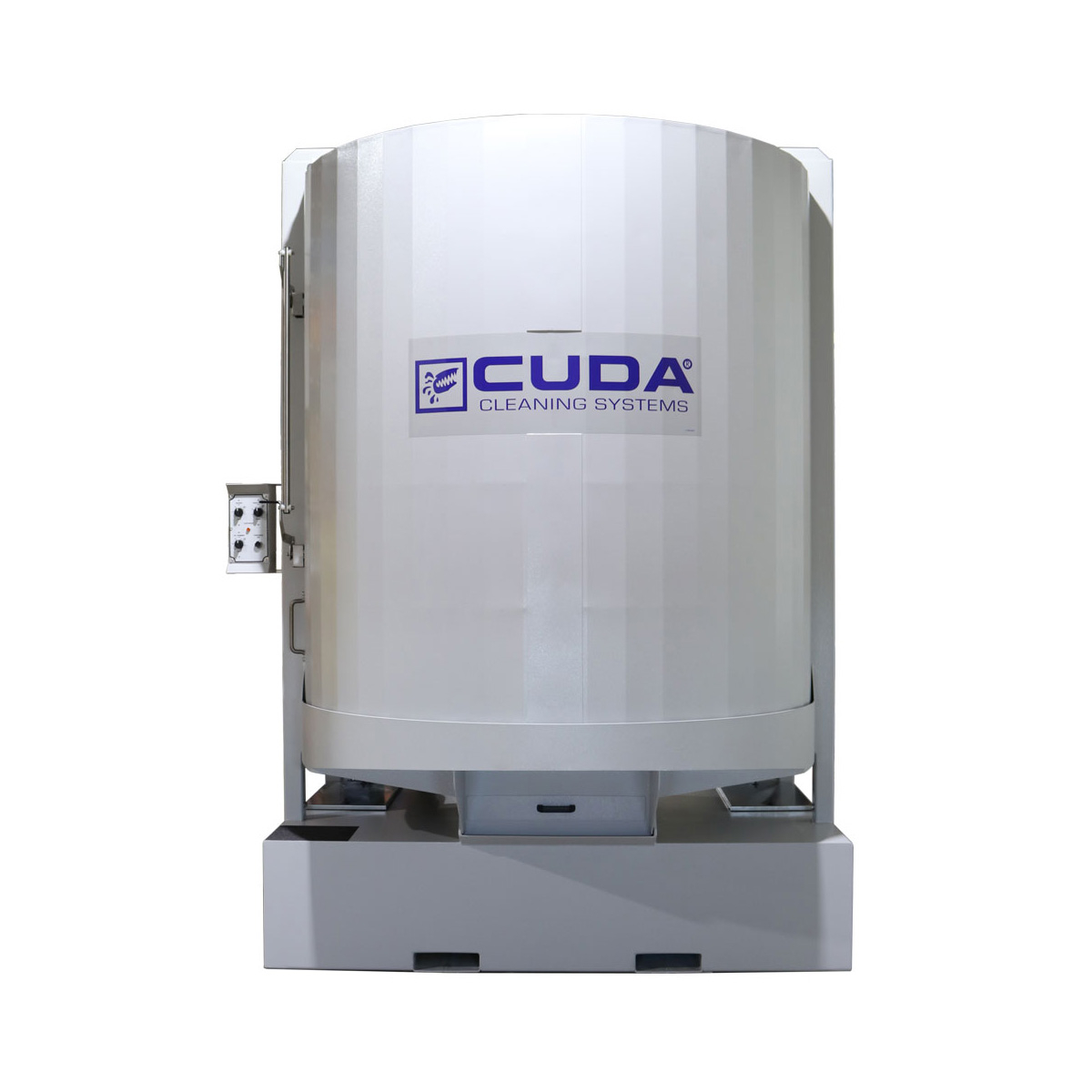

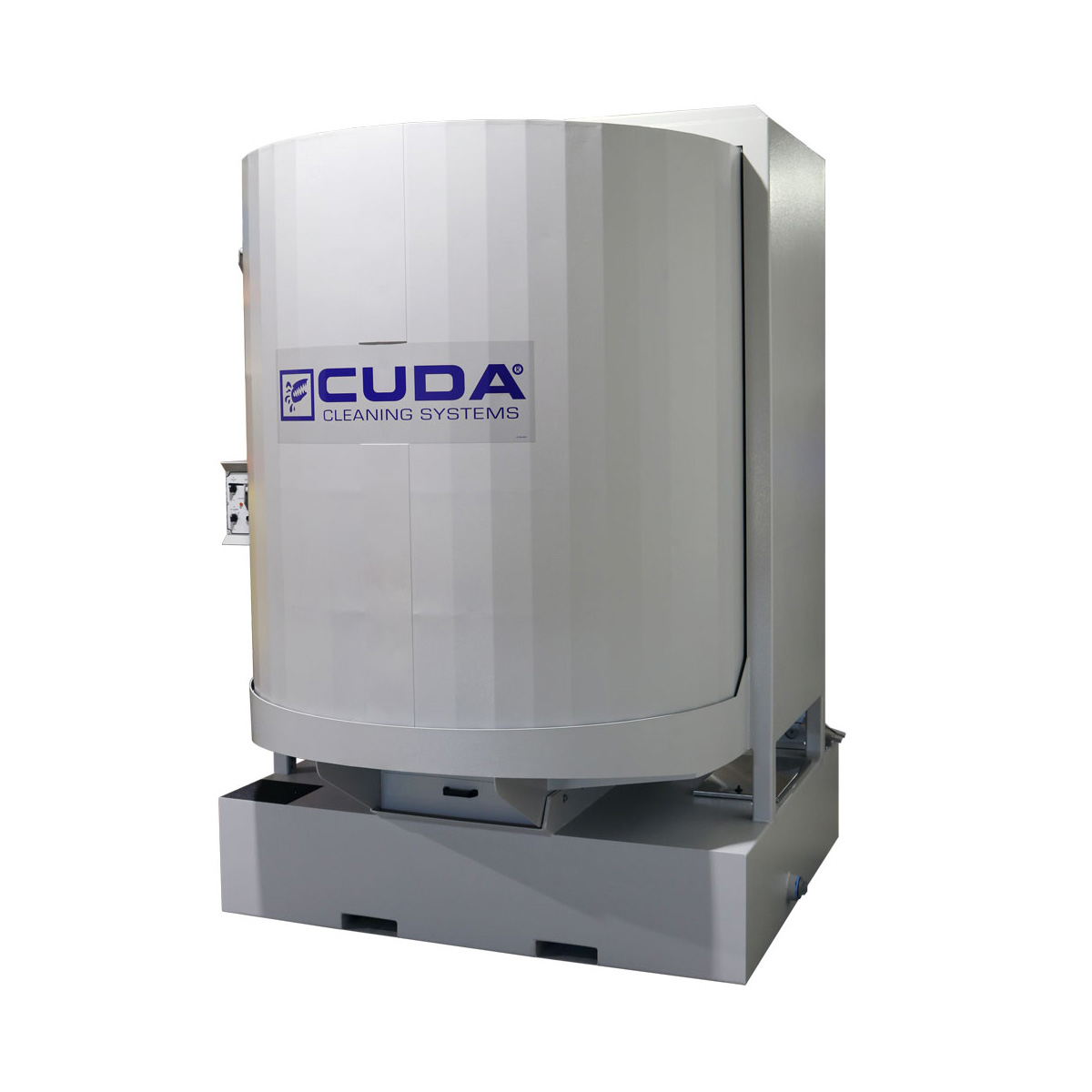

Cuda 7272 Series

The Cuda Model 7272 is a heavy-duty cleaning beast, ideal for engine rebuilders, transmission rebuilders, oil field tool rental companies, and anyone conducting heavy-duty cleaning on a daily basis. With a 5000 pound weight capacity, a 15 hp pump motor, and 27 kW of heating elements, this machine is made to withstand the rigors of heavy-duty cleaning operations.The Cuda Model 7272 cleans better, is easier to use, and is simpler to maintain than any other parts washer on the market, guaranteed.

Ideal For:

Heavy duty cleaning
Oil and gas industry tools and BOPs
High volume engine rebuilding
Railroads
Large manufacturing

Models

Model	Part No	Working Height	Turntable Diameter	Volt/PH	Total Amps
7272	1.043-523.0	72″	72″	460/3	45
7272	1.043-524.0	72″	72″	575/3	38

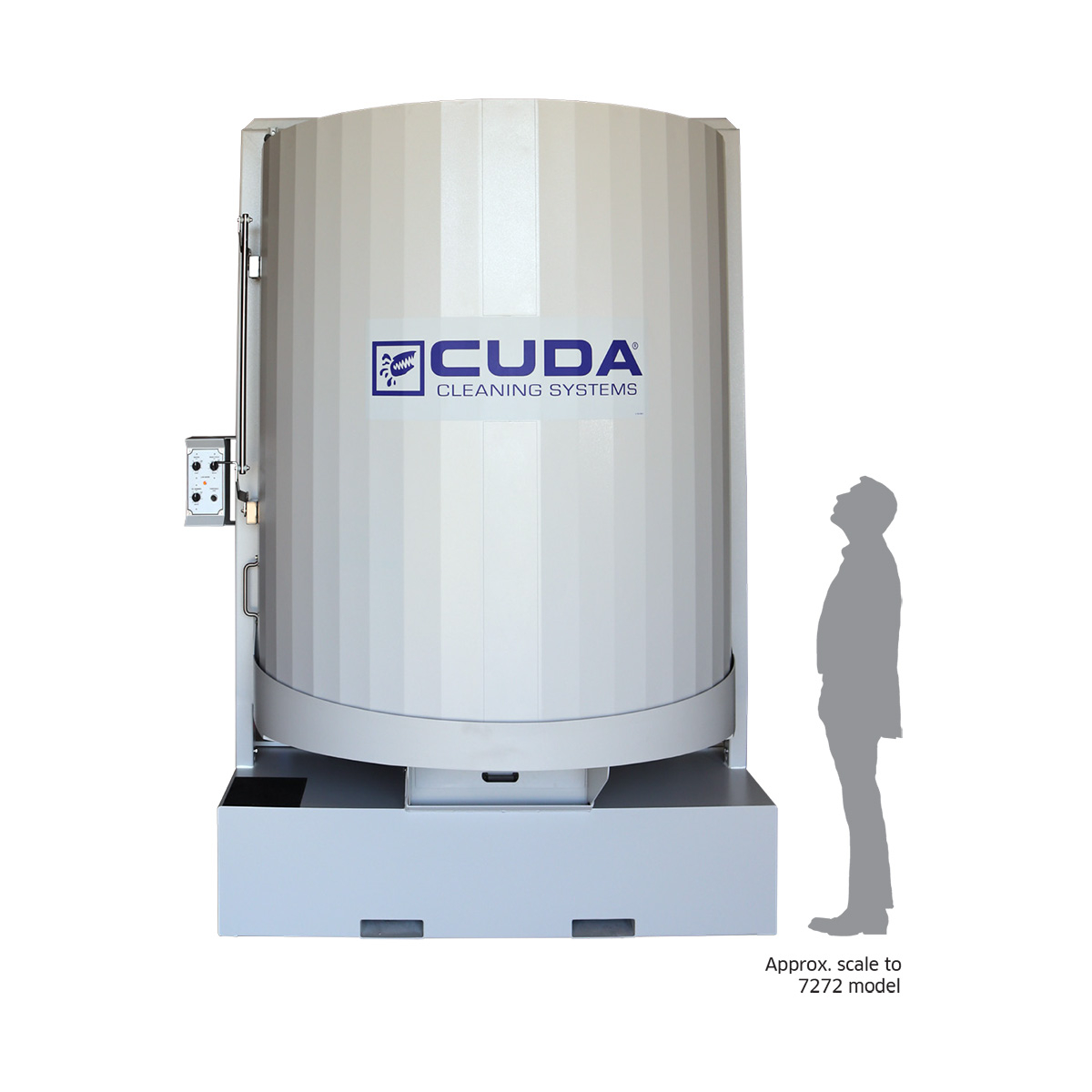

Dimensions (LxWxH): 100″ x 90″ x 124″

Options

Part No	Description
8.749-394.0	Automatic Water Fill	□
9.802-283.0	Hour Meter	□
8.725-267.0	Heater Timer, 24 hour 7 day	□
8.725-268.0	Heater & Skimmer Timer, 24 hour 7 day	□
8.731-254.0	Light Duty Small Parts Basket (8″ x 8″ x 4″)	□
8.753-825.0	Light Duty Medium Parts Basket (16″ x 12″ x 6″)	□
8.753-826.0	Medium Duty Large Parts Basket (18″ x 16″ x 8″)	□
8.924-172.0	Oil Drain Container	□
8.923-103.0	72″ Containment Ring	□
8.757-650.0	Premium Detail and Power Brush	□
8.921-972.0	2 Stage Filtration	□
8.923-102.0	Filtration & Sump Sweep, 2 Stage	□
8.924-191.0	60 Mesh Insert for Debris Screen Tray	□
8.916-283.0	Middle Spray Manifold, Detachable	□
8.704-105.0	Cuda Vac 110	□
