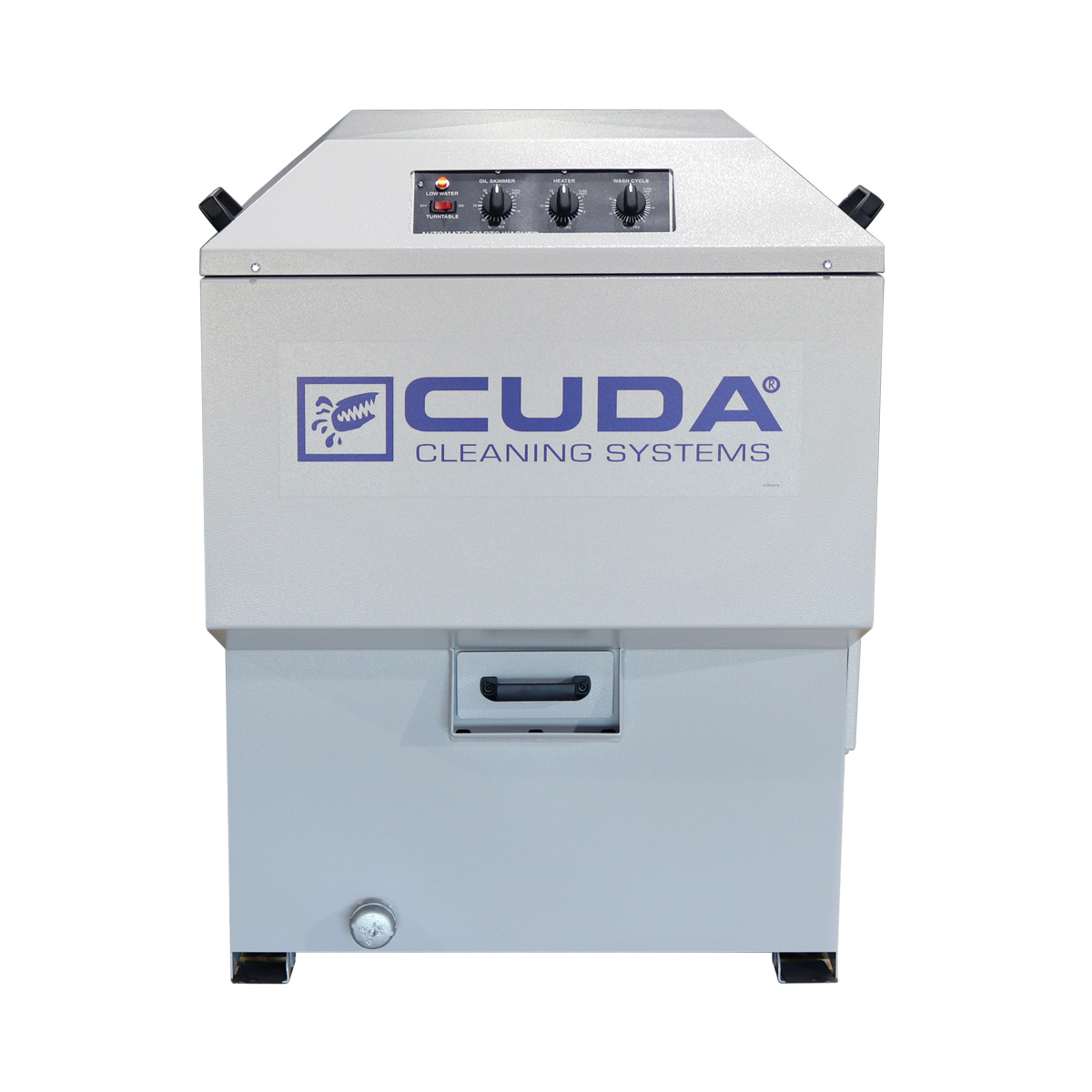

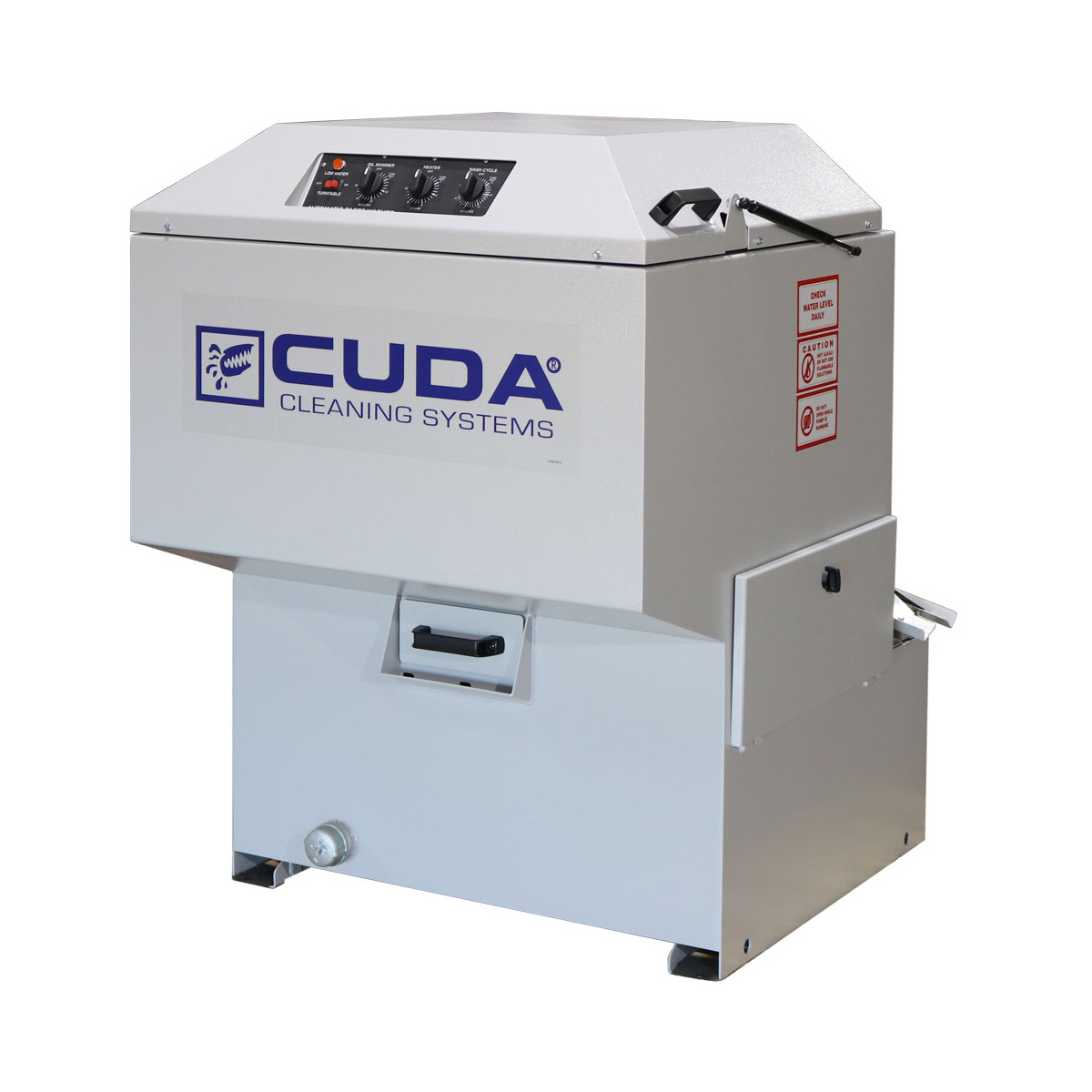

Cuda 2412 Series

Cuda’s 2412 series of parts washers is an attractive entry-level top-load aqueous parts washer. At only 35 inches wide, the Cuda 2412 Series parts washer has a 250-lb. load capacity, and a 24 inch turntable diameter. While boasting Cuda Series durability, it is available with a ½ HP or 2 HP mechanical seal with flush tube style pump and an upper drive arm that rotates the turntable. The 115V models make the 2412 especially versatile for use anywhere in the shop.

Ideal For:

Replacing sink on drum solvent tanks
Small engine repair
General light duty auto repair

Models

Model	Part No	Working Height	Turntable Diameter	Volt/PH	Total Amp	Electric Heater (kw)
Standard Models
2412	1.043-540.0	12″	24″	115/1	15	1.8
2412	1.043-541.0	12″	24″	208/1	26	4.5
2412	1.043-542.0	12″	24″	230/1	24	4.5

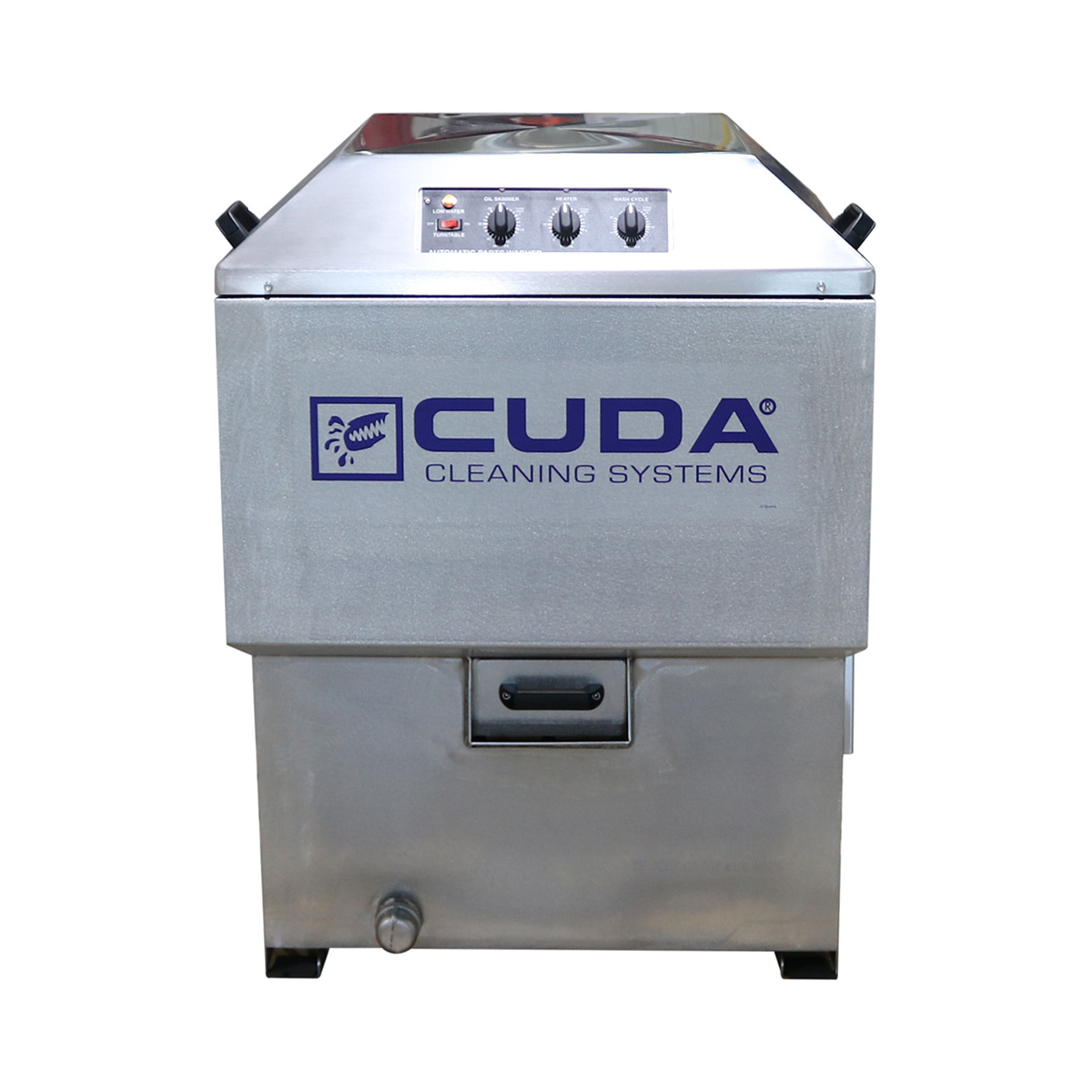

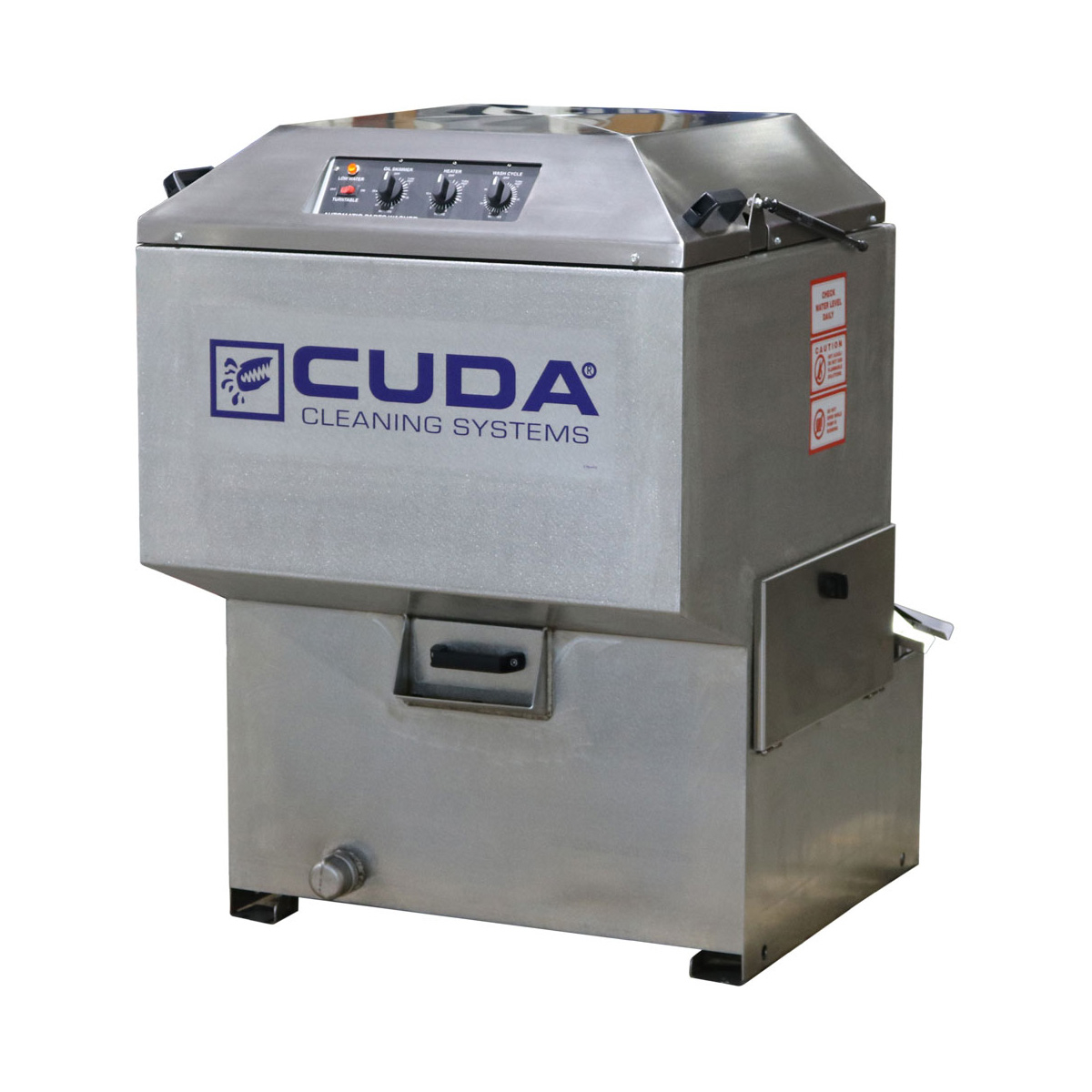

Stainless Steel Models
2412		12″	24″	115/1	15	1.8
2412		12″	24″	208/1	26	4.5
2412		12″	24″	230/1	24	4.5

Dimensions (LxWxH): 41″ x 35″ x 45″

Options

Part No	Description
8.725-270.0	Preferred Options Package – Contains Small Parts Basket, Containment Ring, Oil-Drain Container, Detergent Scoop	□
8.725-261.0	Automatic Water Fill	□
9.802-283.0	Hour Meter	□
8.642-692.0	Heater Timer, 24 hour 7 day	□
8.642-694.0	Heater & Skimmer Timer, 24 hour 7 day	□
8.731-254.0	Light Duty Small Parts Basket (8″ x 8″ x 4″)	□
8.753-825.0	Light Duty Medium Parts Basket (16″ x 12″ x 6″)	□
8.924-172.0	Oil Drain Container	□
8.915-143.0	60 Mesh Insert for Debris Screen Tray	□
8.705-962.0	24″ Containment Ring	□
8.725-245.0	Deluxe Kit: Detail and Power Brush	□
8.725-251.0	Detal Brush with Pump	□
8.642-699.0	Pneumatic Power Brush	□
8.725-269.0	Filtration	□
8.704-104.0	Cuda Vac 55	□
Stainless Optional Accessories
8.725-269.1	Stainless Preferred Options Package – Contains Small Parts Basket, Containment Ring, Oil-Drain Container, Detergent Scoop	□
8.642-704.0	Stainless 24″ Containment Ring	□
8.731-254.1	Stainless Light Duty Small Parts Basket (8″ x 8″ x 4″)	□
8.753-825.1	Stainless Light Duty Medium Parts Basket (16″ x 12″ x 6″)	□
8.924-172.1	Stainless Oil Drain Container	□
