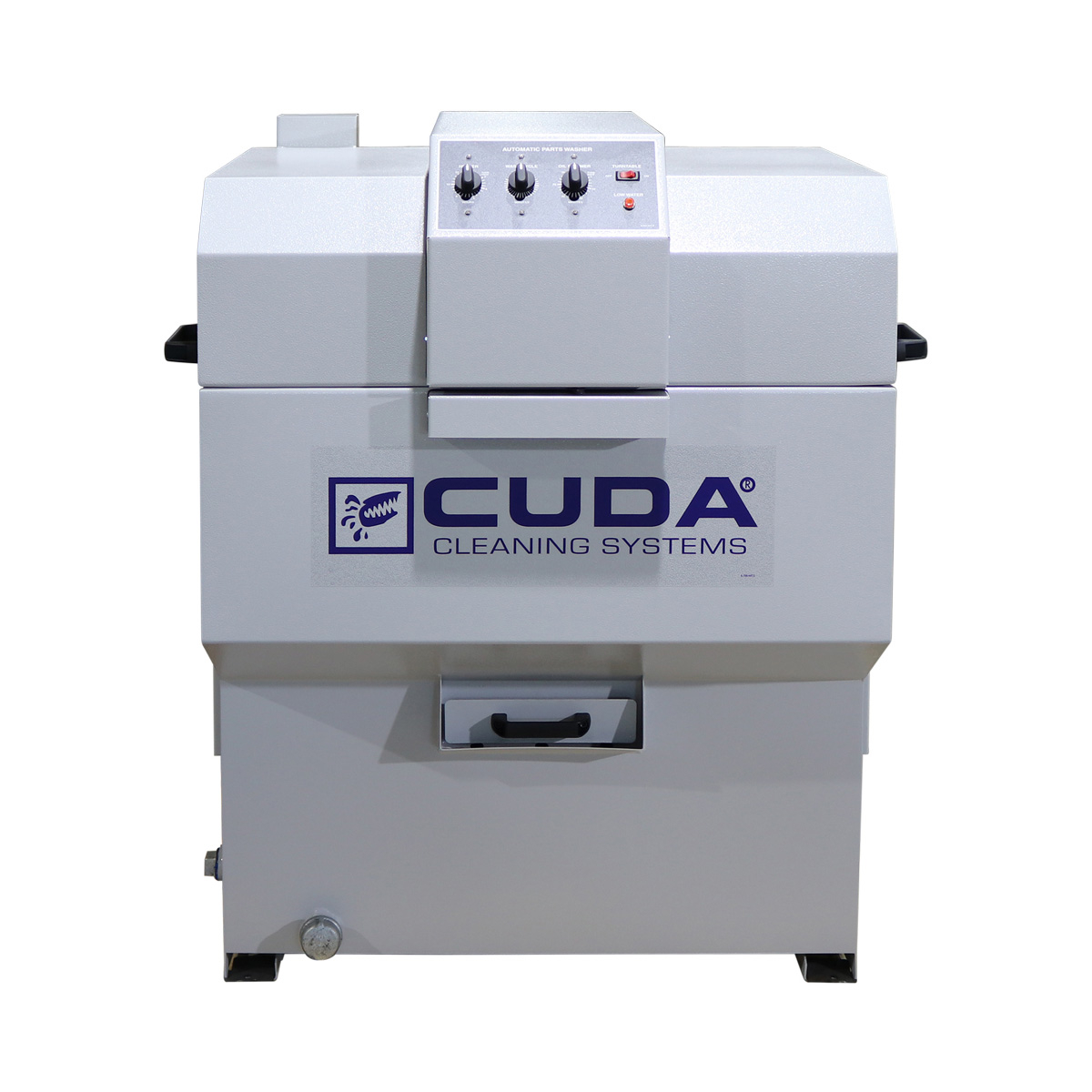

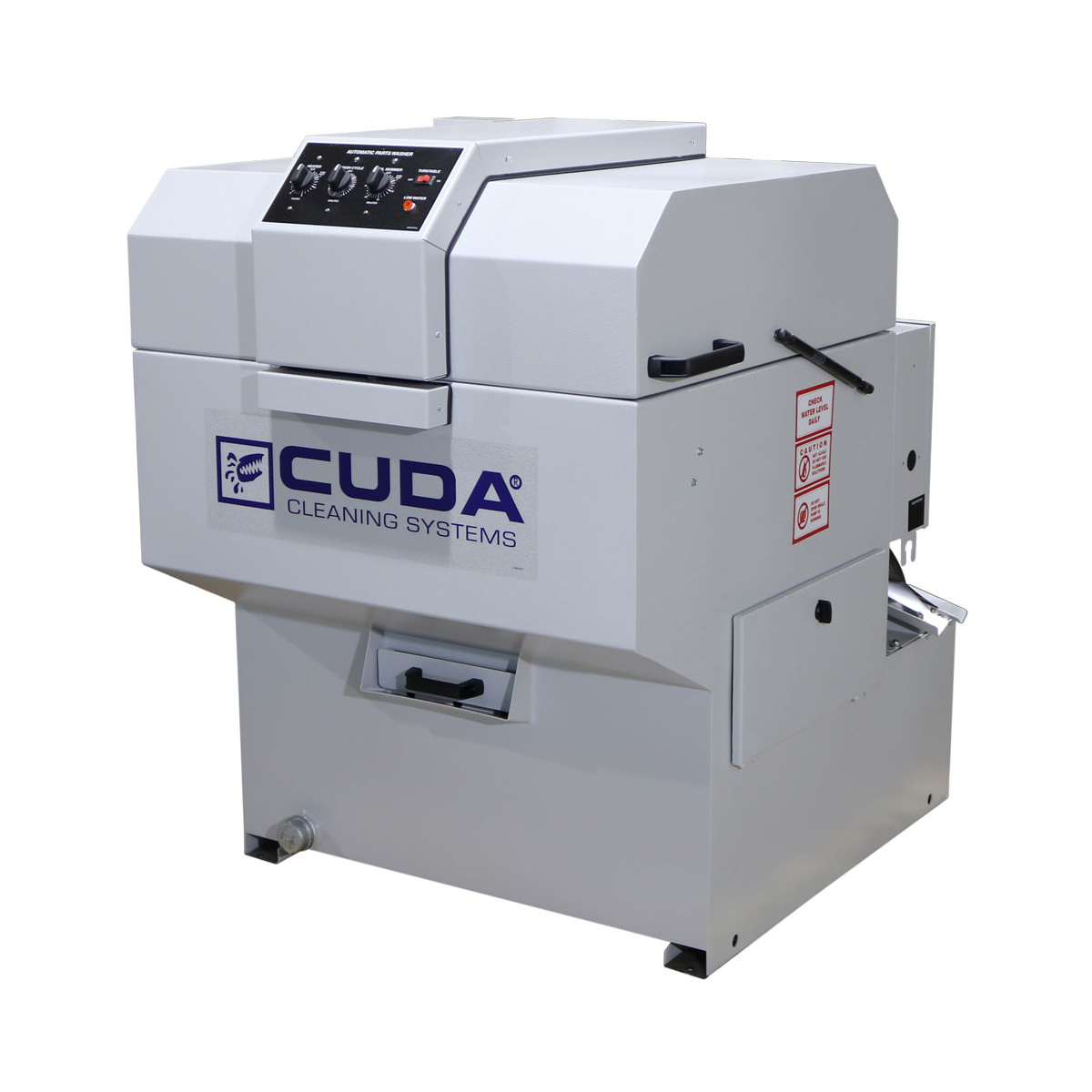

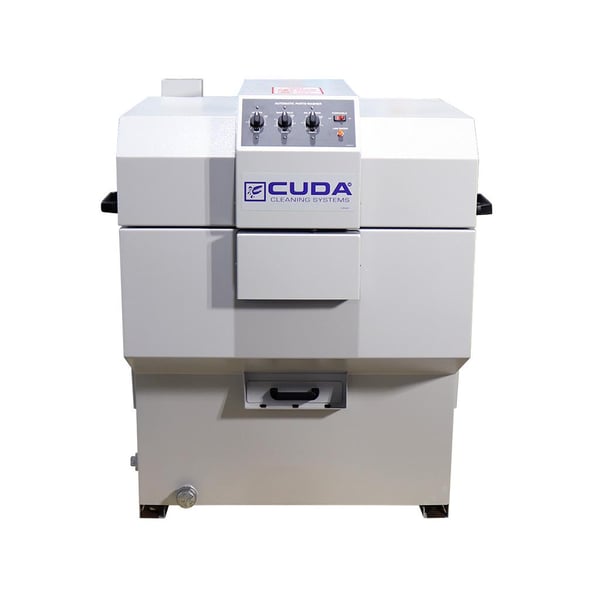

Cuda 2518 Series

SKU 2518-Series Category
  • 25-Inch Dia Table
  • 18-Inch Working Height
  • Vertical Seal-Less Pump
  • 500 Lbs Capacity

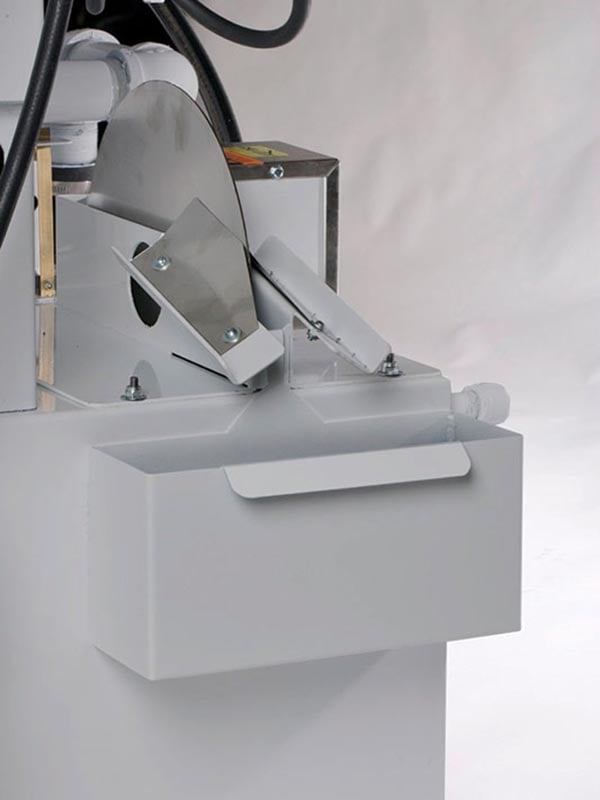

  • Automatic Oil Skimmer
  • Low Water Shutdown
  • Heater
  • ETL Safety Certified

Models shown may include optional features

Cuda

Call to Order

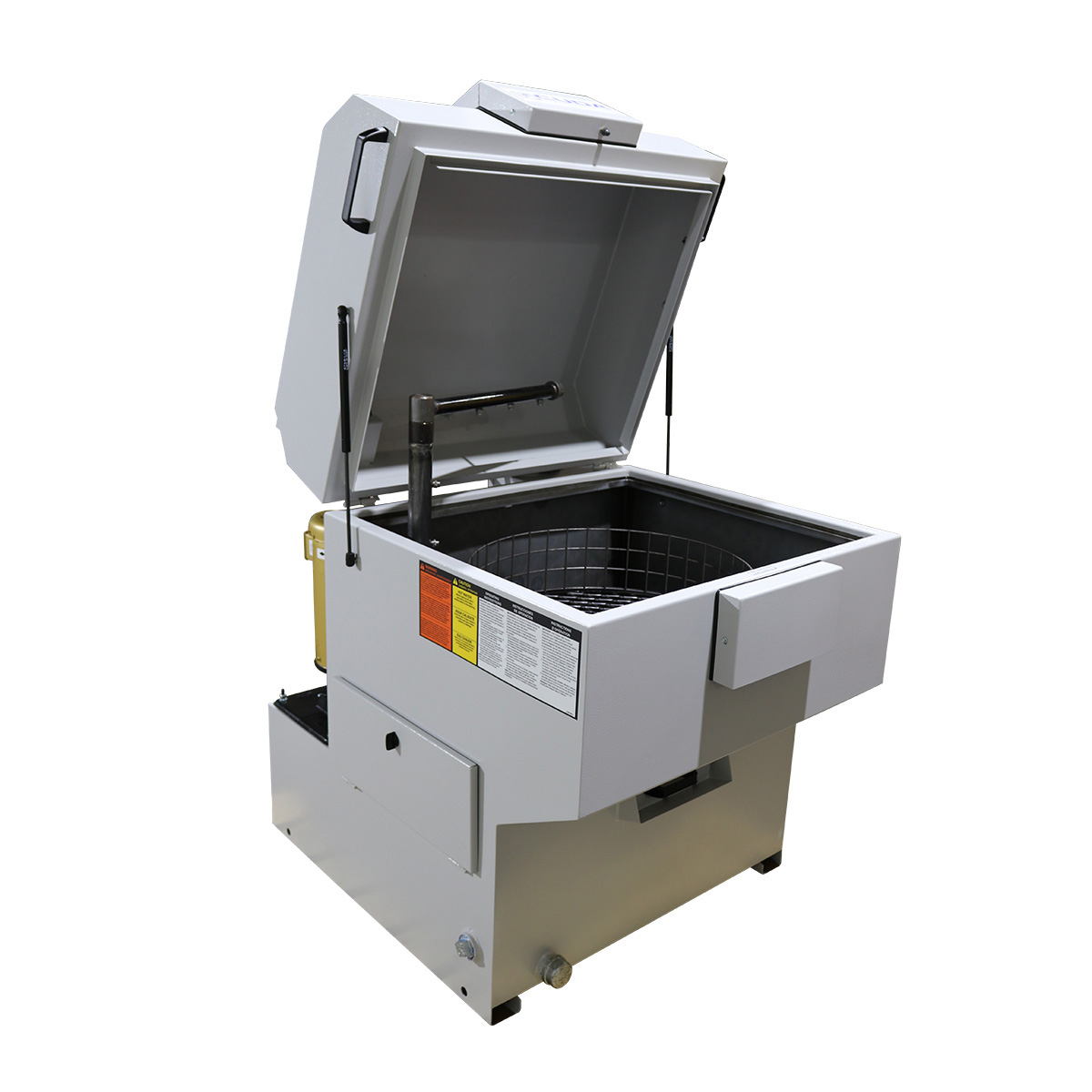

The 2518 Series is at the top of our line with ruggedness and automation throughout. It comes standard with a time-tested chain drive assembly, virtually maintenance-free vertical seal-less pump, and disc oil skimmer that can be automated for convenience in disposing of oil. Extra-easy access to the sump and removable debris screen set it apart from other top-loaders on the market.

Models

Model Part No Working Height Turntable Diamter Volt/PH Total Amps
Standard Models
2518 1.043-565.0 18″ 25″ 230/1 38
2518 1.043-564.0 18″ 25″ 208/1 42
2518 1.043-567.0 18″ 25″ 230/3 23
2518 1.043-566.0 18″ 25″ 208/3 25
2518 1.043-568.0 18″ 25″ 460/3 11
2518 1.043-569.0 18″ 25″ 575/3 9
Stainless Steel Models
2518 1.043-571.0 18″ 25″ 230/1 38
2518 1.043-570.0 18″ 25″ 208/1 42
2518 1.043-573.0 18″ 25″ 230/3 23
2518 1.043-572.0 18″ 25″ 208/3 25
2518 1.043-574.0 18″ 25″ 460/3 11
2518 1.043-575.0 18″ 25″ 575/3 9

NOTE: All stainless steel models come with standard cast pump. All wetted surfaces are stainless steel.

Options

Part No Description
8.725-260.0 Preferred Options Package – Contains Parts Basket, Containment Ring, Oil Container
8.725-261.0 Automatic Water Fill □
8.731-256.0 25″ Containment Ring □
8.725-246.0 Deluxe Kit: Detail and Power Brush □
8.725-252.0 Detail Brush with Pump □
8.642-699.0 Pneumatic Power Brush □
8.924-172.0 Oil Drain Container □
8.725-253.0 Filtration □
8.725-254.0 Filtration & Sump Sweep □
8.642-890.0 25″ Containment Ring, Stainless Steel □
8.915-316.0 60 Mesh Insert for Debris Screen Tray □
8.725-267.0 Heater Timer, 24 hour 7 day □
8.725-268.0 Heater & Skimmer Timer, 24 hour 7 day □
9.802-283.0 Hour Meter □
8.731-254.0 Light Duty Small Parts Basket (8″ x 8″ x 4″) □
8.753-825.0 Light Duty Medium Parts Basket (16″ x 12″ x 6″) □
8.723-214.0 Gray Spray Paint (cannot ship via air) □

■ Included □ Optional

Literature

2518 Series Product Sheet Product Sheet – Cuda 2518 Series
