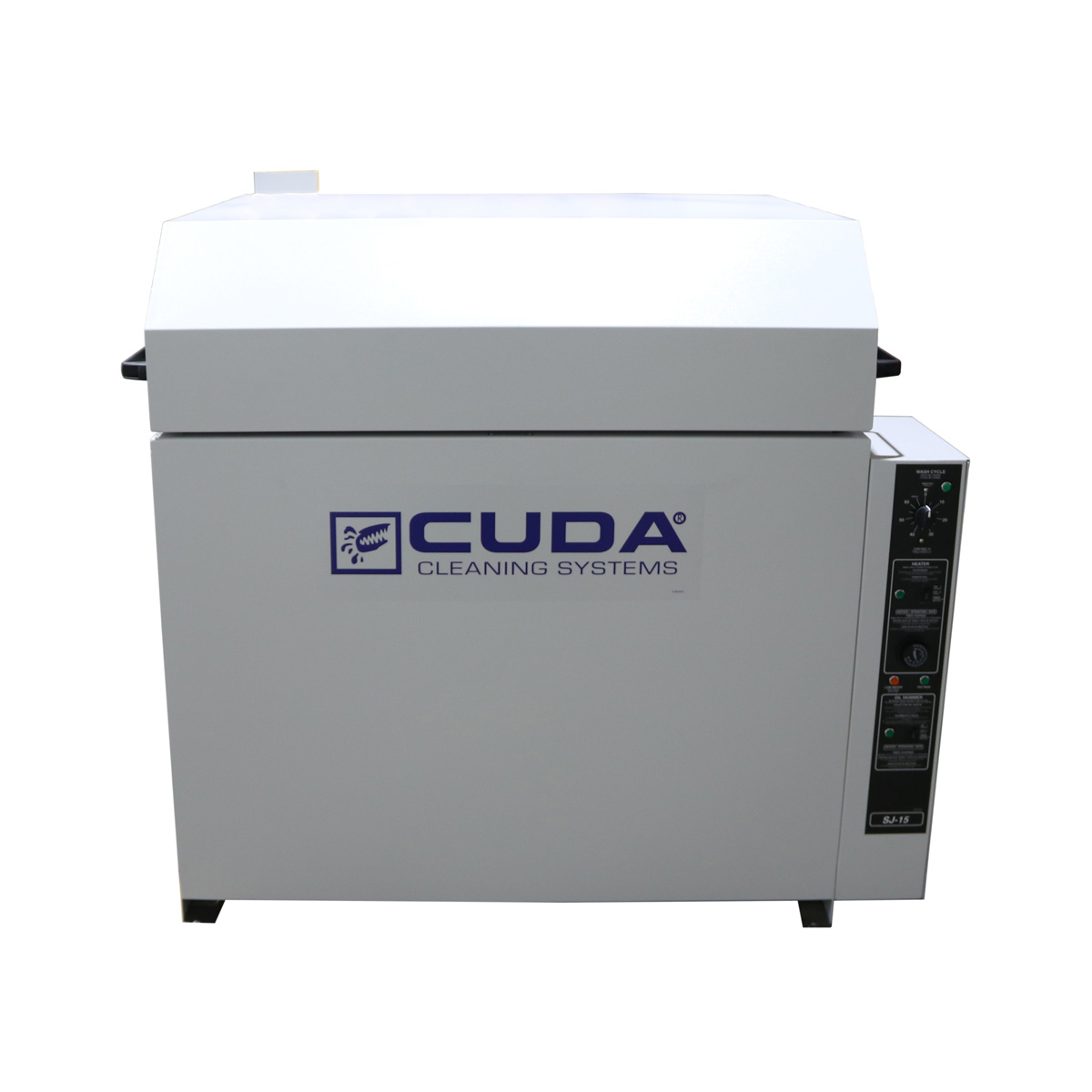

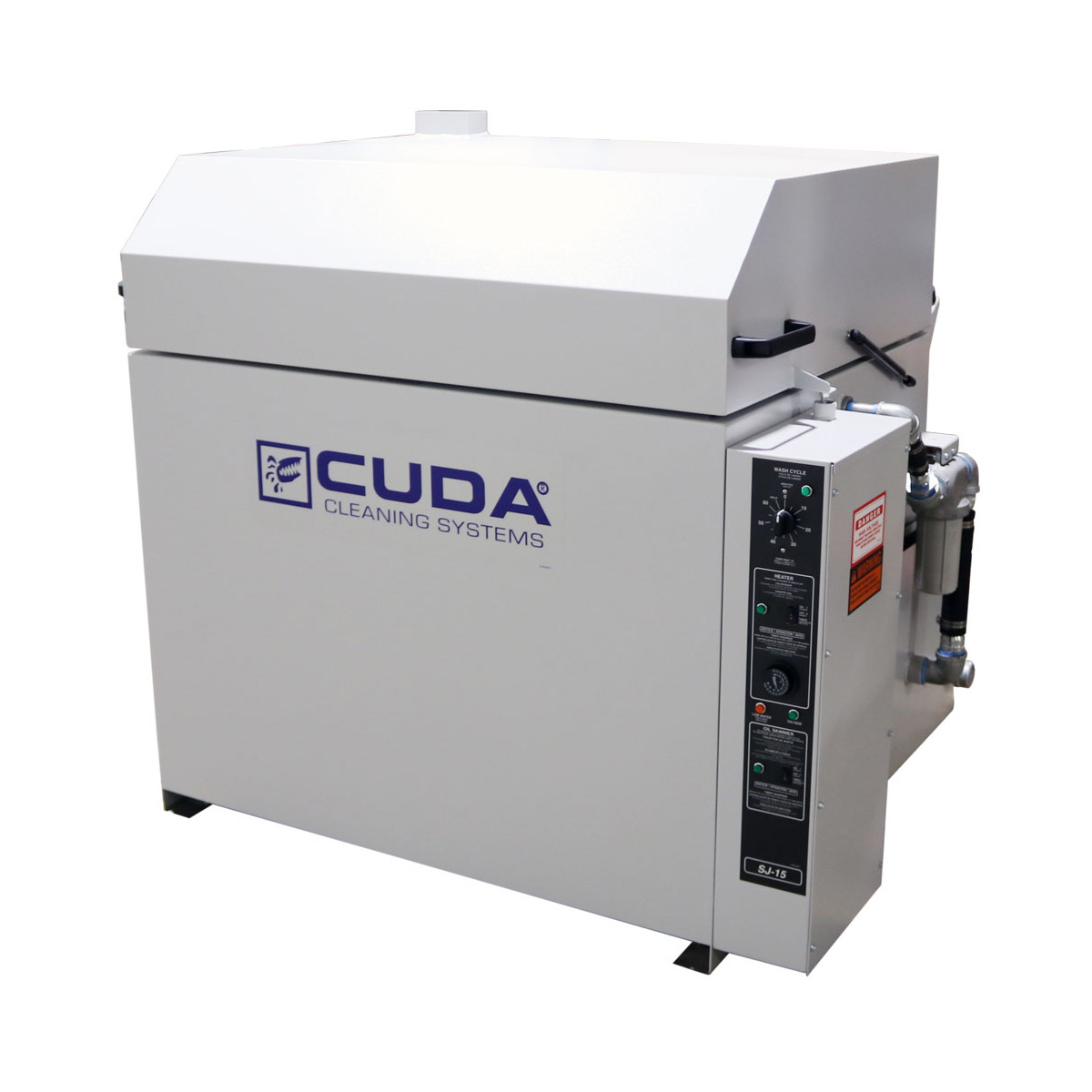

Cuda SJ Series

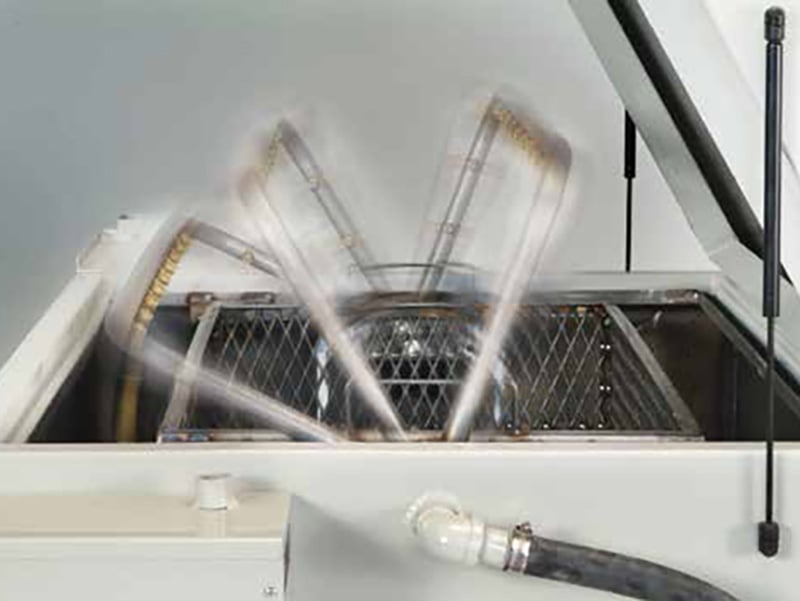

The newest addition to the Cuda top load line-up, the SJ-15 uses a patented spray wash technology which eliminates the need for a drive motor, gears and pulleys. Using a water-propelled spray arm with 23 nozzles that spin around a stationary parts basket, parts are hit from every angle while being cleaned. It has a 350-lb. load capacity, and a basket dimension of 32″ x 21″, 90 gallon sump capacity, and 3 HP pump motor delivering 37 GPM @ 30 PSI.

Models

Model	Part No	Working Height	Basket Dimensions	Volt/PH	Total Amps
Standard Models
SJ-15	1.043-646.0	18″	32″ x 21″	208/1	42
SJ-15	1.043-647.0	18″	32″ x 21″	208/3	25
SJ-15	1.043-648.0	18″	32″ x 21″	230/1	38
SJ-15	1.043-649.0	18″	32″ x 21″	230/3	23
SJ-15	1.043-650.0	18″	32″ x 21″	460/3	11
SJ-15	1.043-651.0	18″	32″ x 21″	575/3	9
Stainless Steel Models
SJ-15	1.043-654.0	18″	32″ x 21″	230/1	38
SJ-15	1.043-652.0	18″	32″ x 21″	208/1	42
SJ-15	1.043-655.0	18″	32″ x 21″	230/3	23
SJ-15	1.043-653.0	18″	32″ x 21″	208/3	25
SJ-15	1.043-656.0	18″	32″ x 21″	460/3	11
SJ-15	1.043-657.0	18″	32″ x 21″	575/3	9

Dimensions (LxWxH): 51″ x 48″ x 49″

Options

Part No	Description
8.725-271.0	Preferred Options Package – Contains Small Parts Basket, Oil-Drain Container, Detergent Scoop	□
8.725-261.0	Automatic Water Fill	□
9.802-283.0	Hour Meter	□
8.725-283.0	Skimmer Timer, 24 hour 7 day	□
8.731-254.0	Light Duty Small Parts Basket (8″ x 8″ x 4″)	□
8.753-825.0	Light Duty Medium Parts Basket (16″ x 12″ x 6″)	□
8.924-172.0	Oil Drain Container	□
8.725-278.0	Detal Brush with Pump	□
8.642-699.0	Pneumatic Power Brush	□
8.725-277.0	Pressure Gauge	□
8.712-156.0	Temperature Gauge	□
8.704-105.0	Cuda Vac 110	□
Stainless Optional Accessories
8.725-271.1	Stainless Preferred Options Package – Contains Small Parts Basket, Oil-Drain Container, Detergent Scoop	□
8.731-254.1	Stainless Light Duty Small Parts Basket (8″ x 8″ x 4″)	□
8.753-825.1	Stainless Light Duty Medium Parts Basket (16″ x 12″ x 6″)	□
8.924-172.1	Stainless Oil Drain Container	□
