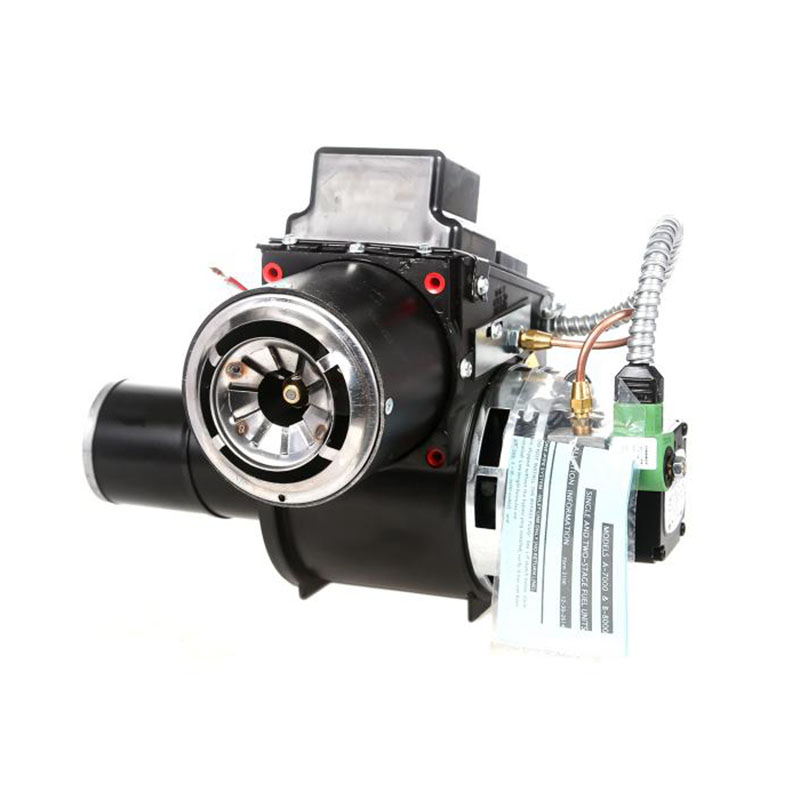

Wayne MSRDC Oil Burner, 12V DC

SKU 8.756-655.0 Category
  • 12V DC Ignition
  • 0.5 to 2.25 GPH Firing Rate
  • 3450 RPM Pump & Blower Motor
  • 12VDC Fuel Solenoid
  • 4.25″ Blower Wheel
  • 3A Air Cone
  • UL Recognized
Wayne
Genuine Wayne OEM Parts

$1,417.75

Part Number: 8.756-655.0
Cross Reference Part Number(s): 87566550

The Wayne MSRDC is specifically designed for use with No. 1 and No. 2 fuel oil, allowing the burner to operate from a gasoline driven engine. Utilizing the engine’s alternator and heavy-duty battery, there’s no need for a generator.

Retaining the best features of the MSR burner, the MSRDC operates with 12VDC power.

The burner maintains low nozzle temperatures, positive flame retention and a controlled flame pattern for the most precise applications.

Ideal for high static situations, the MSRDC burner features our very own Flamelock® retention head for improved efficiency and lower emissions.

Proper operation requires an engine with 16+ Amp Alternator and deep-cycle battery on nightly, overnight recharge

Burner Model

MSRDC (Wayne)
