Part Number: 9.803-612.0
Cross Reference Part Number(s): 2-990581, 98036120, X98036120

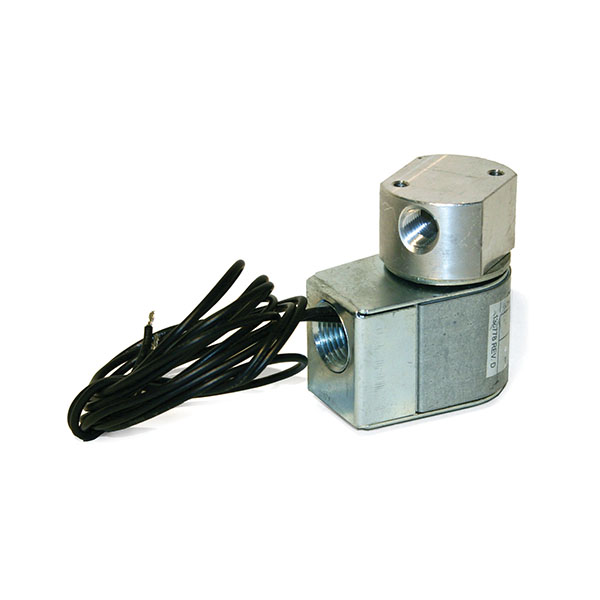

This 9.803-612.0 Honeywell Solenoid Pilot Valve provides on-off control of natural, LP and manufactured gases to pilot burners in industrial and commercial applications. For use with Honeywell 24 Volt Natural Gas Valve and 24 Volt LP Gas Valve
- Magnetically operated, normally closed
- Provide instantaneous action when energized
- On power failure, valve closes in one second maximum
- Use in any position, directly in pipe line or on support bracket
- Replace the solenoid coil without removing the valve body from the piping connections
- Straight-through valve pattern
- Dimensions: 3 in. high x 2 5/8 in. wide x 1 5/8 in. deep
