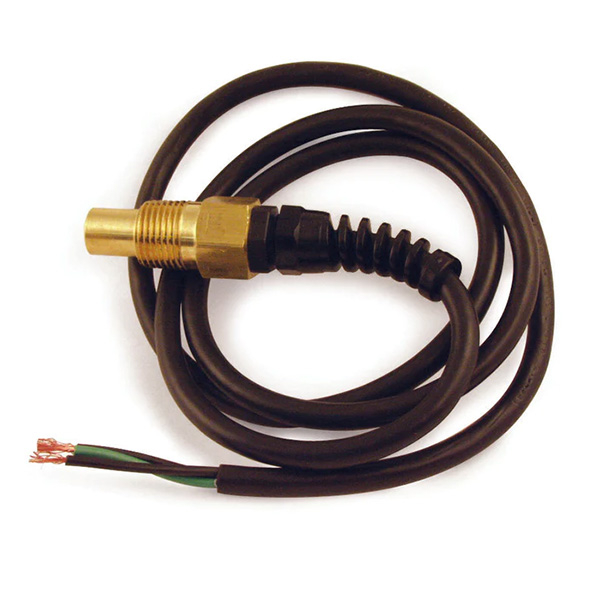

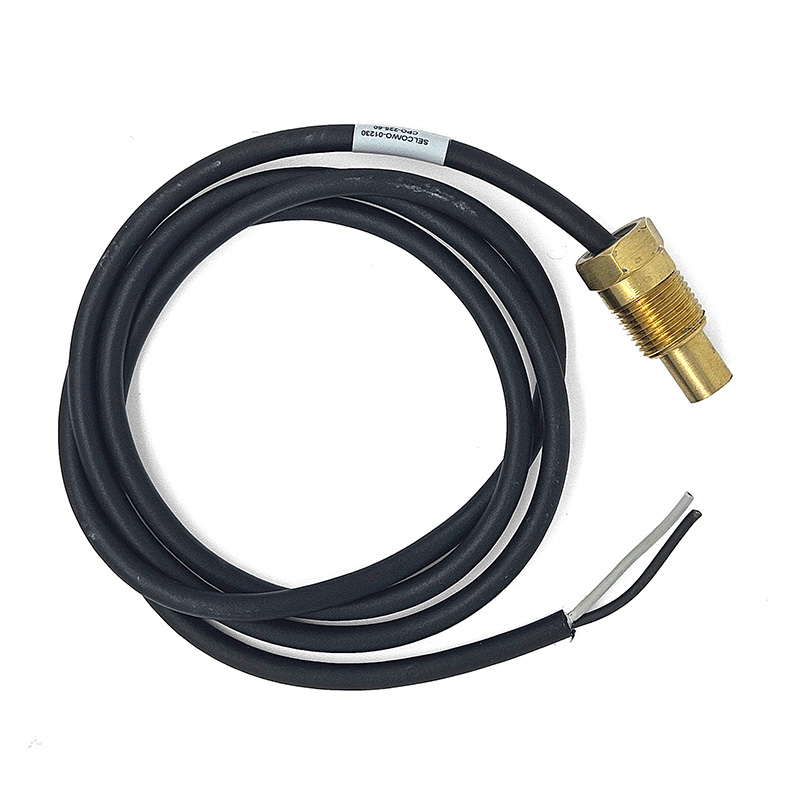

High Limit Switch, 1/2″ MPT 225 DEG 42″ Wire Lead

SKU 8.712-185.0 Category

High Limit Switch, 1/2″ MPT 225 DEG 42″ Wire Lead

SKU 8.712-185.0 Category
  • 1/2″ MPT Probe
  • 225° F Cut Out
  • 15 Amp at 110V, 10 Amp at 220V
  • 7000 PSI Collapse Rating

$61.39

Part Number: 8.712-185.0
Cross Reference Part Number(s): 4-0509, 411231, 411233, 411274, 411277, 87122970, 87122990, 87123100, 87123120, 87121850

Designed as a safety mechanism, the hi limit switch will shut off the burner to prevent the water from overheating and possibly flashing to steam. Rated for use up to 340 Degrees F.

  •  1/2″ MPT external thread connects for attaching conduit or PVC wire connectors
  • UL / CSA Rated, Bi-metal Switch Components
  • Does not turn back on until water has cooled 50 – 7oF
  • Heavy-Duty Brass Housing – 7000 PSI Collapse Rating
  • Normally used with other adjustable or fixed range thermostat which regulates water temperature
  • Operates as safety device to shut off burn to prevent machine (water) overheating flashing to steam
