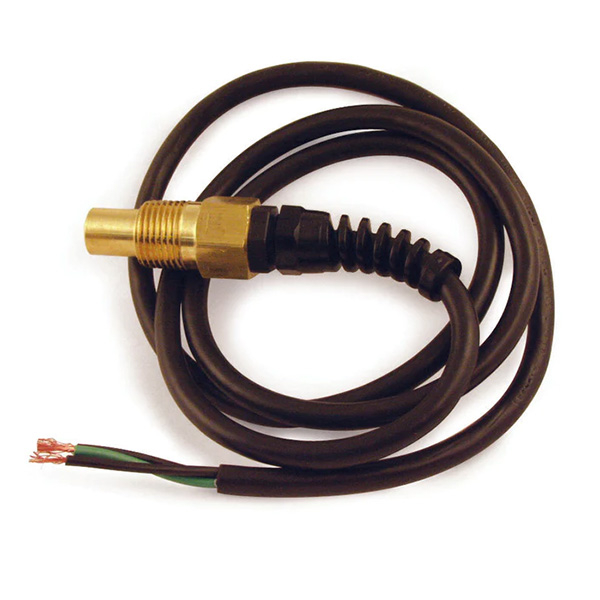

High Limit Switch, 1/2″MPT 330 Deg 42″ Wire Lead

SKU 8.712-205.0 Category
  • 1/2″ MPT Probe
  • 330° F Cut Out
  • 15 Amp at 110V, 10 Amp at 220V
  • 7000 PSI Collapse Rating


Part Number: 8.712-205.0
Cross Reference Part Number(s):4-0510, 411331, 87123150, 8.712-315.0

Designed as a safety mechanism, the hi limit switch will shut off the burner to prevent the water from overheating and possibly flashing to steam. Rated for use up to 340 Degrees F.

  •  1/2″ MPT external thread connects for attaching conduit or PVC wire connectors
  • UL / CSA Rated, Bi-metal Switch Components
  • Does not turn back on until water has cooled 50 – 7oF
  • Heavy-Duty Brass Housing – 7000 PSI Collapse Rating
  • Normally used with other adjustable or fixed rangethermostat which regulates water temperature
  • Operates as safety device to shut off burnto prevent machine (water) overheating flashing to steam
