Part Numbers: 1.107-511.0, 11075110

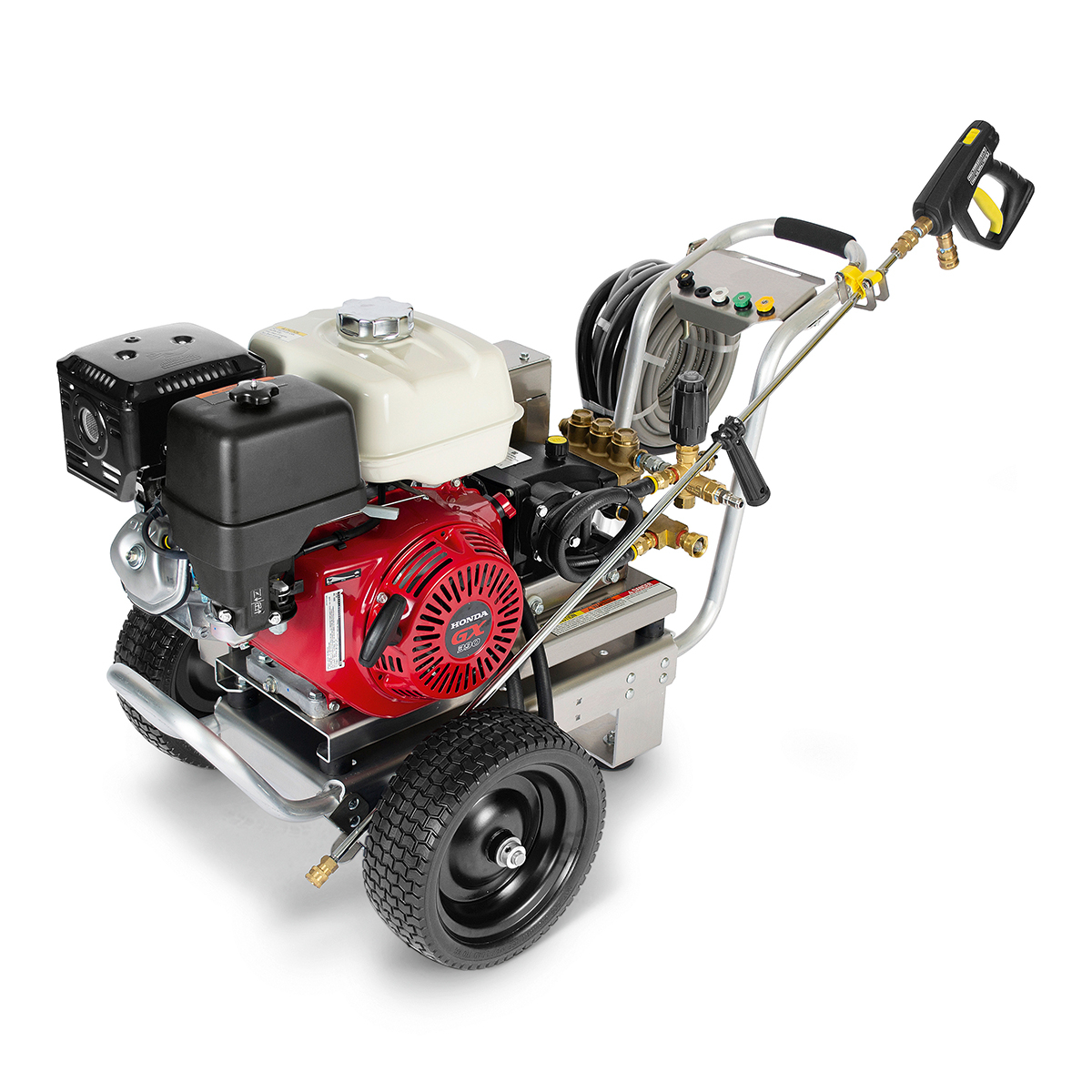

The HD Plus Series are Hotsy’s modular cold water pressure washers with corrosion resistant aluminum frame. Wheels can be removed allowing for easy trailer mounting. This model is available with a belt drive pump and powered by Honda GX engines. The HD series features a durable VTR3 unloader with bypass loop, commercial duty pump and a 50′ hose.
Specifications
| Model |
Part No. |
GPM |
PSI |
Engine |
CCs |
Pump Model |
| HD 5.0/30 GB |
1.107-511.0 |
5.0 |
3000 |
Honda GX390 |
389 |
LM4035R.3 |
Dimensions (LxWxH): 43″ x 26″ x 27″
Options
| Part No. |
Description |
|
| 4.760-846.0 |
Trigger Gun Classic G3/8 |
■ |
| 8.783-040.0 |
44″ Zinc Plated Lance, Handle & Coupler |
■ |
| 8.921-618.0 |
Non-Marking Hose 3/8″ x 50′ Gray, 4000 PSI, SOxSW |
■ |
| 8.765-909.0 |
Injector, 6′ Vinyl Hose, and Gray Foot Valve |
■ |
| 9.808-467.0 |
Trailer Kit (Fittings, Skid Feet, Low Pressure Hoses) |
□ |
| 9.808-468.0 |
Skid Feet (Set of 4) |
□ |
| 9.808-469.0 |
Hose Reel Bracket – Direct Drive |
□ |
| 9.808-470.0 |
Hose Reel Bracket – Belt Drive |
□ |
| 9.808-471.0 |
Self-Retractable Hose Reel w/Jumper Hose & Adapters |
□ |
| 8.750-476.0 |
50′ Hose Reel, Legacy |
□ |
| 8.711-192.0 |
50′ Hose Reel, A+ |
□ |
| 9.804-067.0 |
100′ Hose Reel, A+ |
□ |
| 8.925-129.0 |
Hose, 3/8″ x 50′ 1-Wire, 4000 PSI, SOxSW |
□ |
| 8.925-229.0 |
Legacy Hose, 3/8″ x 100′ Smooth Cover Black, 4500 PSI, SOxSW |
□ |
| 8.765-910.0 |
Injector, Adjustable Hi-Draw, 1.8 Acid Version (HD 3.0/27 G) |
□ |
| 8.765-911.0 |
Injector, Adjustable Hi-Draw, 2.1 Acid Version (HD 3.5/35 G, HD 4.0/40 G) |
□ |
| 8.765-912.0 |
Injector, Adjustable Hi-Draw, 2.3 Acid Version (HD 5.0/35 G) |
□ |
| 8.753-572.0 |
A+ 21″ Surface Cleaner SC21 |
□ |
| 8.753-573.0 |
A+ 24″ Surface Cleaner SC24 |
□ |
| 9.302-242.0 |
Legacy Turbo Nozzle, #3.5, 4350 PSI |
□ |
| 9.302-243.0 |
Legacy Turbo Nozzle, #4.0, 4350 PSI |
□ |
| 9.302-247.0 |
Legacy Turbo Nozzle, #6.5, 4350 PSI |
□ |
■ Included
□ Field Installed Option: Can be added to the machine at any time.
