Part Numbers: 1.103-907.0, 11039070, 1.103-908.0, 11039080

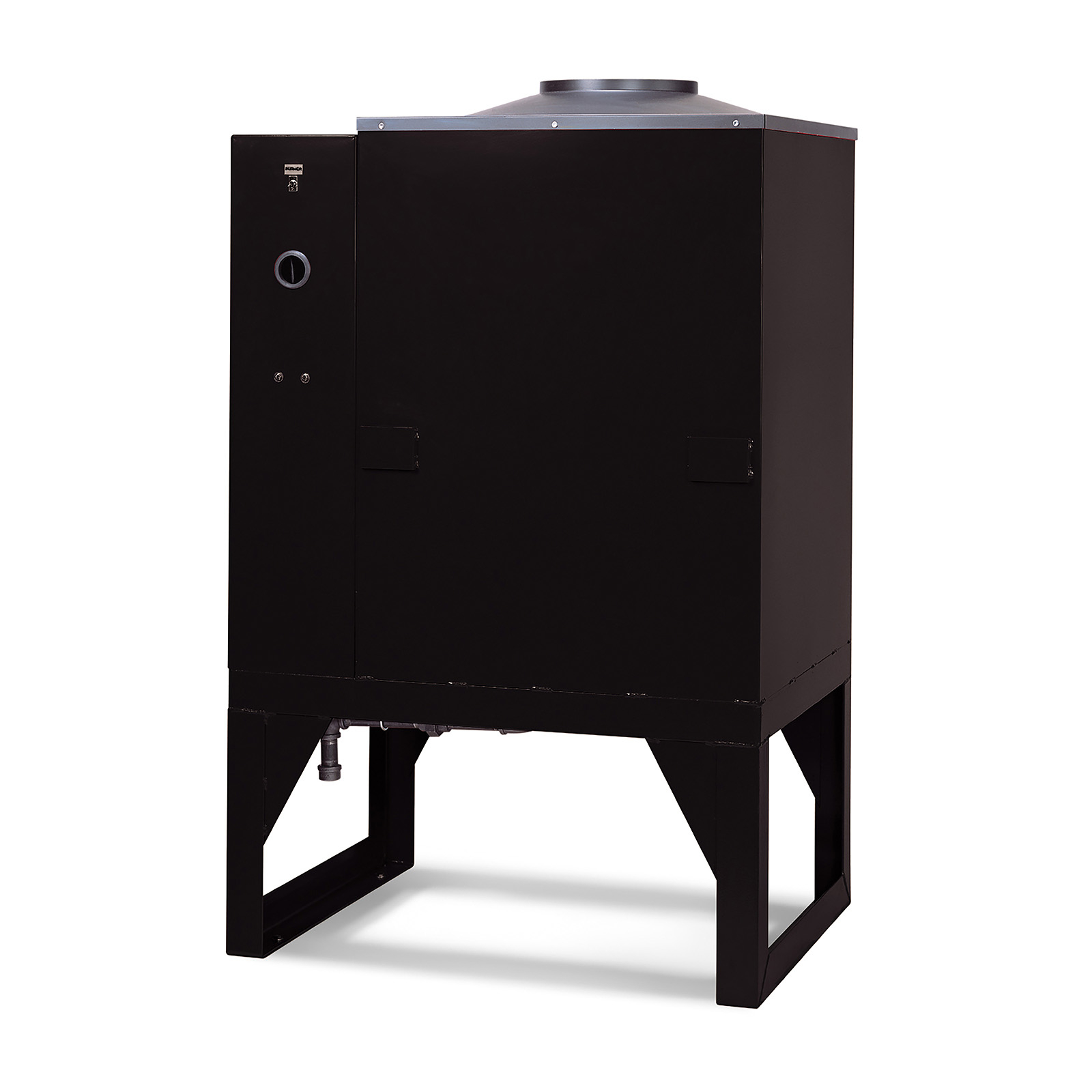

The 9460 Series heating module provides the flexibility to “convert” a cold water pressure washer into a hot water unit. By attaching the heating module to a cold water pressure washer the pressurized water is now heated to produce all the benefits of hot water cleaning. Uses fuel oil or diesel to heat the water using Hotsy’s high-efficiency, vertical heating coil. Equipped with a flow switch to control the burner.
Models
| Model |
Part No. |
GPM |
PSI |
Volt/PH |
Amps |
BTU/Hour |
Fuel |
| 9460 |
1.103-907.0 |
10 |
3200 |
115/1 |
8 |
920,000 |
Oil-Fired |
| 9462 |
1.103-908.0 |
10 |
3200 |
115/1 |
8 |
920,000 |
Natural Gas-Fired |
Dimensions (LxWxH): 40.5″ x 32″ x 65″
Options
| Part No. |
Description |
|
| 8.717-730.0 |
12″ Natural Gas-Fired Draft Diverter (9462) |
■ |
| 8.753-171.0 |
12″ Power Dampener |
■ |
| 8.749-807.0 |
Power Dampener Wiring Harness |
■ |
| 8.704-659.0 |
Hosty Logo Label, 5″ x 11″ |
■ |
| 8.903-075.0 |
NG to LP Conversion (9462) |
◇ |
■ Field Installed Option: Can be added to the machine at any time.
◇ Factory Installed Option: Must be ordered with the machine. Installed at the factory.
