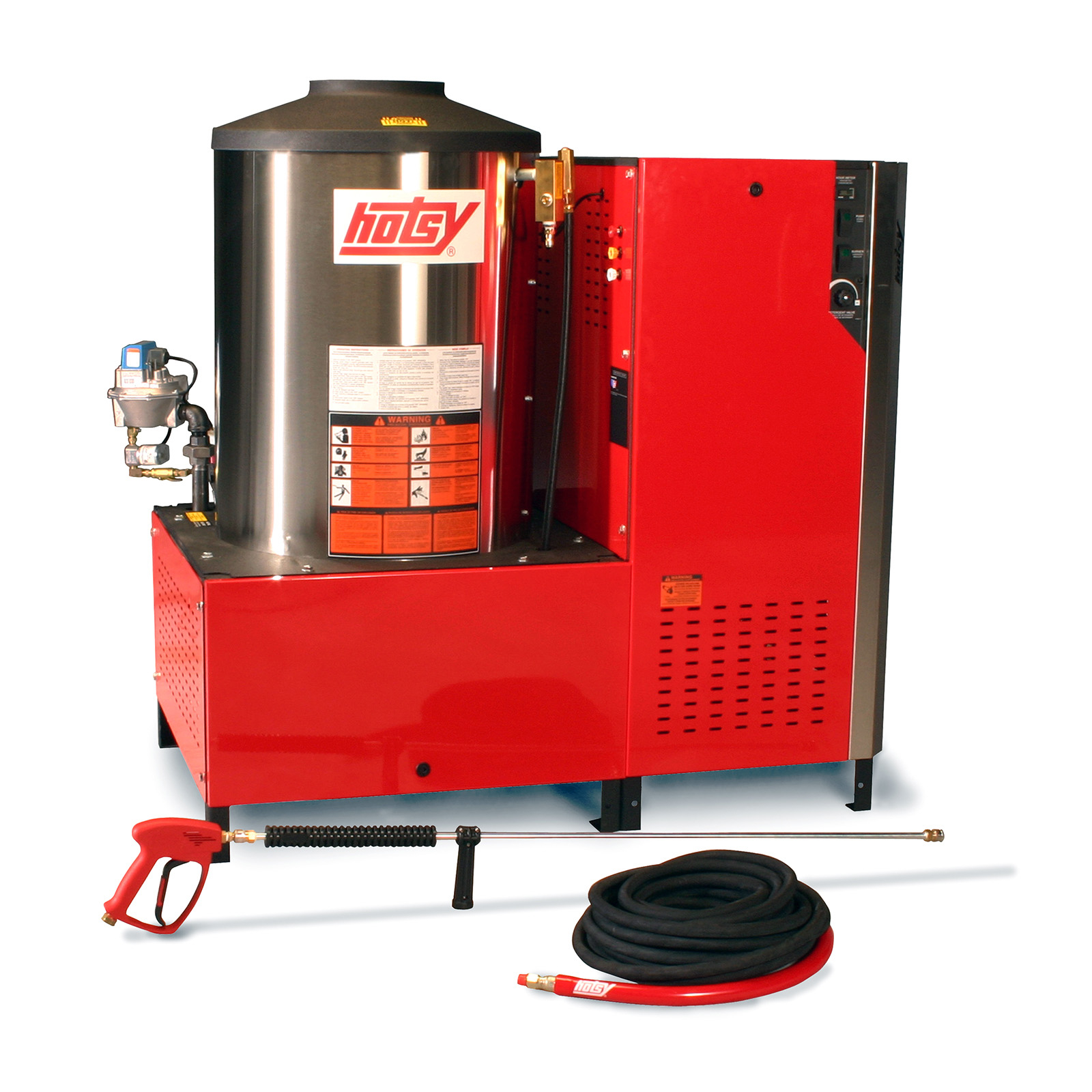

The 1800 Series provides stationary cleaning with hot water indoors. The 7 models are electric-powered and natural gas, oil or optional LP gas-heated. The coil skin comes standard with stainless steel. The sleek cabinet has removable side and front panels, making it easy for routine scheduled maintenance and service. The Smart Relay allows the washer to be customized to individual needs, and is protected behind the front panel. All models are certified to the rigid UL-1776 safety standards and feature the highly efficient Hotsy Triplex pump. A pressure switch is a standard feature on all 1800 Series models. Equipped with a 50′ hose.
Models
| Model |
Part No. |
GPM |
PSI |
HP |
Volt/PH |
Amps |
Fuel |
Pump Model |
| 1812SS |
1.109-660.0 |
6.0 |
2500 |
10 |
230/1 |
42 |
NG |
HX9536L.2 |
| 1830SS |
1.109-665.0 |
6.0 |
3000 |
15 |
230/3 |
40 |
Oil* |
HX9536L.2 |
| 1832SS |
1.109-662.0 |
6.0 |
3000 |
15 |
230/3 |
38 |
NG |
HX9536L.2 |
| 1832SS-208 |
1.109-661.0 |
6.0 |
3000 |
15 |
208/3 |
41 |
NG |
HX9536L.2 |
| 1833SS |
1.109-666.0 |
6.0 |
3000 |
15 |
460/3 |
21 |
Oil* |
HX9536L.2 |
| 1835SS |
1.109-663.0 |
6.0 |
3000 |
15 |
460/3 |
19 |
NG |
HX9536L.2 |
| 1836SS |
1.109-664.0 |
6.0 |
3000 |
15 |
575/3 |
16 |
NG |
HX9536L.2 |
Dimensions (LxWxH): 51″ x 31″ x 53.25″
*NOTE: Oil-fired models are not supplied with a fuel tank
Options
| Part No. |
Description |
|
| 8.916-989.0 |
Remote Station |
■ |
| 8.916-988.0 |
Soap Solenoid and Switch |
■ |
| 8.749-806.0 |
10″ Power Dampener |
■ |
| 8.749-807.0 |
Power Dampener Wiring Harness |
■ |
| 9.801-040.0 |
10″ Natural Gas or LP Gas-Fired Draft Diverter |
■ |
| 9.803-452.0 |
Water Inlet Solenoid |
■ |
| 8.924-814.0 |
R-Con Wireless Remote Kit (1 remote/1 receiver) |
■ |
| 8.925-072.0 |
R-Con Wireless Remote Kit (2 remotes/2 receivers) |
■ |
| 8.924-878.0 |
Wall Mount Bracket for R-Con |
■ |
| 8.756-329.0 |
Replacement Remote* (Transmitter Only) |
◇ |
| 8.903-074.0 |
LP Conversion Kit |
◇ |
*NOTE: R-Con Wireless Remote comes from vendor, is custom made to order, and is not universal. When ordering, please contact customer service to supply the serial number off the transmitter you have along with the channel number, so we can correctly set your remote.
■ Field Installed Option: Can be added to the machine at any time.
◇ Factory Installed Option: Must be ordered with the machine. Installed at the factory.
