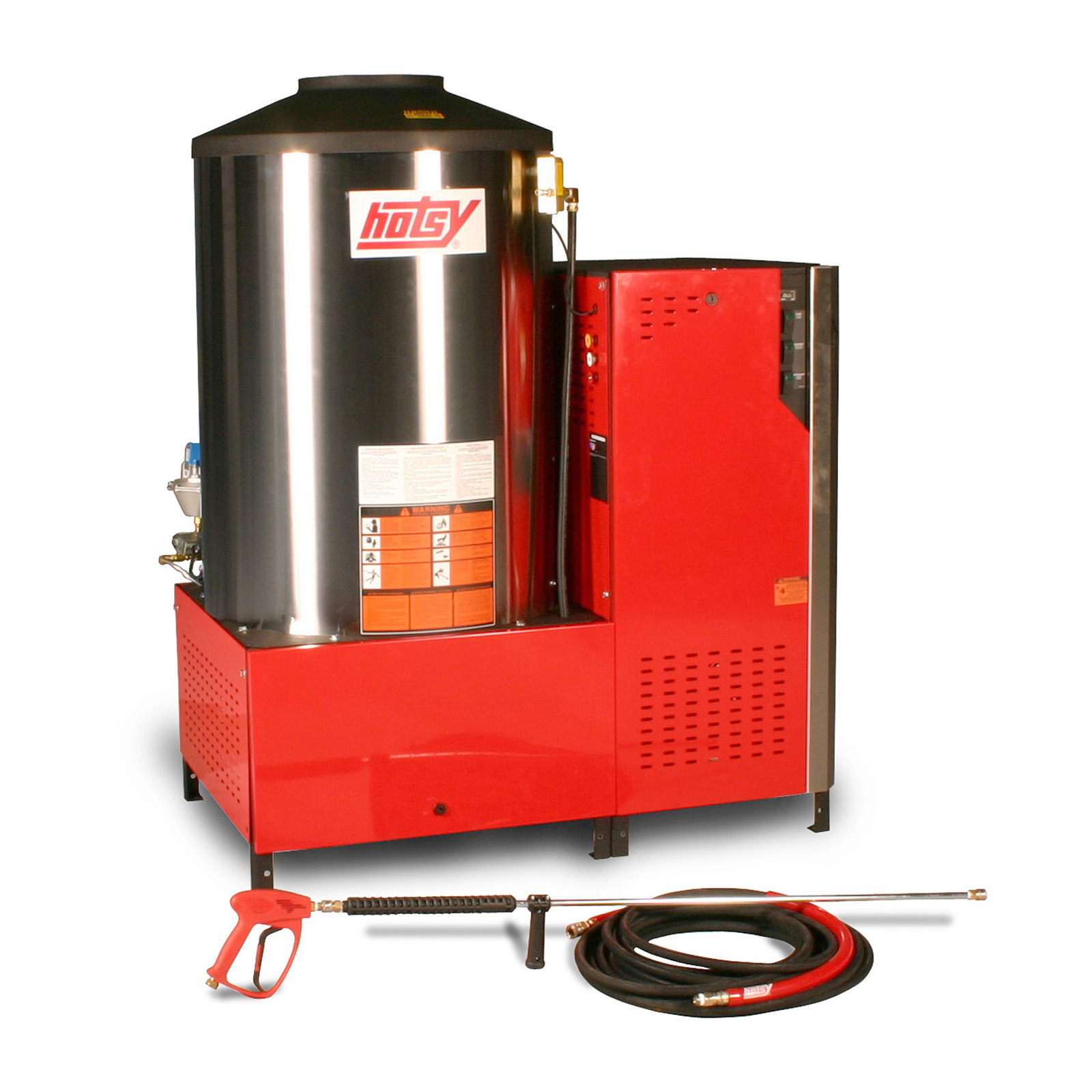

The 5800 Series produces a powerful punch and is ideal for wash bay installations. With its 20 HP motor driving the incomparable Hotsy Triplex Pump and a vertical banded belt, the 5800 Series delivers cleaning power up to 9.5 GPM and 2500 PSI. Has a sleek cabinet with removeable panels for easy access for maintenance. A removeable control panel provides access to the adjustable temperature control and the Smart Relay for secured control of operating positions. Remote ready for wash bay installations. All models are stationary and certified to the rigid UL-1776 safety standards. Equipped with a 50′ hose.
Models
| Model |
Part No. |
GPM |
PSI |
HP |
Volt/PH |
Amps |
Fuel |
Pump Model |
| 5832SS |
1.109-651.0 |
9.5 |
2500 |
20 |
230/3 |
42 |
NG |
HX1036L.2 |
| 5832SS-208 |
1.109-650.0 |
9.5 |
2500 |
20 |
208/3 |
48 |
NG |
HX1036L.2 |
| 5835SS |
1.109-652.0 |
9.5 |
2500 |
20 |
460/3 |
21 |
NG |
HX1036L.2 |
| 5836SS |
1.109-653.0 |
9.5 |
2500 |
20 |
575/3 |
16 |
NG |
HX1036L.2 |
Dimensions (LxWxH): 51″ x 31″ x 63.4″
Options
| Part No. |
Description |
|
| 8.916-989.0 |
Remote Station |
■ |
| 8.916-988.0 |
Soap Solenoid and Switch |
■ |
| 8.753-171.0 |
12″ Power Dampener |
■ |
| 8.749-807.0 |
Power Dampener Wiring Harness |
■ |
| 8.717-730.0 |
12″ Natural Gas or LP Gas-Fired Draft Diverter |
■ |
| 9.803-452.0 |
Water Inlet Solenoid |
■ |
| 8.924-814.0 |
R-Con Wireless Remote Kit (1 remote/1 receiver) |
■ |
| 8.925-072.0 |
R-Con Wireless Remote Kit (2 remotes/2 receivers) |
■ |
| 8.924-878.0 |
Wall Mount Bracket for R-Con |
■ |
| 8.756-329.0 |
Replacement Remote* (Transmitter Only) |
■ |
| 8.916-915.0 |
LP Conversion Kit |
◇ |
*NOTE: R-Con Wireless Remote comes from vendor, is custom made to order, and is not universal. When ordering, please contact customer service to supply the serial number off the transmitter you have along with the channel number, so we can correctly set your remote.
■ Field Installed Option: Can be added to the machine at any time.
◇ Factory Installed Option: Must be ordered with the machine. Installed at the factory.
