Karcher Mojave Series

SKU Mojave-Series Categories , ,

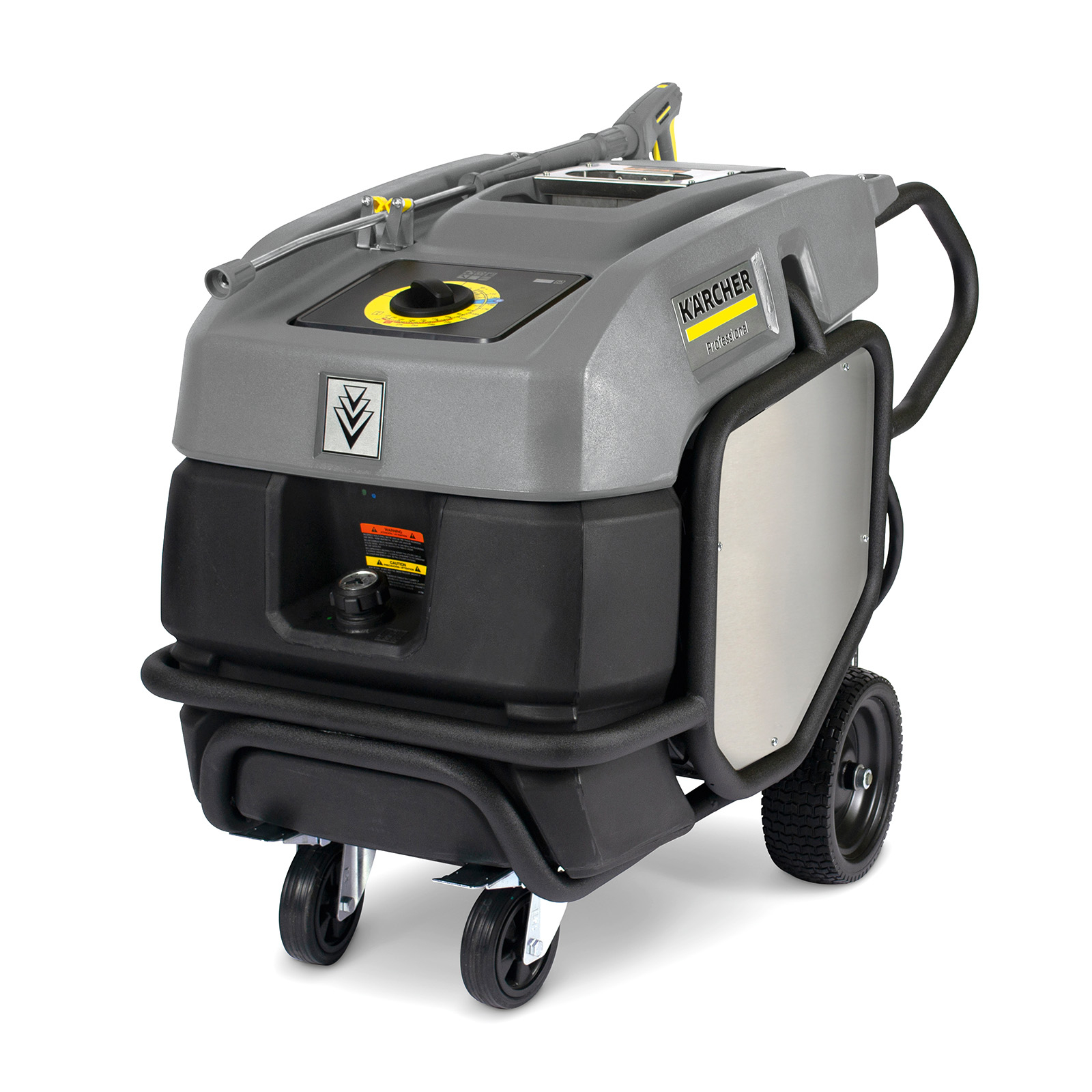

Karcher Mojave Series
Karcher Mojave Series - Image 2
Karcher Mojave Series - Image 3

Up to 5.0 GPM | 3000 PSI

  • Auto Start/Stop
  • Karcher 4-Pole Motor
  • EASY!Force Trigger Gun
  • Steam Mode (Premium Models)
  • Servo Control (Premium Models)
  • 7 Year Pump Warranty
  • 1 Year Labor Warranty
  • ETL Safety Certified

Models shown may include optional features

Karcher

Call to Order

Robust and innovative.

The new Karcher Mojave series is the perfect all-around machine for a variety of applications and industries, including agriculture, automotive, and transportation. The machines deliver the highest performance for best cleaning results – all combined in a robust package.  The high quality components are engineered for a long product lifetime and give the Mojave Series some of the most unique features in the market.

Features:

  • Standard auto start/stop
  • Equipped with EASY!Force accessories, hour meter, status LED, crane hook, and other upgraded features
  • Stream stage, Servo Control, and stainless steel side panels included on Premium units

ETL Listed Karcher 7-Year Pump Warranty  Easy!Force Easy!Lock Servo Control  Flat Free Tires Biodiesel

Models

Model Class Part No. GPM PSI Motor Electrical Amps Steam Mode Pressure Adj.
HDS 2.2/12 Ed Prime 1.109-151.0 2.2 1200 2-Pole 120V / 1ph 20 No –
HDS 3.0/20-4 Ea/Eg Plus 1.109-153.0 3.0 2000 4-Pole 208-230V / 1ph 26 Yes At Unloader
HDS 3.5/30 Eg Plus 1.109-154.0 3.5 3000 4-Pole 208V / 1ph 35 Yes At Unloader
HDS 3.5/30-4 Ea Plus 1.109-155.0 3.5 3000 4-Pole 230V / 1ph 35 Yes At Unloader
HDS 4.0/20 Eg Premium 1.109-156.0 4.0 2000 4-Pole 208V / 1ph 30 Yes Servo Control
HDS 4.0/20-4 Ea Premium 1.109-157.0 4.0 2000 4-Pole 230V / 1ph 30 Yes Servo Control
HDS 4.0/20-4 Eh/Eb Premium 1.109-158.0 4.0 2000 4-Pole 208-230V / 3ph 24 Yes Servo Control
HDS 4.0/20-4 Ec Premium 1.109-159.0 4.0 2000 4-Pole 460V / 3ph 12 Yes Servo Control
HDS 4/.0/30-4 Eh/Eb Premium 1.109-163.0 4.0 3000 4-Pole 208-230V / 3ph 30 Yes Servo Control
HDS 4.0/30-4 Ec Premium 1.109-164.0 4.0 3000 4-Pole 460V / 3ph 14 Yes Servo Control
HDS 4.0-30-4 Ef Premium 1.109-165.0 4.0 3000 4-Pole 575V / 3ph 12 Yes Servo Control
HDS 5.0/30-4 Eh/Eb Premium 1.109-166.0 5.0 3000 4-Pole 208-230V / 3ph 34 Yes Servo Control
HDS 5.0/30-4 E Premium 1.109-167.0 5.0 3000 4-Pole 460V / 3ph 16 Yes Servo Control
HDS 5.0/30-4 Ef Premium 1.109-168.0 5.0 3000 4-Pole 575V / 3ph 13 Yes Servo Control

Dimensions (LxWxH): 50″ x 40″ x 50″

Accessories

Part No. Description
4.118-005.0 EASY!Force Trigger Gun ■
4.112-000.0 41″ Spray Lance ■
6.110-029.0 50′ EASY!Lock Longlife Hose w/ ANTI!Twist Connection (Prem. Models Only) ■
6.110-030.0 50′ EASY!Lock Hose with ANTI!Twist Connection (Std. Models) ■
2.113-007.0 Power Nozzle 25042 (for HDS 3.0/20-4 Ea/Eg) ■
2.113-021.0 Power Nozzle 25040 (for HDS 3.5/30-4 Ea) ■
4.115-020.0 Power Nozzle 25058 (for HDS 4.0/20-4 Ea Premium) ■
2.114-008.0 Steam Nozzle (included on HDS 4.0/20-4 Ea) ■
4.118-008.0 Servo Control Dial (included on HDS 4.0/20-4 Ea) ■

■ Included – Compatible with EASY!Lock System

Options

Part No. Description
8.750-685.0 100′ Pivot Reel □
9.808-276.0 Hose Reel Bracket Kit (hose reel not included) □

□ Optional – NOT compatible with EASY!Lock System

Literature

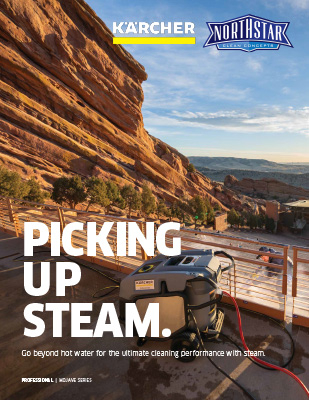

Mojave Series Product Sheet Product Sheet – Karcher Mojave Series
