Optima Steamer™ XDm Diesel

SKU XDM-Diesel Categories ,

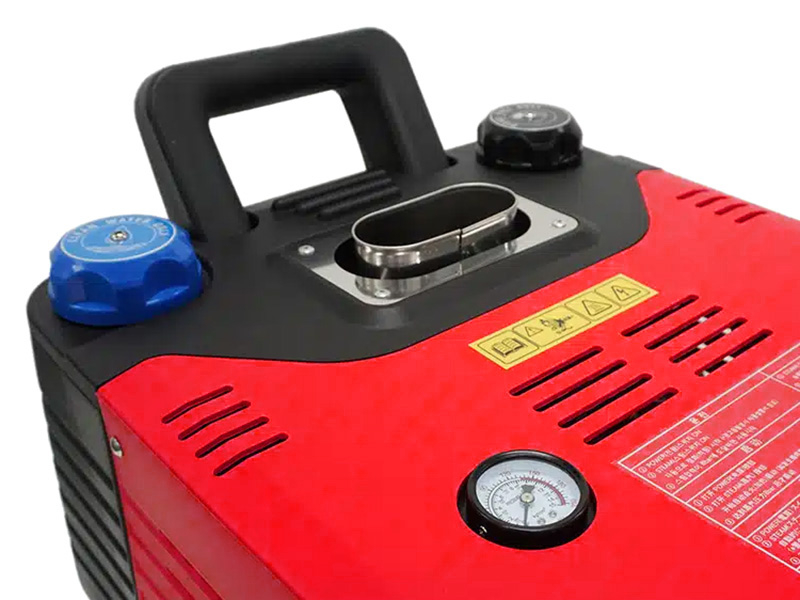

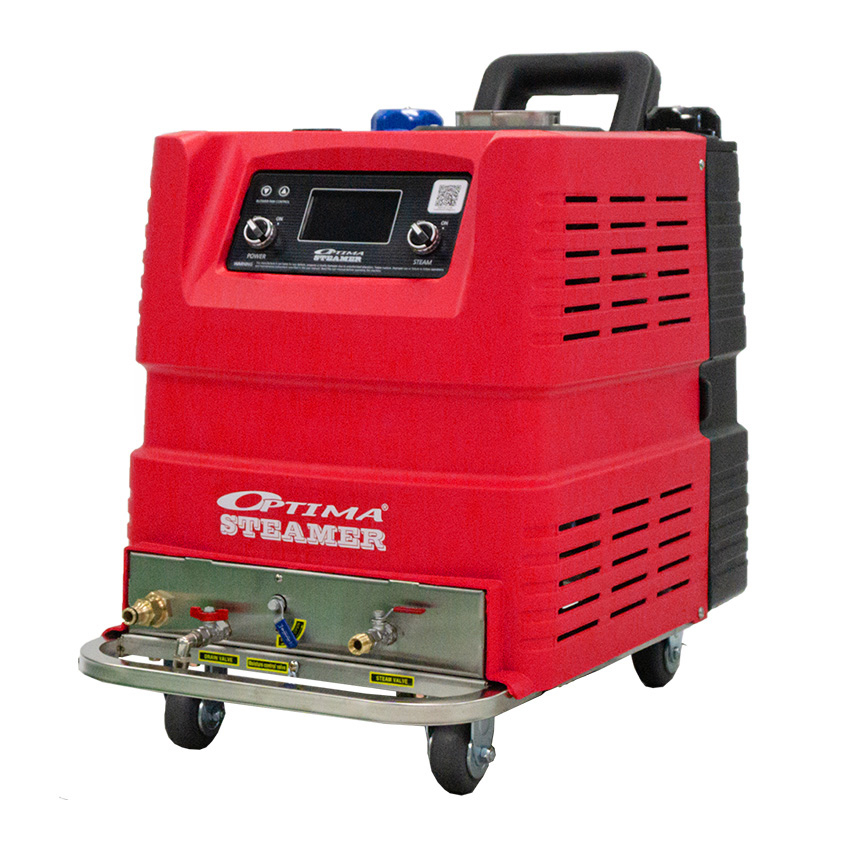

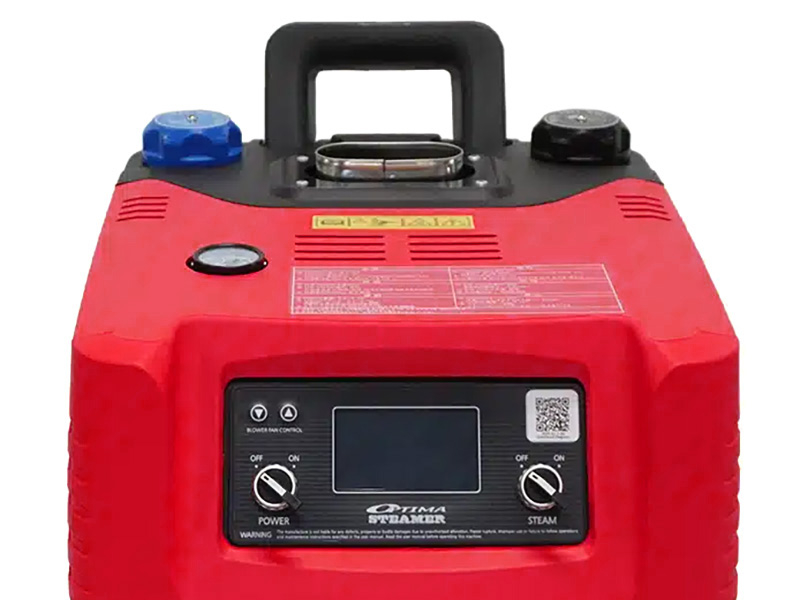

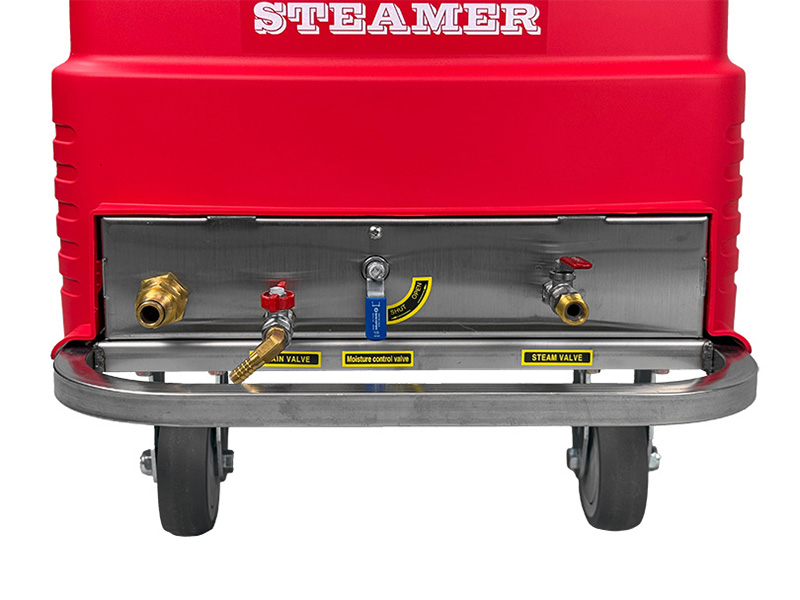

Optima Steamer™ XDm Diesel
Optima Steamer™ XDm Diesel - Image 2
Optima Steamer™ XDm Diesel - Image 3
Optima Steamer™ XDm Diesel - Image 4
  • Dry Steam Cleaner
  • Diesel Fired Burner
  • 275°F Spraying Temperature
  • .13 GPM Flow Rate
  • 138 PSI Max
  • 102-123 PSI Continuous

Steamericas

Call to Order

Discover the future of mobile detailing with the Optima Steamer™ XDm, the latest innovation from Steamericas designed specifically for the automotive industry. Perfect for owner-operators seeking a compact and budget-friendly alternative to the classic Optima XD, the XDm offers all the cleaning and sanitization power you need in a smaller, more portable package. Weighing only 115 pounds and sized to fit even in tight spaces, the XDm is ideal for single-operator mobile contract cleaners.

The Optima Steamer™ XDm was built with the needs of automotive contract cleaners in mind, making it ideal for a variety of mobile cleaning and sanitizing applications, including:

  • Mobile car washing services
  • Interior detailing
  • Engine and wheel cleaning
  • Removal of wraps, surface decals, and film
  • Farming equipment
  • Municipal cleaning including sculpture and monument cleaning

CE Certified  Inmetro Certified  SASO Certified

Optima Steamer

Specifications

Model XDm
Body Materials Frame: 400 Stainless Steel, Enamel Coated / Panels & Tanks: Polypropylene, Polyethylene
Boiler/Heater Material 304 Stainless Steel
Burner Power 80,000 BTU/hr
Required Voltage 115V (110~120V) / 220~230V (50, 60Hz)
Required Wattage 0.3 kW
Required Amperage 2.7 A
Steam Capacity 89.5 lb/hr
Maximum Flow Rate .13 GPM
Operating Pressure 138 PSI Max  / 102-123 PSI Continuous
Boiler Vessel Capacity 1.8 Gal
Boiler Temp 352° F
Spray Temp (at Nozzle) 275° F
Preheat Time 5 Min
Water Tank Capacity 2.9 Gal
Fuel Tank Capacity 2.9 Gal
Fuel Consumption* 0.55 GPH
Steam Hose Connections 1
Steam Hoses/Guns Included 1 Set
Direct Water Connection Yes
Net Weight 115
Unit Dimensions (LxWxH) 30″ x 19″ x 29″

Accessories

Part No. Description Qty
85-50357 Steam Gun K26 with nozzle 2.5 1
85-50202 Steam hose PTFE 6-8.5, 10m (Electric, 60HZ) 1
18-83004 Microfiber towel FBZ, Dark blue 1
18-83005 Microfiber towel Warp knitted, Dark blue 1
18-83006 Microfiber towel Wool, Dark blue 1
23-33111 Water probe sensor 3
12-24024 Fuel filter Cartridge, SJOF-09 1
12-24022 Water filter, ADMF 1212M 1
33-33007 Fuse 5×20 6.3A (Diesel Model, 100V) 4
22-22105 Silicon tube 12 x 16, Nozzle protector 1M 0.28
14-43033 O-ring D.17.12 x 2.62 U115 2
14-43002 O-ring D.21.89 x 2.62 U118 2
32-21061 Couplings D. 1/2-5/8 PTC or 1
85-50362 Garden hose adapter PF3/4 (USA Only) 1
35-50065 Free Chlorine Water Check (EPA) 1
35-50066 Total Hardness – Preprinted Foil 1
  Maintenance Toolkit 1

Literature

Optima Diesel Models Product Sheet Product Sheet – Steamericas Optima Diesel Models
