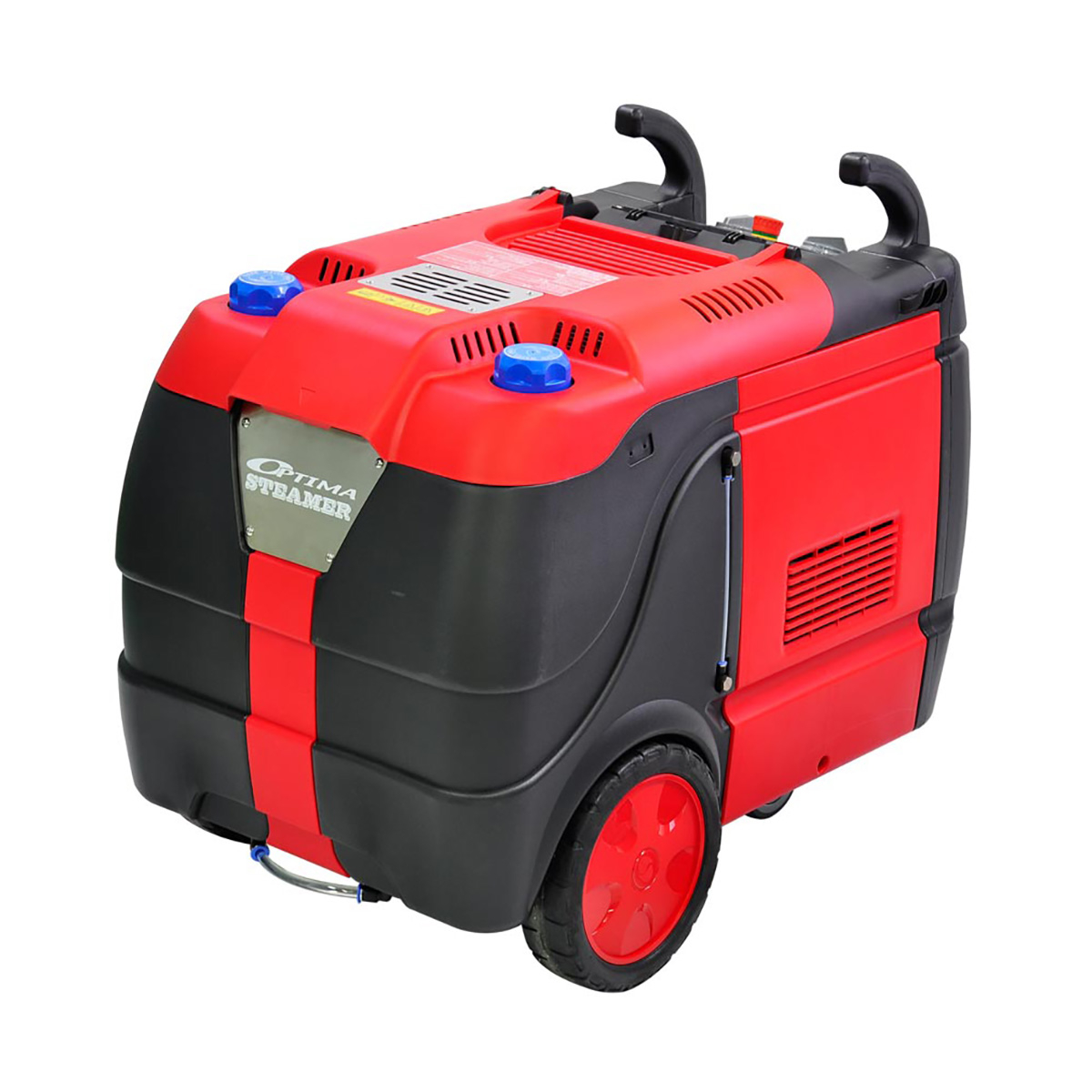

The XE all-electric industrial steamer offers zero-emission dry steam cleaning with simplified operation and maintenance. The XE combines the world-famous power of Optima all-electric steamer with an improved durable design, increased water capacity, and bright LCD monitor that makes it possible for anyone to operate. The XE operates on 3-phase electric power and is available in 3 models based on their performance: 12K (12000 watt), 18K (18000 watt), and 27K (27000 watt).
And because the XE produces no exhaust and virtually zero waste water, it is the perfect solution for:
- Commercial cleaning
- Auto repair and body shops
- Animal holding facility sanitation
- Nursing home and daycare center sanitation
- Cleanroom maintenance
Specifications
| Model |
XE 12K |
XE 18K |
XE 27K |
| Body Materials |
Frame: 400 Stainless Steel, Enamel Coated / Panels & Tanks: Polypropylene, Polyethylene |
| Boiler/Heater Material |
304 Stainless Steel |
| Electric Power |
12,040 W |
18,040 W |
27,040 W |
| Required Voltage1 |
208V-600V, 3Ph |
208V-600V, 3Ph |
380V-600V, 3Ph |
| Required Amperage2 |
15~35 A |
20~60 A |
30~50 A |
| Heater Count |
2x 6kW |
2x 9kW |
3x 9kW |
| Steam Capacity |
43.2 lb/hr |
52.9 lb/hr |
87.3 lb/hr |
| Maximum Flow Rate |
.28 GPM |
.30 GPM |
.45 GPM |
| Operating Pressure |
138 PSI Max / 102-123 PSI Continuous |
| BTUs/Hr (Equivalent) |
41,082 |
61,555 |
92,264 |
| Boiler Vessel Capacity |
4.71 Gal |
5.98 Gal |
| Boiler Temp |
345° F |
| Spray Temp (at Nozzle) |
248° F |
| Preheat Time |
11-13 Min |
8-10 Min |
9-11 Min |
| Water Tank Capacity |
19 Gal |
| Steam Hose Connections |
2 |
| Steam Hoses/Guns Included |
1 Set |
| Direct Water Connection |
Yes |
| Net Weight |
185 lbs |
187 lbs |
202 lbs |
| Unit Dimensions (LxWxH) |
39.2″ x 26″ x 35″ / 21 ft³ |
1To provide the necessary amperage, 3-phase voltage is required for any steamer that uses 18,000 watts or higher.
2Varies based on voltage configuration
