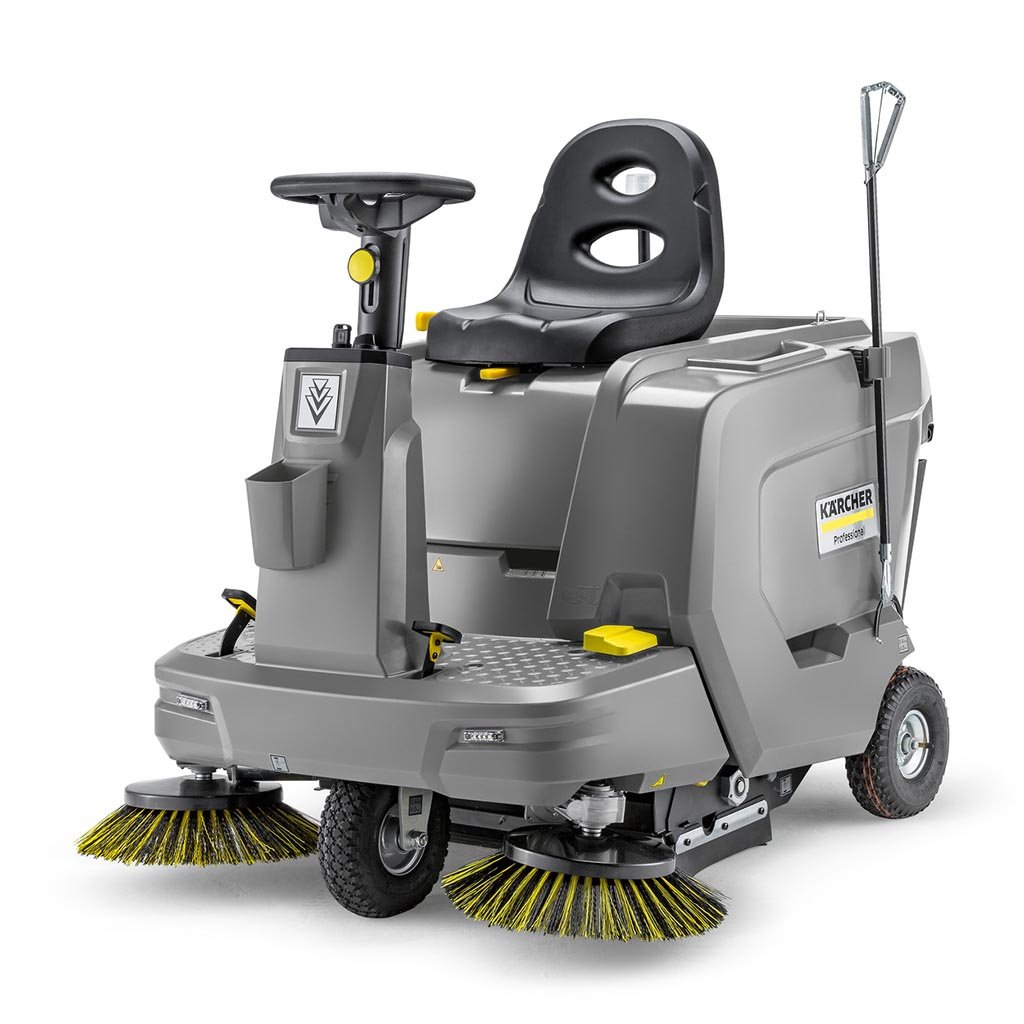

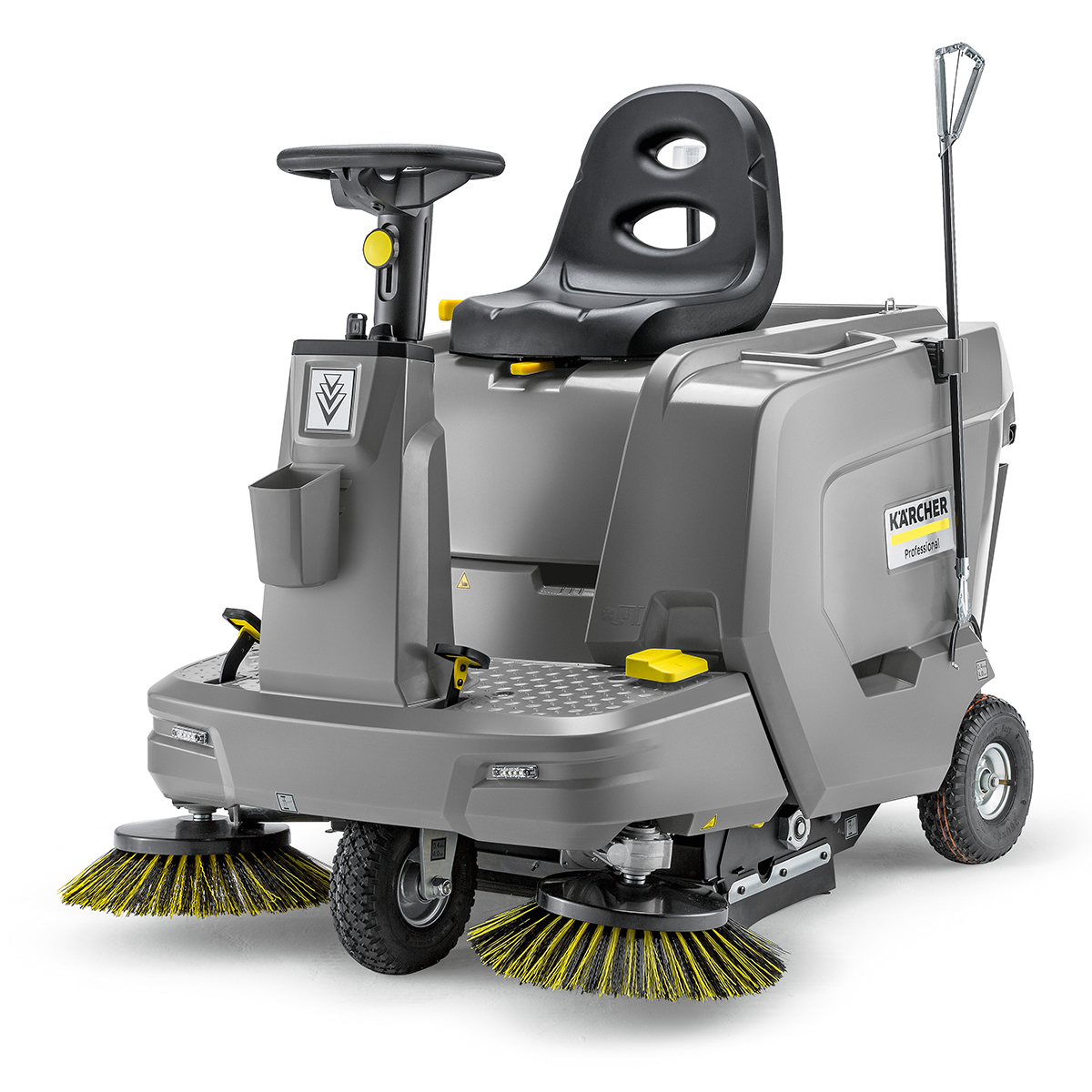

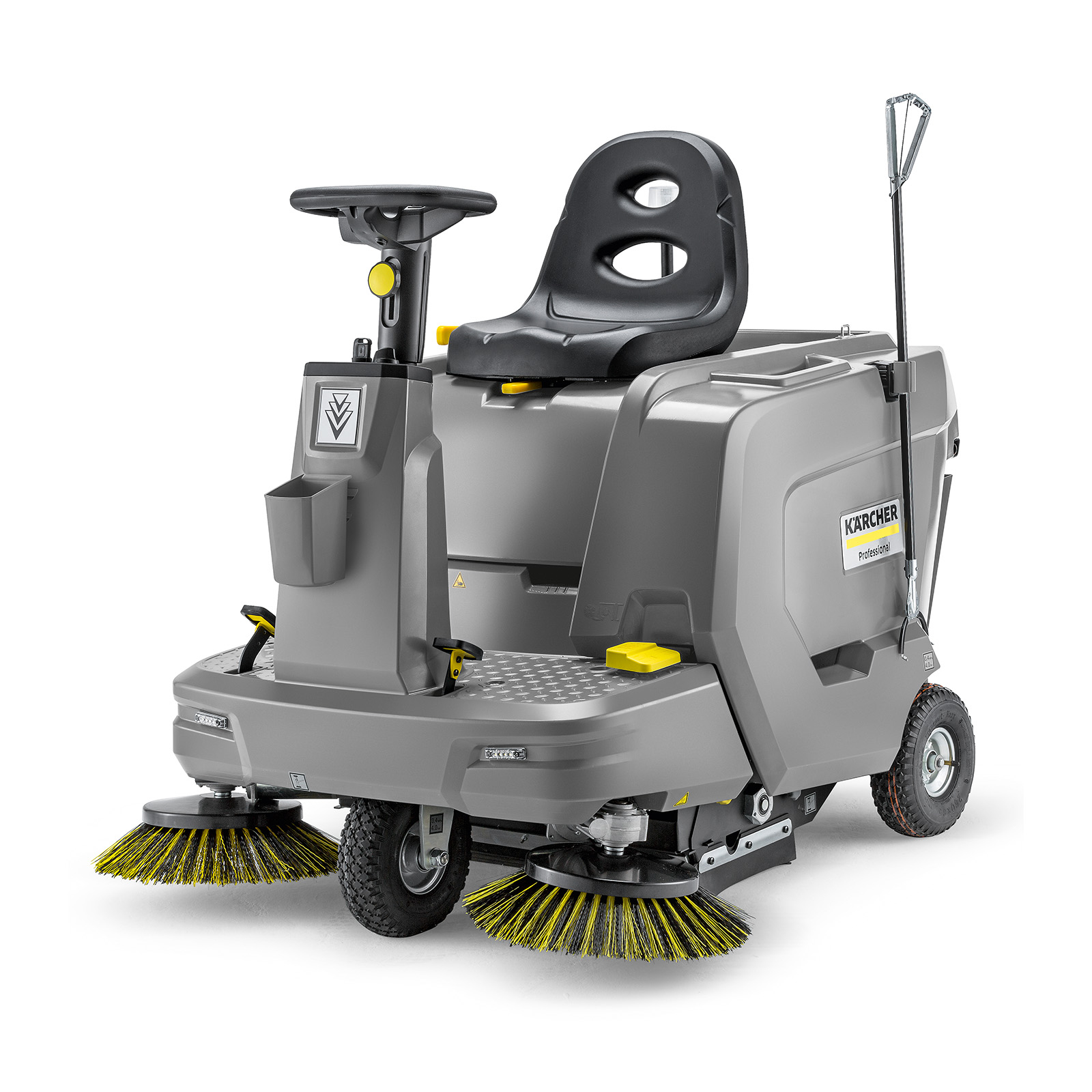

Models shown may include optional features
Call to Order

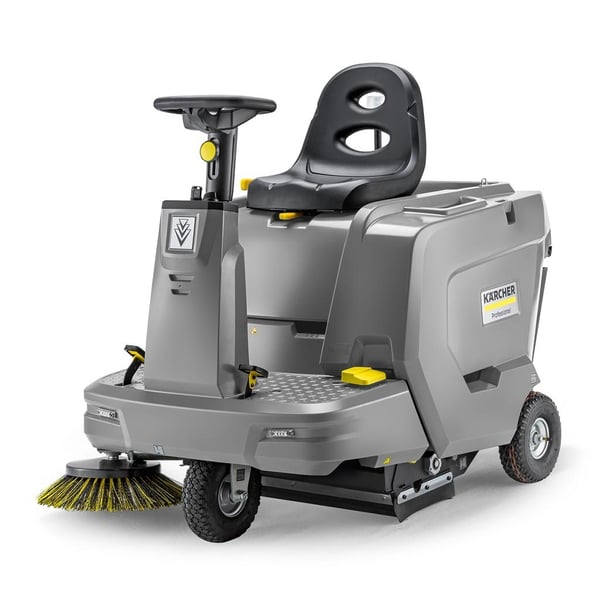

Compact and maneuverable ride-on sweeper.

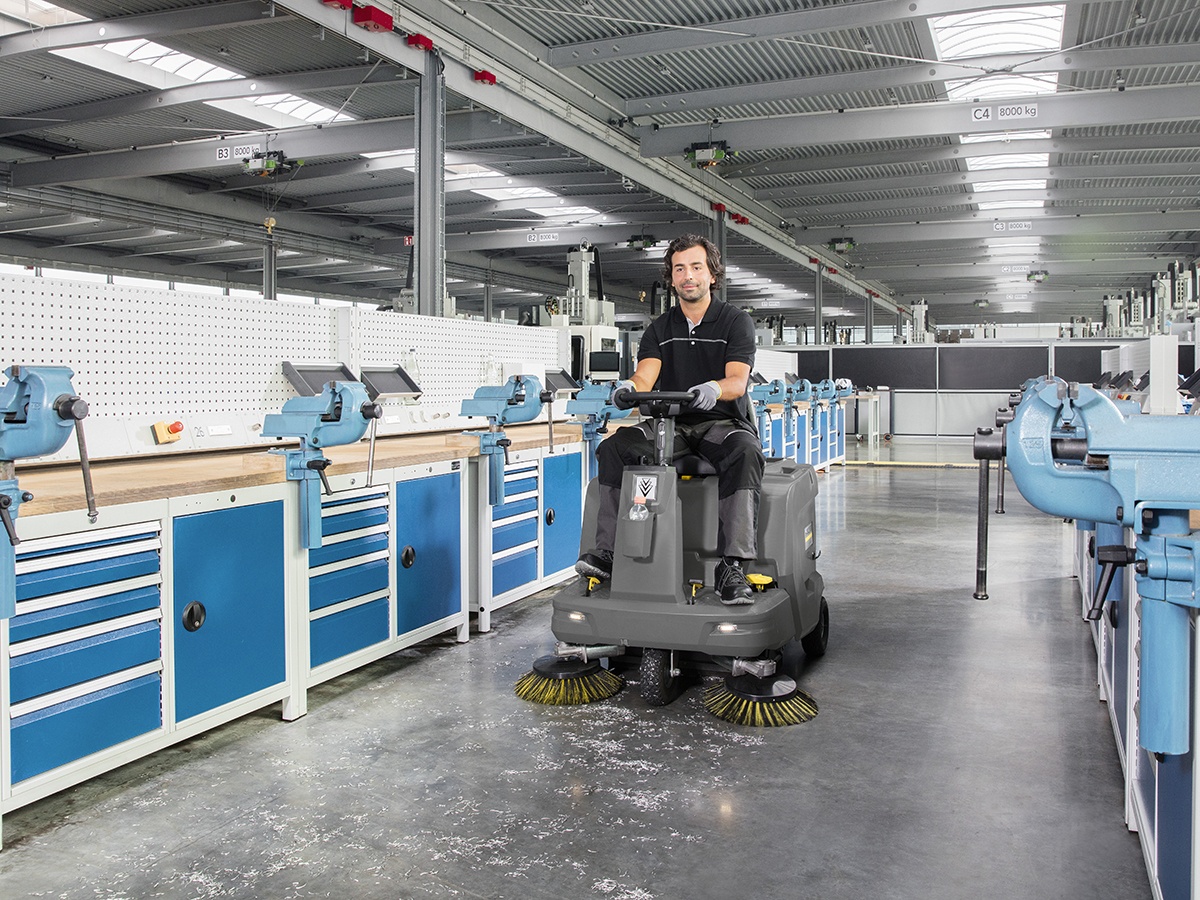

The KM 85/50 R Bp is a battery-powered ride-on sweeper perfect for confined and congested areas. Its compact design and high maneuverability make cleaning faster than ever in narrow corridors and around sharp corners. It is extremely easy to operate and maintain, and boasts impressive area performance outdoors.
| Technical Specifications | ||
| Cleaning path / width – main broom | Inch | 24.2 |
| Cleaning path / width with 1 sb | Inch | 33.5 |
| Cleaning path / width with 2 sb | Inch | 41.3 |
| Side broom diameter | Inch | 16.5 |

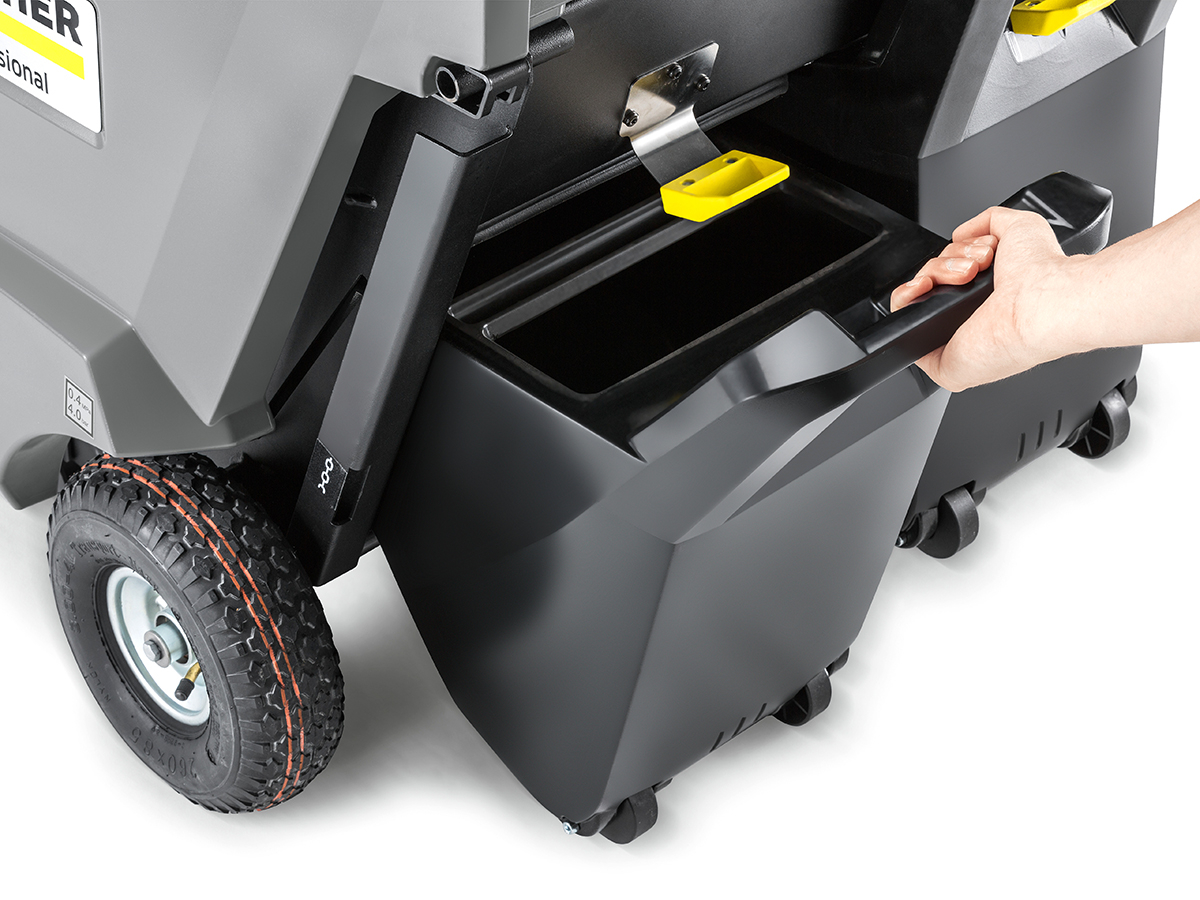

| Debris container capacity | Gal | 13.2 |
| Practical productivity – 1 / 2 sb | Sq Fr/Hr | 32,940 / 40,685 |
| Operating noise level | dBA | 69 |
| Sweeping method | Direct | |
| Weight | Lbs | 555 |
| Dimensions (LxWxH) | Inch | 50 x 35 x 46 |
| Part No. | Description |
| 9.841-453.0 | KM 85/50 R Bp Wet, 1 side broom, shelf charger |
| 9.841-454.0 | KM 85/50 R Bp AGM, 1 side broom, shelf charger |
| Part No. | Description | |
| 4.762-430.0 | Main broom | ■ |
| 6.906-132.0 | 1-Side brush | ■ |
| 6.435-733.0 | Pneumatic tire (1 ea) | ■ |

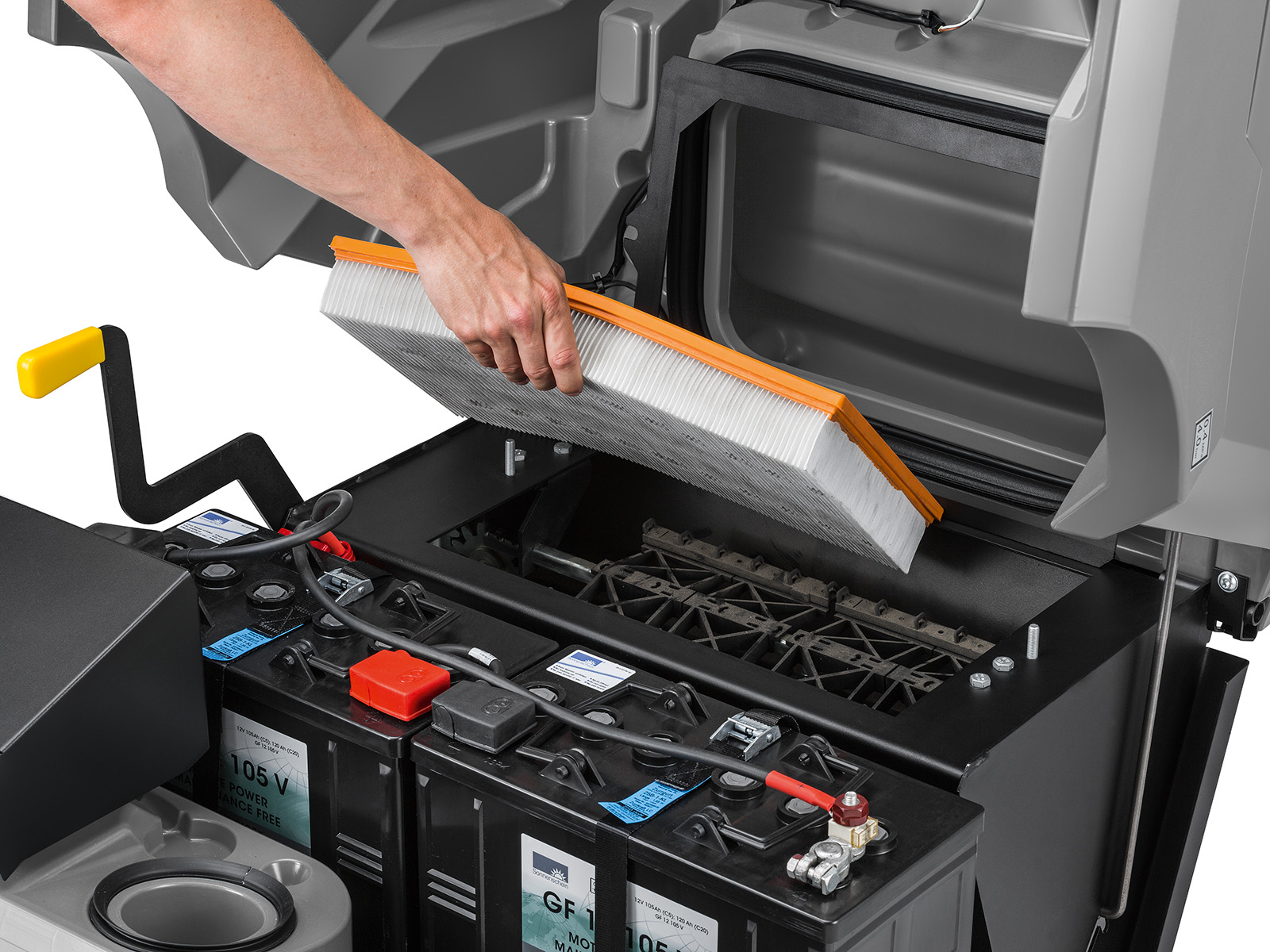

| 5.731-585.0 | Flat Filter complete | ■ |
| 4.037-142.0 | Key complete, key switch | ■ |
| 6.435-431.0 | Solid rubber non-marking wheel | □ |
| 4.762-443.0 | Main cylindrical brush, hard | □ |
| 4.762-442.0 | Main cylindrical brush, soft | □ |
| 4.762-441.0 | Main cylindrical brush, anitstatic | □ |
| 6.905-626.0 | Side brush, soft | □ |
| 6.905-625.0 | Side brush, hard | □ |
| 2.852-499.0 | Carpet cleaning kit | □ |
| 2.852-321.0 | Additional left side brush kit | □ |
| 2.852-500.0 | Warning beacon | □ |
| 5.035-488.0 | Home Base kit (adapter cable hook) | □ |
| 6.980-077.0 | Double Hook (requires Home Base kit 5.035-488.0) | □ |
■ Included □ Optional
 |
