Karcher KM 105/180 R Bp Classic

SKU KM-105/180-R Category

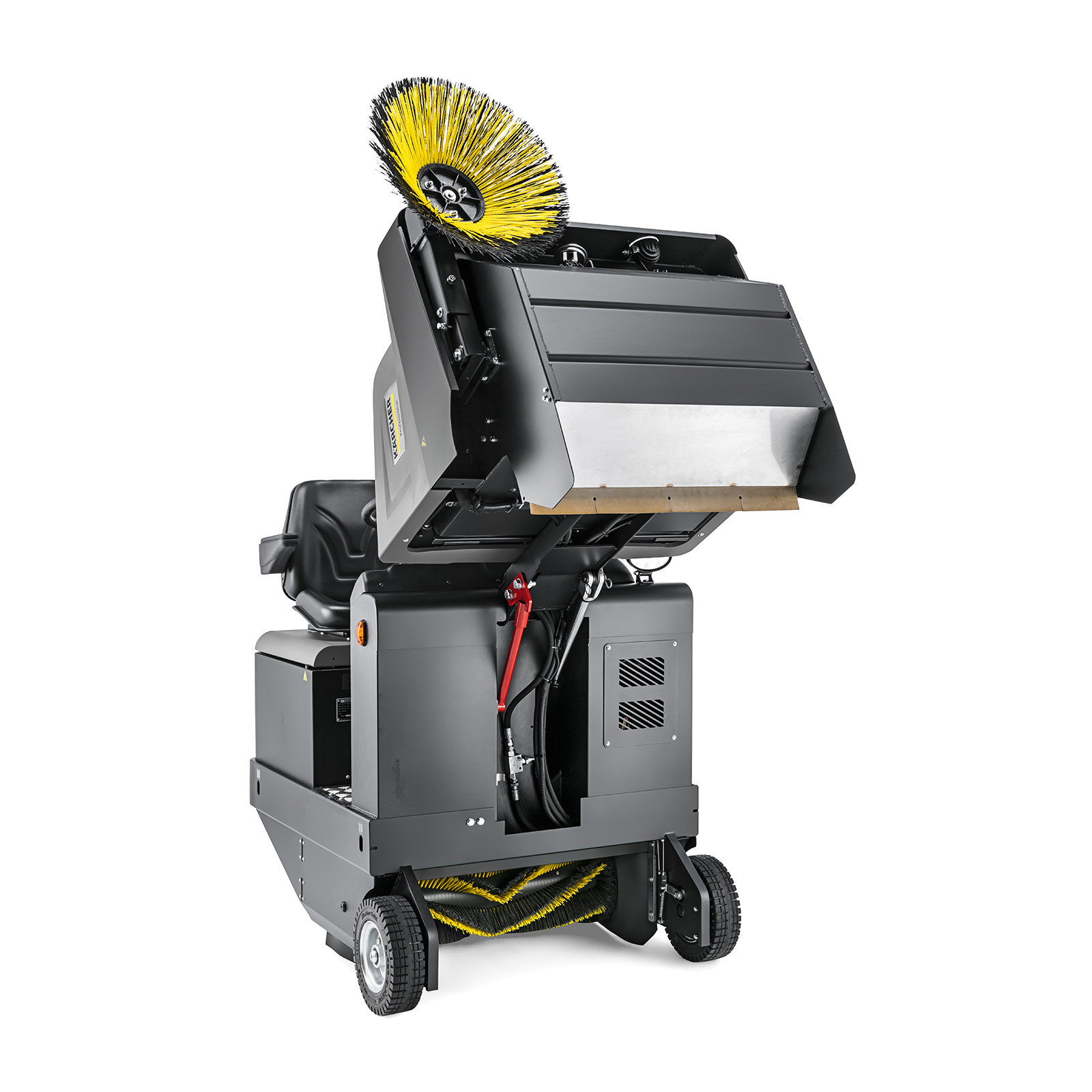

  • 47 gallon waste container and over 4 foot hydraulic container lift
  • Double the lifetime of your filters with automatic filter cleaning occurring every 10 minutes
  • robust steel frame and a fully hydraulic traction drive

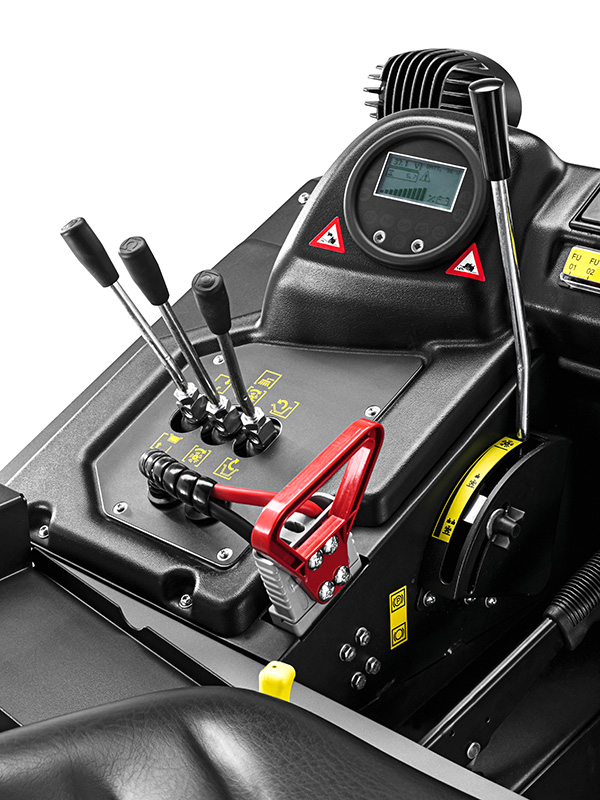

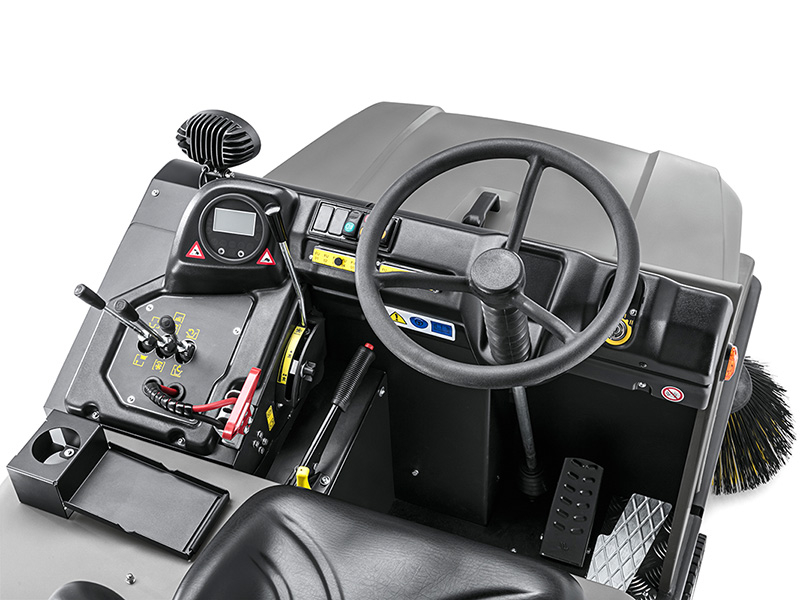

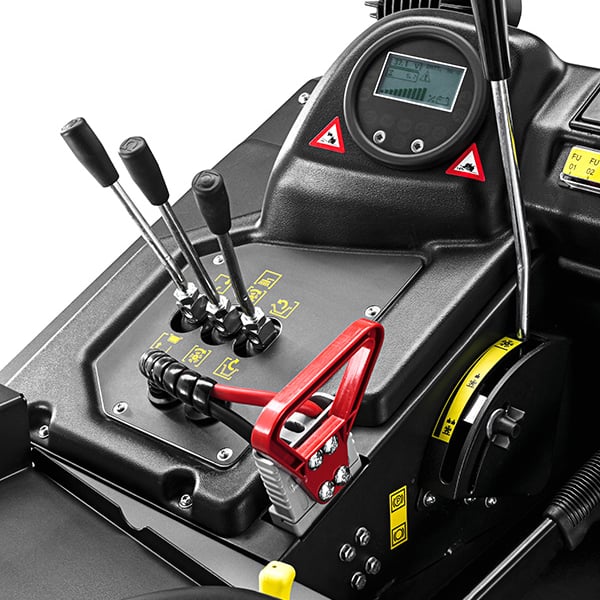

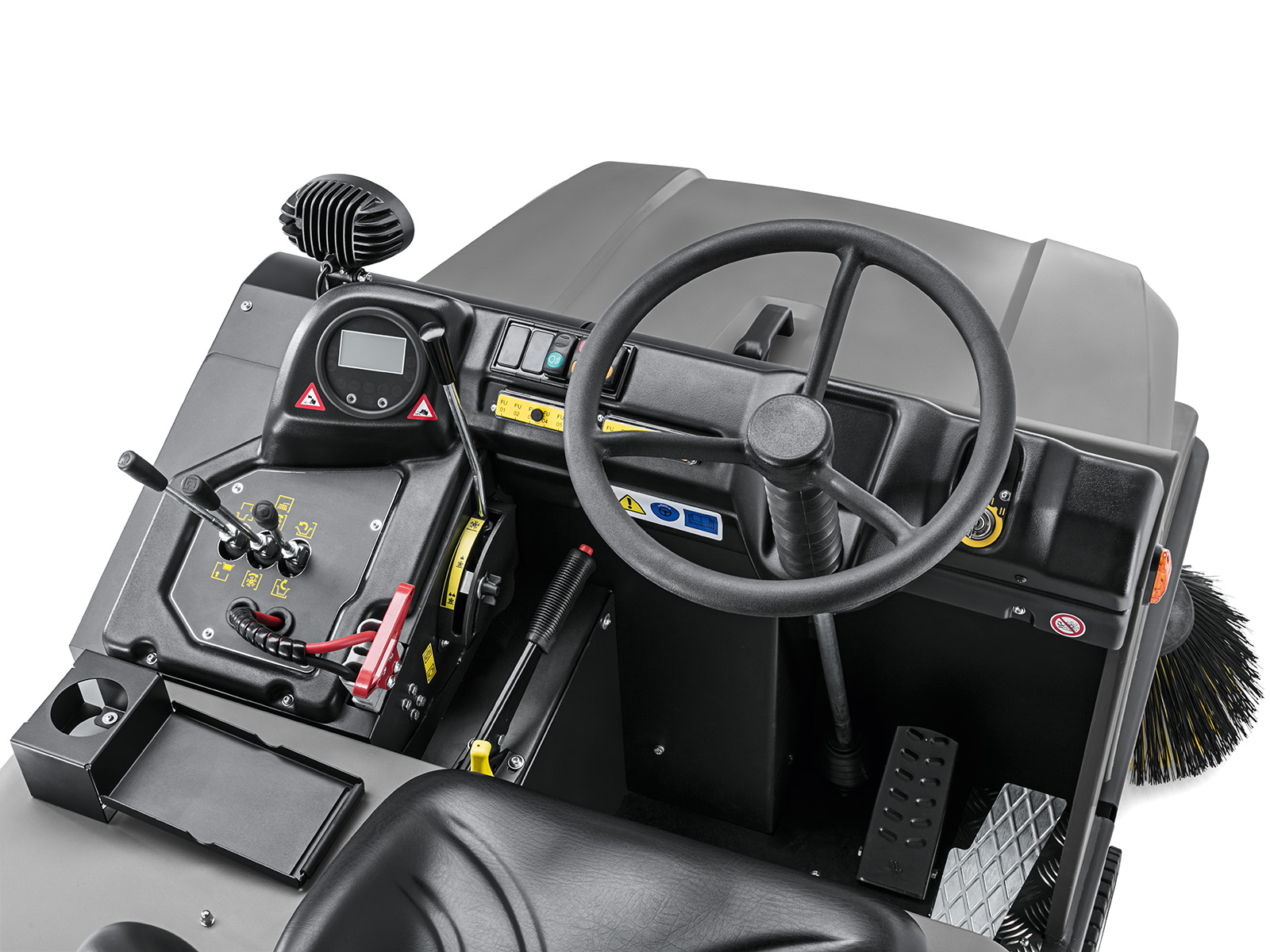

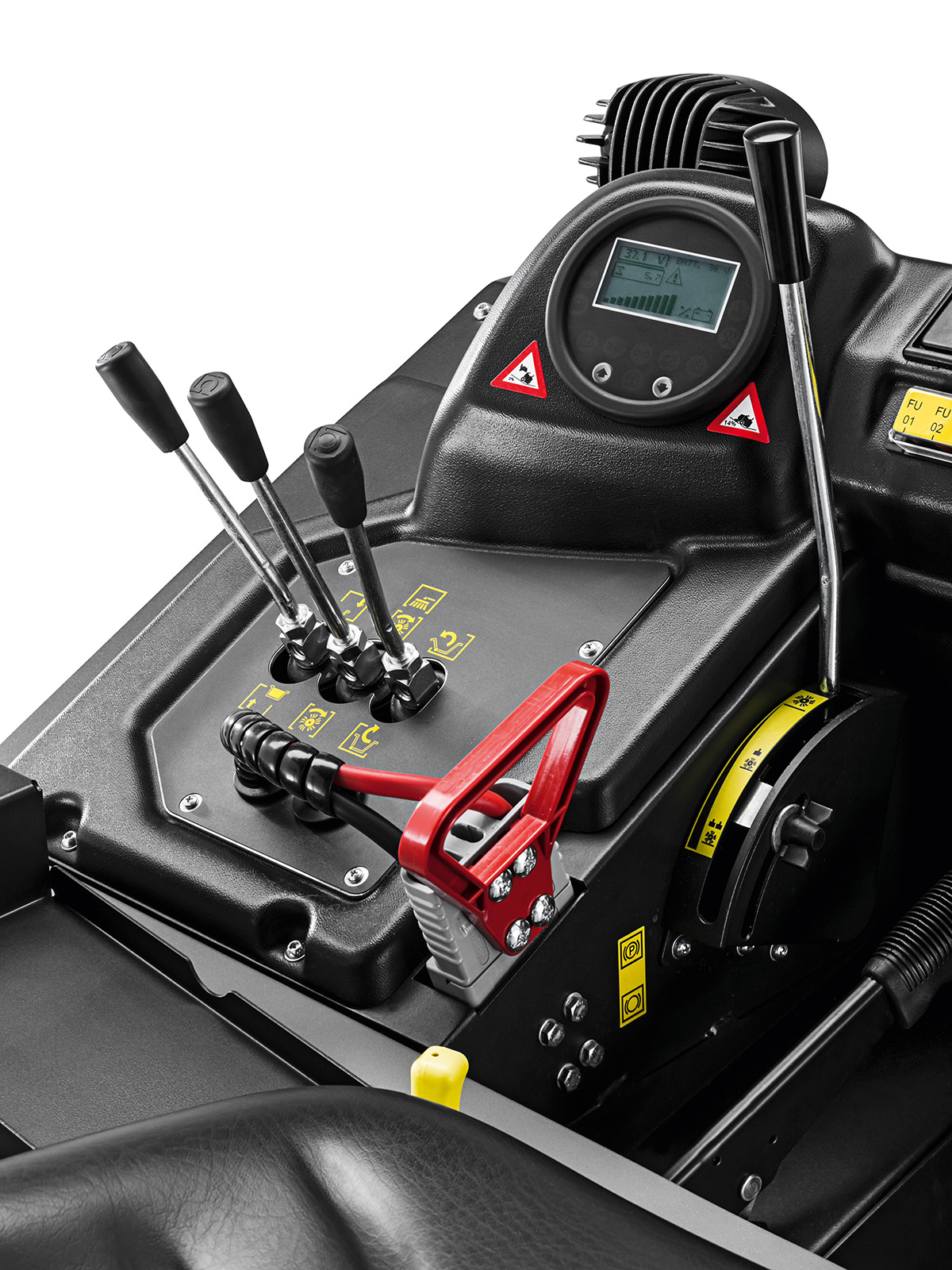

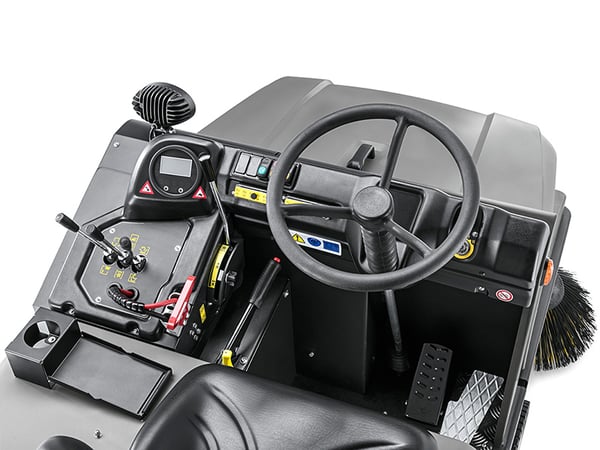

  • Control panel and operating elements are clearly arranged and easily accessible in the ergonomically designed cockpit
  • Simple maintenance, easy-access service points, and short learning times for operators

Models shown may include optional features.

Karcher

$42,971.20

Call to Order

This product ships via LTL Freight. See our Shipping Policy for details.

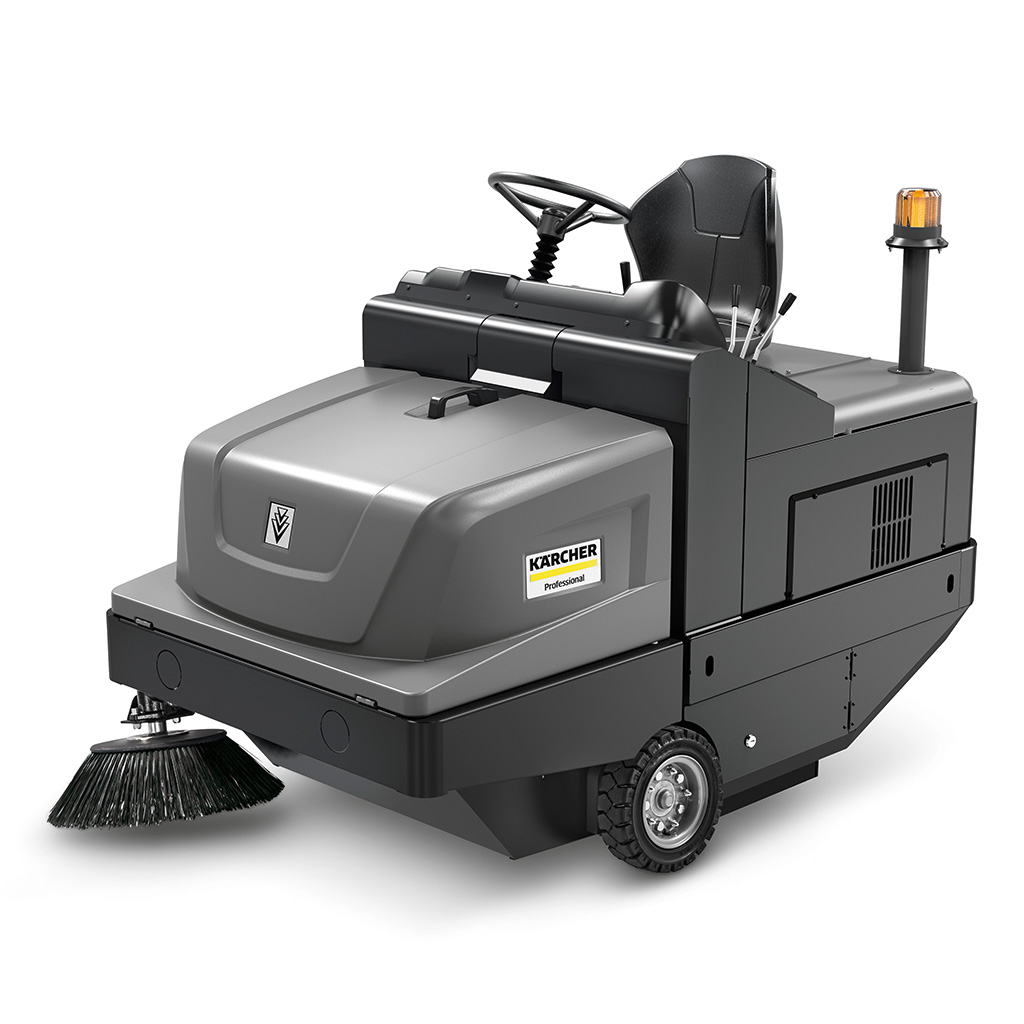

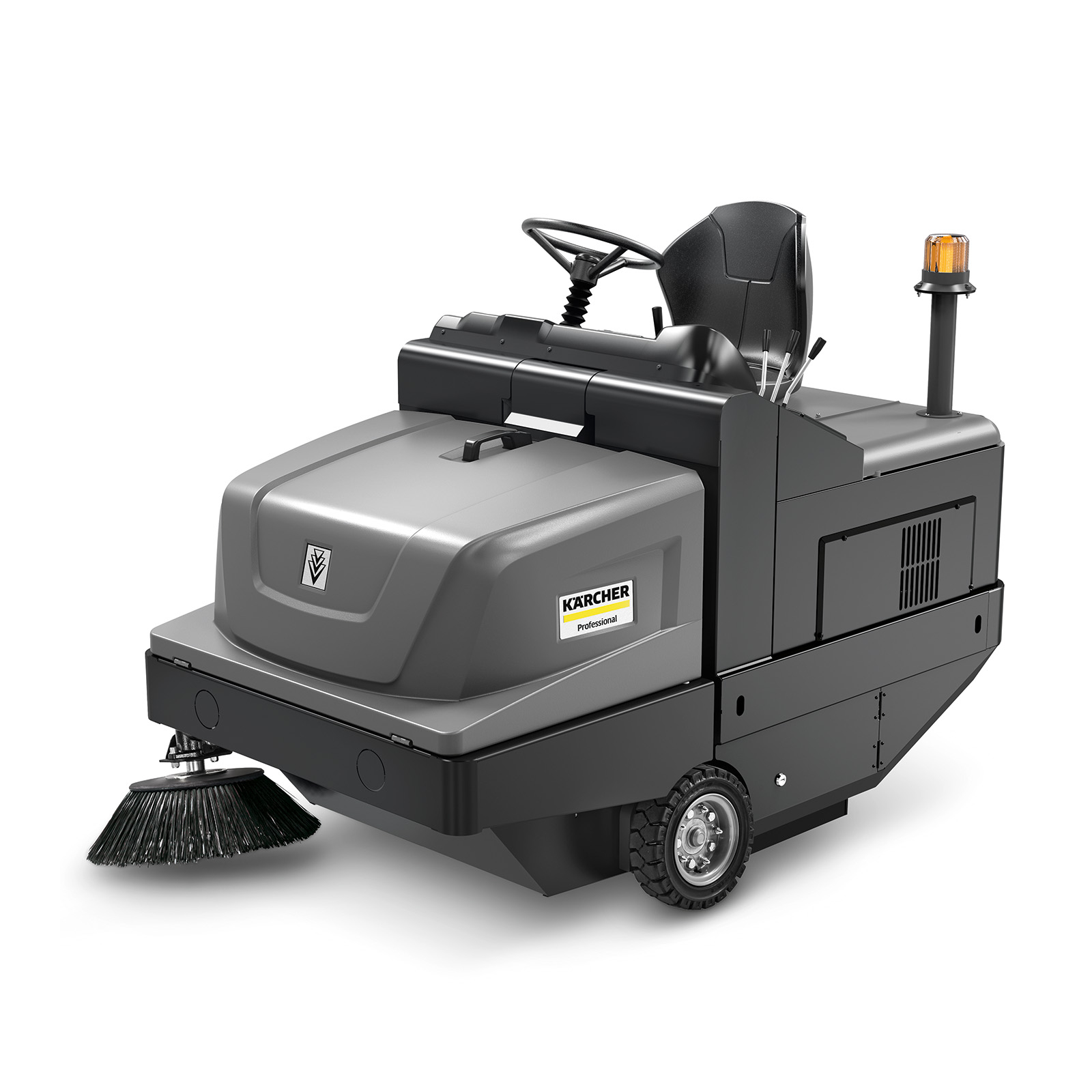

Heavy-duty sweeping in a smaller package.

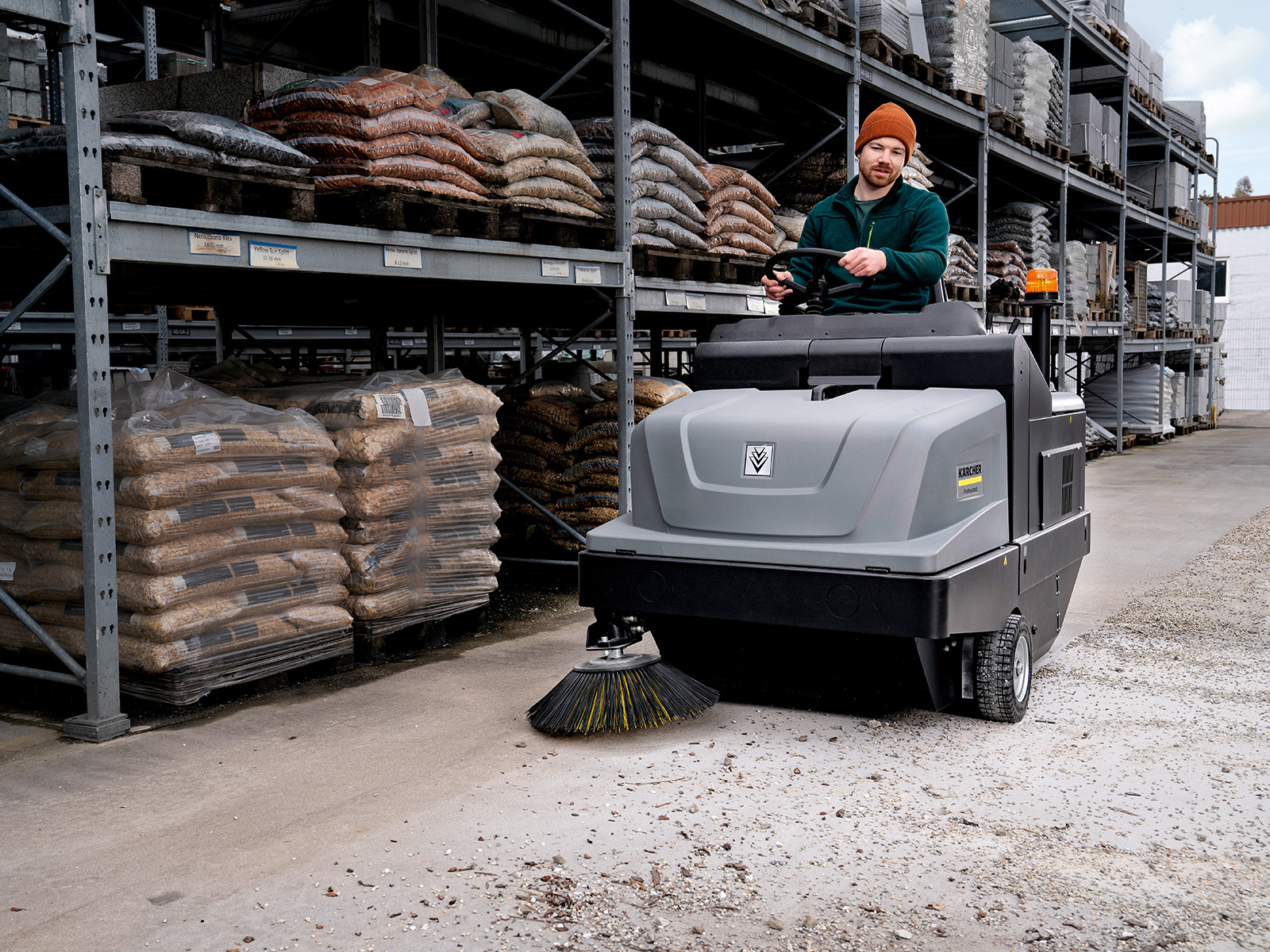

The KM 105/180 R Bp Classic is our new entry class Industrial sweeper for sweeping large amounts of dust and coarse dirt outdoors as well as heavily soiled indoor areas. This machine includes a robust steel frame and hydraulic traction drive in combination with other high-quality components. A reliable pocket filter system is integrated as standard, which is cleaned at frequent intervals via the automatic filter cleaning system. The KM 105/180 R Bp Classic is operated intuitively via levers, and includes easy-to-access components, making this a highly productive and user-friendly machine. It delivers excellent cleaning performance and is easy to service, making this ride-on sweeper a great addition to your cleaning operation.

Specifications

Technical Specifications
Cleaning path – main broom Inch 30.7
Cleaning path – with 1 side broom Inch 41
Cleaning path – with 2 side brooms Inch 53
Side broom diameter Inch 23
Sweeping method   Direct
Practical productivity – with 1 side broom Sq Ft/Hr 54,250
Operating noise level dBA 70
Debris container capacity Gal 47
Debris container emptying height Inch 52.75
Minimum turning radius Ft 4.05
Maximum working speed MPH 3.7
Maximum climbing ability % Grade 14
Weight with batteries – Wet/AGM Lbs 1,750 / 1,830
Dimensions (LxWxH) Inch 73 x 42 x 55

Models

Part No. Description
9.841-468.0 KM 105/180 R Bp Classic, 1 side broom, Wet batteries
9.841-469.0 KM 105/180 R Bp Classic, 1 side broom, AGM batteries

Accessories

Part No. Description
6.981-053.0 Main roller brush, regular – standard
6.981-049.0 Side brush, regular – standard
6.981-063.0 Pocket filter, white – standard
4.515-116.0 Wheel set, solid rubber (two front, one rear)
6.987-930.0 Ignition key
2.852-812.0 Dust control cover for side broom
6.981-054.0 Main brush, soft
6.981-055.0 Main brush, hard
6.981-050.0 Side brush, soft
6.981-051.0 Side brush, hard
6.981-062.0 Pocket filter, green
4.515-117.0 Wheel set, solid rubber, non-marking (two front, one rear)
8.644-226.0 Overhead guard
8.664-227.0 Left side broom
8.664-228.0 Water spray dust control system
8.664-229.0 Front/rear lights
8.664-230.0 Blue spot light

■ Included
□ Field Installed Option:
Can be added to the machine at any time.
 Factory Installed Option: Must be ordered with the machine. Installed at the factory.

Literature

KM 105/180 R Bp Product Sheet Product Sheet – Karcher KM 105/180 R Bp Classic
