No two cleaning situation are exactly the same. In food processing, you might need one set of parameters and in an industrial setting, you might need another. Whatever your need to clean, we’ve got you covered with customer-built Multi-Gun Systems.

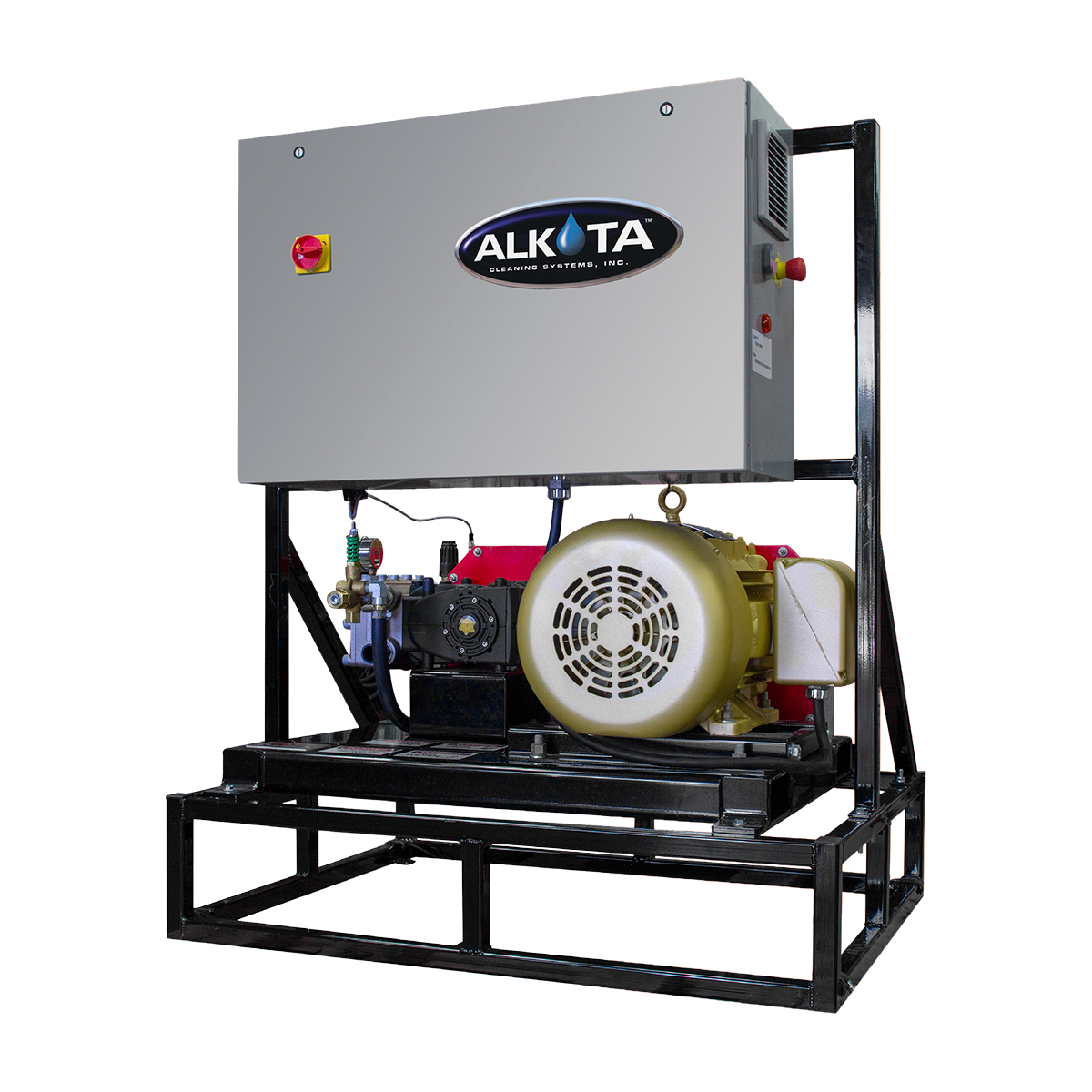

Alkota Multi-Gun System
- 15-32 GPM
- 1000-3000 PSI
- 15-75 HP
- Multiple Electrical Configurations
Specifications
- Multi-Gun System bar intelligent built-in factory programmed adjustable frequency drive (VFD) that controls the RPM of the electric motor to deliver the right amount of water flow to each trigger gun maintaining correct pressure. The RPM is automatically adjusted to save energy.
- A Variable Frequency Drive (VFD) system is the VFD display makes is simple to trouble shoot. The VFD system. reduces maintenance or service related issues. For example: A 20 GPM system, set up for 4 users at 5 GPM each. If there is only one user on the systm outputting 5 GPM, the motor/pump will only turn at 1/4 speed to meet that demand.
- Self-monitoring with digital display that shows individual pump and total system usage, as well as alerts you for schedule maintenance and causes of system shutdown. And everything is password protected to prevent changes in programmed operation by unauthorized personnel.
- Real-time system monitoring and control (wash station duty cycle/activity, low inlet water supply and system pressure loss shutdown, and high water temperature shutdown)
- Compact and versatile design allows for installation in virtually any location/environment
- Systems designed/built to application requirements – provides for increased productivity
- VFD increases or decreases pump/motor speed to meet the demands of single and or multiple users
- Belt-driven, industrial-duty plunger or piston pump with multi-gun pressure regulator, factory-set pressure relief valve and liquid-filled pressure gauge
Literature
 |
Product Sheet – Alkota Multi-Gun System |
