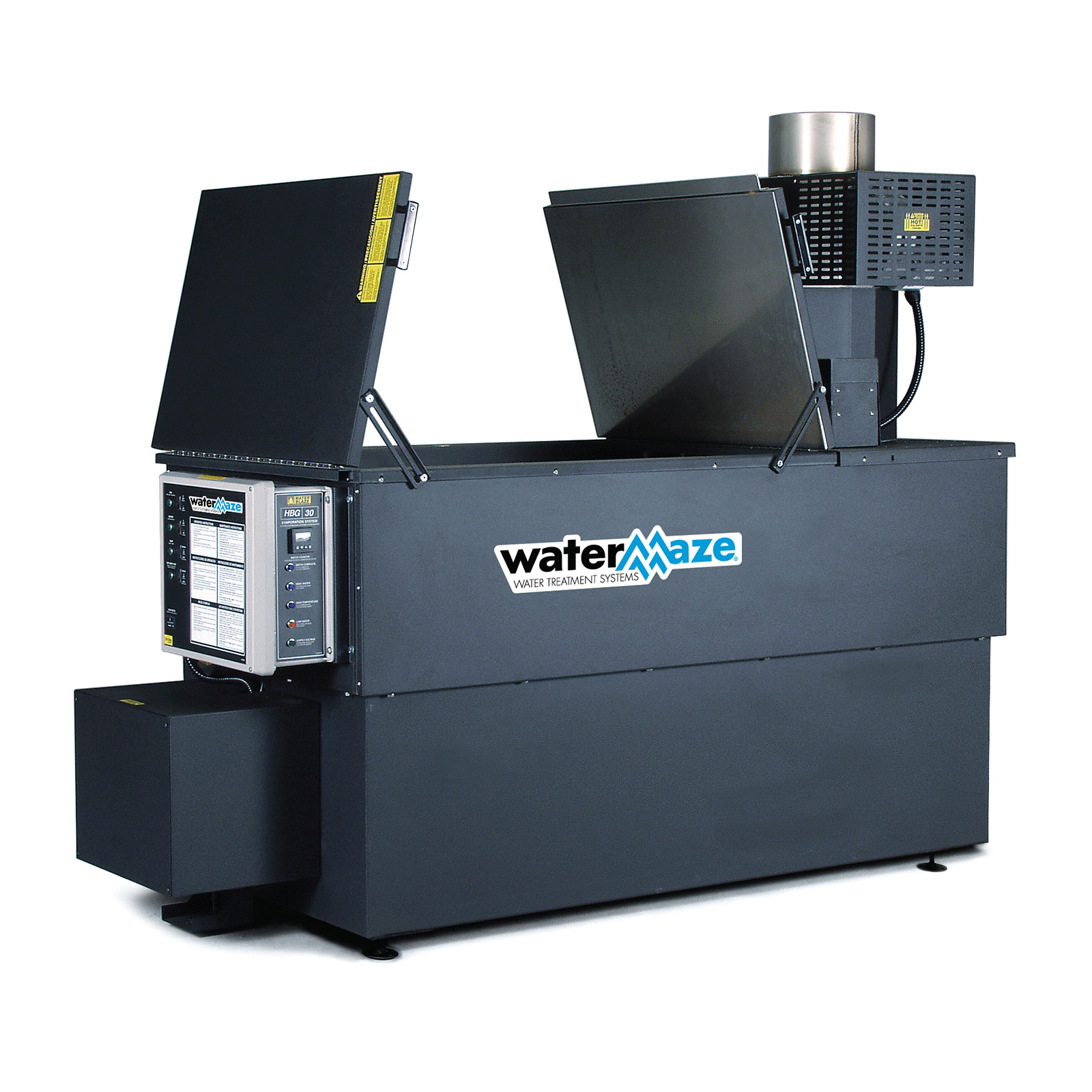

HBG-30 Waste Water Evaporator Hot Plate

SKU: 1.103-449.0 Category:
  • Evaporates waste water up to 30 gallons per hour
  • Natural gas-heated system
  • Combustion box made of advanced heat reflective material

Models shown may include optional features

Water Maze


The natural gas-heated HBG system is capable of evaporating wastewater at up to 30 gallons per hour. The combustion box in the HBG is made of advanced heat reflective material and features a unique energy-efficient design for reflecting the heat directly onto the floor of the evaporation tank for energy cost savings. A high-efficiency burner shoots a flame, fueled by natural gas or propane, into the combustion chamber for unusually high energy efficiency. The unit is made of heavy-duty steel, insulated and double lined for both energy efficiency and safety.


[vtftable cols=”{0}0-5:777;{/}” fols=”{0}0-5:ffffff;{/}” st=”bc:bbbbbb;bt:2;”]
{f1}Model;;;{f1}Part No;;;{f1}Description;;;{f1}BTU;;;{f1}Evaporation{;n}Technology;;;{f1}Flow Rate GHP;nn;
HBG-30D;;;1.103-449.0;;;Wastewater Evaporator;;;390,000;;;Hot-Plate;;;1 – 30;nn;


[vtftable cols=”{0}0-1:777;{/}{2}0-1:eee;{/}{4}0-1:eee;{/}{6}0-1:eee;{/}{8}0-1:eee;{/}{10}0-1:eee;{/}” fols=”{0}0-1:ffffff;{/}” st=”bc:bbbbbb;bt:2;”]
{f1}Part No;;;{f1}Description;nn;
8.903-740.0;;;Air Diaphragm Fill Pump & Level Controls for Auto Fill (compressed air required, 3 cfm at 60-100 PSI) ‡;nn;
8.903-753.0;;;Electric Centrifugal Fill Pump & Level Controls for Auto Fill ‡;nn;
8.903-741.0;;;Motorized Belt Oil Skimmer, 316L Stainless Steel ‡;nn;
8.906-074.0;;;Chemical Injector, Defoamer, Air-Injected ‡;nn;
8.906-073.0;;;Inline Chemical Injector for Anti-foam or Rust Inhibitor, Electric-Powered ‡;nn;

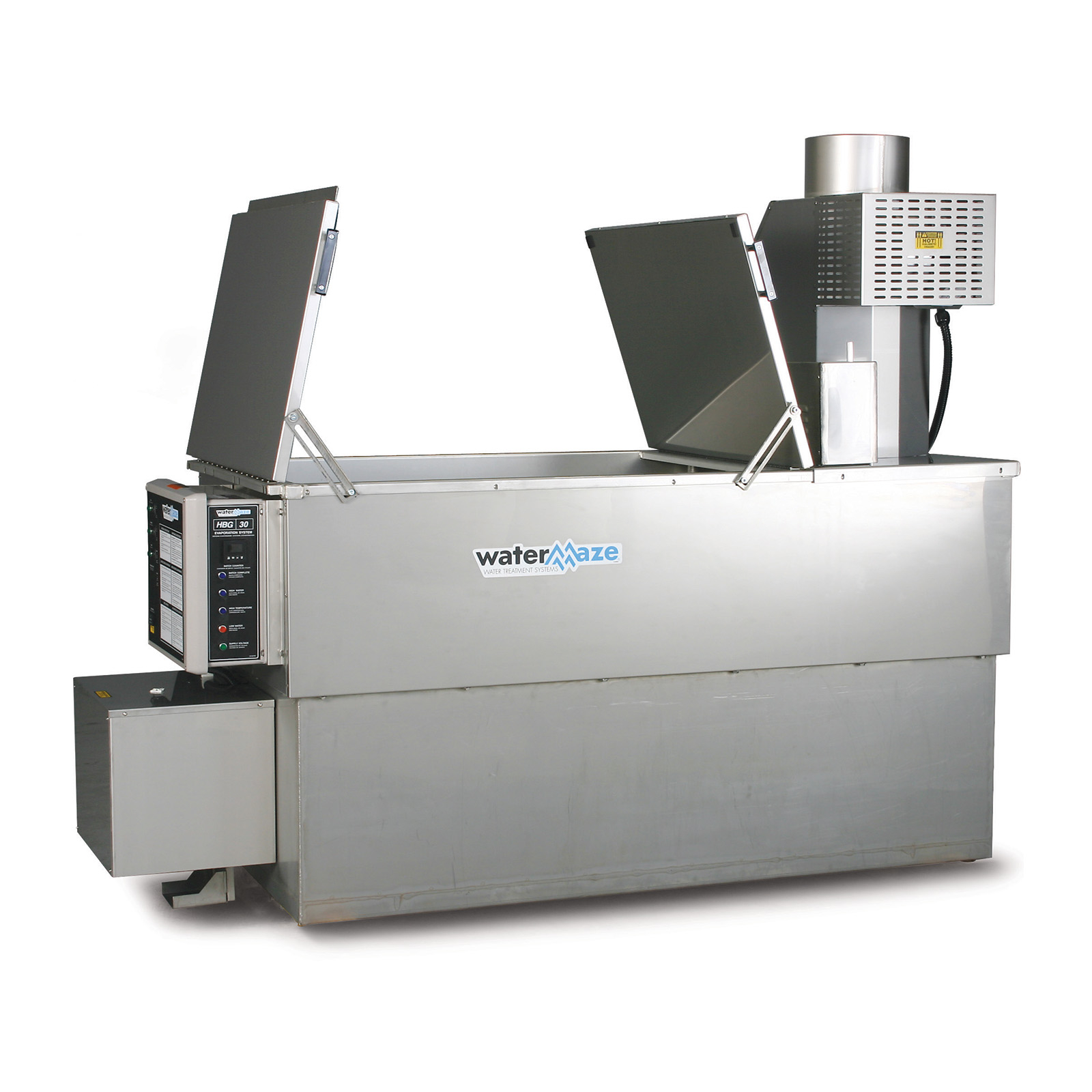

8.903-749.0;;;Tank Conversion to 316L Stainless Steel ‡;nn;
8.903-750.0;;;Tank Conversion to AL-6XN ‡;nn;
8.906-077.0;;;Conversion from Natural Gas to Propane ‡;nn;
8.717-742.0;;;10″ Flue Pipe Rain Shield;nn;
SPECIAL;;;Convert All Carbon Steel Parts to Stainless Steel ‡;nn;
;;;‡ Factory Install Only;nn;


[vtftable st=”bt:0;”]
{i}https://northstarhotsy.com/wp-content/uploads/2022/05/HBG-Product-Sheet-150×150.jpg{/}{l}https://northstarhotsy.com/wp-content/uploads/2022/05/HBG.pdf;Product Sheet HBG-30;1;{/};;;{l}https://northstarhotsy.com/wp-content/uploads/2022/05/HBG.pdf;Product Sheet – Water Maze HBG-30 Evaporator Hot Plate;1;{/};nn;
