The WB series is the first to use the extra-high efficient submerged combustion technology to deliver 100% heat exchanger efficiency sending the heat directly into the water, not up a vent stack, creating significant operational and energy cost savings. There are two models for handling waste streams at 60 and 120 gallons per hour. Featuring top-of-the-line immersion tube jet burner components, with a solid-state flame control monitor, the WB models are capable of creating temperatures of up to 2000°F, releasing hot flue gases directly into the water.
WB Series Waste Water Evaporator Combustion
- Waste streams up to 120 gallons per hour
- Temperatures up to 2000°F
- Top-of-the-line immersion tube jet burner components
- Auto purge, auto start/stop and auto fill come standard
- Heat-resistant, heavy-duty stainless steel sparger tube
Models
| Model | Part No | Description | BTU | Evaporation Tech | Flow Rate GPH | Exhaust Stack (Inches) | Capacity (Gal) | Voltage | Phase | Amps |

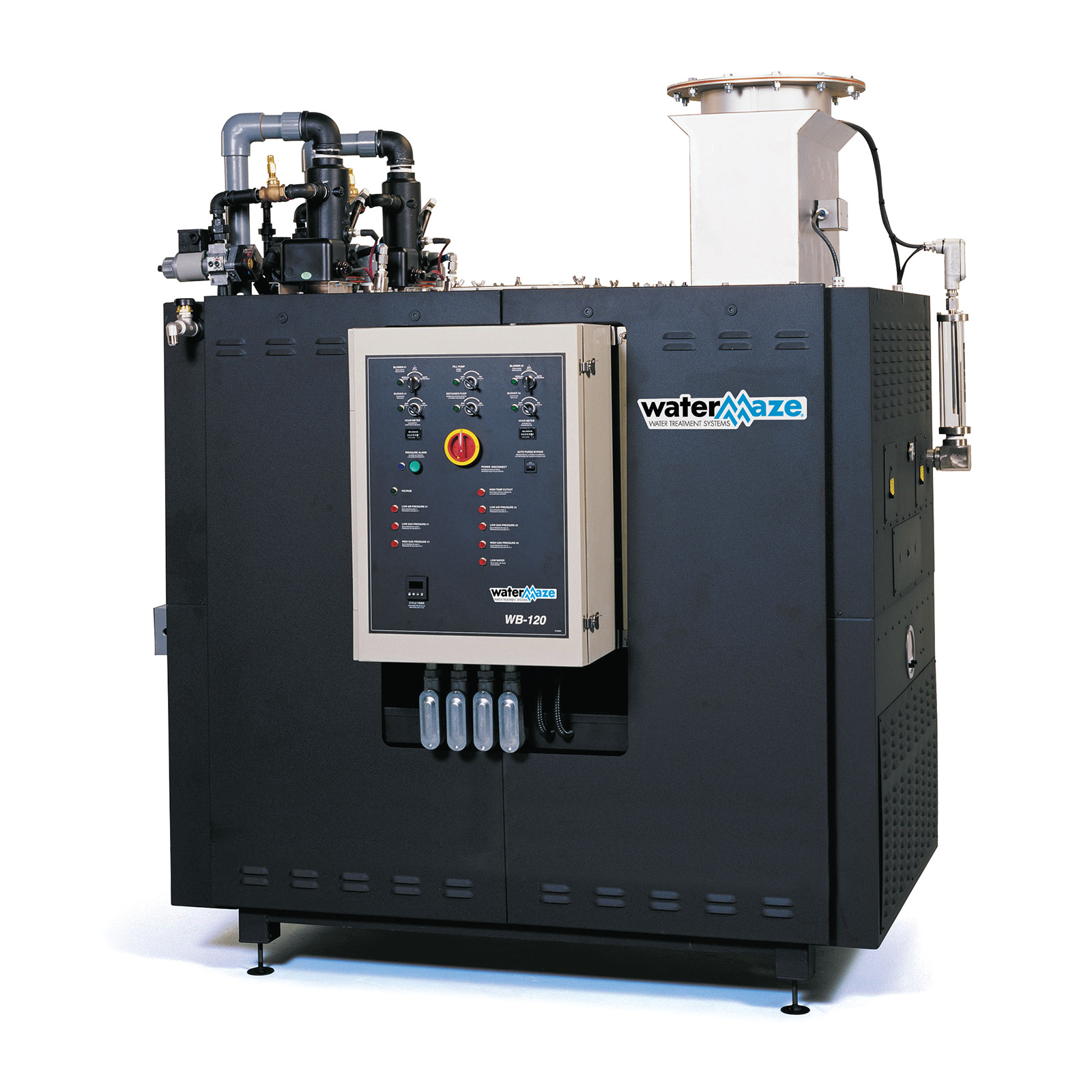

| WB-120A | 1.103-473.0 | Wastewater Evaporator | 1,142,000 | Combustion | 1 – 120 | 12 | 170 | 230 | 1 | 22 |

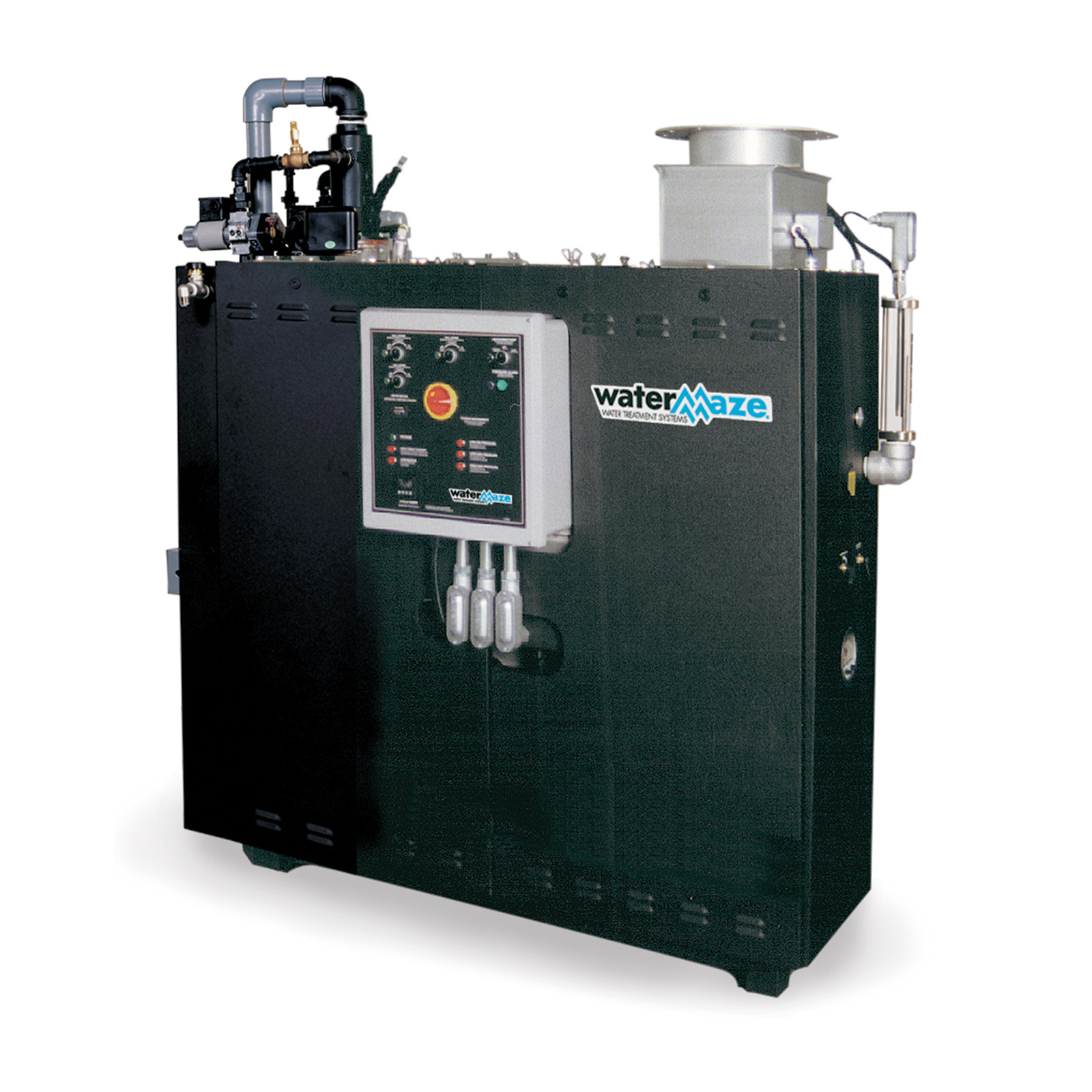

| WB-50A | 1.103-474.0 | Wastewater Evaporator | 571,000 | Combustion | 1 – 60 | 10 | 76 | 230 | 1 | 11 |
Accessories
| Part No | Description |
| 8.906-066.0 | Conversion from Natural Gas to Propane * (Requires Qty 2 for WB-120A) |
| 8.903-729.0 | Tank and Tube Conversion to AL-6XN * (WB-120A Only) |
| 8.903-725.0 | Tank and Tube Conversion to AL-6XN * (WB-50A Only) |
| 8.760-436.0 | Base Analysis |
| 8.760-437.0 | Base + Metals |
| 8.760-438.0 | Base + VOCs |
| 8.760-439.0 | Base + Metals + VOCs |
* Factory Install Only
Literature
 |
Product Sheet – Water Maze WB Evaporation |
