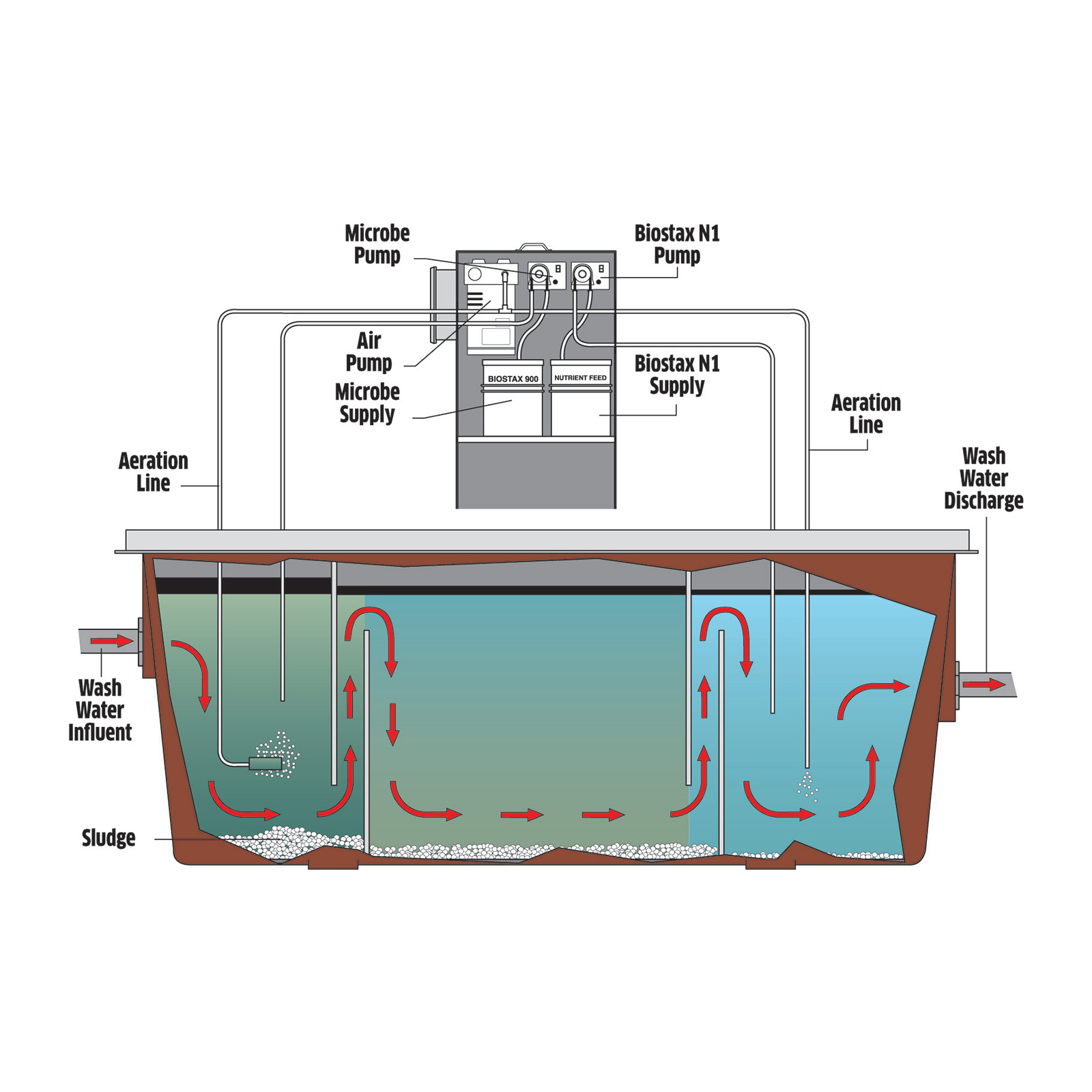

The PM-1000D provides a fully automated, environmentally friendly and low-cost way to manage standing wash water found in collection pits, tanks or sump drains. A module that incorporates: an air pump; diffuser stones, microbes and nutrients injection system with timer, it is designed to be integrated into most wash water treatment systems utilizing aeration and automatic injection of a highly effective microbial agent (BioStax 1800) for eliminating oils, greases and other hydrocarbons and organics typically found in collection pits or sump drains.

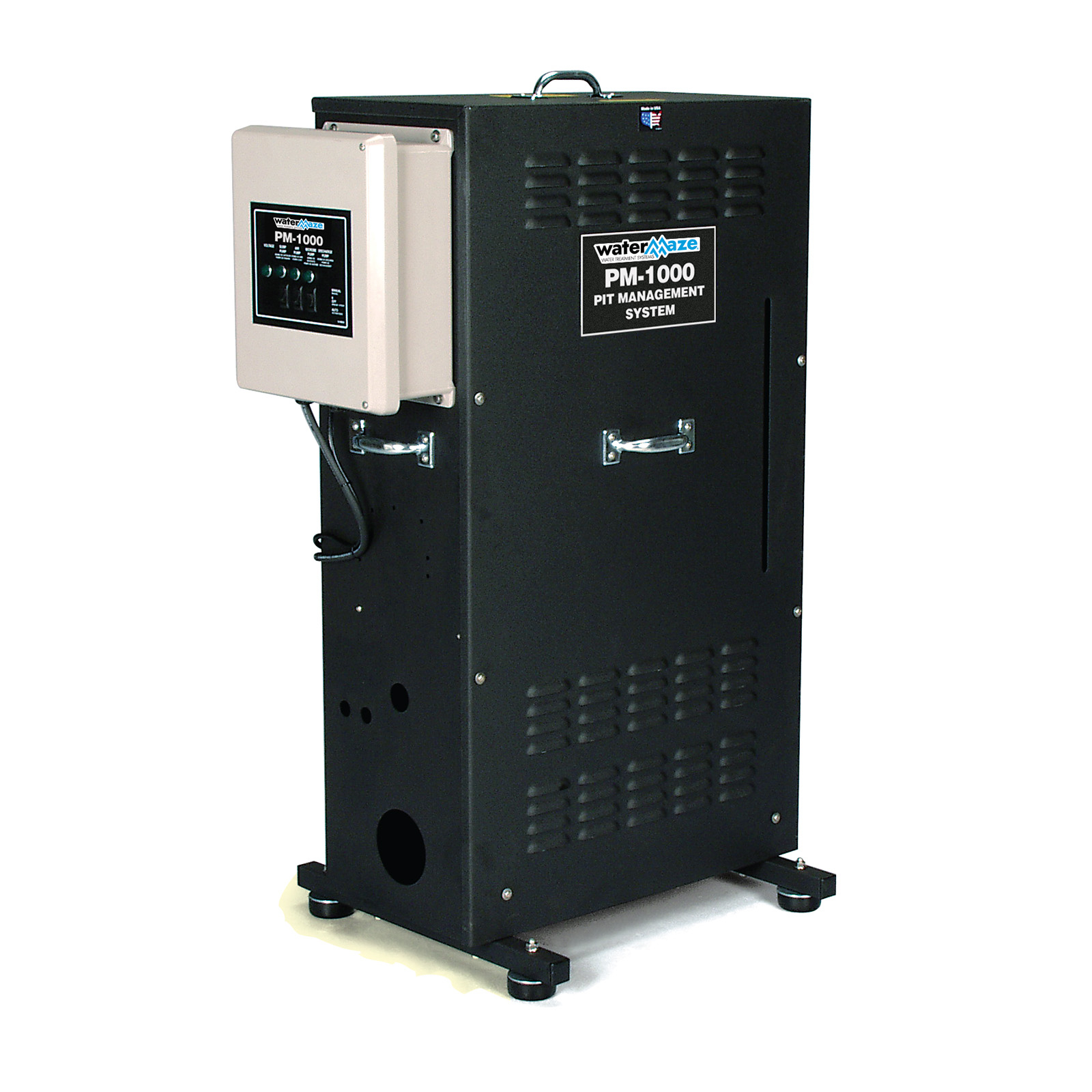

PM-1000D Pit Management System
- Easy in-field installation
- Fits most brands of water treatment systems
- Effectively reduces odor
- Biology consumes oils, grease, hydrocarbons, etc.
- Steel cabinet protected by epoxy powder coat finish
Models
| Model | Part No | Description | Voltage | Phase | Amps |
| PM-1000D | 1.103-467.0 | Automatic Pit Management System | 120 | 1 | 4 |
| PM-1000D | Special | Pit Management System with Regenerative Blower and 10 Jetter Diffusers | 120 | 1 | 6 |
Dimensions (LxWxH): 35″ x 21″ x 47″
Accessories
| Part No | Description |
| 8.718-918.0 | BioStax 1800, liquid, 2 containers A&B (concentrate makes 55 gallons) |
| 8.718-919.0 | BioStax 1800, Two 8 oz vials (A & B) makes 5 gallons |
| 8.718-916.0 | Bio-Nutrient, 8 oz bottle |
| 8.712-417.0 | Diffuser Stone, fine pore, 2″ x 2″ x 6.5″ |
| 8.707-435.0 | Biomedia Bag |
| 8.706-676.0 | EoFill (BioMedia) – 8 lbs / bag (sold by the pound) |
Literature
 |
Product Sheet – Water Maze PM-1000D |
