A compact water management control center, the REC3-30A is an upgrade to the REC2-20A module. It is a versatile water management module that pumps water from upstream pre-treatment tanks or pit system to downstream reuse storage tanks. When combined with the ZCF filtration module, it pumps influent water through the filters to remove particulate, as well as provides pressurized water for backwashing and for recycling purposes. It provides makeup water, as well as discharges any excess water volume.

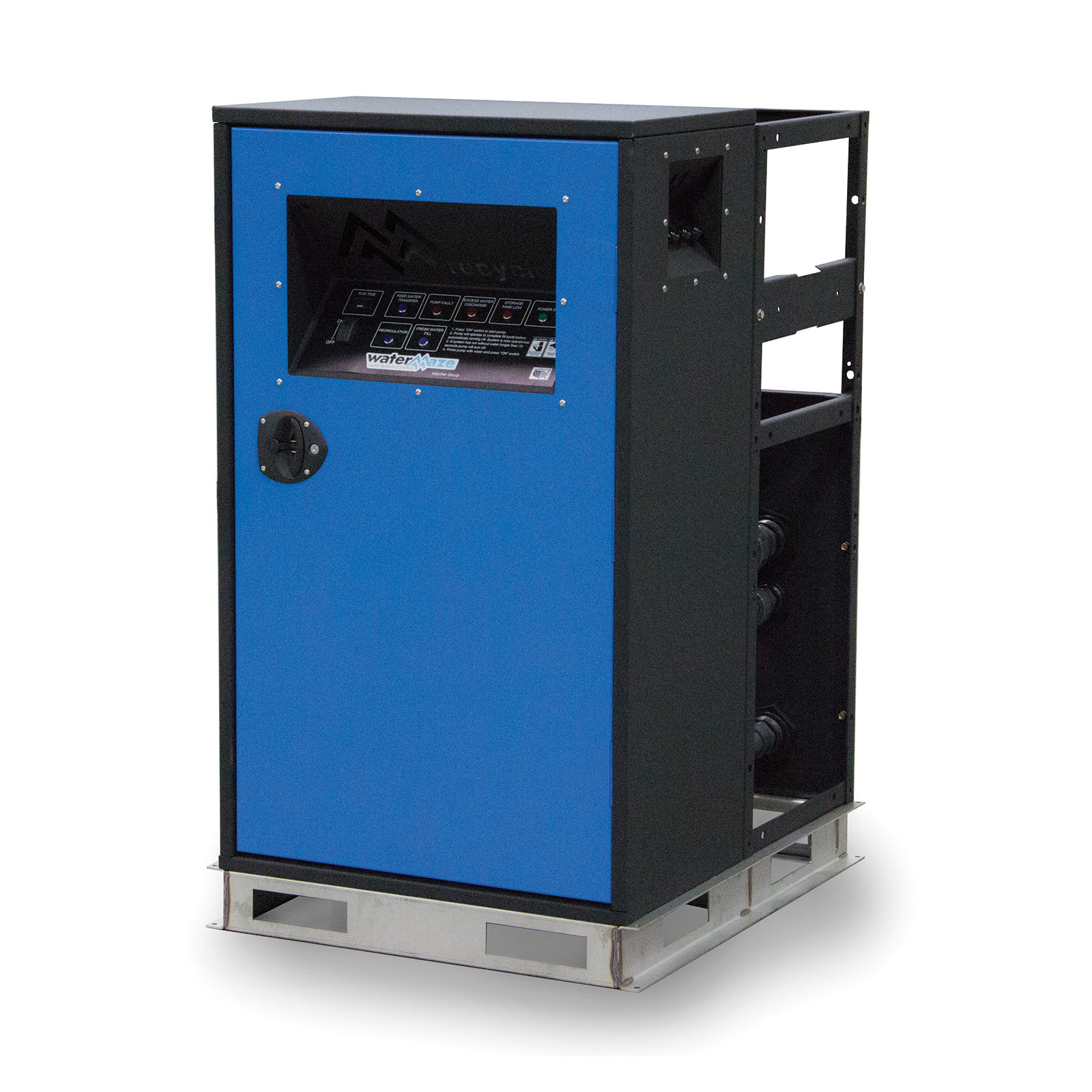

REC3-30A
- Designed to interface with pretreatment & post treatment modules
- Stainless steel skid with painted carbon steel enclosure
- Lockable front door
- Easy access to components (pump, piping, and electrical)
Call to Order
Models
| Model | Part No | Description | Flow GPM | Transfer Rate GPM | Voltage/Phases | Amps |
| REC3-30A | 1.103-511.0 | Water Management Pumping System | Up to 20 | Up to 30 | 230/1 | 20 |
| REC3-30A Special | Special | REC3-30A with 2 HP Self-Priming Pump | Up to 20 | Up to 40 | 230/1 | 20 |
Dimensions (approximate): Physical: 38″ x 31″ x 53″ Shipping: 58″ x 41″ x 66″ Estimated product tare weight: 325 lbs. Estimated ship weight: 525 lbs.
Accessories
| Part No. | Description |
| 8.928-603.0 | Ozone Generator Kit for REC3-30A + |
| 1.103-467.0 | PM-1000D BioSystem – Bioremediation to consume dissolved organic matter |
+Factory Install Only
Literature
 |
Product Sheet – Water Maze REC3-30A |
