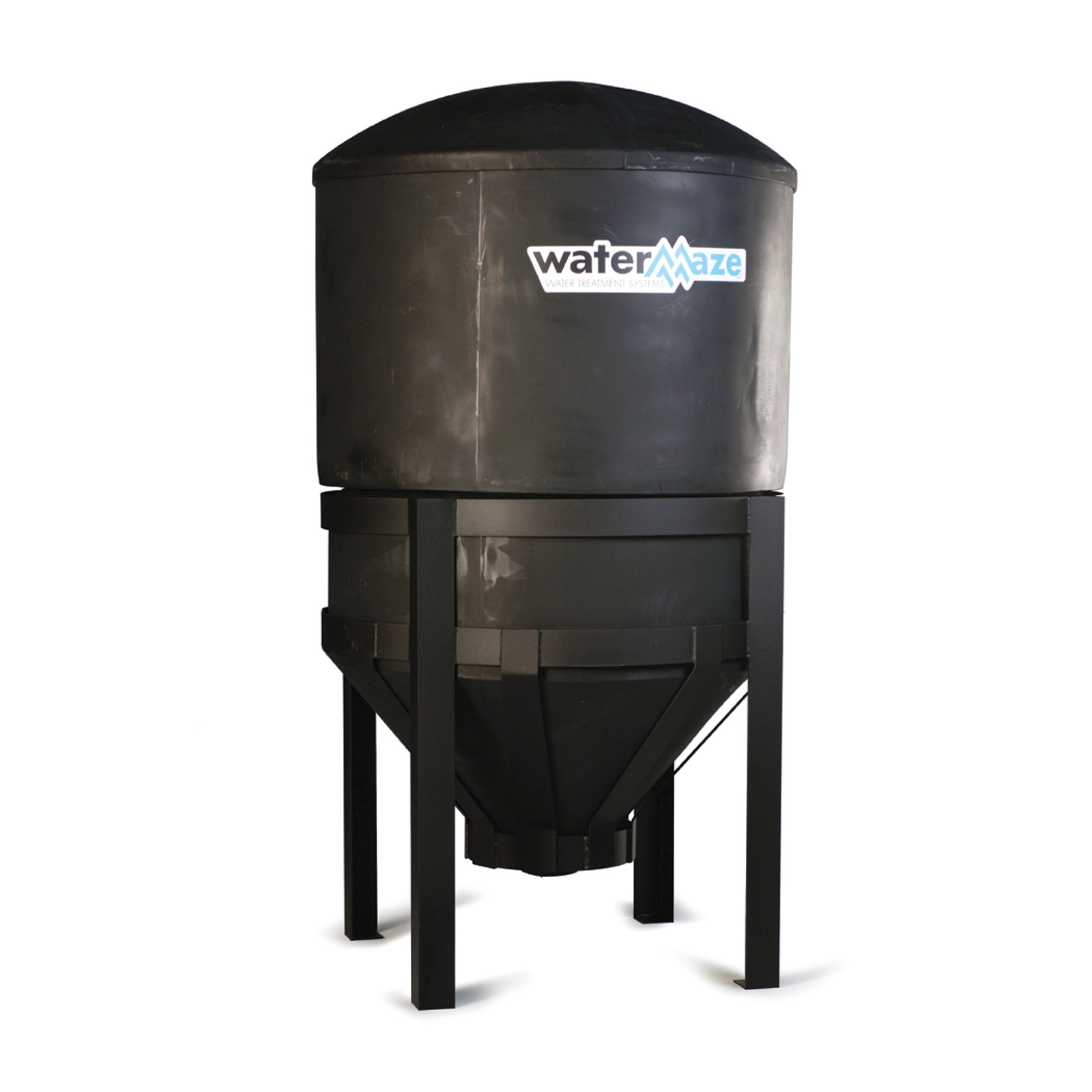

CLT-300 Modular Clarifier

SKU: 1.103-434.0 Category:
  • Expand system capacity
  • UV- and corrosion-resistant
  • Provides cushion in handling high volumes of wash water

Water Maze


The CLT-300 is an above-ground, cone-bottom tank used to enhance existing pit water treatment systems that may be too small or do not provide adequate pre-treatment. With its 300-gallon capacity, this cone-bottom tank can provide lower clean-out maintenance costs compared to many in-ground pit systems, and it can be applied as pre-treatment, post-treatment, or as a stand alone treatment system. The CLT-300 utilizes cross-linked polyethylene cone-bottom tanks with steep, 55-degree slopes for maximum solids separation. Each tank has a full open top with removable lid and includes heavy duty metal stand with cradle. These base models are also incorporated into other Water Maze clarifier models and can be an economical alternative to expensive pit water treatment system reconstruction costs.


[vtftable st=”bc:bbbbbb;bt:1;”]
Model;;;Part No;;;Description;;;Capacity (Gal);;;Flow GPM;nn;
CLT-300;;;1.103-434.0;;;Polishing Tank;;;300;;; ;nn;
CLT-300;;;Special;;;Modular Clarifier System Base Unit;;;300;;;1 – 15;nn;


[vtftable cols=”{0}0-2:777;{/}{2}0-2:eee;{/}{4}0-2:eee;{/}{6}0-2:eee;{/}{8}0-2:eee;{/}{10}0-2:eee;{/}{12}0-2:eee;{/}{14}0-2:eee;{/}” fols=”{0}0-2:ffffff;{/}” st=”bc:bbbbbb;bt:2;”]
{f1}Part No;;;{f1};;;{f1}Description;nn;
Special;;;3A-300;;;Belt Mop Skimmer, 120 V/6 Amp, with Oil Decanter Container (CLT-600, -300, or -150);nn;
Special;;;7B-300;;;AMC-1000D Auto-purge System (85 PSI), 120 V/2 Amps ‡*;nn;
Special;;;7D-300;;;pH (only) Controller, Peristaltic Pump, 120 V/1 Amps ‡*;nn;
Special;;;7G-300;;;Auto-water Discharge/Circulation Valve System, 120 V/2 Amps ‡*;nn;
Special;;;7E-300;;;Integrated Compact CoAg (in lieu of stand-alone Compact CoAg module) ‡;nn;
Special;;;7F-300;;;MetalR+ Chemical Injection Package (option to be used only with CoAg modules) ‡;nn;
8.906-478.0;;;7H-300;;;Sludge Tub with Lid;nn;
Special;;;6-300;;;Self Cleaning Screen (mounted inside CLT);nn;
Special;;;7A-300;;;300-gallon Mounting Shield ‡;nn;
Special;;;3B-300;;;Coalescing cones (2) with Funnel Oil Skimming, with Oil Decanter Container;nn;
Special;;;4A-300;;;4 Additional Coalescing Cones (for a total of 6);nn;
Special;;;2-300;;;CoAg Mixing Chamber (inside CLT tank);nn;
Special;;;7C-300;;;UV Ozone System (2 bulb), 120 V/9 Amps ‡*;nn;
;;; ;;;‡ Factory Install Only. * Requires Rain Guard and Bracket option. NOTE: Sump pumps sold separately;nn;
