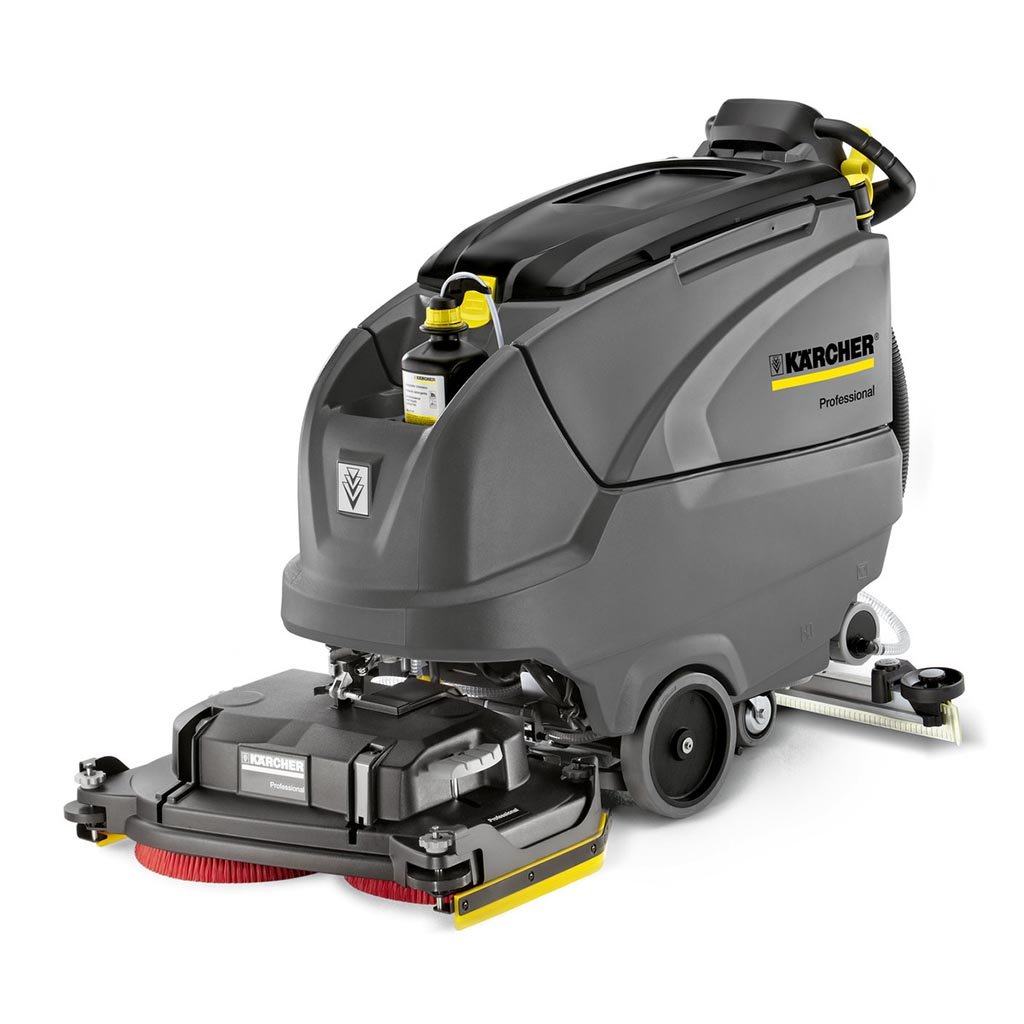

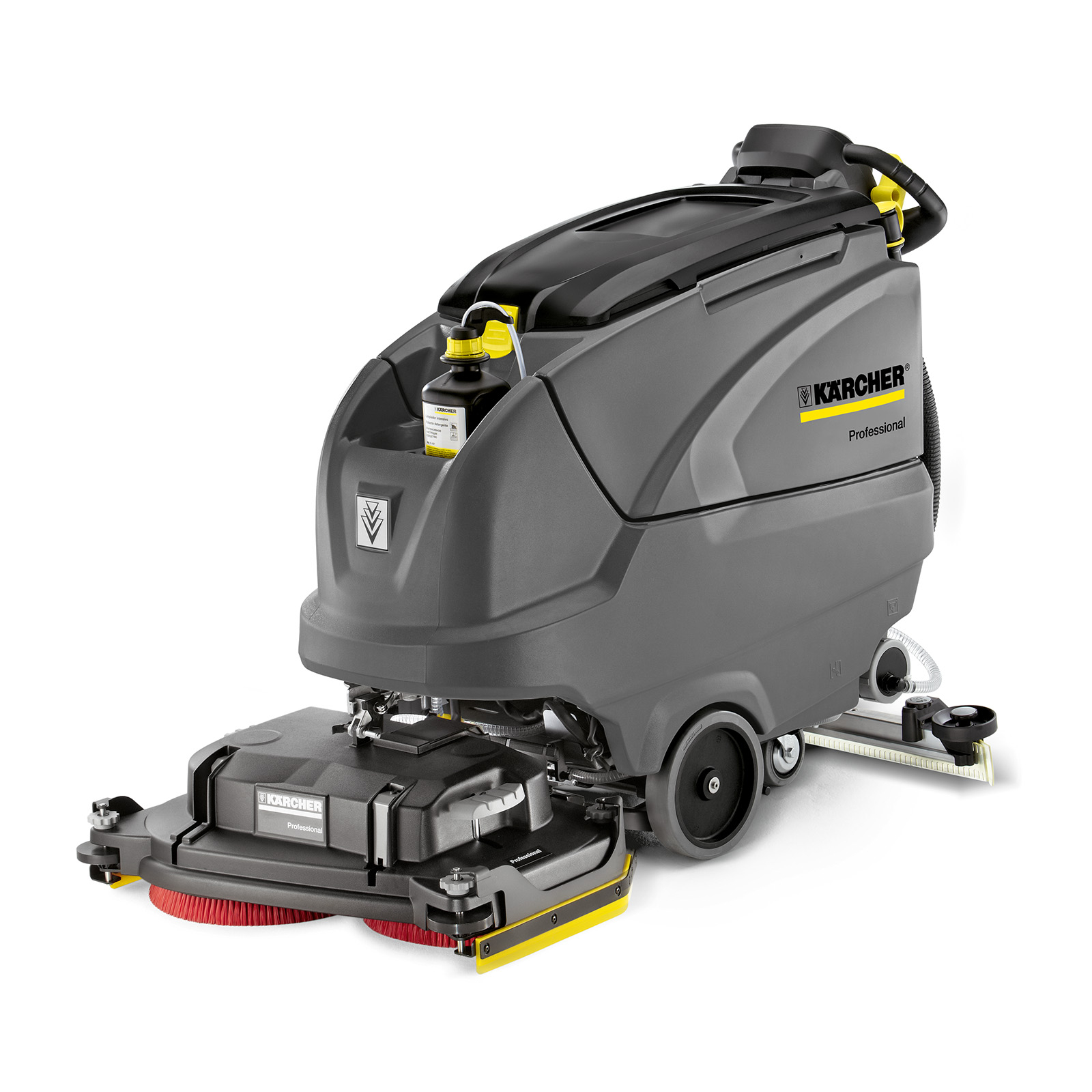

Karcher B 80 W BP Disc
Karcher B 80 W BP Disc
- Disc Scrub Deck
- 39″ Suction Bar
- 26″ Cleaning Path
- Traction Drive
- Decks automatically raise and lower as necessary
- Interchangeable decks can be changed quickly and without tools

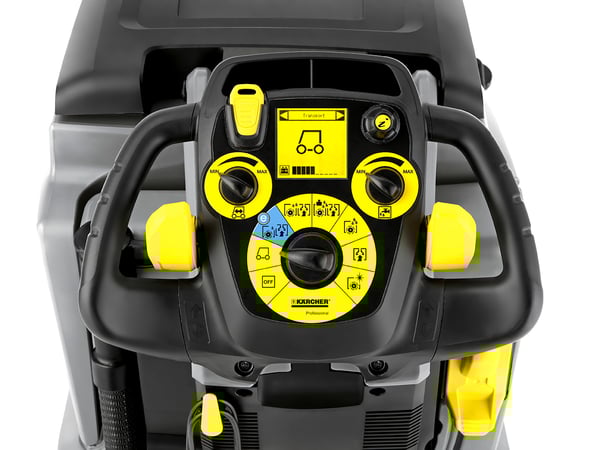

- Easily select your cleaning mode with the easy-to-read symbols on the large 4-color display
Efficient and quite. Everything you need.
The B 80 W BP scrubbers cover a lot of area quickly, but are still easily maneuverable. They feature a robust, interchangeable, maintenance-friendly disc scrub deck. Karcher Fleet comes pre-installed on these machines to provide you with complete visibility of your machine.

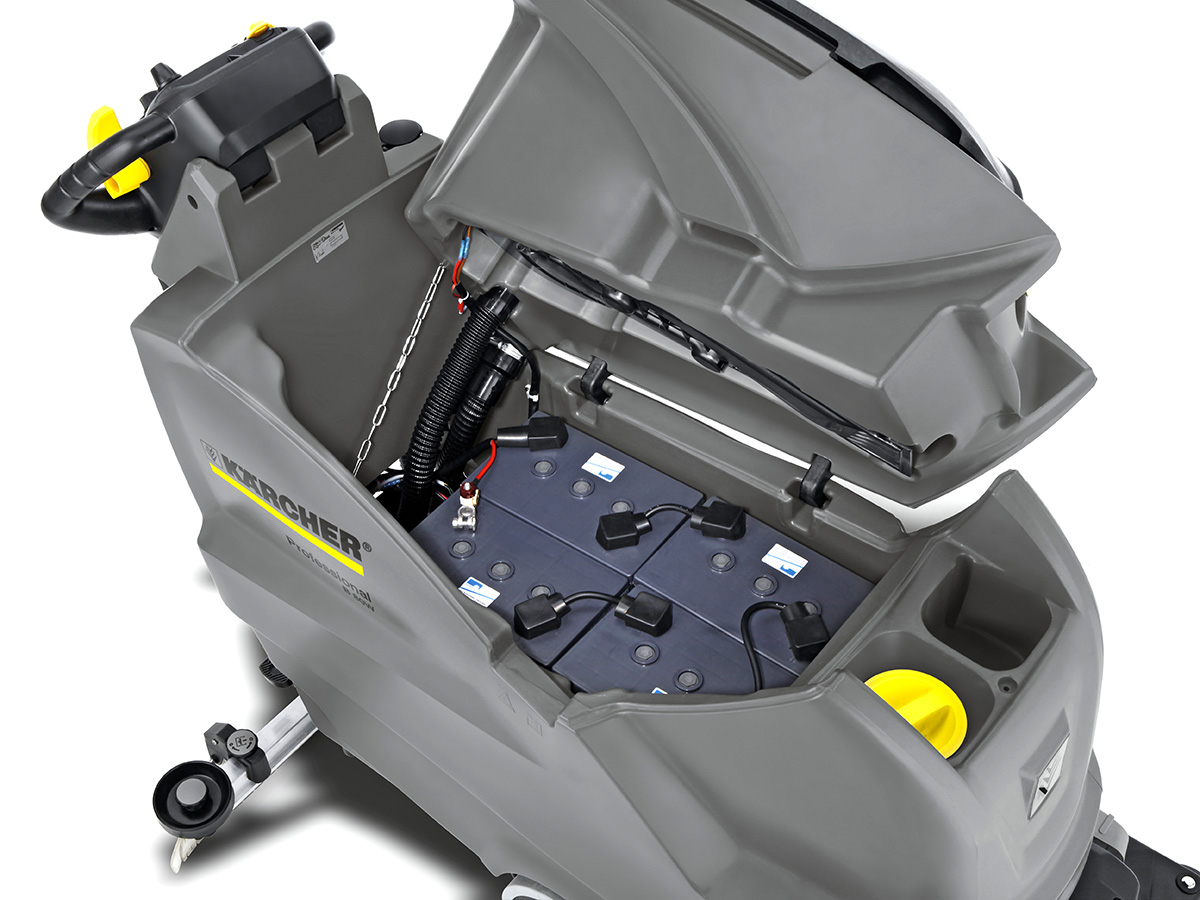

The B 80 W Bp battery-operated scrubber drier offers a variety of battery options (24 V, 225, 260 Ah and 255 Ah AGM). With fully automatic squeegee raising and lowering function, 26″ working width, large LCD color display, traction drive and KIK key system for protection against incorrect operation. Additional features include: eco!efficiency mode extends battery life, tank rinsing system for automatic cleaning of the dirty water tank without splash back as well as auto-fill function for convenient filling of the water tank. FACT technology, controls the speed of the roller brush and can be adjusted for different cleaning applications. Power Clean – 100% power, for stubborn dirt and polishing. Whisper Clean – 60% power, reduces noise levels and ensures longer working intervals with low power consumption. Fine Clean – 40% power, optimum for cleaning gray film from stoneware tiles in conjunction with green roller brush.
Specifications
| Technical Specifications | B 80 W BP + D 65 | B 80 W BP + D 75 | |
| Cleaning path / width | Inch | 26 | 30 |
| Brush type | Disc | Disc | |
| Brush quantity | Units | 2 | 2 |
| Suction bar (squeegee) width | Inch | 39 | 39 |
| Drive | Traction | Traction | |
| Solution / recovery capacity | Gal | 21 / 21 | 21/21 |
| Theoretical / practical productivity | Sq Ft. Hour | 27,980 / 18,180 | 32,290 / 21,000 |
| Operating noise level – Std/Eco! Mode | dBA | 69 / 66 | 69 / 66 |
| Battery charger | On Board | On-Board | |
| Brush contact pressure | Lbs | 117 | 136 |
| Brush speed | RPM | 180 | 180 |
| Drive / vac motor rating | Watts | 350 / 580 | 350 / 580 |
| Vac motor suction | cfm | 53 | 53 |
| Waterlift | In of Water | 67 | 67 |
| Weight with batteries | Lbs | 617 | 293 / 617 |
| Dimensions (LxWxH) | Inch | 62 x 29 x 45 | 64 x 32 x 45 |
Models
| Part No | Description |
| 9.841-196.0 | B 80 W Bp, D 65 disc scrub deck, batteries and charger sold separately, with curved squeegee |
| 9.841-201.0 | B 80 W Bp, D 65 disc scrub deck, 24V/255 Ah AGM batteries, on-board charger, with curved squeegee |
| 9.841-204.0 | B 80 W Bp, D 65 disc scrub deck, 24V/260 Ah wet batteries, with curved squeegee |
| 9.841-388.0 | B 80 W Bp D 65 disc scrub deck 24V/225 Ah wet batteries |
| — | *B 80 w Bp, D 75 deck ordered separately |
Accessories
| Part No. | Description | |
| 4.777-080.0 | Squeegee assembly, 39″ V-Shaped, oil-resistant polyurethane blades* | ■ |
| 5.035-488.0 | Home Base kit (adapter and cable hook) | ■ |
| 6.980-077.0 | Double hook (requires Home Base kit) | ■ |
| 8.600-251.0 | Cable assy, battery jumper x 15″ (required w/ no battery units) | □ |
| 4.035-345.0 | Quick fill tank system (requires Hose coupling 9.803-003.0) | □ |
| 9.083-003.0 | Hose coupling | □ |
| 6.273-025.0 | Squeegee blade set, anti-stripe oil-resistant | □ |
| 6.273-297.0 | Squeegee blade set, for textured floors | □ |
| 4.035-408.0 | KIK Key | □ |
*Not included on model number 9.841-388.0
■ Included □ Optional
Literature
 |
Product Sheet – Karcher B 80 W Bp |
