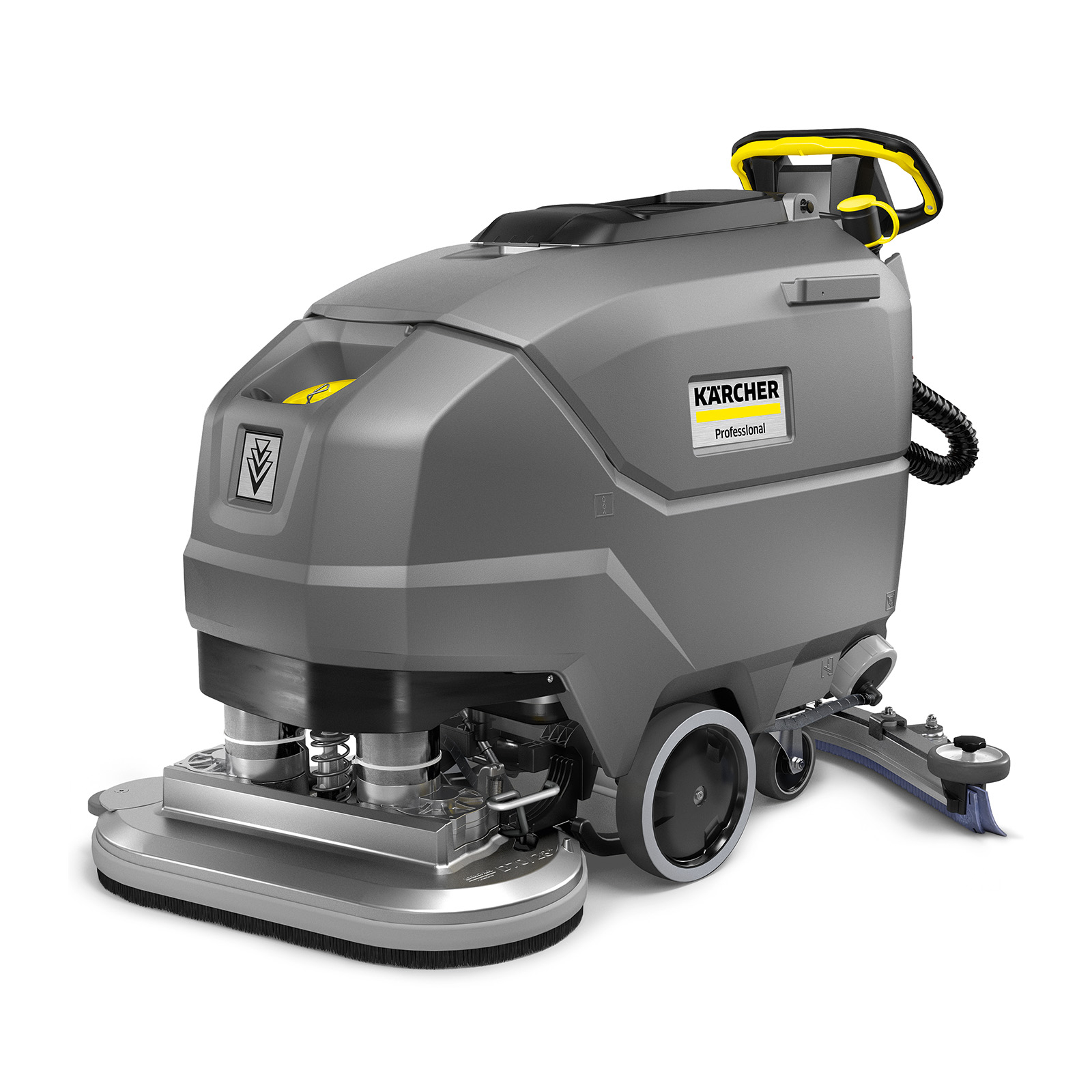

Karcher BD 70/75 W Bp Classic

SKU BD-70/75-W-BP Category
  • 41″ Suction Bar
  • 28″ Cleaning Width
  • Traction Drive
  • Adaptable to specific floor type cleaning needs
  • Large aluminum brush deck is tough and durable
  • Wet and AGM battery options are available

Karcher

Call to Order

Smaller, but still mighty.

This economically-designed scrubber provides you all the cleaning power to take on large jobs.  The BD 70/75 W Bp Classic auto scrubber provides excellent site-lines, a simple operator-friendly design, and robust materials for an efficient cleaning performance.  Like other models in the BP Classic series, the BD 70/75 scrubber has a powerful traction drive, which helps effortless travel of inclines and easy maneuverability. Components, which are exposed to extreme stress in tough working conditions, such as squeegee and disc brush head, are made from solid die-cast aluminum. With a 28-inch disc cleaning path, and a 20-gallon tank this scrubber can cover up to 30,645 ft² per hour.

Specifications

Technical Specifications
Cleaning path/width Inch 28
Brush type   Pad
Brush quantity Units 2
Brush diameter Inch 14
Suction bar (squeegee) width Inch 41
Drive   Traction
Solution/recovery capacity Gal 19.8 / 19.8
Theoretical/practical productivity Sq Ft/Hr 30,645 / 19,920
Operating noise level dBA 63
Battery charger   Shelf
Brush contact pressure Lbs 66 – 150
Brush speed RPM 180
Vac motor rating Watts 500
Vac motor suction cfm 51
Waterlift In of Water 64
Weight with batteries Lbs 512 Wet / 556 AGM
Dimensions (LxWxH) Inch 57 x 30 x 42

Models

Technical Specifications
Cleaning path/width Inch 28
Brush type   Pad
Brush quantity Units 2
Brush diameter Inch 14
Suction bar (squeegee) width Inch 41
Drive   Traction
Solution/recovery capacity Gal 19.8 / 19.8
Theoretical/practical productivity Sq Ft/Hr 30,645 / 19,920
Operating noise level dBA 63
Battery charger   Shelf
Brush contact pressure Lbs 66 – 150
Brush speed RPM 180
Vac motor rating Watts 500
Vac motor suction cfm 51
Waterlift In of Water 64
Weight with batteries Lbs 512 Wet / 556 AGM
Dimensions (LxWxH) Inch 57 x 30 x 42

Accessories

Part No. Description
4.762-590.0 Pad drive board, Strong
6.369-003.0 Pad, red, medium-soft (set of 5)
8.663-291.0 Battery, 6V/190 Ah AGM (std. with 9.841-467.0, 4 required)
8.622-835.0 Battery, 6V/185 Ah wet (std. with 9.841-466.0, 4 required)
8.643-374.0 Shelf charger for 190 Ah AGM batteries (std. with 9.841-467.0)
8.644-222.0 Shelf charger for 185 Ah wet batteries (std. with 9.841-466.0)
4.777-108.0 Squeegee, 1030 mm
4.037-144.0 Suction blades, 1030 mm, blue
4.905-010.0 Disc brush, red, medium
4.905-013.0 Disc brush, black, hard
4.905-012.0 Disc brush, natural, soft
4.905-011.0 Disc brush, white, very soft
4.037-145.0 Suction blades, 1030 mm, polyurethane
9.753-088.0 Squeegee transport plate
4.444-015.0 Suction hose accessory
2.644-140.0 Warning beacon add-on kit

■ Included  □ Optional

Literature

Karcher BD Classic Series Product Sheet Product Sheet – Karcher BD Classic Series
