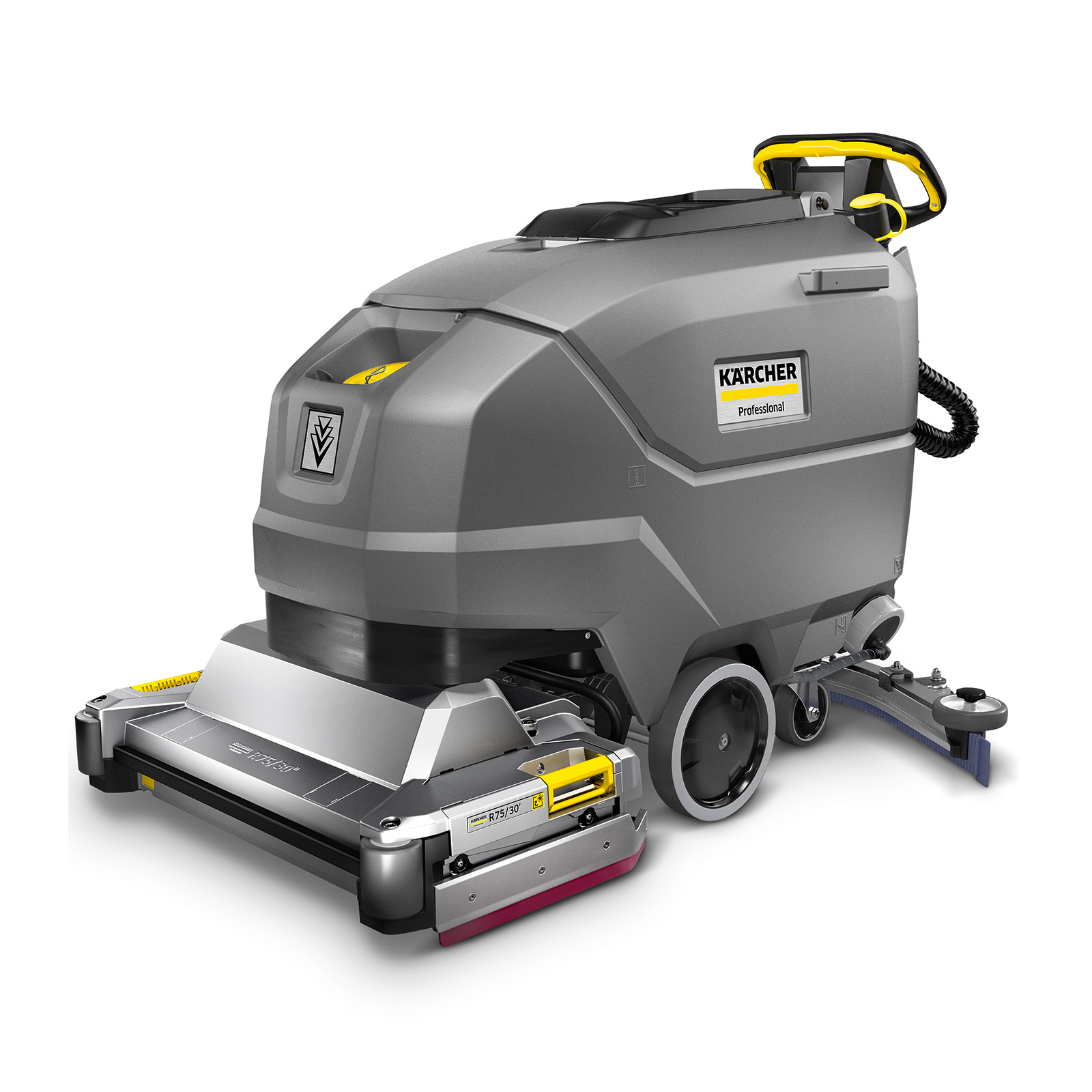

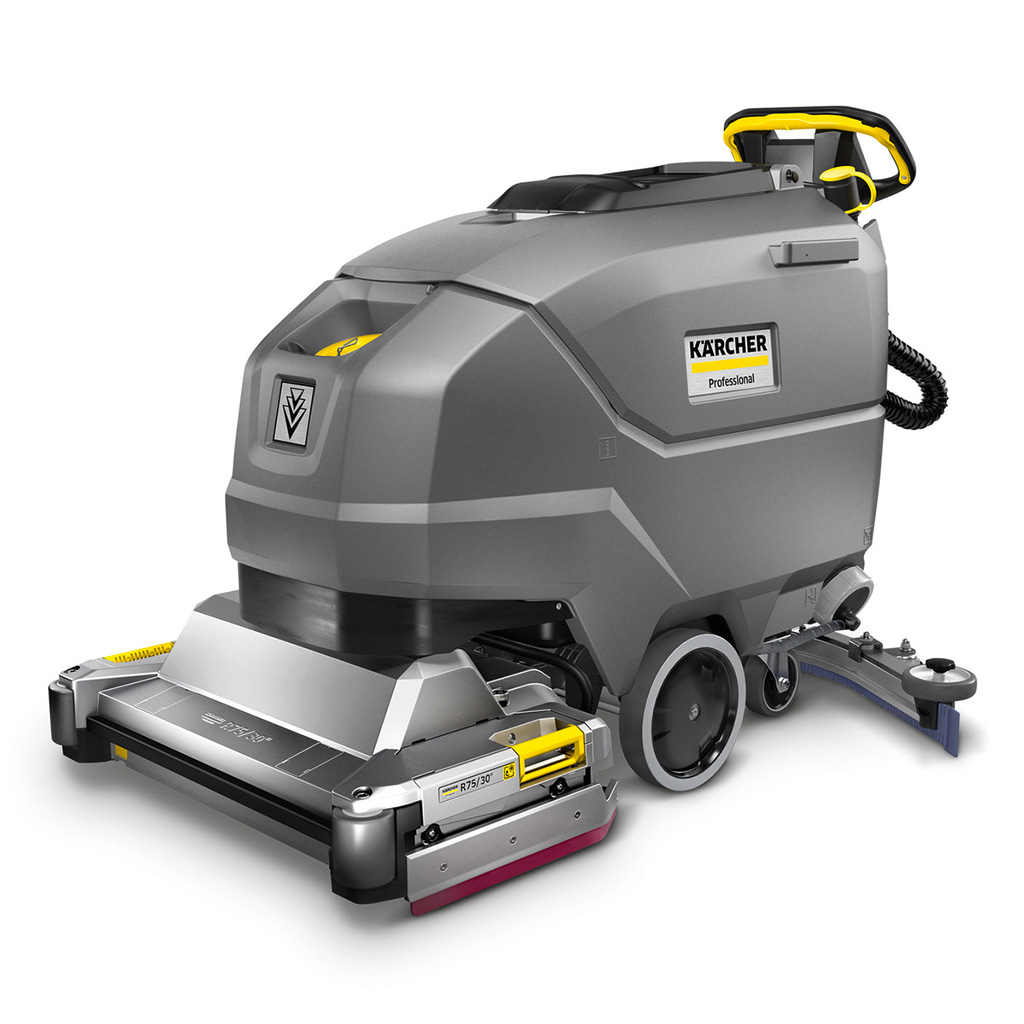

Karcher BR 75/75 W Bp Classic

SKU BR-75/75-W-BP Category
  • 40.5″ Suction Bar
  • 30″ Cleaning Width
  • Traction Drive
  • Adaptable to specific floor type cleaning needs
  • Large aluminum brush deck is tough and durable
  • Wet, AGM and Lithium battery options are available

Karcher

Call to Order

Heavy-duty cleaning made simple.

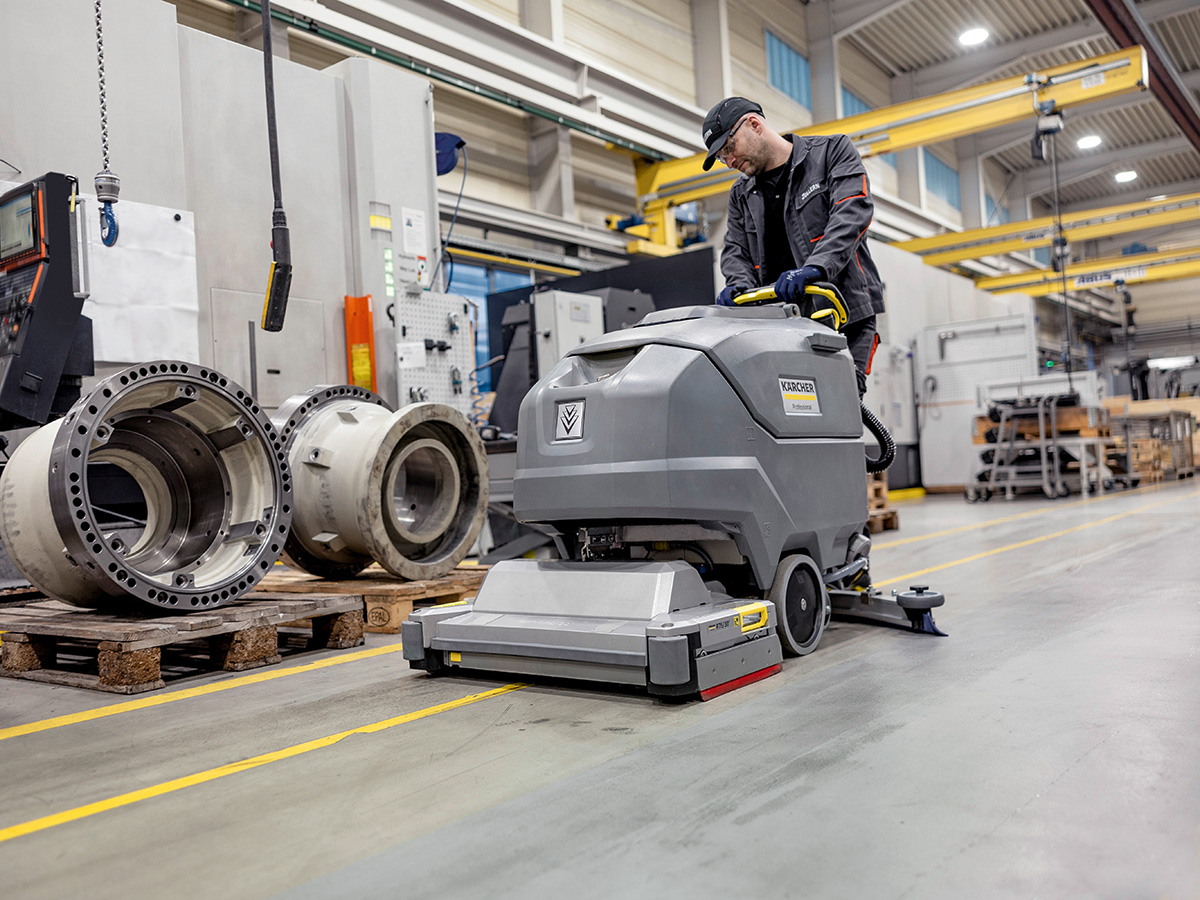

Experience cleaning like never before with the BR 75/75 W Bp Classic, a cylindrical walk-behind scrubber with traction drive, now part of our growing Classic Series family. It’s a powerhouse designed for simplicity, reliability, and ease of use. It can tackle challenging environments with its exceptional cleaning ability and rugged construction. Not only is the BR 75/75 incredibly effective, it’s also incredibly easy to use and maintain. Its durable frame and excellent sight lines makes it highly maneuverable, even able to turn in spaces as narrow as 5.1 feet in width. The die cast aluminum scrub decks and squeegee assemblies provide unbeatable durability, as the increased contact pressure of the cylindrical brushes ensure exceptional cleaning. With the yellow color coding you have come to know from Kärcher, identifying important operator touch points is a breeze. With its 30-inch working width and 40.5-inch suction width this scrubber covers up to 30,645 square feet per hour. Running on a 24V/190Ah battery, it provides up to 4 hours of battery run time, and has a maximum speed of 3.1 mph while cleaning. Get the job done with ease using the BR 75/75 Cylindrical W Bp Classic – a machine that’s simple, powerful and delivers exceptional results every time.

 Carpet and Rug Institute Seal of Approval USGBC Leed Rating

Specifications

Technical Specifications
Cleaning path/width Inch 30
Brush type   Cylindrical
Brush quantity Units 2
Brush diameter Inch 4
Suction bar (squeegee) width Inch 40.5
Drive   Traction
Solution/recovery capacity Gal 19.8 / 19.8
Theoretical/practical productivity Sq Ft/Hr 30,645 / 19,920
Operating noise level dBA 65
Battery charger   Shelf
Brush contact pressure Lbs 66
Brush speed RPM 600
Vac motor rating Watts 500
Vac motor suction cfm 51
Waterlift In of Water 64
Weight with batteries Lbs 512 wet / 556 AGM
Dimensions (LxWxH) Inch 57 x 30 x 42

Models

Part No Description
9.848-458.0 BD 75/75 W Bp Classic, 185 Ah wet batteries, shelf charger
9.848-459.0 BD 75/75 W Bp Classic, 195 Ah AGM batteries, shelf charger
9.848-460.0 BD 75/75 W Bp Classic, 114 Ah Lithium battery, shelf charger

Accessories

Part No. Description
8.663-291.0 Battery, 6V/190 Ah AGM (std. with 9.841-467.0, 4 required)
8.622-835.0 Battery, 6V/185 Ah wet (std. with 9.841-466.0, 4 required)
8.643-374.0 Shelf charger for 190 Ah AGM batteries (std. with 9.841-467.0)
8.644-222.0 Shelf charger for 185 Ah wet batteries (std. with 9.841-466.0)
4.777-108.0 Squeegee, 1030 mm
4.037-144.0 Suction blades, 1030 mm, blue (standard)
4.035-605.0 Cylindrical red brush, 30-inch
4.037-145.0 Suction blades, 1030 mm (polyurethane)
9.753-088.0 Squeegee transport plate
2.644-140.0 Warning beacon add-on kit
2.763-047.0 R 75 Aluminum brush head, cylindrical, 30 inch
6.907-729.0 Cylindrical white brush, soft, 30-inch
6.907-730.0 Cylindrical orange brush, high-low for grout, 30-inch
6.907-731.0 Cylindrical green brush, hard, 30-inch
6.907-732.0 Cylindrical black brush, very agressive, 30-inch
5.035-488.0 Home Base kit (adapter and cable hook)
6.980-077.0 Double Hook (requires 5.035-488.0)
4.035-406.0 Home Base kit carrying case
6.980-078.0 Mop Clip (requires 5.035-488.0)
6.980-080.0 Bottle Hook (requires 5.035-488.0)
4.070-075.0 Universal hook

■ Included  □ Optional

Literature

Karcher BD Classic Series Product Sheet Product Sheet – Karcher BD Classic Series
