Hotsy TR-3500

SKU 1.103-847.0 Category

Hotsy TR-3500

SKU 1.103-847.0 Category

Custom Configuration Trailer Package

  • 200 Gallon Water Tank
  • Single Axle rated to 3500 pounds
  • Swivel Jack Tongue Assembly
  • Electric Brakes

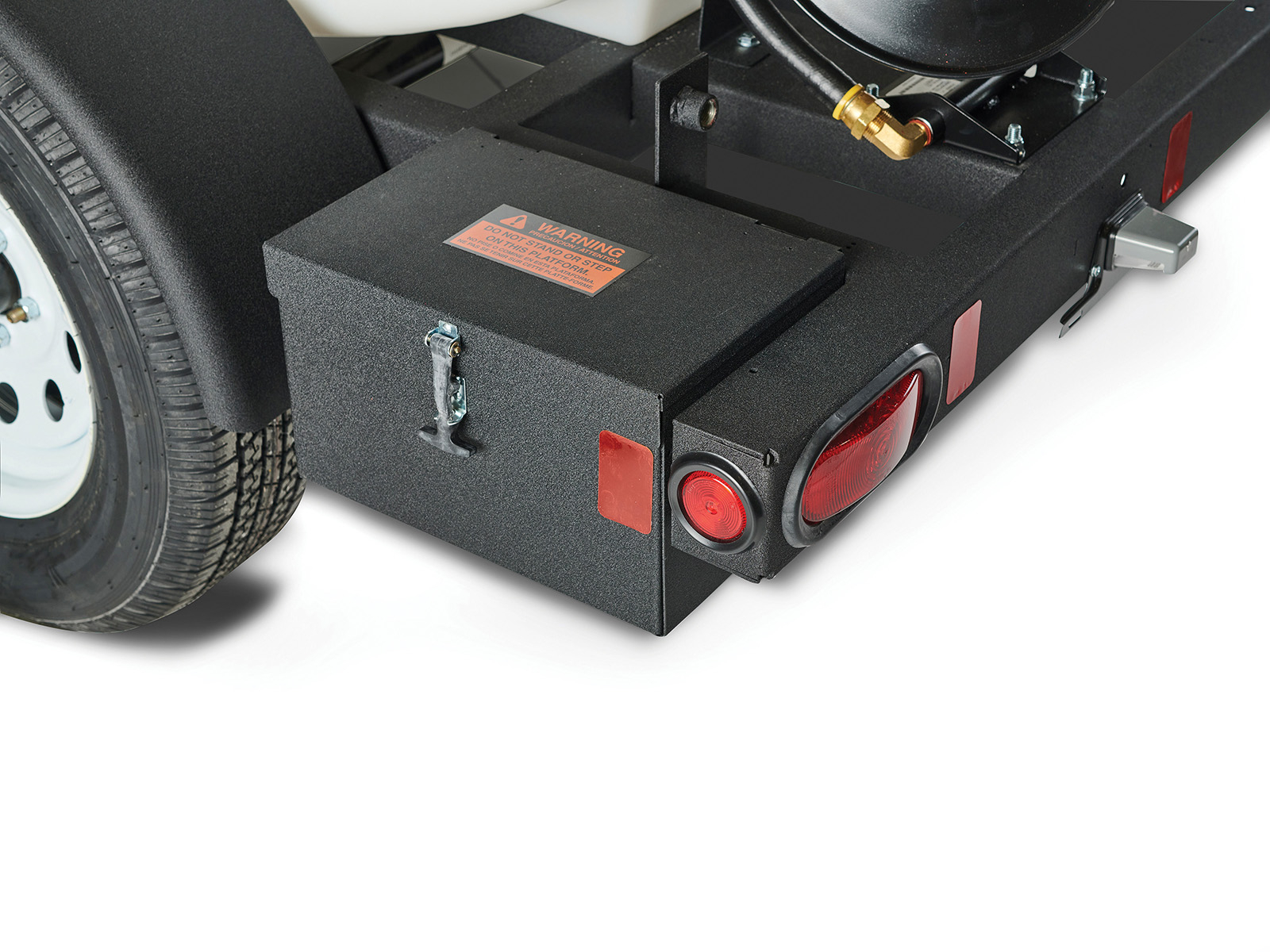

  • Dual Saddle Boxes

Model shown may include optional features

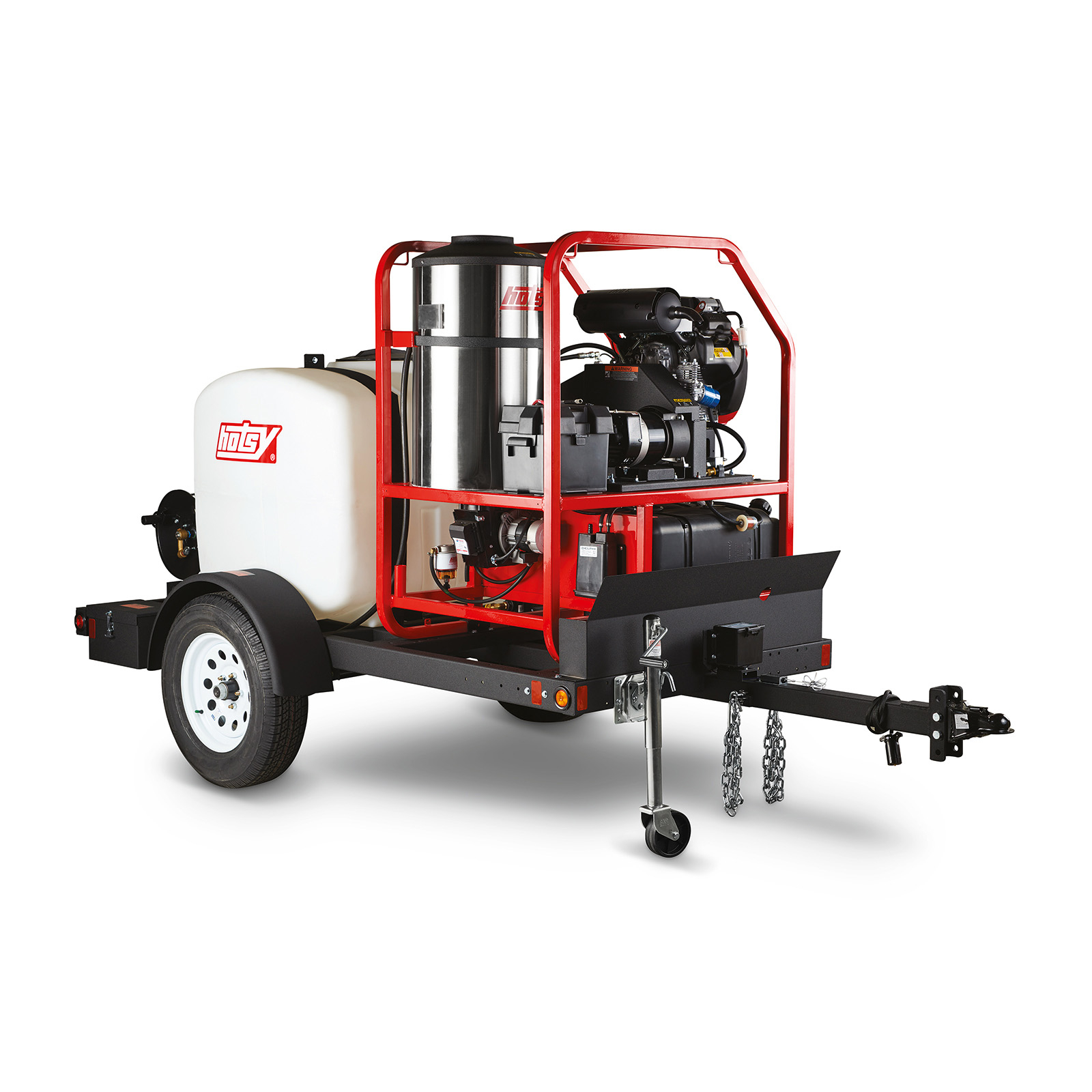

The Hotsy TR-3500 trailer system is the next generation of on the go industrial cleaning. Clean in mobile wash bays, construction sites, remote job sites and more – anywhere, any place, anytime. This trailer will let you clean anywhere.

Its heavy duty axle, rated to handle 3500 lbs of equipment and water supply, allows you to securely bring all you need for every cleaning challenge. The heavy-duty chassis is made of durable 10 gauge steel; 2-by-4 inch formed channel design covered with powder-coated wrinkle black finish for weather protection. The high-density white polyethylene water tank with 200 gallon capacity features a 7″ access port plus a 1″ float valve and 50-mesh outlet filter. 3-way ball valve allows for the water flow to be diverted from the holding tank to a direct water feed from a hose faucet. The standard configuration includes the 15-inch white spoke wheel assembly, electric brakes, a break-away kit and dual saddle boxes. Options include rear-mounted hose reels, couplers, rock guard, and hydraulic brakes.

Select a trailer and add one of these pressure washer models:

  • Gas Engine (GEBD) Series
  • 1200 Series


Model Part No. Dimensions (LxWxH) GVWR Water Tank GAWR
TR-3500 1.103-847.0 136″ x 66″ x 52″ 3500 lbs. 200 gal. Single 3500 lbs.
Wheels Jack Jack Capacity Ball Coupler Safety Chains Lighting
15″ White Spoke Wheels, ST205/75D15 Tires Swivel Wheel w/ Caster Foot 1000 lbs. 2″ Dual 5/16″ DOT Approved Recessed


Part No. Description
8.931-496.0 Brakes, Hydraulic

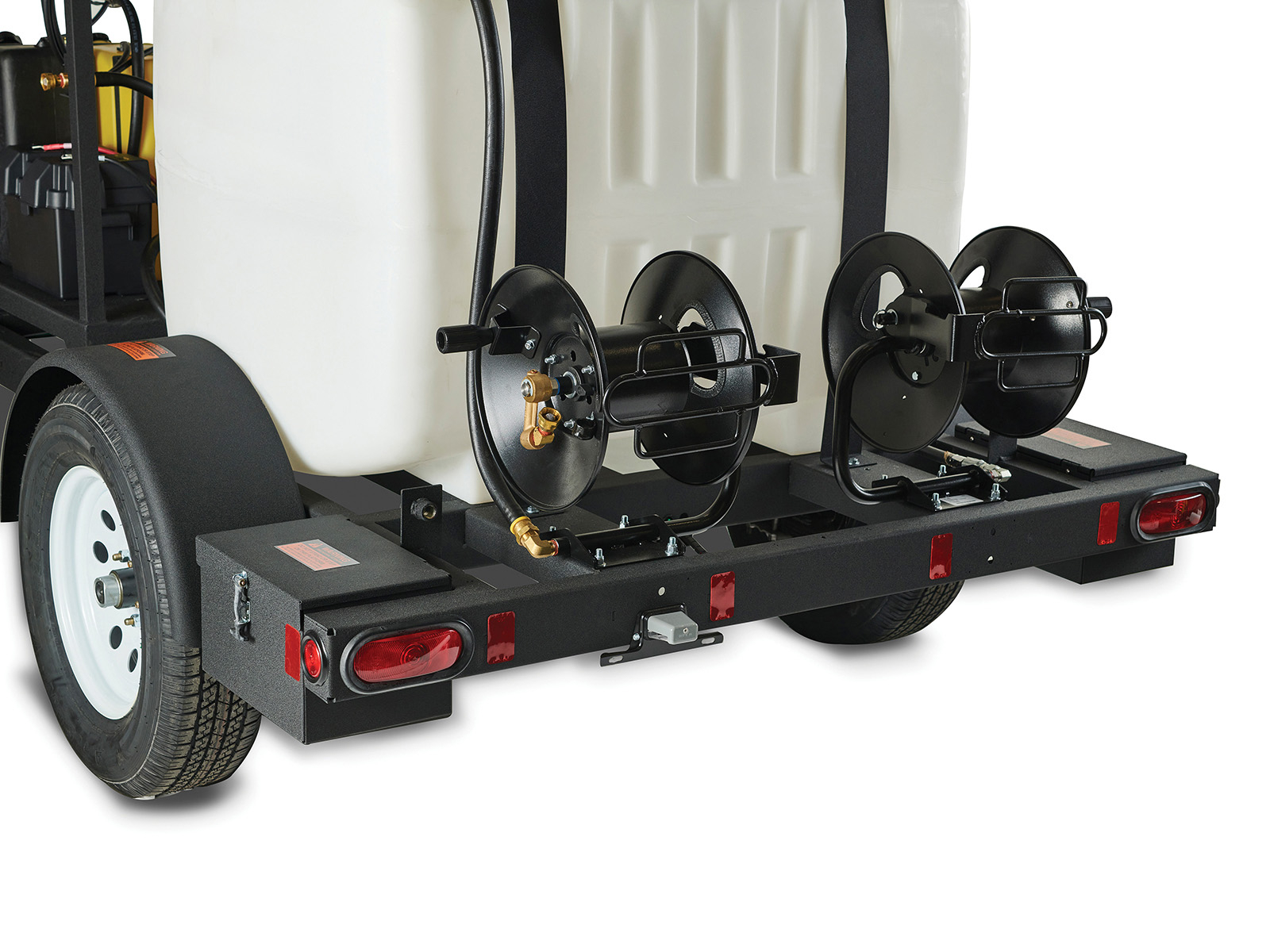

8.917-554.0 100 ft. High Pressure Hose Reel
8.917-555.0 100 ft. Low Pressure Hose Reel
8.931-506.0 Rock Guard with Wand Holder
8.924-493.0 2-5/16″ Ball Hitch Coupler (adjustable height)
8.924-368.0 3″ Lunette Eye Coupler
8.904-051.0 Battery Installed on Pressure Washer
8.917-290.0 Assembly Mounting* (for 1200 Series)
8.917-291.0 Assembly Mounting* (for 965B, 1075BE & 1080BE)

*Required when purchasing a pressure washer and trailer package; NOT available for trailer only purchases.

Factory Installed Option: Must be ordered with the machine. Installed at the factory.

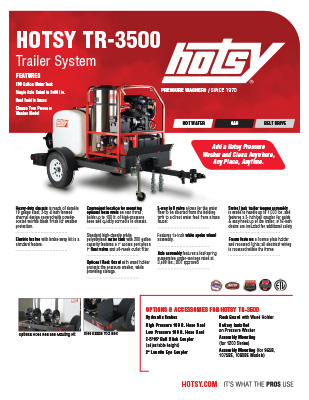

Hotsy TR-3500 Product Sheet Product Sheet – Hotsy TR-3500
